Product Description

📋 Basic Information

Model NO.

PDC51

Characteristic

High Hardness

Purity

99.9%

Color

Black

Shape

Round

Certificate

ISO9001

Delivery Time

3-5 Business Days

Transport Package

Plastic, Bottle, Carton

Specification

13mm, 16mm, 19mm

HS Code

8209009000

💎 PDC Cutters Overview

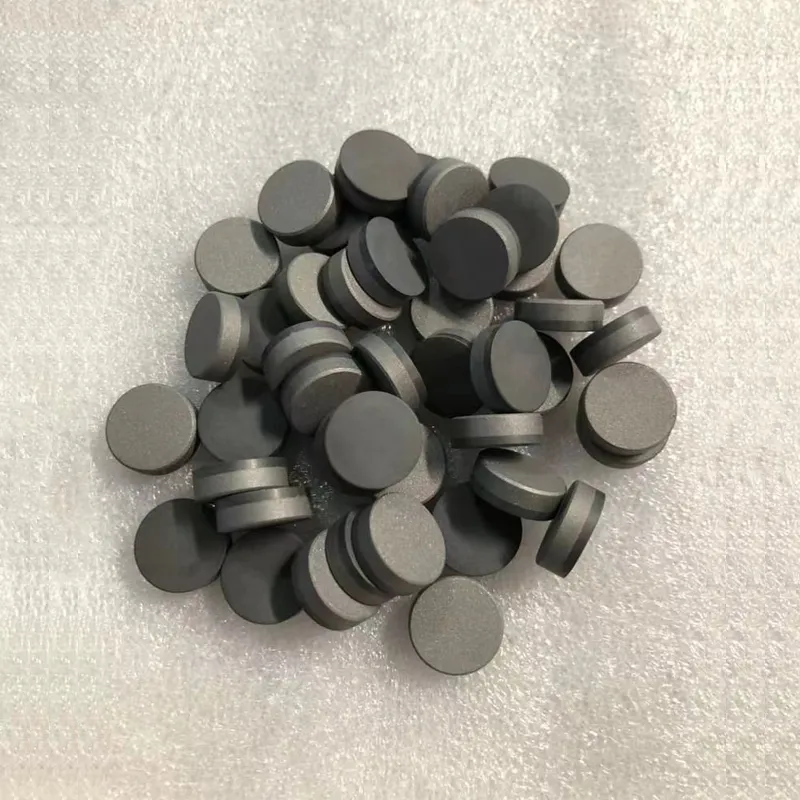

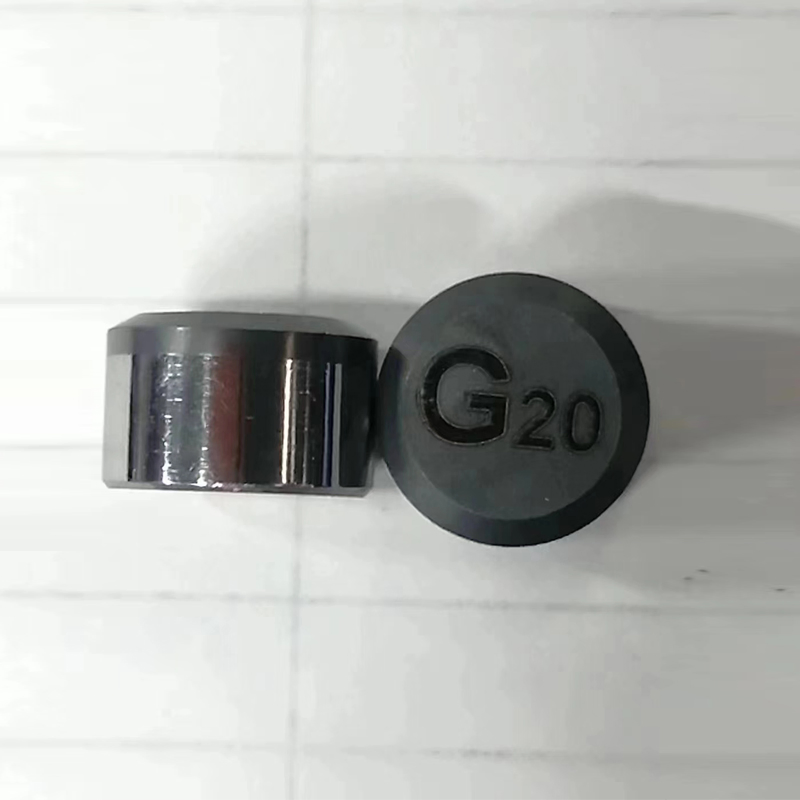

PDC (Polycrystalline diamond compact) Cutters are composed of a polycrystalline diamond layer and a tungsten carbide substrate. The diamond layer possesses extremely high hardness and abrasion resistance, while the tungsten carbide substrate greatly improves the malleability and weldability of the whole composite. These are widely used in oil well drilling, geological exploration, coalfield mining, and the mechanical industry.

Material: PDC (Polycrystalline Diamond Composite)

Diameters: 13mm, 16mm, 19mm

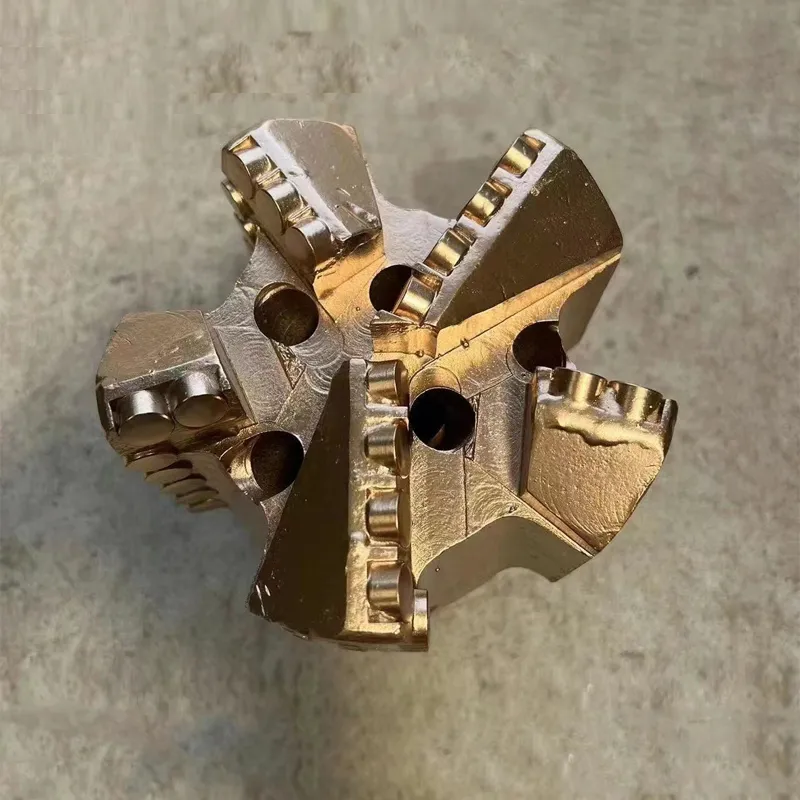

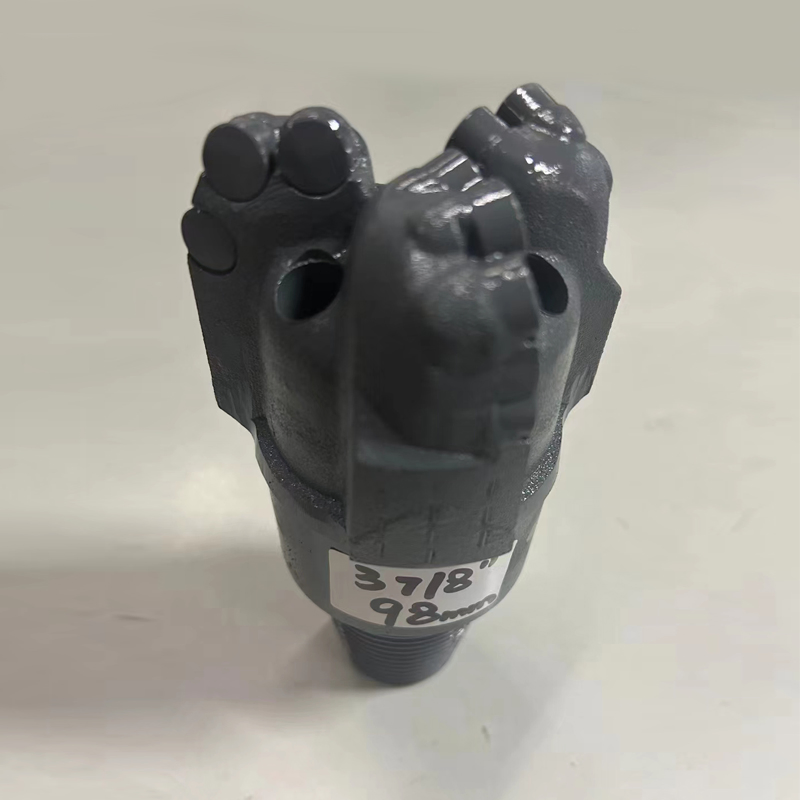

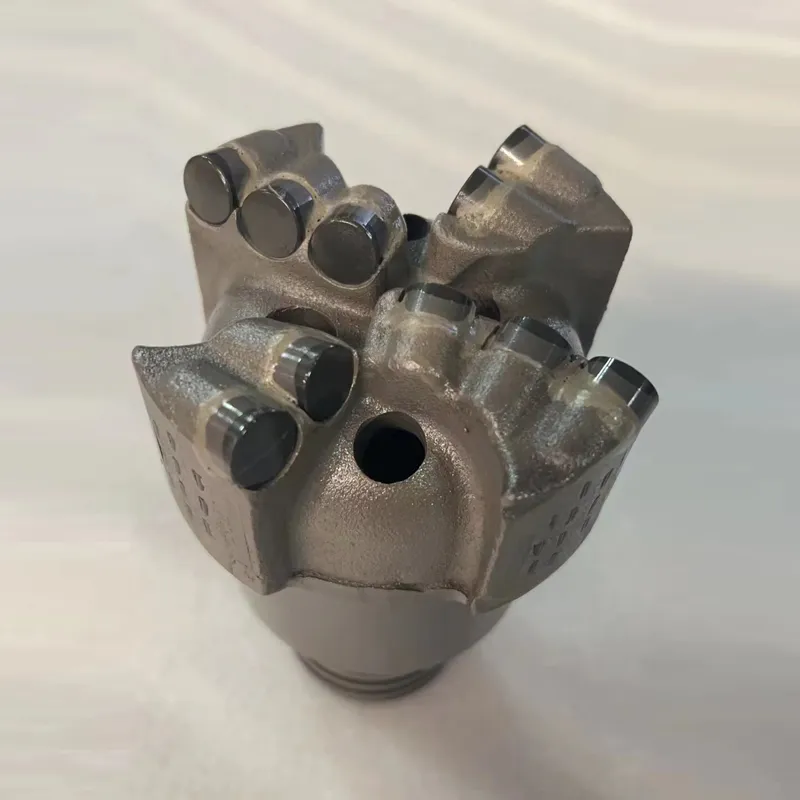

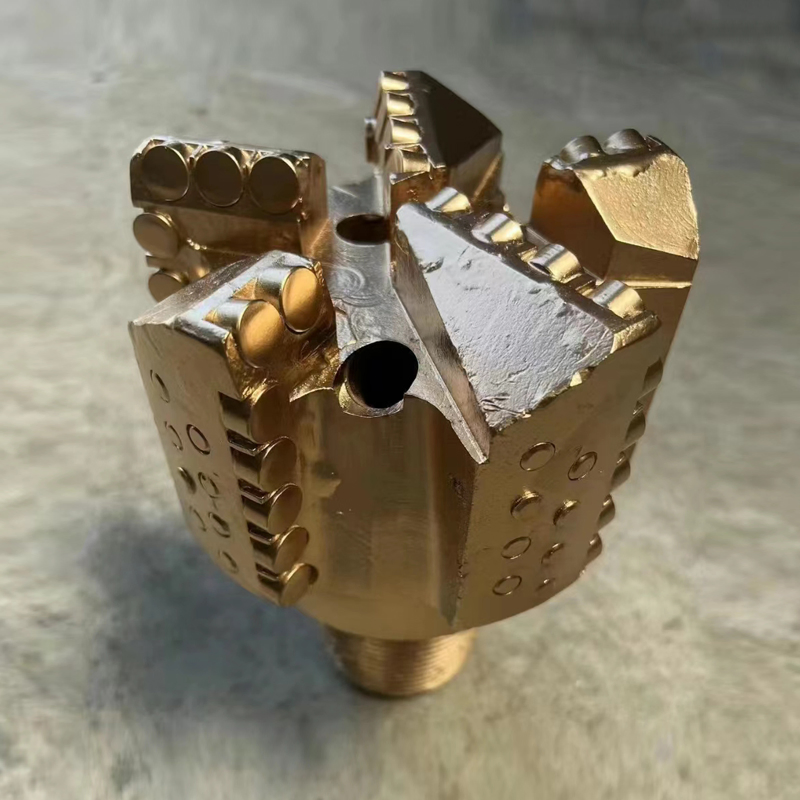

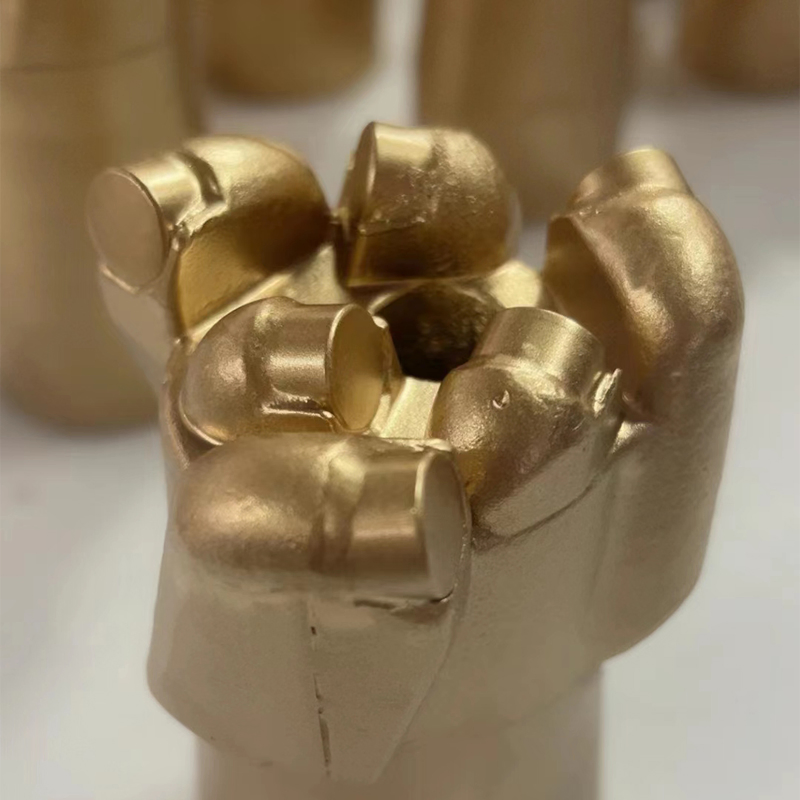

Tools: PDC Drill Bits, PDC Reamers

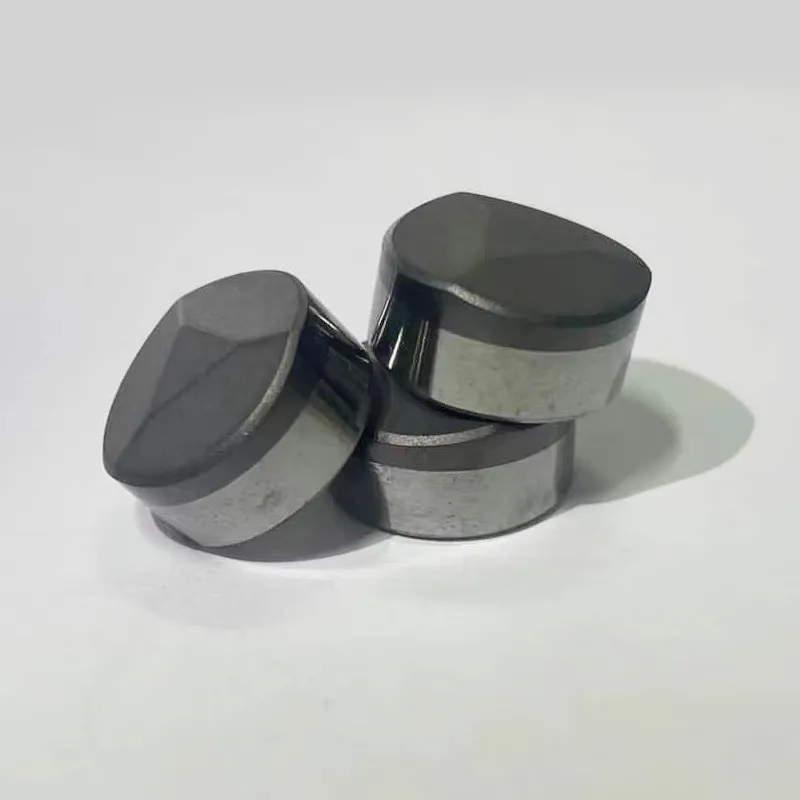

Types: Flat, Convex, Helmet, Ridge, Half cut

Our PDC cutter inserts are suitable for soft to hard geological terrane. We offer various claw structures and chamfer types, with options for grinding and polishing based on specific customer requirements.

📏 Available Dimensions

Item Type	Diameter	Height	Diamond Thickness	Diamond Chamfer	Carbide Chamfer
0808	8.2±0.03mm	8.2±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1008	10±0.03mm	8.2±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1304	13.4±0.05mm	4.5±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1308	13.4±0.05mm	13.4±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1313	13.4±0.05mm	13.4±0.03mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1608	15.9±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1613	15.9±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1908	15.9±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1913	19.1±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°
1916	19.1±0.05mm	15.9±0.05mm	2.0±0.02mm	0.3mmX45°	0.5mmX45°

🚀 Features & Applications

Key Features:

Super high hardness
Strong impact & abrasion resistance
Smooth surface & high efficiency
Fast drilling speed & long life

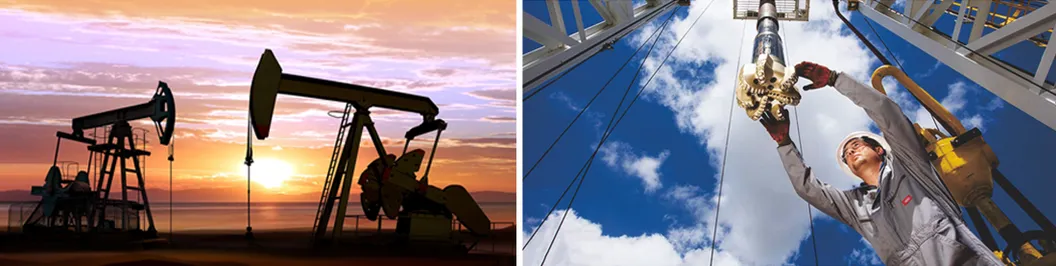

Primary Applications:

Stone quarrying (especially marble)
Oil, coal, and well drilling
Street drilling projects
Geological exploration

💡 Selection Method

Large cutters (16-19mm) are more aggressive than small cutters (8-13mm) but may increase torque fluctuations. Small cutters (8mm, 10mm, 13mm) provide higher cutter density, enabling them to withstand higher impact loading and often achieving a higher ROP (Rate of Penetration) in applications like limestone.

Additionally, large cutters produce larger cuttings, which requires efficient drilling fluid to carry the debris. We maintain consistent quality across all sizes, with our 16mm and 19mm cutters competing with premium industry standards.

❓ Frequently Asked Questions

What is the composition of a PDC cutter?

PDC cutters consist of a polycrystalline diamond layer bonded to a tungsten carbide substrate, combining extreme hardness with high weldability.

Which industries typically use these cutters?

They are primarily used in oil and gas drilling, coal mining, stone cutting (like marble quarrying), and geological exploration.

How do I choose between large and small cutters?

Large cutters (16-19mm) are more aggressive, while smaller cutters (8-13mm) offer higher stability and better impact resistance in certain hard formations.

What shapes of PDC cutters are available?

We offer multiple shapes including flat face, convex face, helmet face, ridge face, and half-cut types to suit different drilling needs.

What is the typical delivery time for an order?

Standard delivery time is usually between 3 to 5 business days, depending on the specific requirements and stock availability.

Are the cutters certified for quality?

Yes, the products are manufactured under ISO9001 certification standards to ensure high performance and consistency.
