Elliott Cutters
1 / 5

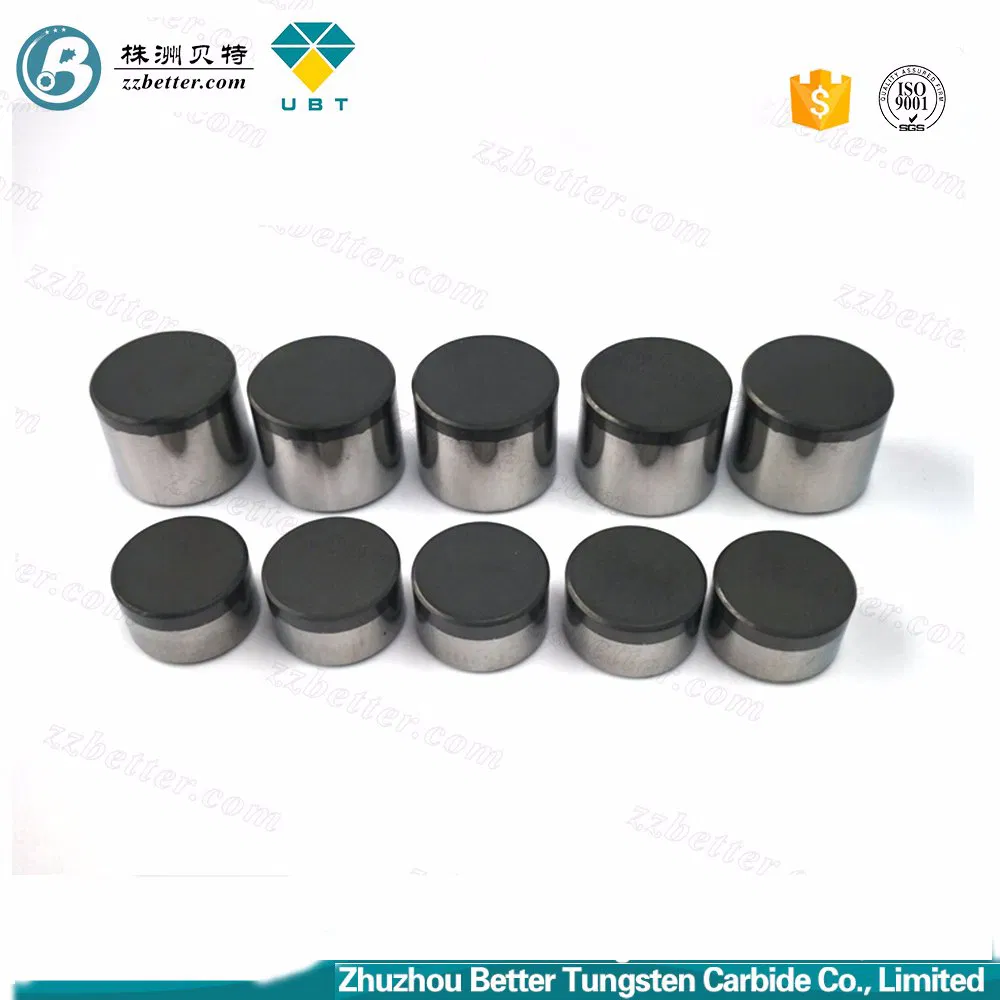

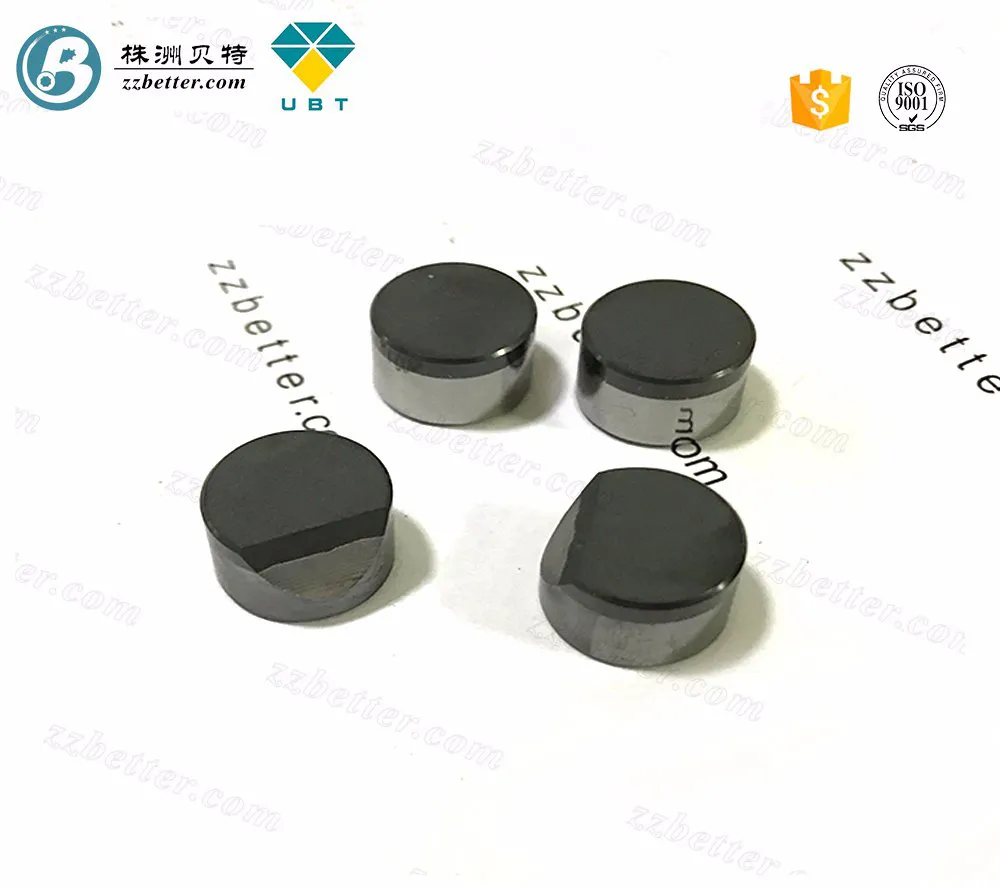

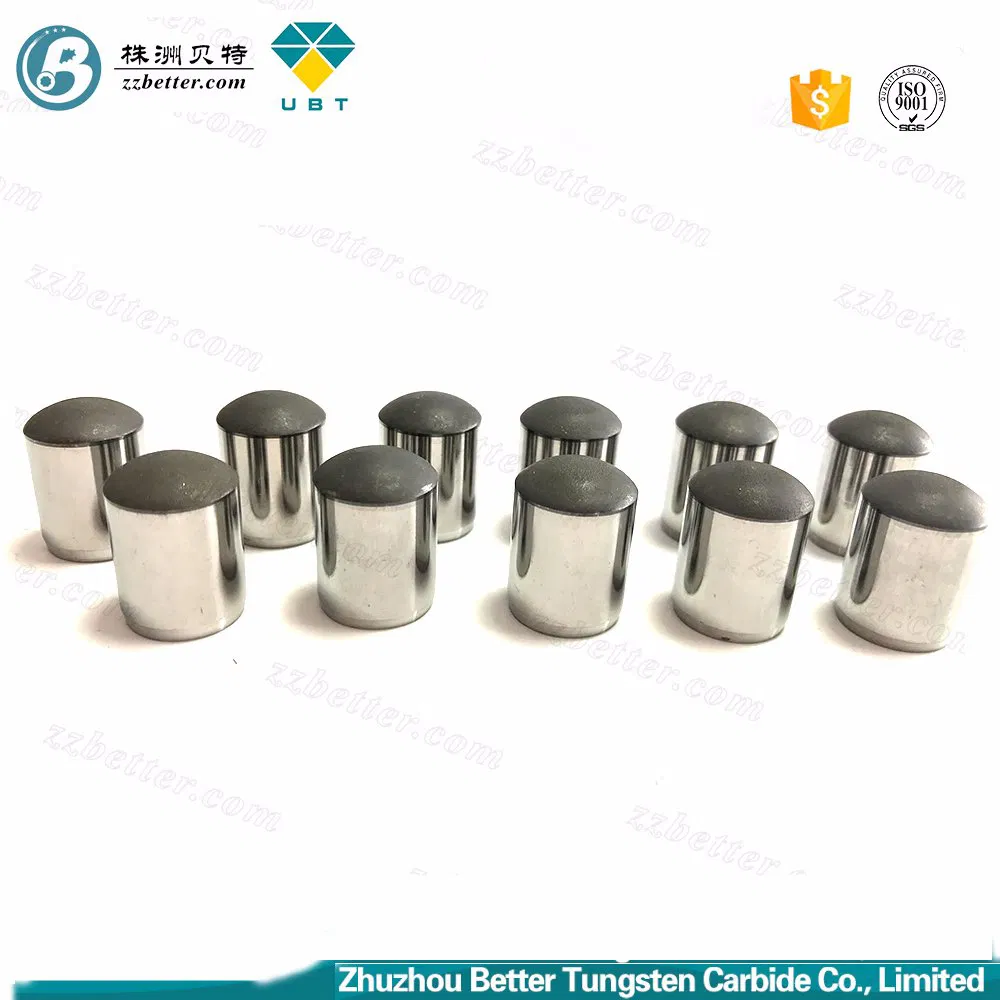

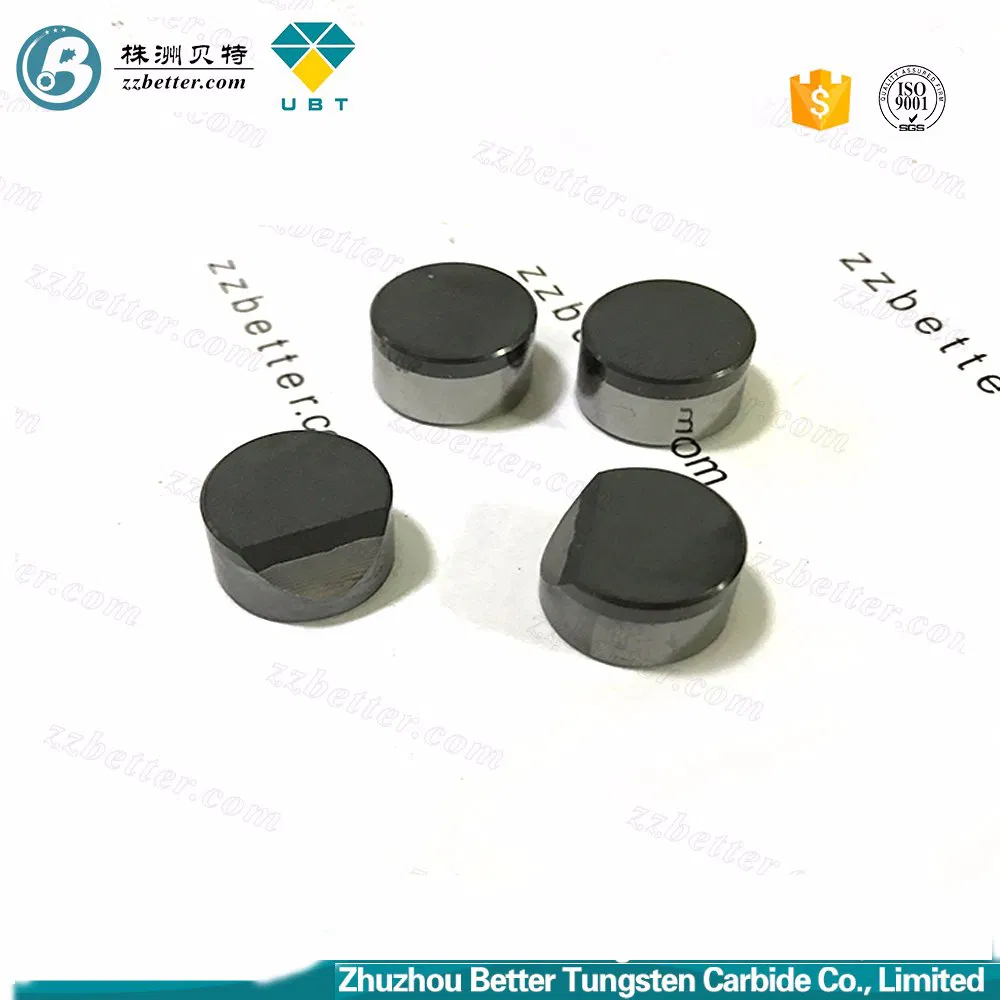

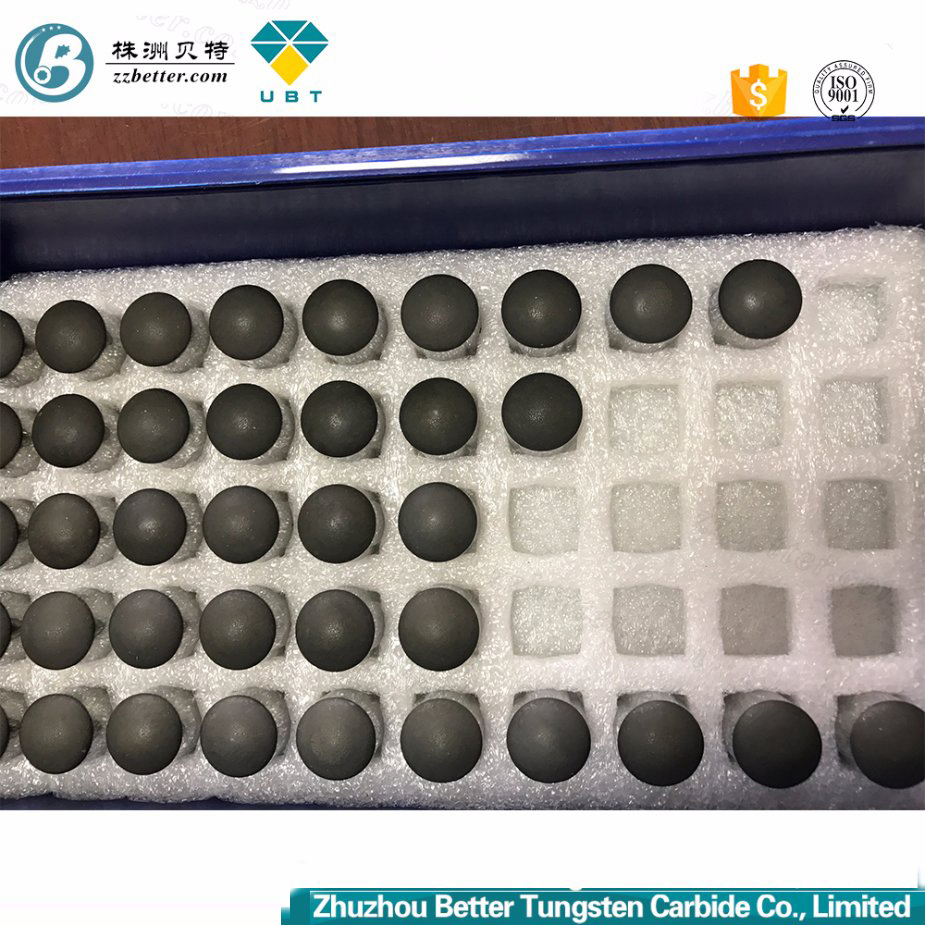

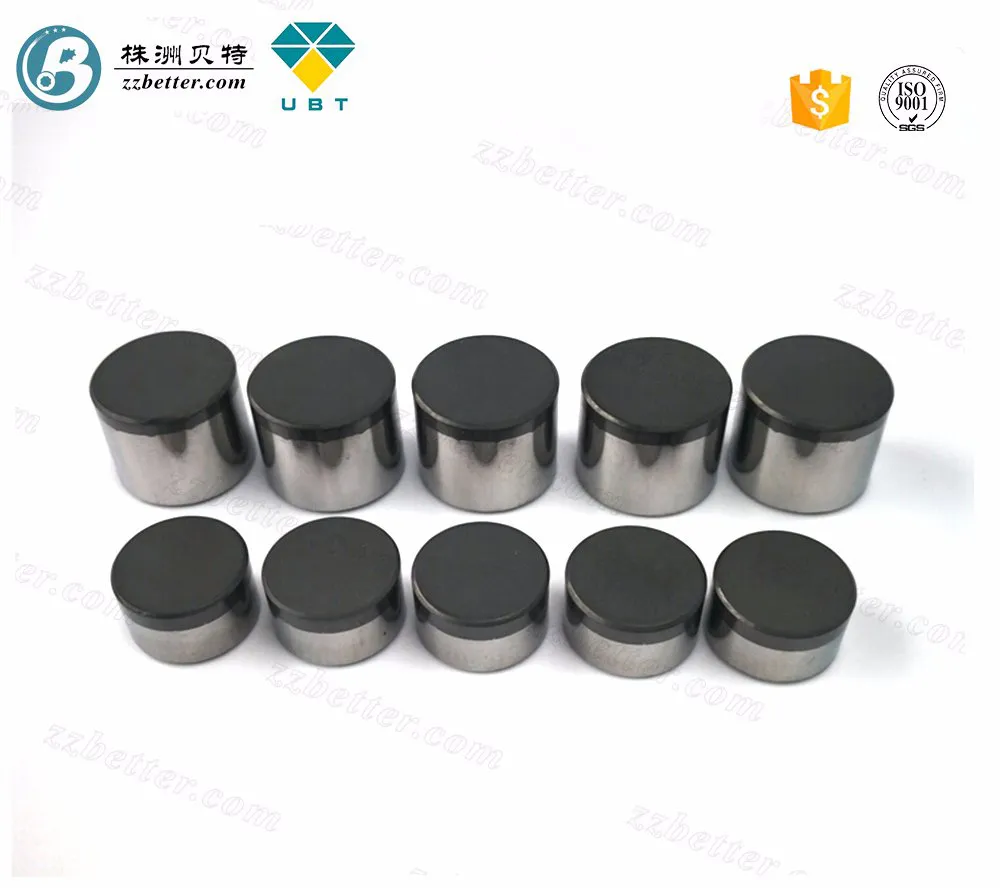

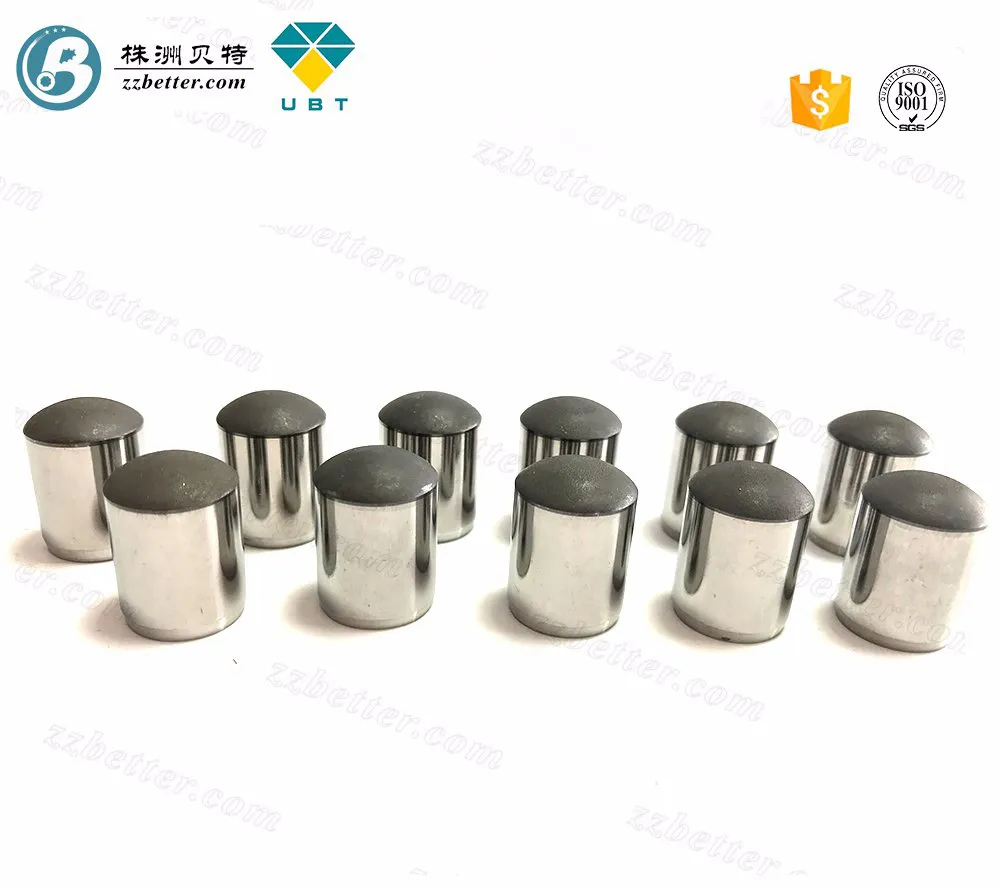

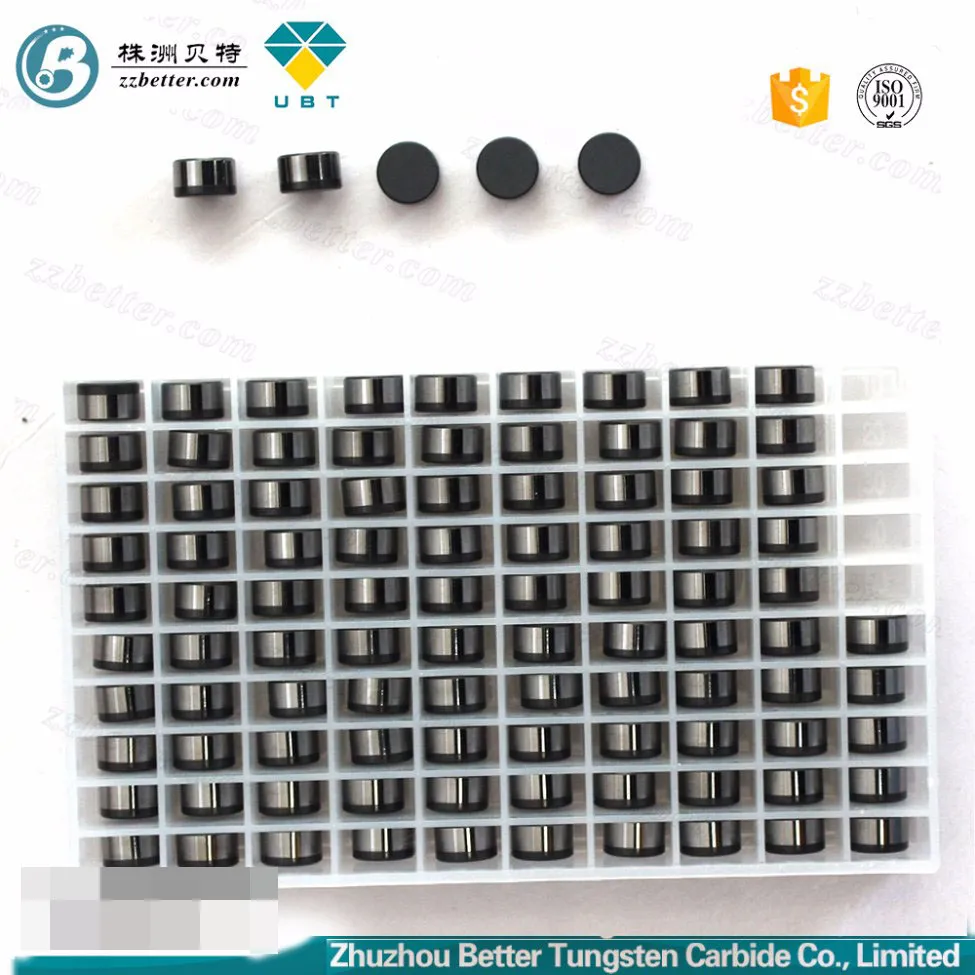

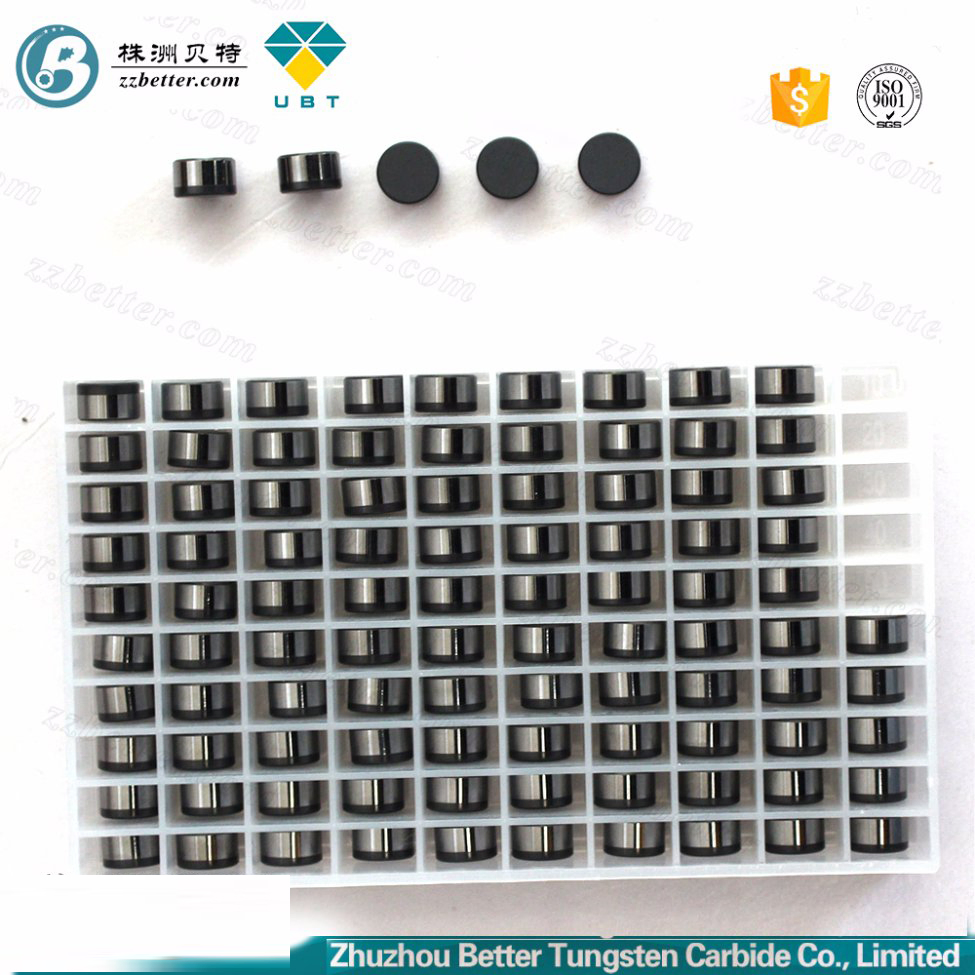

PDC cutters designed for embedding into oilfield drilling bits are sintered under extremely high pressure and temperature conditions. This high-performance material is composed of premium diamond and Tungsten Carbide. To ensure superior quality, advanced technical formulas and synthetic techniques are utilized to provide maximum durability and efficiency.
| Item | Diameter(D) | Height(H) | Diamond Layer(E) | Diamond Chamfer(α) | Tungsten Carbide Chamfer(β) |
| PDC1-1 | 13.44mm | 8.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-2 | 13.44mm | 13.20mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-3 | 16.00mm | 8.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-4 | 16.00mm | 13.20mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-5 | 16.00mm | 16.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-6 | 19.05mm | 8.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-7 | 19.05mm | 13.20mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-8 | 19.05mm | 16.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
| PDC1-9 | 19.05mm | 19.00mm | 1.80-2.50mm | 0.4mm*45° | 0.50mm*45° |
