Diamond Polycrystalline PDC Oil Bit Cutter

Customization:	Available
Certification:	ISO 9001:2008
Surface Treatment:	Polishing

Send Inquiry

Product Description

Basic Information

⚙️

Manufacturing:Sintering

💎

Material:Tungsten Carbide and Diamond

🛠️

Product Name:Diamond Polycrystalline PDC Oil Bit Cutter

🛢️

Application 1:Oil Drilling Field

⛏️

Application 2:Mining and Engineering

📦

Capacity:50000PCS/Month

Product Description

Diamond Polycrystalline PDC Oil Bit Cutter

Polycrystalline diamond cutters (PDC) comprise a polycrystalline diamond (PCD) top layer integrally sintered onto a tungsten carbide substrate using a high-pressure, high-temperature (HPHT) process.

PDC cutters are sintered with selected diamond powder and tungsten carbide compact. They offer extreme hardness, superior abrasion resistance, and high impact resistance. These PDC buttons and bits are widely utilized for oil and gas well drill bits, geological exploration, and mining operations. Furthermore, PDC cutters serve as high-performance cutting tools for precision diamond cutting, grinding, and polishing.

Standard sizes include 1304, 1308, 1313, 1608, 1613, 1616, 1908, 1913, 1916, and 1919mm. Custom sizes and specific shapes can be manufactured according to your technical requirements.

Technical Specifications

1. Oilfield Drilling PDC Cutters Spec Sheet

Dimension Code	Diameter (D)	Total Height (H)	Diamond Height	Diamond Chamfer	Carbide Chamfer
1916	19.05 +/-0.05	16.0 +/-0.10	2.0-2.5	0.5x45	0.5x45
1913	19.05 +/-0.05	13.2 +/-0.10	2.0-2.5	0.5x45	0.5x45
1613	15.88 +/-0.03	13.2 +/-0.10	2.0-2.5	0.3x45	0.5x45
1610	15.88 +/-0.03	10.0 +/-0.10	2.0-2.5	0.3x45	0.5x45
1313	13.44 +/-0.03	13.2 +/-0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/-0.03	8.0 +/-0.10	2.0-2.5	0.3x45	0.5x45

2. Mining/Shallow Oil & Gas PDC Cutters Spec Sheet

Dimension Code	Diameter (D)	Total Height (H)	Diamond Height	Diamond Chamfer	Carbide Chamfer
1313	13.44 +/-0.03	13.2 +/-0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/-0.03	8.0 +/-0.10	2.0-2.5	0.3x45	0.5x45
1304	13.44 +/-0.03	4.5 +/-0.10	2.0-2.5	0.3x45	0.5x45
1010	10.00 +/-0.03	10.0 +/-0.10	2.0-2.5	0.3x45	0.5x45
1004	10.00 +/-0.03	4.5 +/-0.10	2.0-2.5	0.3x45	0.5x45
810	8.00 +/-0.03	10.0 +/-0.10	2.0-2.5	0.3x45	0.5x45
804	8.00 +/-0.03	4.5 +/-0.10	2.0-2.5	0.3x45	0.5x45

Product Display

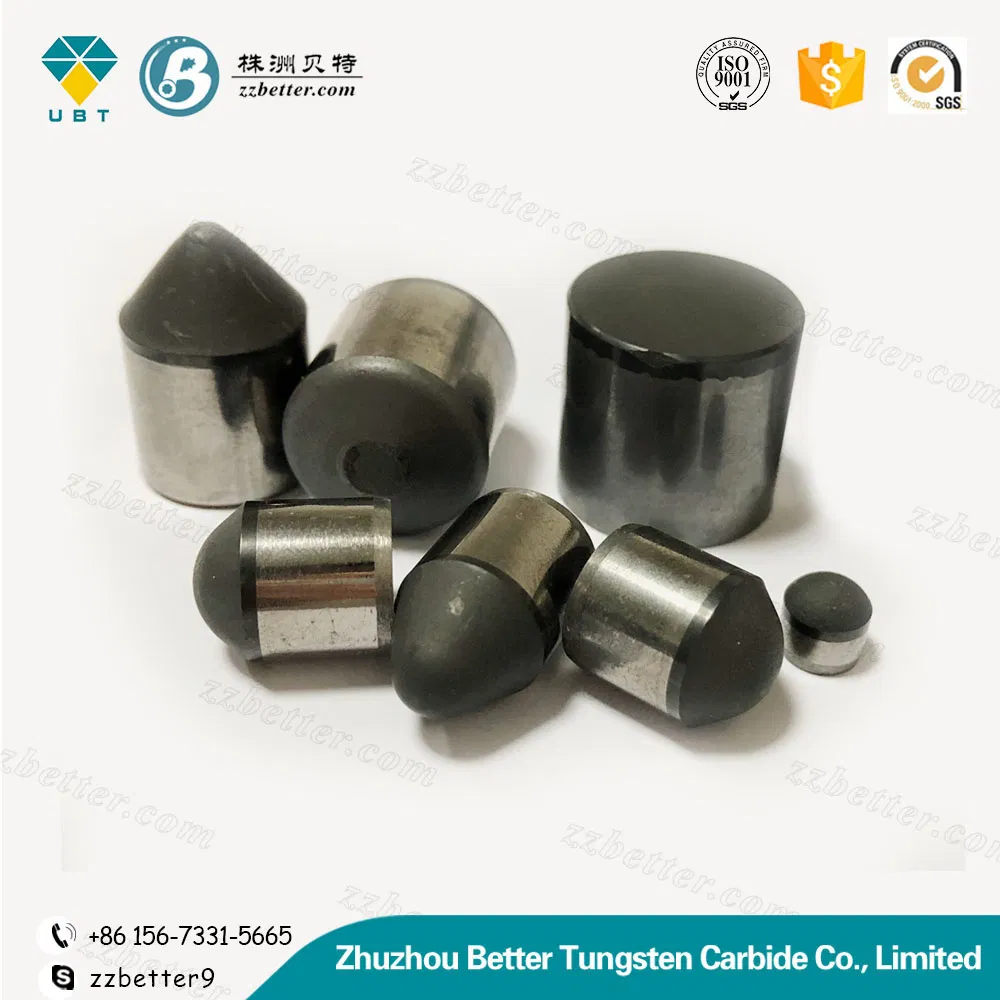

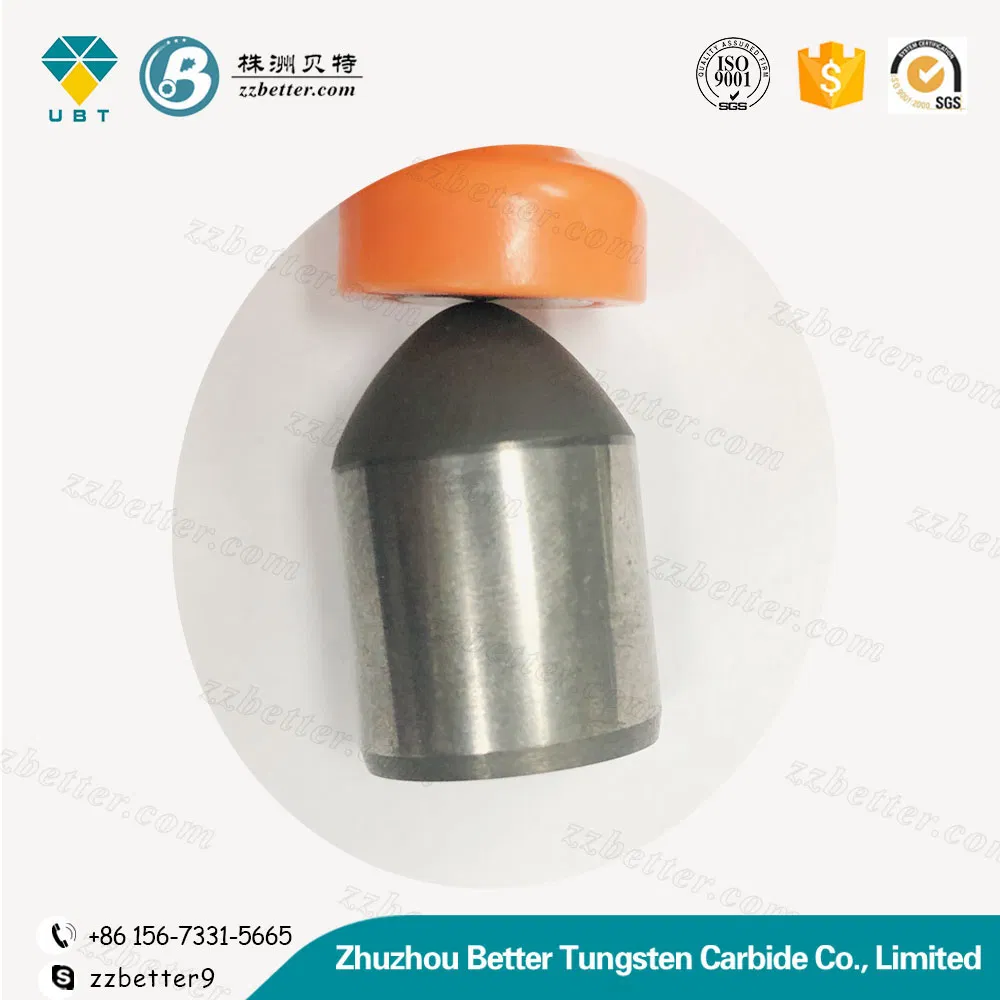

Diamond Polycrystalline PDC Oil Bit Cutter 1

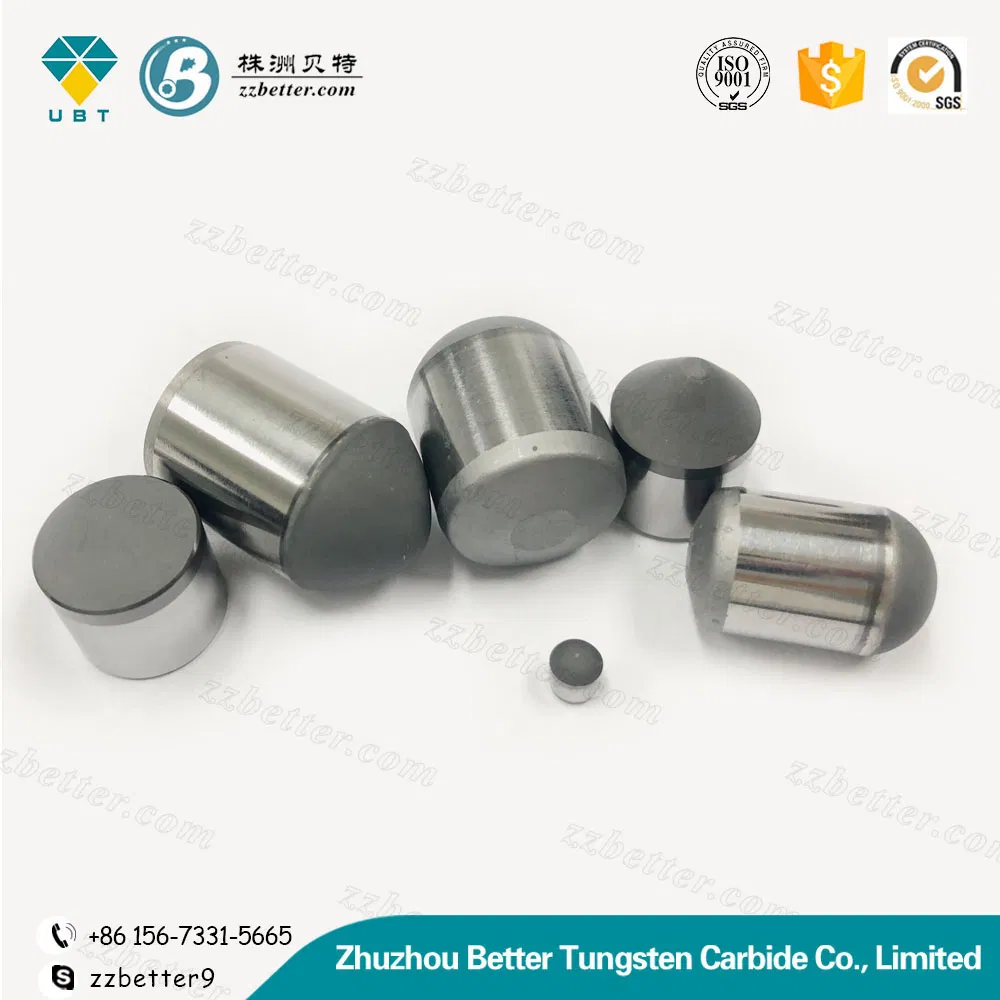

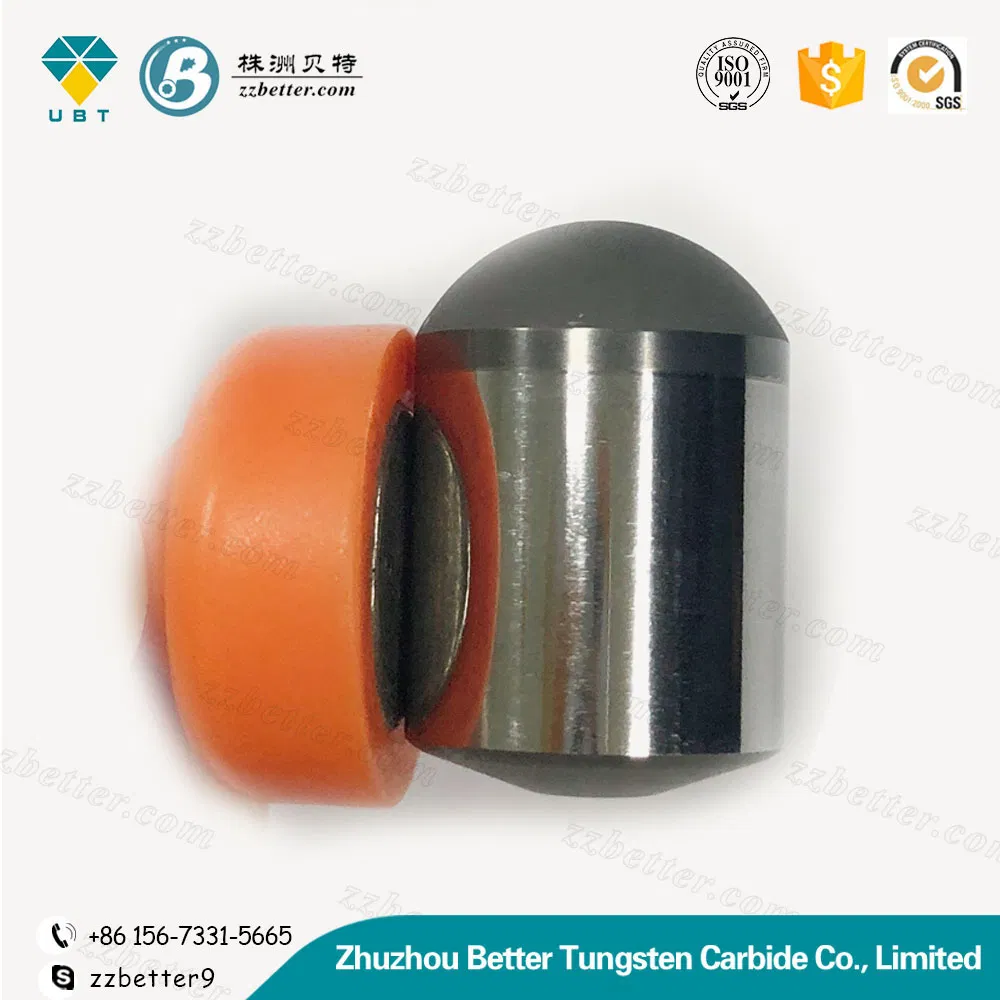

Diamond Polycrystalline PDC Oil Bit Cutter 2

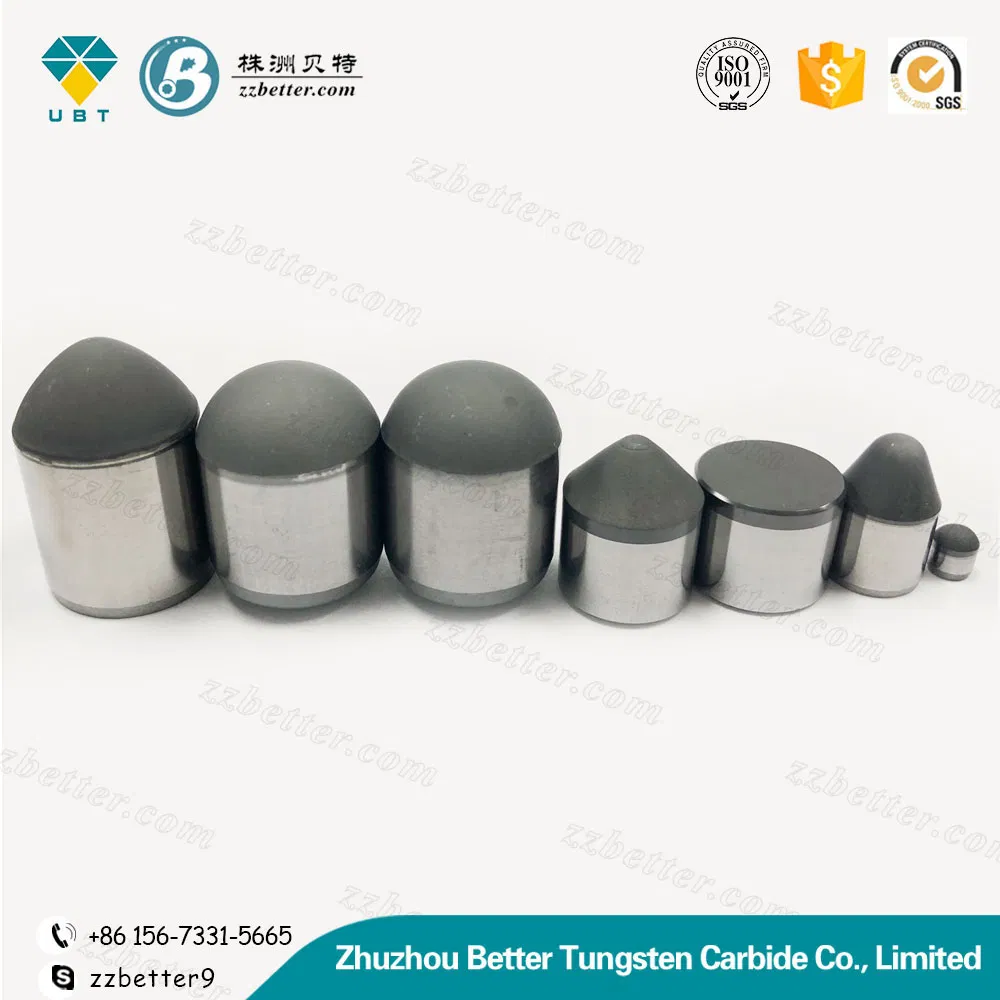

Diamond Polycrystalline PDC Oil Bit Cutter 3

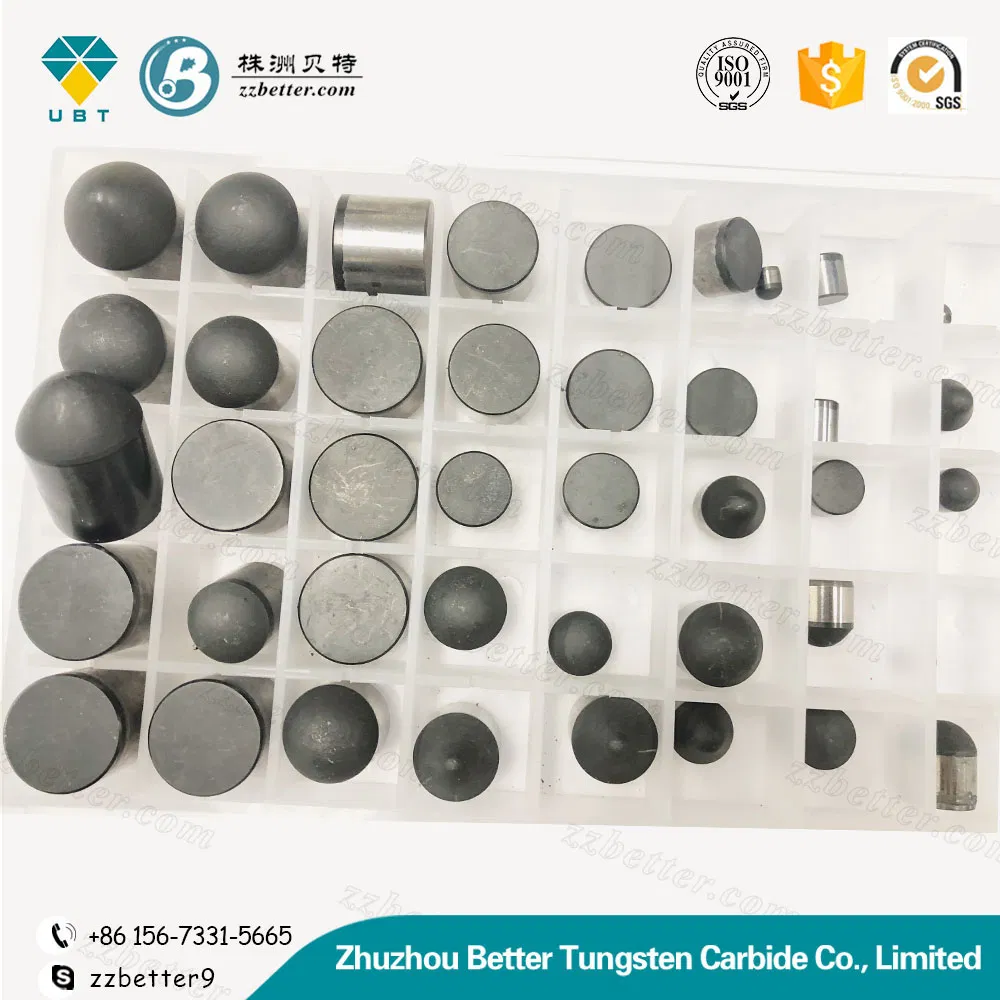

Diamond Polycrystalline PDC Oil Bit Cutter 4

Diamond Polycrystalline PDC Oil Bit Cutter 5

Frequently Asked Questions

❓ What is a PDC cutter?

A Polycrystalline Diamond Compact (PDC) cutter consists of a polycrystalline diamond top layer sintered onto a tungsten carbide substrate under high temperature and ultra-high pressure.

❓ What are the primary advantages of PDC cutters?

They offer extreme hardness, exceptional abrasion resistance, and high impact resistance, making them ideal for heavy-duty drilling and cutting tasks.

❓ In which industries are PDC cutters used?

They are primarily used in oil and gas well drilling, geological exploration, mining operations, and as precision cutting tools for industrial materials.

❓ Can you provide custom sizes?

Yes, while we have standard sizes (like 13xx, 16xx, 19xx series), we can manufacture various other sizes and shapes based on your specific engineering requirements.

❓ What is the production capacity?

Our facility has a robust production capacity of 50,000 pieces per month to ensure stable supply for large-scale projects.

❓ How is the product packaged for transport?

The products are securely packed in sturdy cartons to ensure they remain protected and intact during international shipping.
