Elliott Cutters
1 / 5

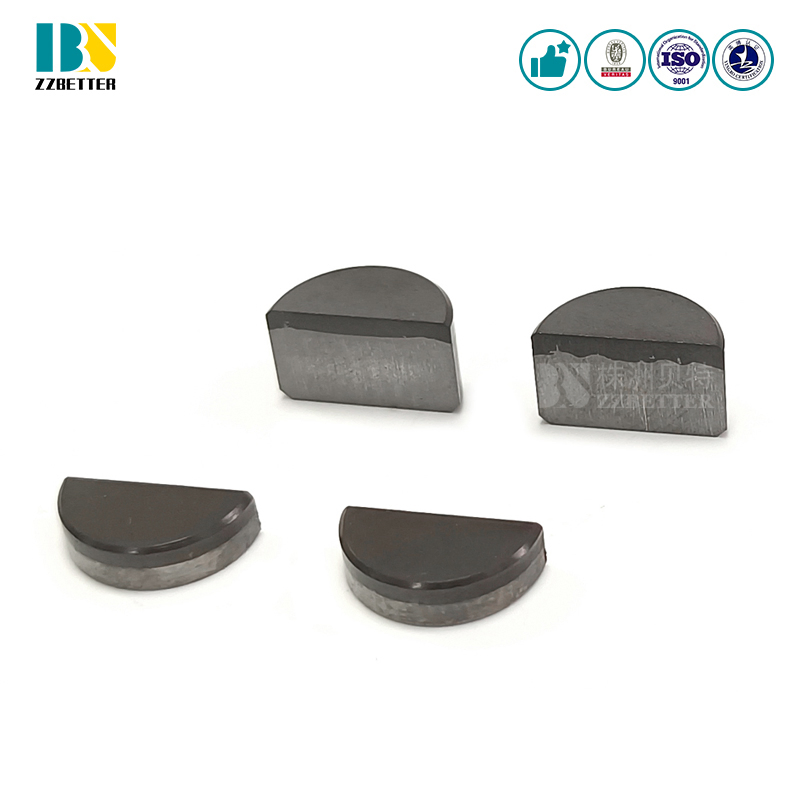

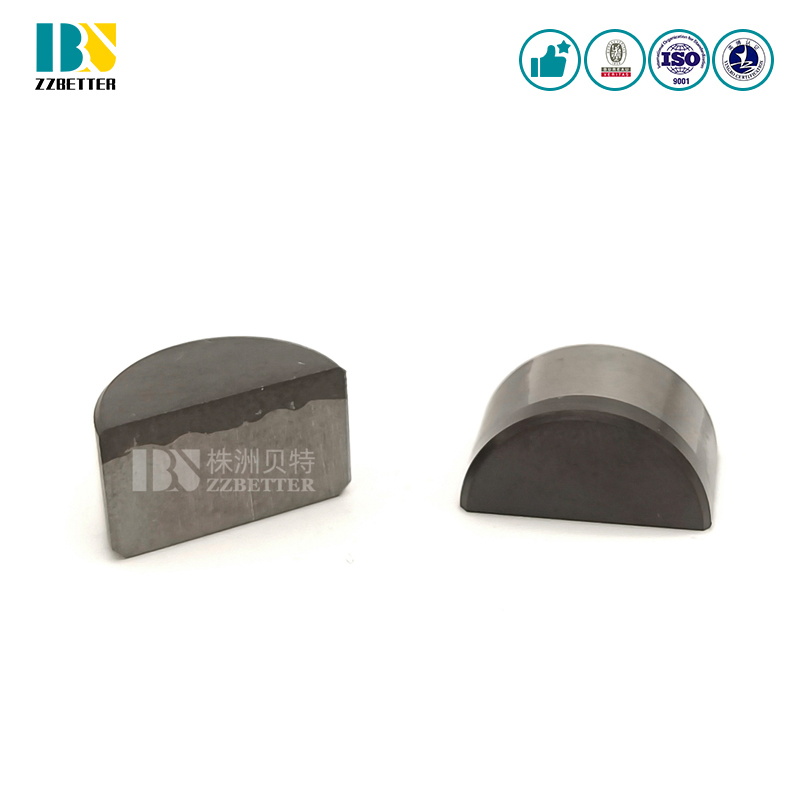

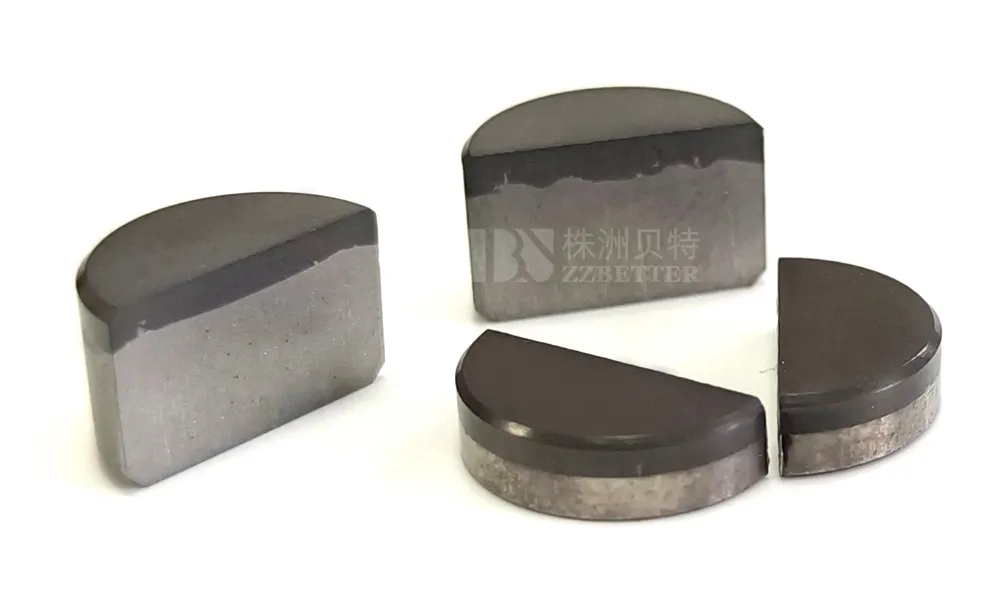

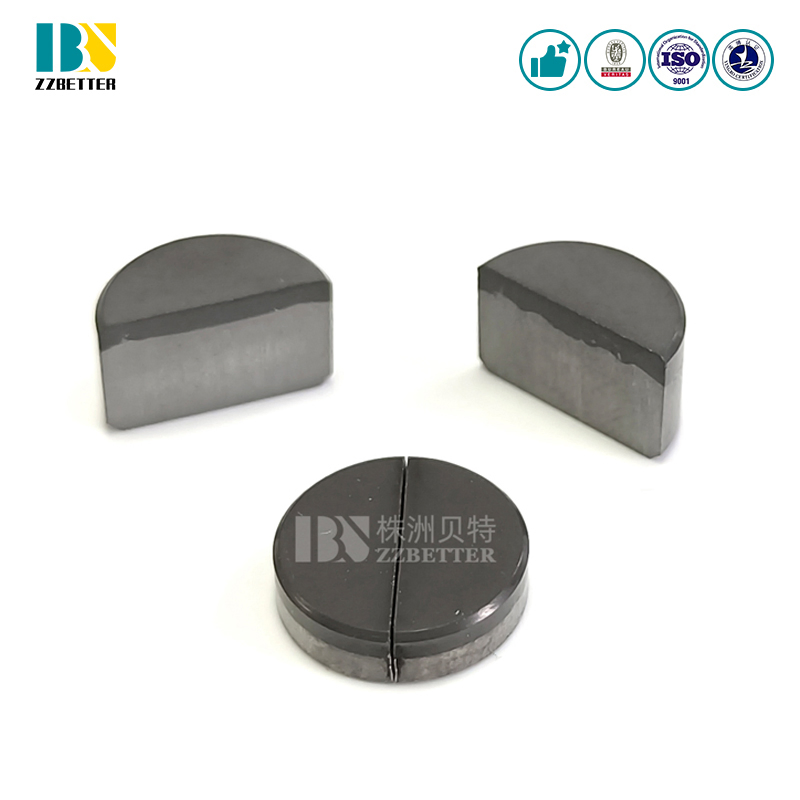

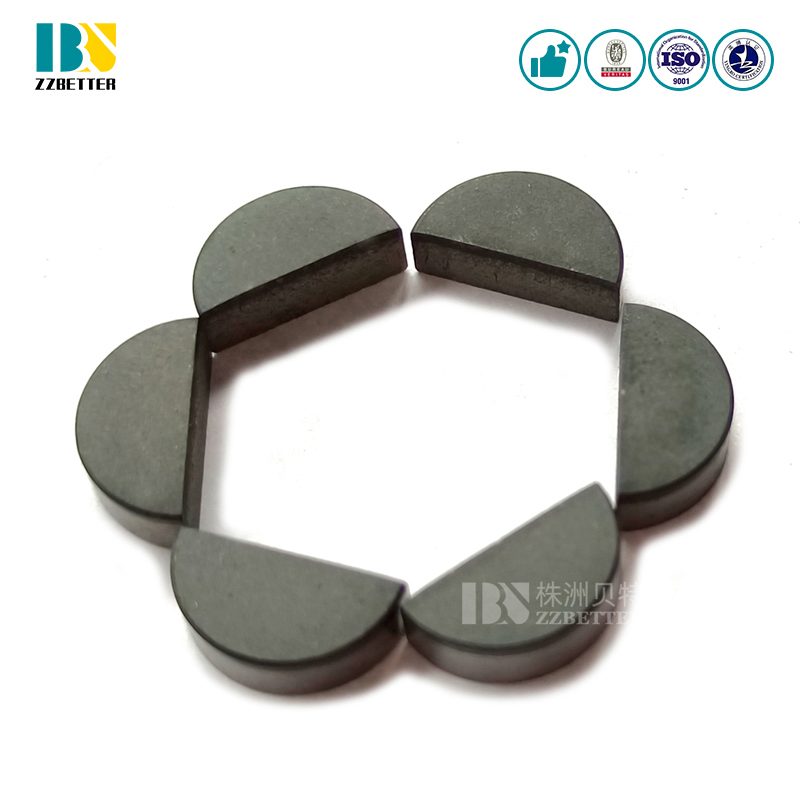

PDC Half Moon Cutter (1/2 Cutter) 1004, 1304, 1308 specifically designed for Stone Cutting Saw Blades and various drilling applications.
PDC cutters consist of a Polycrystalline Diamond layer and a carbide substrate. Known as Polycrystalline Diamond Compact cutters, these are super-hard materials essential for high performance and durability in harsh environments.
PDC Cutters are manufactured using a combination of high temperature and high pressure with a cobalt alloy catalyst. During the sintering process, the diamond grit bonds with the tungsten carbide substrate. As it cools, the tungsten carbide shrinks 2.5 times faster than the diamond, creating a powerful physical bond that forms the final PDC Cutter.

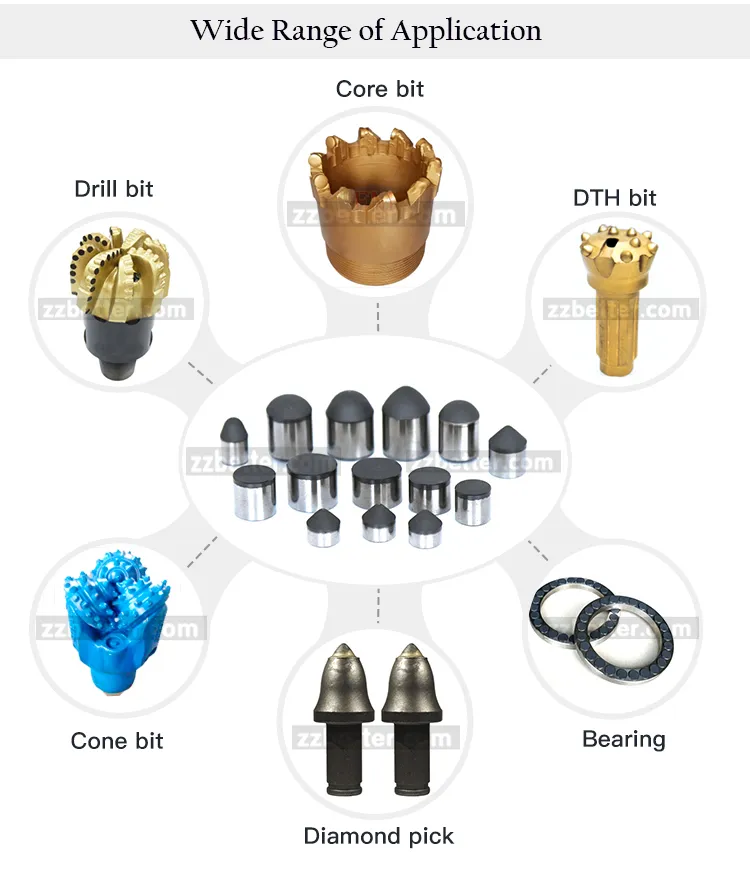

Our PDC Cutters are widely applied in various fields including:
Oilfield Drilling PDC Cutters
| Drawing | Code | Diameter (D) | Height (H) | Diamond H | Chamfer |
|---|---|---|---|---|---|
 |
1916 | 19.05 +/-0.05 | 16.0 +/-0.10 | 2.0-2.5 | 0.5x45° |
| - | 1613 | 15.88 +/-0.03 | 13.2 +/-0.10 | 2.0-2.5 | 0.3x45° |
| - | 1308 | 13.44 +/-0.03 | 8.0 +/-0.10 | 2.0-2.5 | 0.3x45° |
Mining & Shallow Gas PDC Cutters
| Drawing | Code | Diameter (D) | Height (H) | Diamond H | Chamfer |
|---|---|---|---|---|---|
 |
1304 | 13.44 +/-0.03 | 4.5 +/-0.10 | 2.0-2.5 | 0.3x45° |
| - | 1004 | 10.00 +/-0.03 | 4.5 +/-0.10 | 2.0-2.5 | 0.3x45° |
| - | 804 | 8.00 +/-0.03 | 4.5 +/-0.10 | 2.0-2.5 | 0.3x45° |

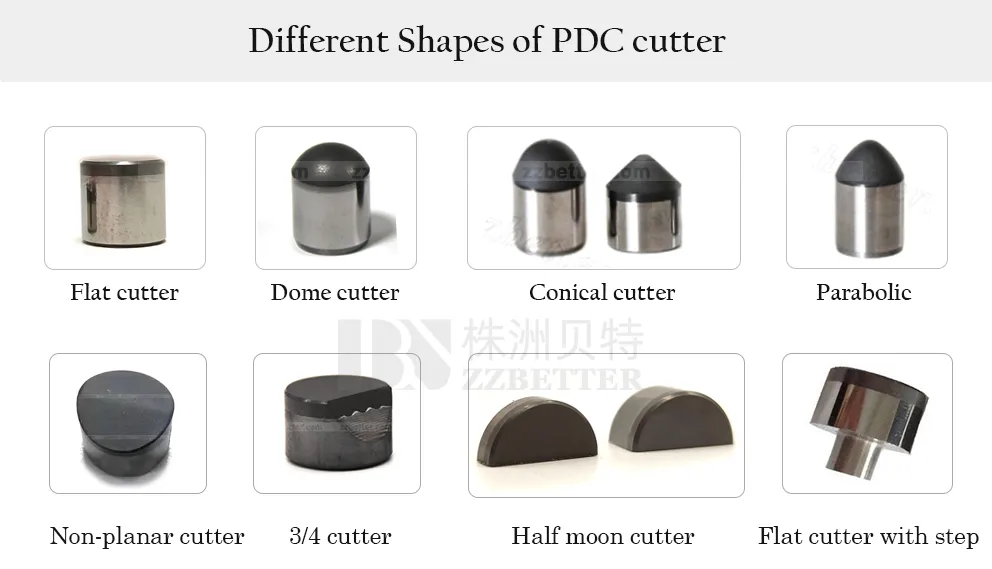

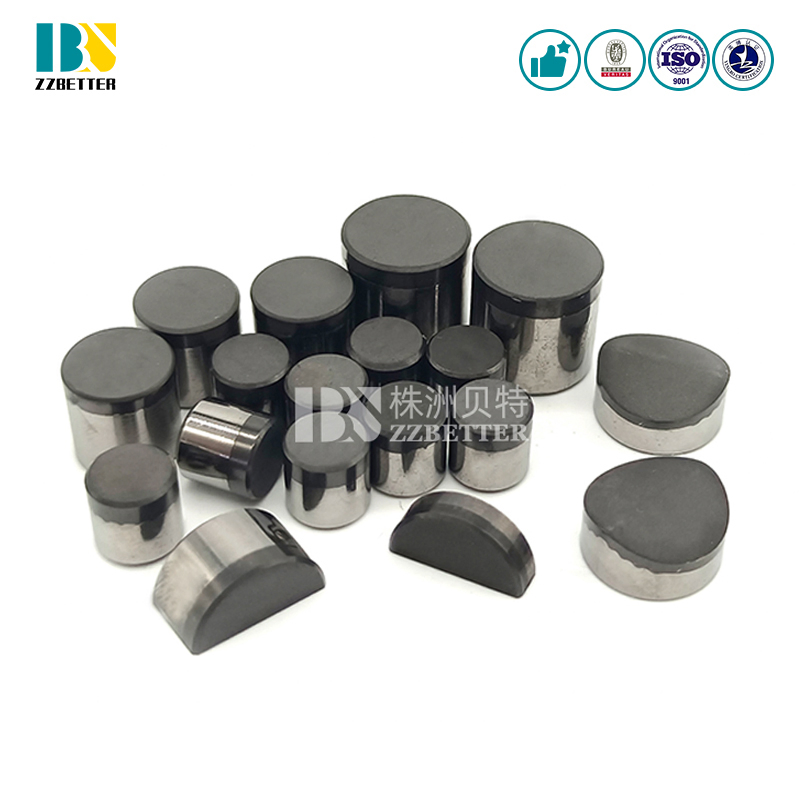

Available types include: Flat Top, Spherical Top, and Spoon Shape PDC Drill Bits. All items are packed securely in plastic boxes.

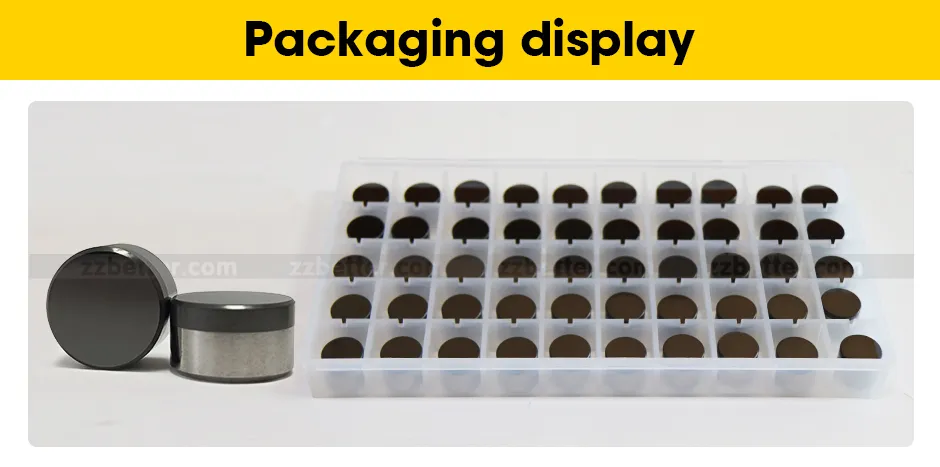

Standard Packing: 50 pcs / plastic box, firm packaging.
