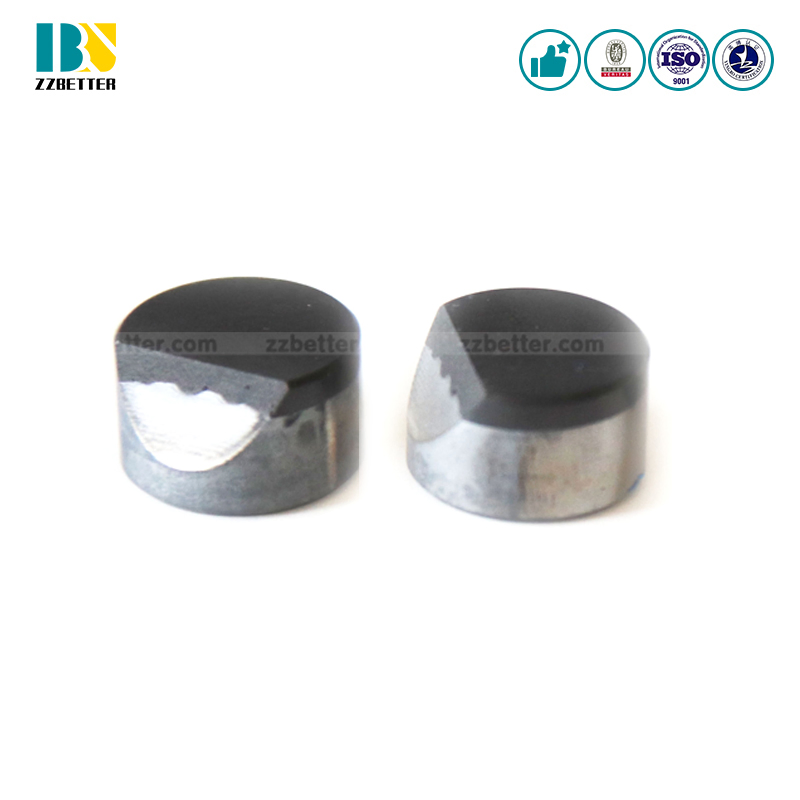

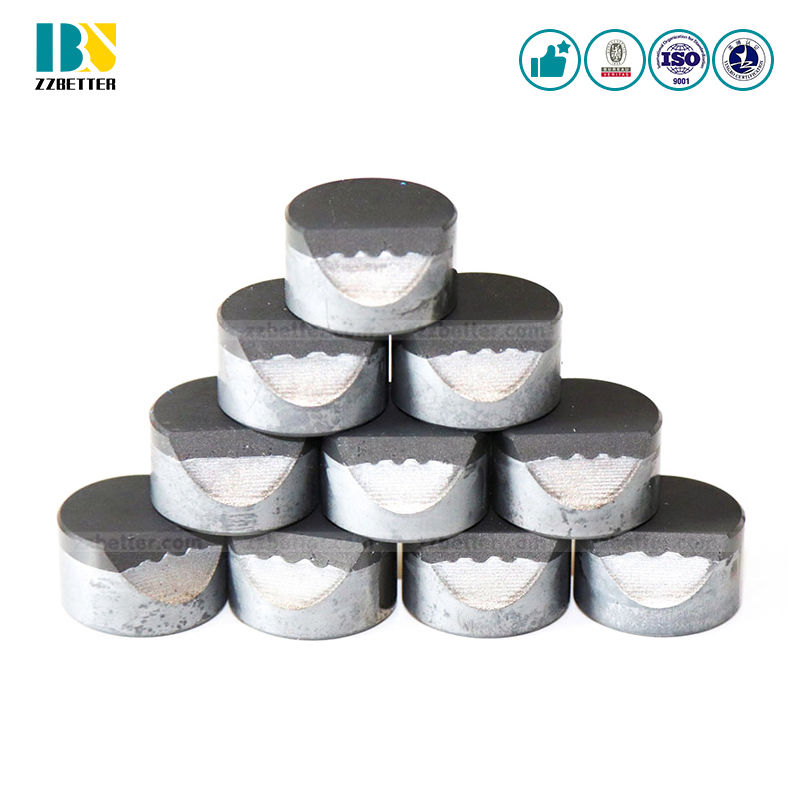

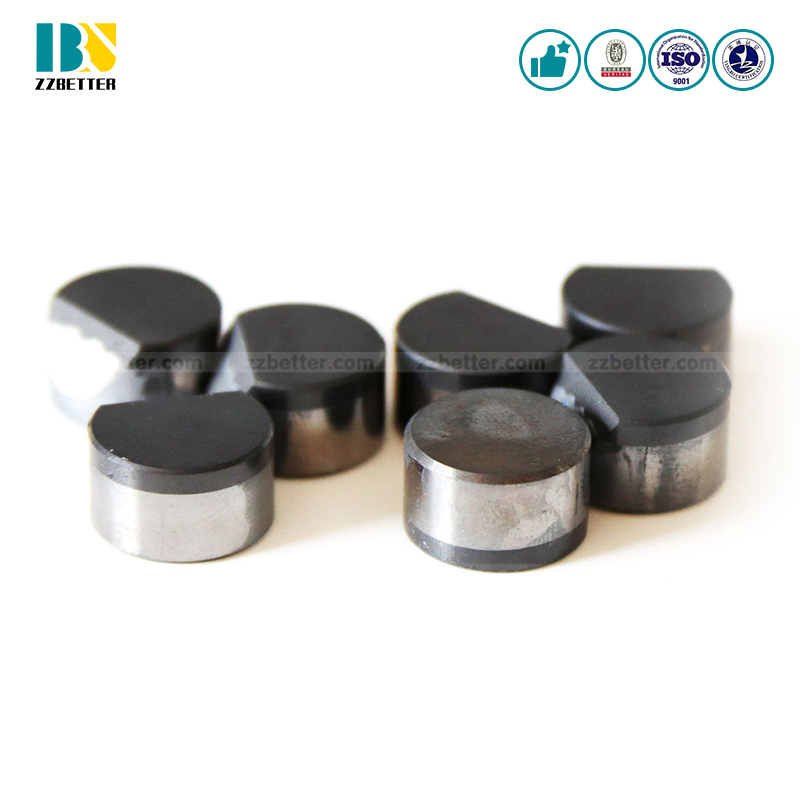

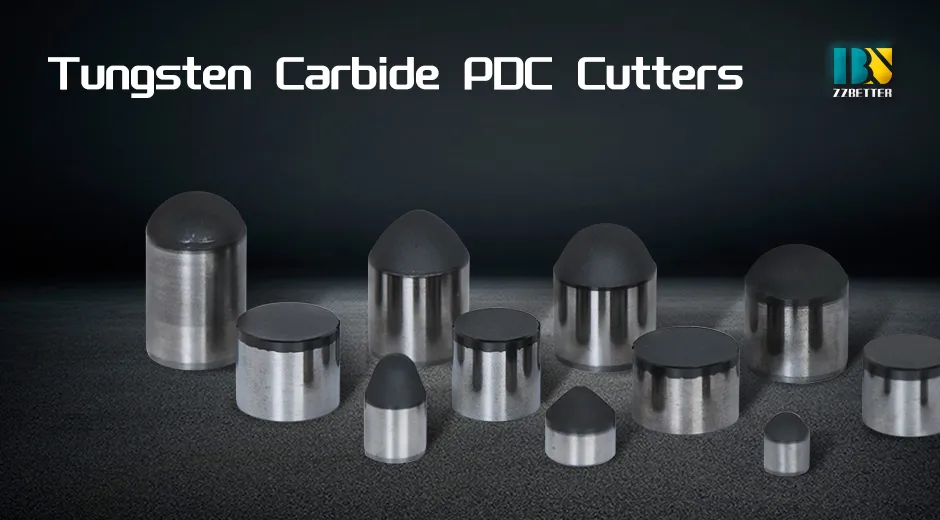

PDC cutters are also named Polycrystalline Diamond Compact cutters, PDC bits, or PDC inserts. They consist of a Polycrystalline Diamond layer and a carbide substrate. The diamond is grown directly on the carbide substrate.

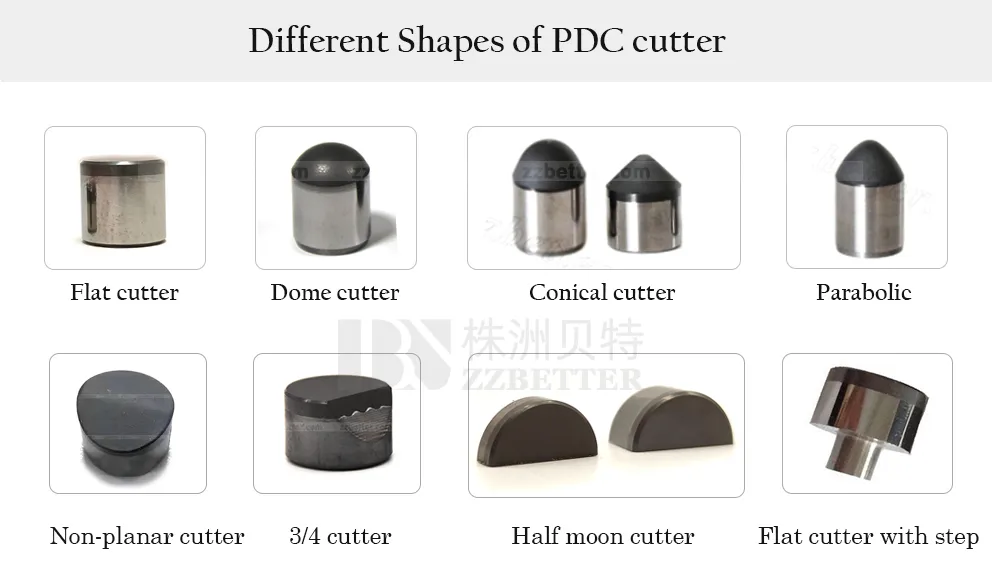

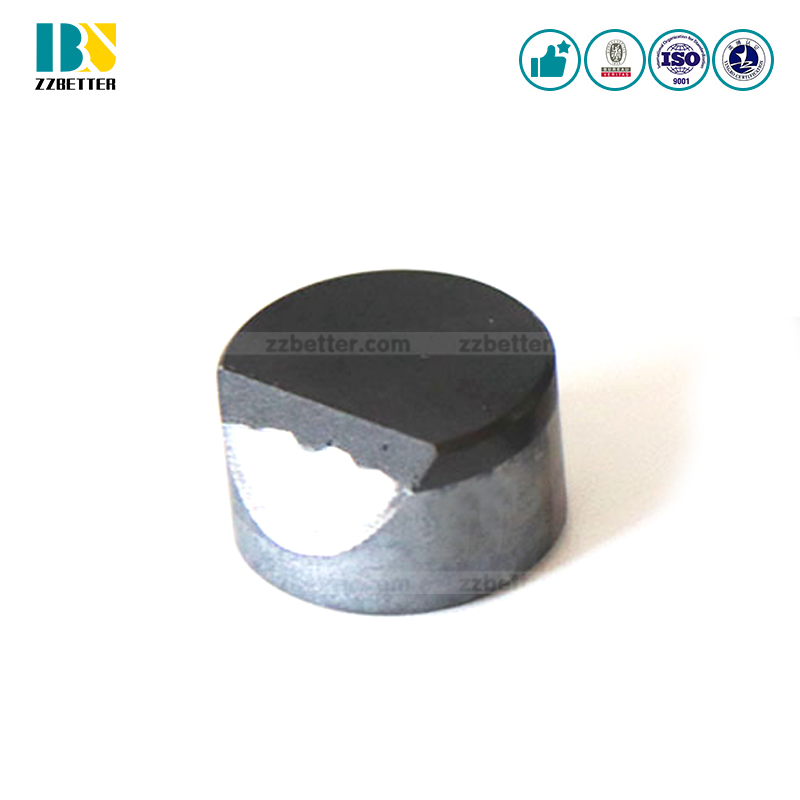

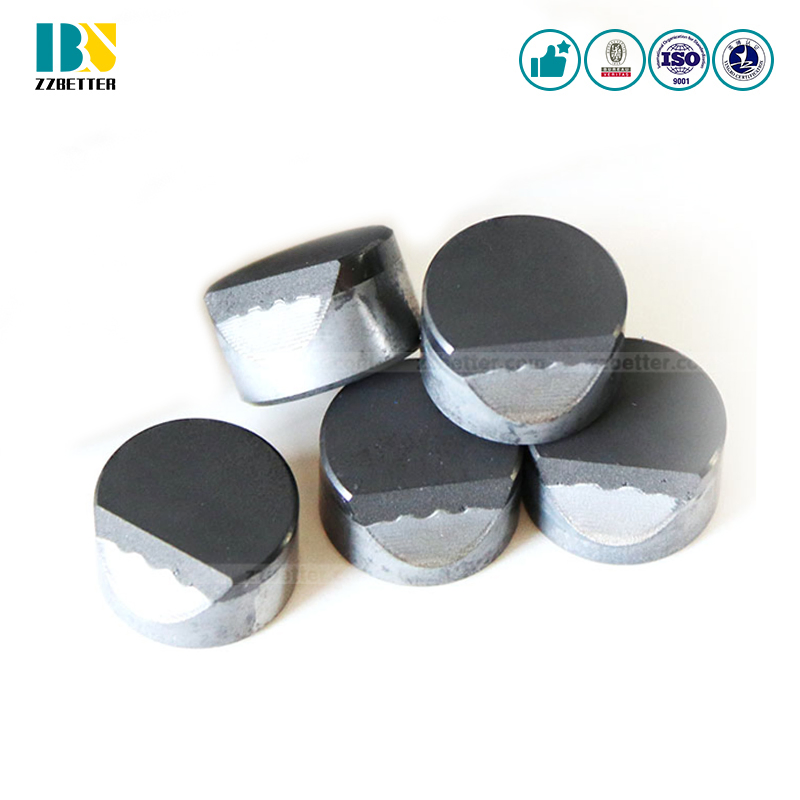

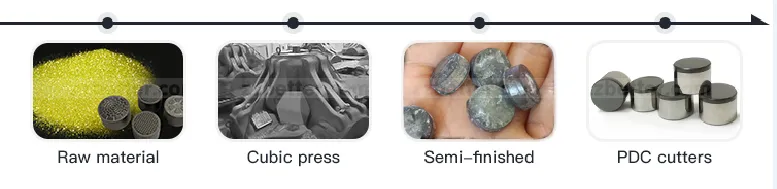

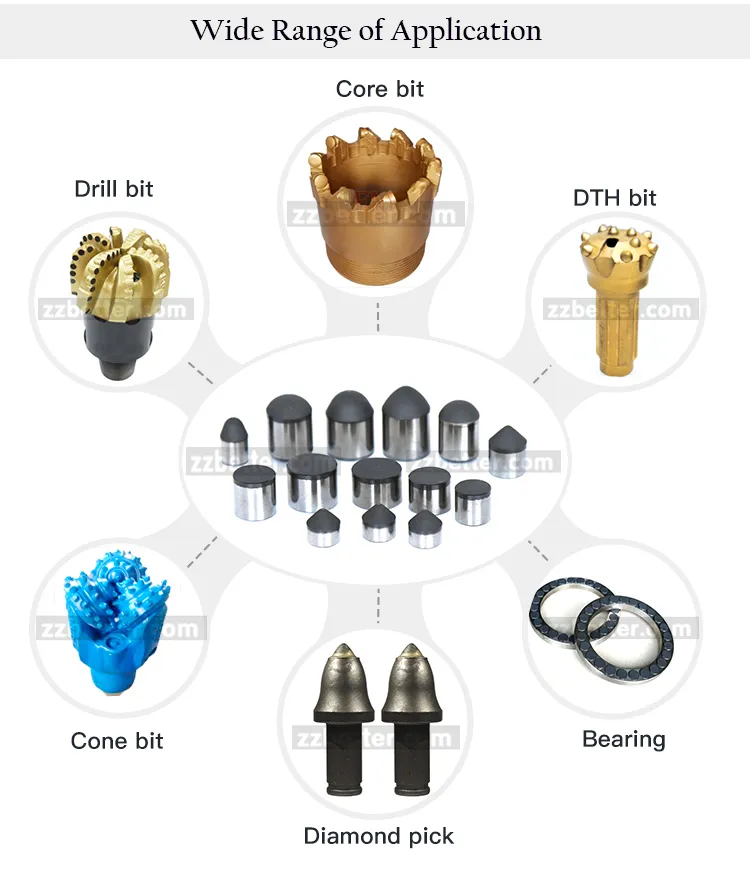

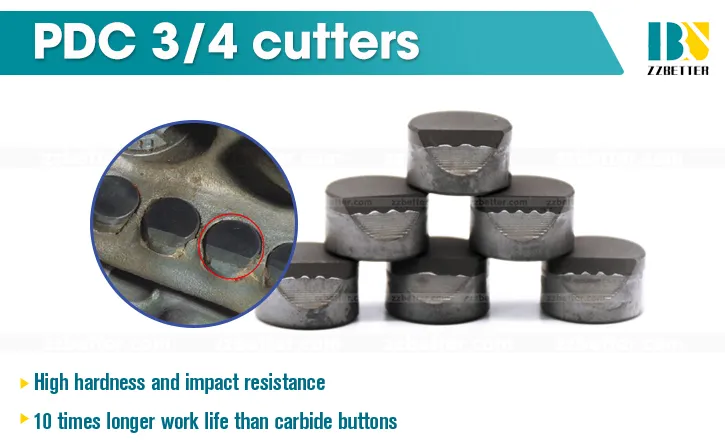

PDC Cutters are manufactured from tungsten carbide substrate and synthetic diamond grit. This process uses a combination of high temperature and high pressure with a catalyst of cobalt alloy to bond the diamond and carbide during sintering. During cooling, the tungsten carbide shrinks 2.5 times faster than the diamond, creating a powerful mechanical bond.
| Code | Diameter (D) | Total Height (H) | Diamond Height | Chamfer |
|---|---|---|---|---|
| 1916 | 19.05 +/- 0.05 | 16.0 +/- 0.10 | 2.0-2.5 | 0.5x45° |
| 1913 | 19.05 +/- 0.05 | 13.2 +/- 0.10 | 2.0-2.5 | 0.5x45° |
| 1613 | 15.88 +/- 0.03 | 13.2 +/- 0.10 | 2.0-2.5 | 0.3x45° |
| 1313 | 13.44 +/- 0.03 | 13.2 +/- 0.10 | 2.0-2.5 | 0.3x45° |
| 1308 | 13.44 +/- 0.03 | 8.0 +/- 0.10 | 2.0-2.5 | 0.3x45° |
| Code | Diameter (D) | Total Height (H) | Diamond Height | Chamfer |
|---|---|---|---|---|
| 1010 | 10.00 +/- 0.03 | 10.0 +/- 0.10 | 2.0-2.5 | 0.3x45° |
| 1008 | 10.00 +/- 0.03 | 8.0 +/- 0.10 | 2.0-2.5 | 0.3x45° |
| 810 | 8.00 +/- 0.03 | 10.0 +/- 0.10 | 2.0-2.5 | 0.3x45° |
| 808 | 8.00 +/- 0.03 | 8.0 +/- 0.10 | 2.0-2.5 | 0.3x45° |
