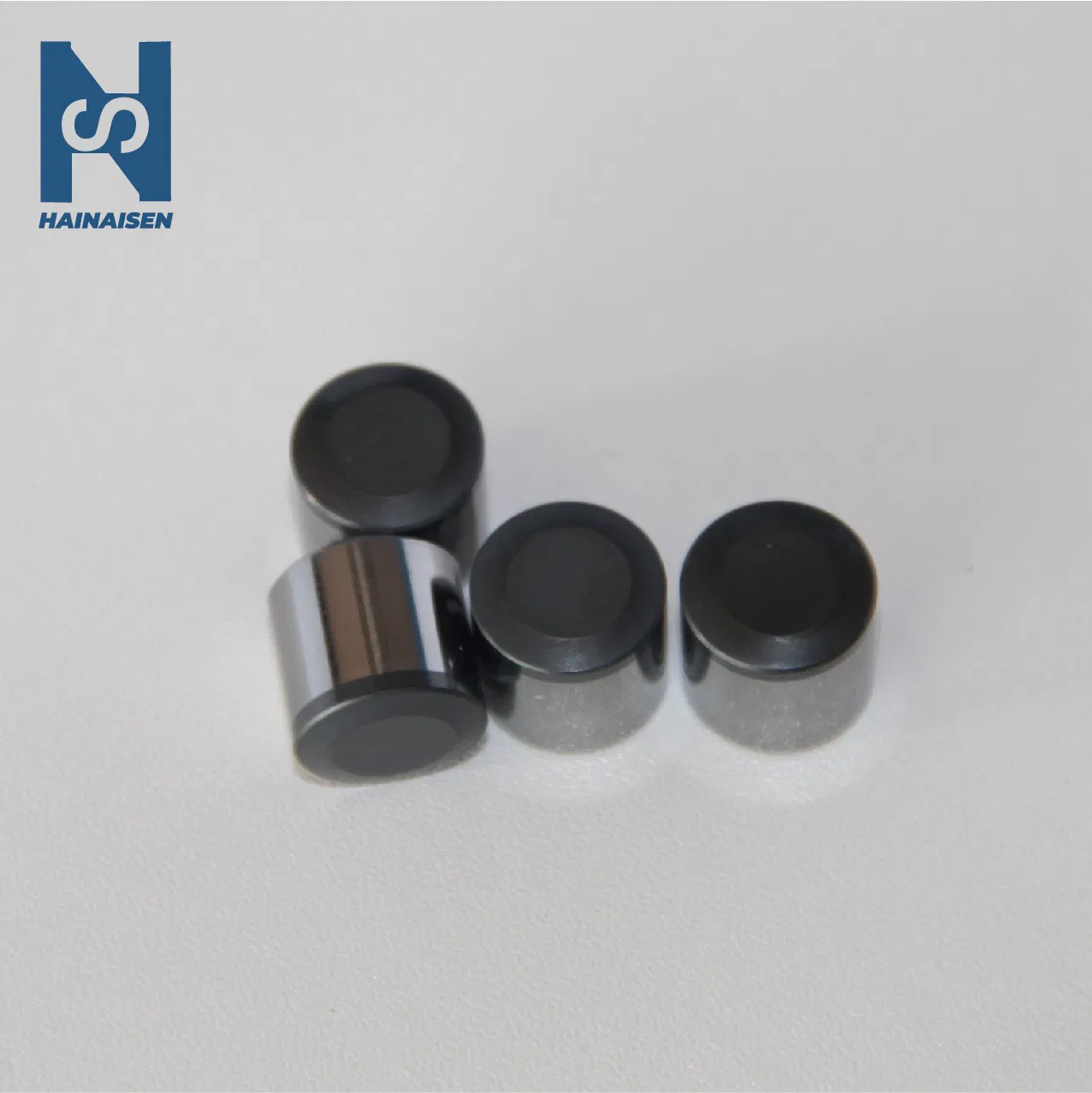

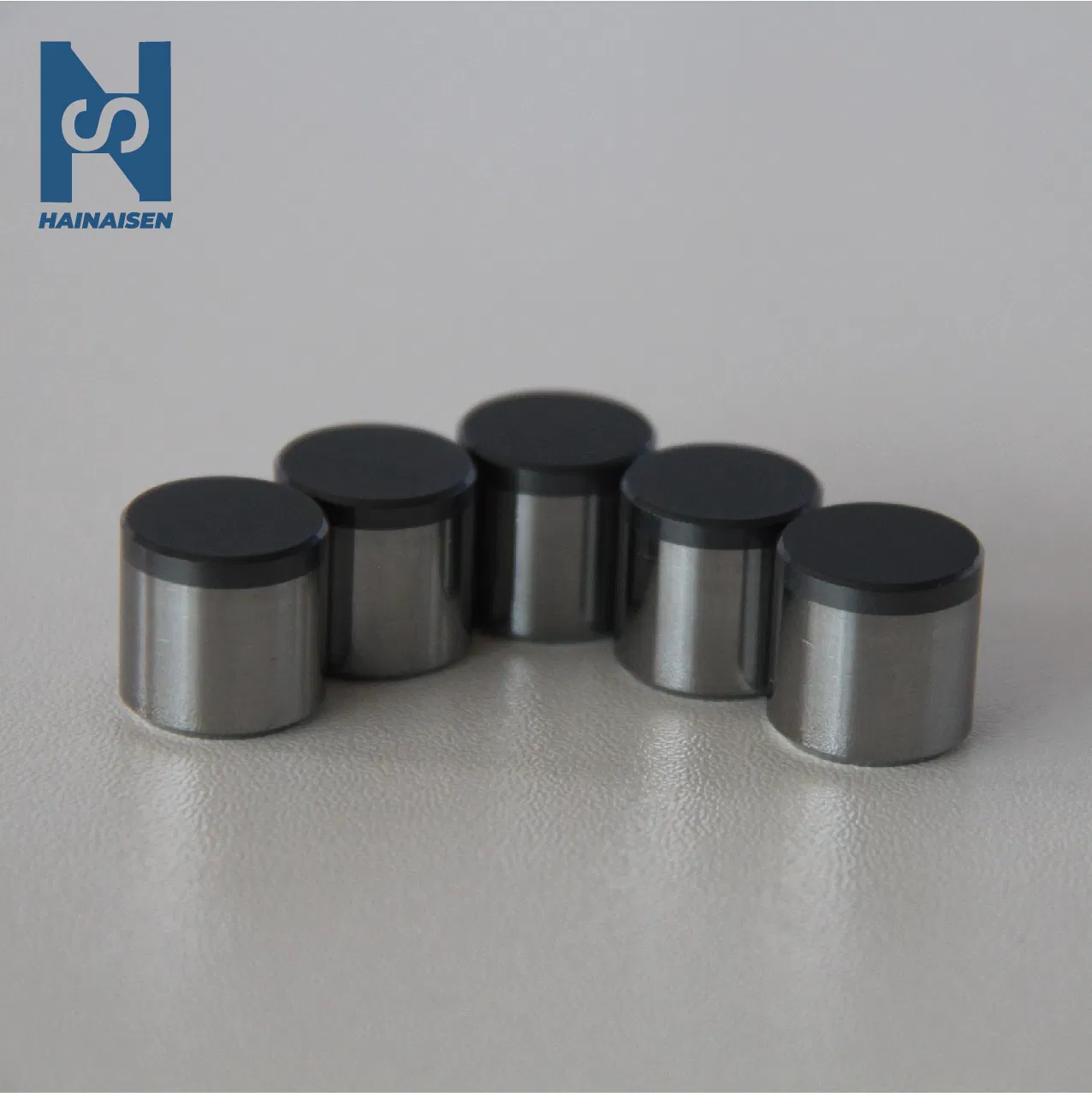

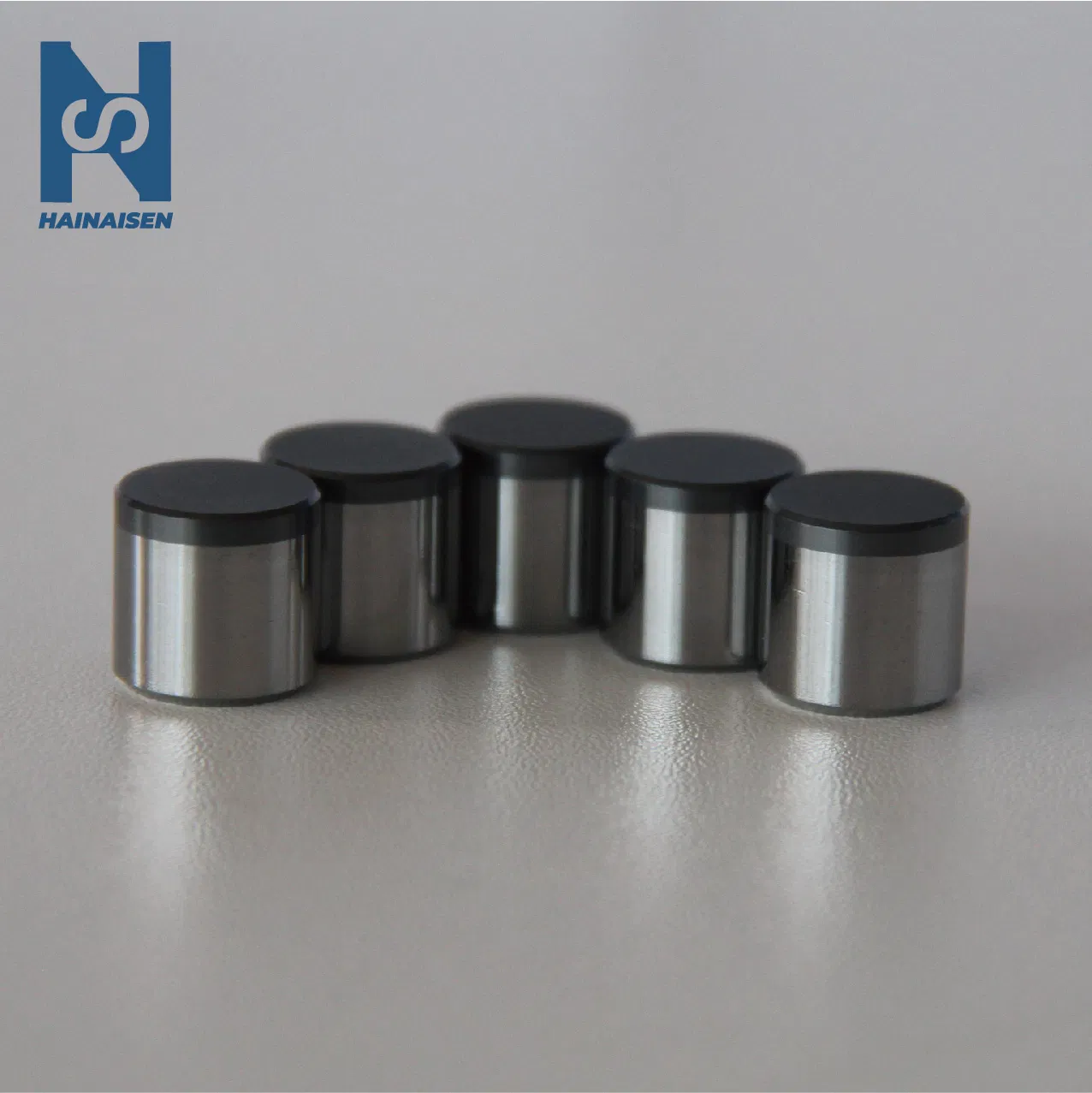

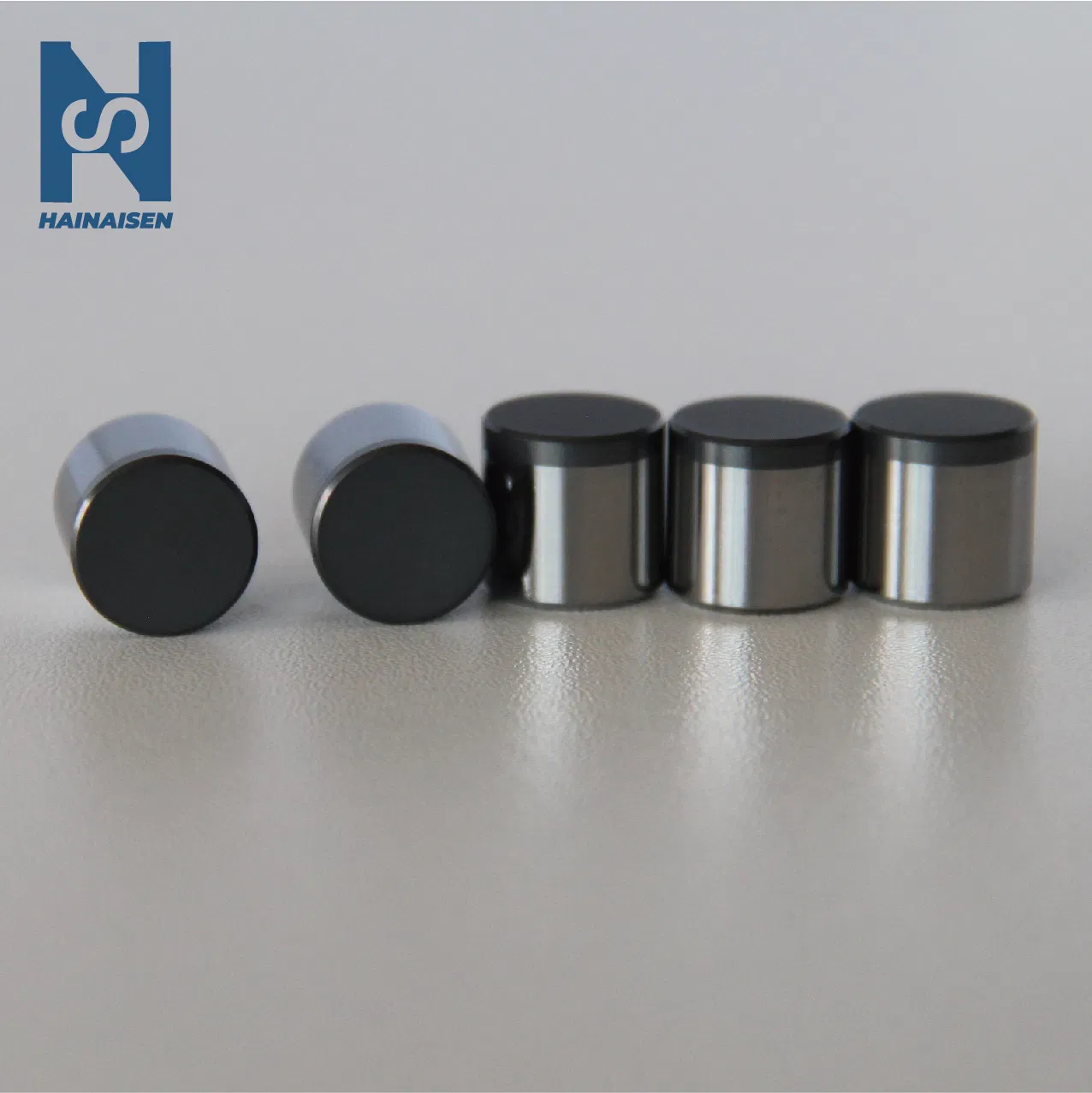

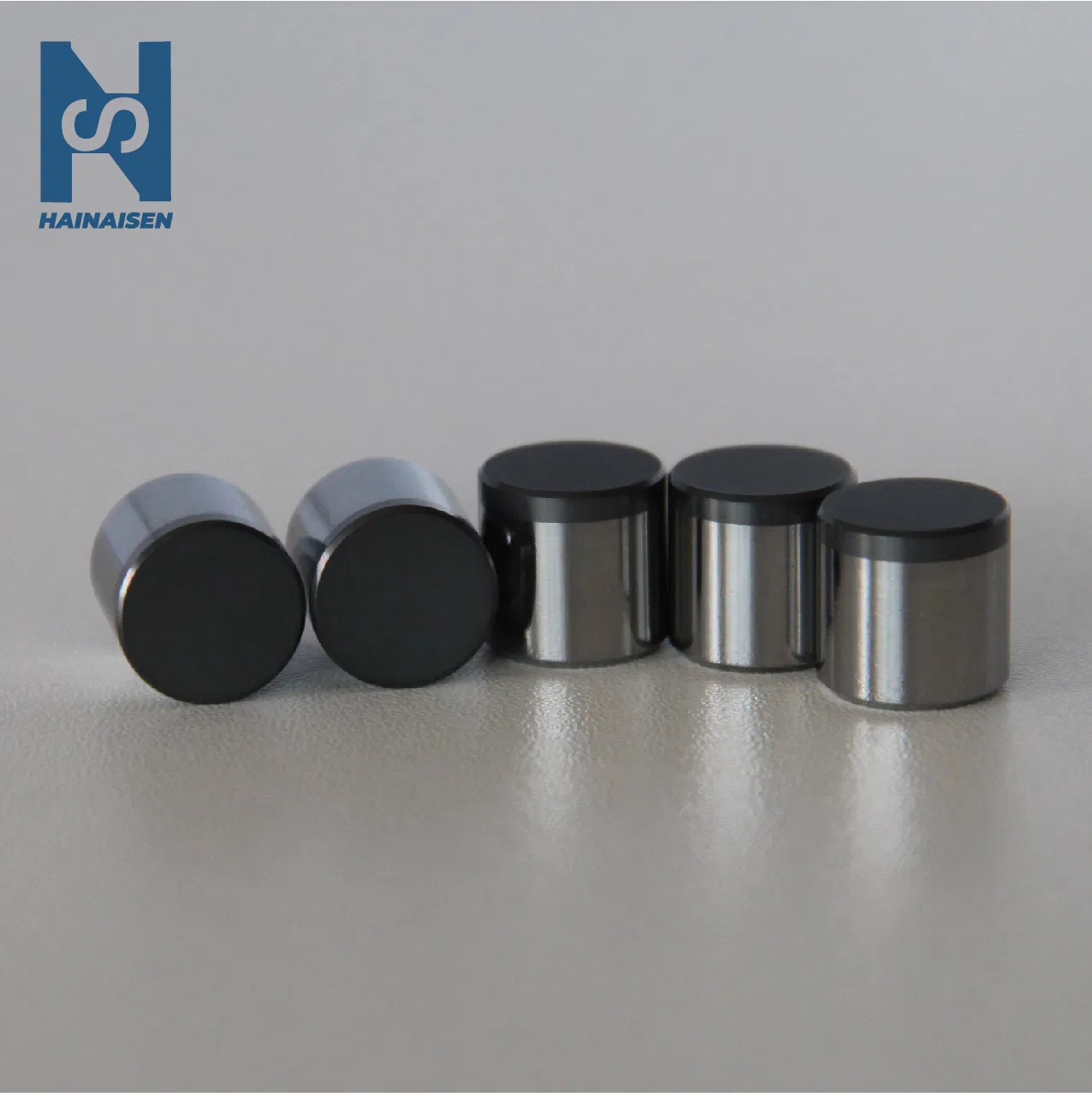

Double Chamfer Flat PDC Cutter Oil Gas Mining Drilling

Customization:	Available
Customized:	Customized
Standard:	ISO

📊

Basic Information

Model NO.

S1313

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide / Diamond Grade PCD

Usage

Metal Drilling, Oilfield, Gas Field, Mining, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Production Process

HTHP Sintering

Total Height

5mm ~ 34mm

Tolerance

±0.02mm

Impact Toughness

Excellent

Certification

ISO 9001

Shape

Round

💎

Product Description

🛡️ Dome Cutter Series

Core Features: Dome PDC inserts consist of a multilayer structure of diamond and transition layer, improving impact resistance greatly. This makes dome PDC inserts the best alternative for roller cone applications.

Applicable Bit Position: Priority for rear row teeth, auxiliary for main teeth in soft to medium-hard broken formations. Buffers impact and protects main cutting parts.

📐 Flat Cutter Series

Core Features: Flat and smooth surface with large contact area, delivering high cutting efficiency and outstanding wear resistance. High processing precision and wide adaptability.

Applicable Bit Position: Priority for main teeth; crushes formation rocks quickly. Also used for rear row teeth for auxiliary cutting and gauge protection.

🚀 Conical Cutter Series

Core Features: Sharp tapered tip with extremely strong penetration, reducing drilling resistance in hard formations. Disperses stress effectively with excellent toughness to avoid chipping.

Applicable Bit Position: Exclusively for main teeth. Optimized for hard formation crushing where sharp penetration is required.

📏

Specifications

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

🏗️

Application Case

📦

Packing & Delivery

📜

Certifications

❓

Frequently Asked Questions

1. Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

2. Do you accept OEM/ODM customization?

Yes. We support OEM (custom logo and packaging) and ODM (custom size and performance) to meet your specific brand and market requirements.

3. Can PDC Cutters be mixed and used on one drill bit?

Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics to optimize drilling efficiency and stability.

4. Do you provide technical support after sale?

Yes. Our professional technical team provides online service including drill bit matching, usage guidance, and failure analysis.

5. What shipping methods do you support?

We support express (DHL/FedEx/UPS, 3-7 days), air (5-10 days), and sea (20-35 days) shipping. We choose the most cost-effective way based on urgency.

6. Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our quality and service.
