Elliott Cutters
1 / 5

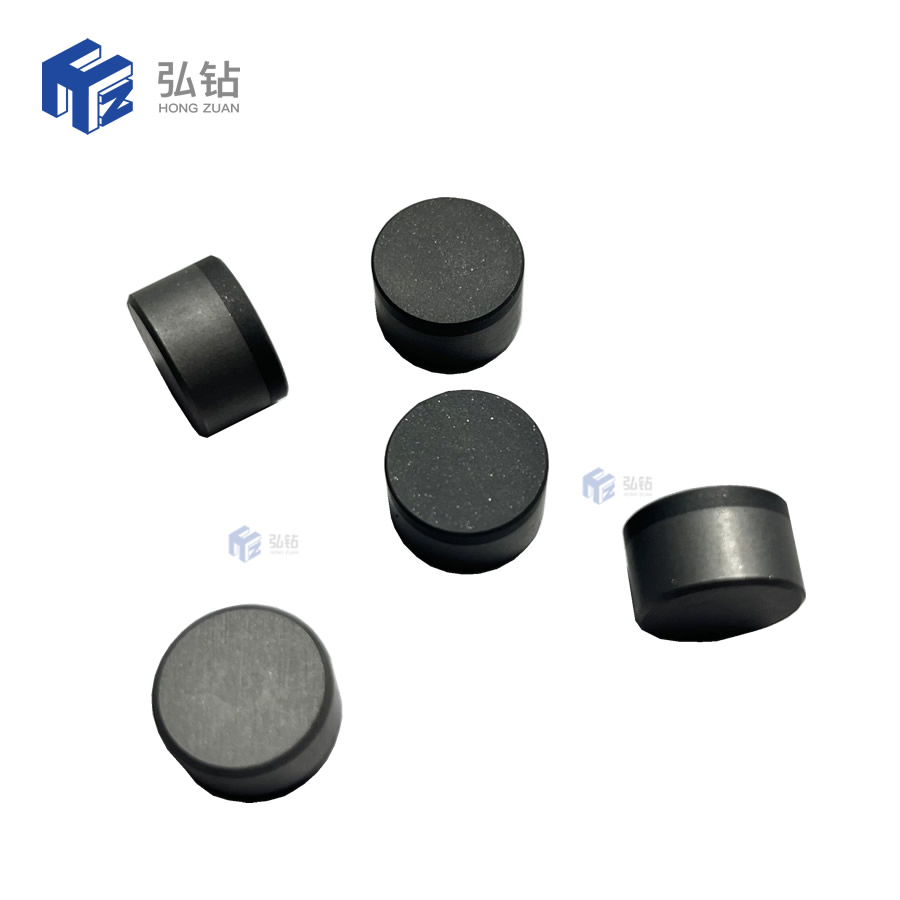

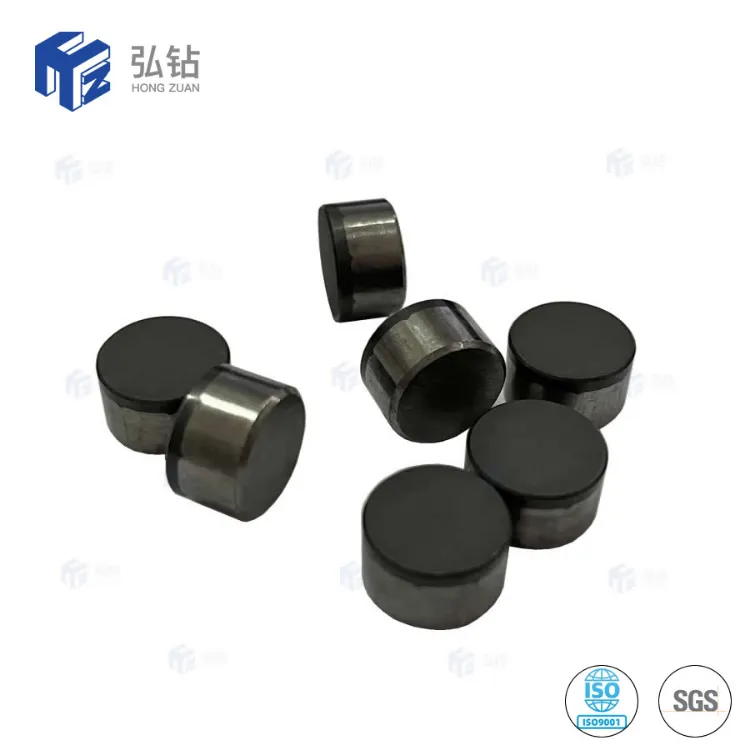

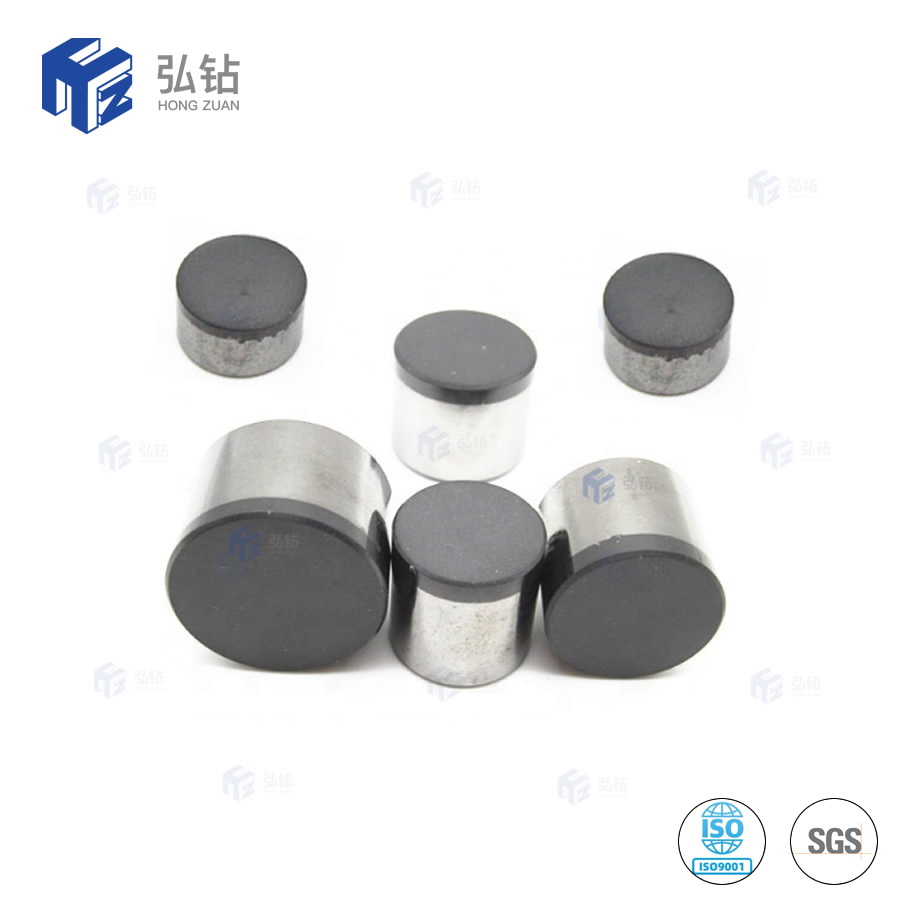

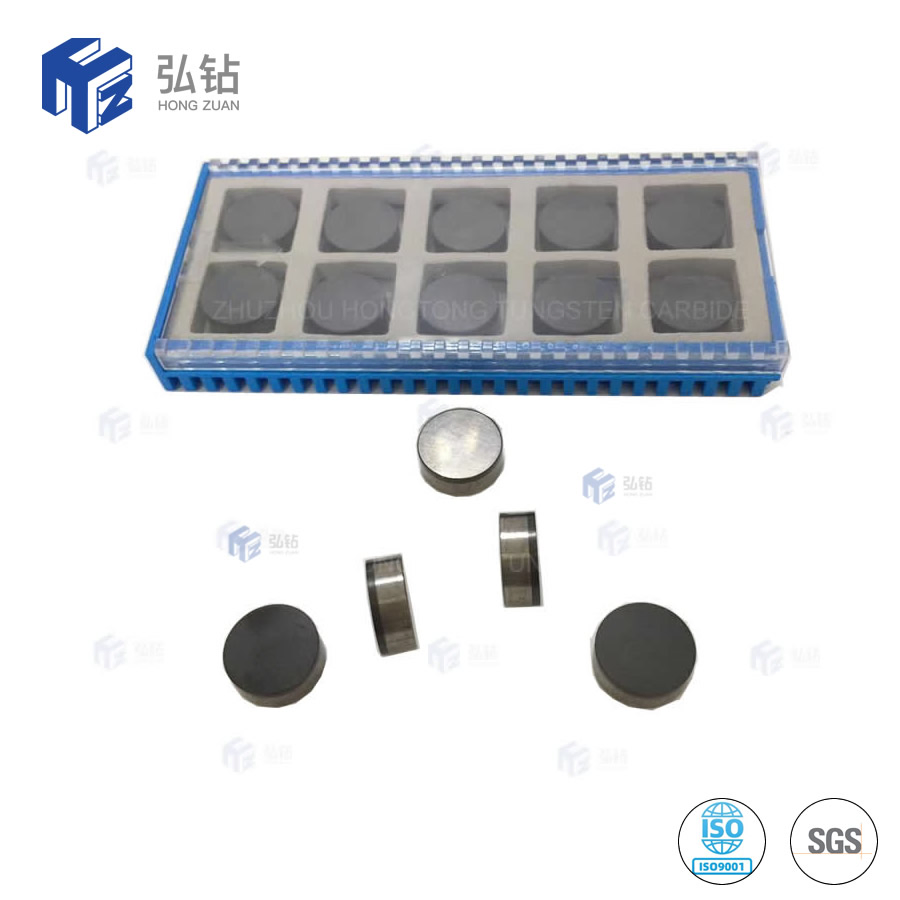

1. PDC (Polycrystalline Diamond Compact) Cutter is a superhard material that compacts polycrystalline diamond with a tungsten carbide substrate under ultra-high temperature and pressure.
Since PDC Cutters combine diamond grit and tungsten carbide substrate, they offer the advantages of both materials: high abrasion resistance, high impact resistance, and excellent thermal stability.
Currently, PDC Cutters are widely applied in oil field drilling, gas exploration, geological surveying, coal mining, and various drilling and milling applications. They serve as essential components for Steel PDC Drill Bits, Matrix PDC Drill Bits, and Tri-cone PDC Drill Bits.
| Ball Nose PDC Mining Buttons | ||||||
|---|---|---|---|---|---|---|
| Type | 0914 | 1217 | 1422 | 1621 | 1825 | 1925 |
| Dia.(mm) | 9 | 12.07 | 14.1 | 16.07 | 18.07 | 19.05 |
| Height(mm) | 14 | 17 | 22 | 21 | 25 | 25 |
| R(mm) | 5.2 | 6.2 | 7.2 | 8.2 | 9.2 | 9.5 |

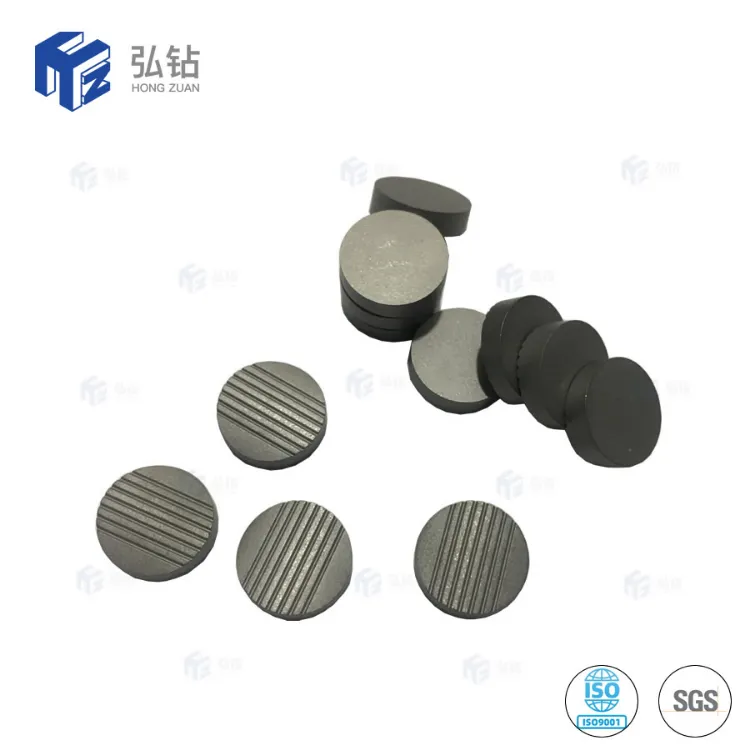

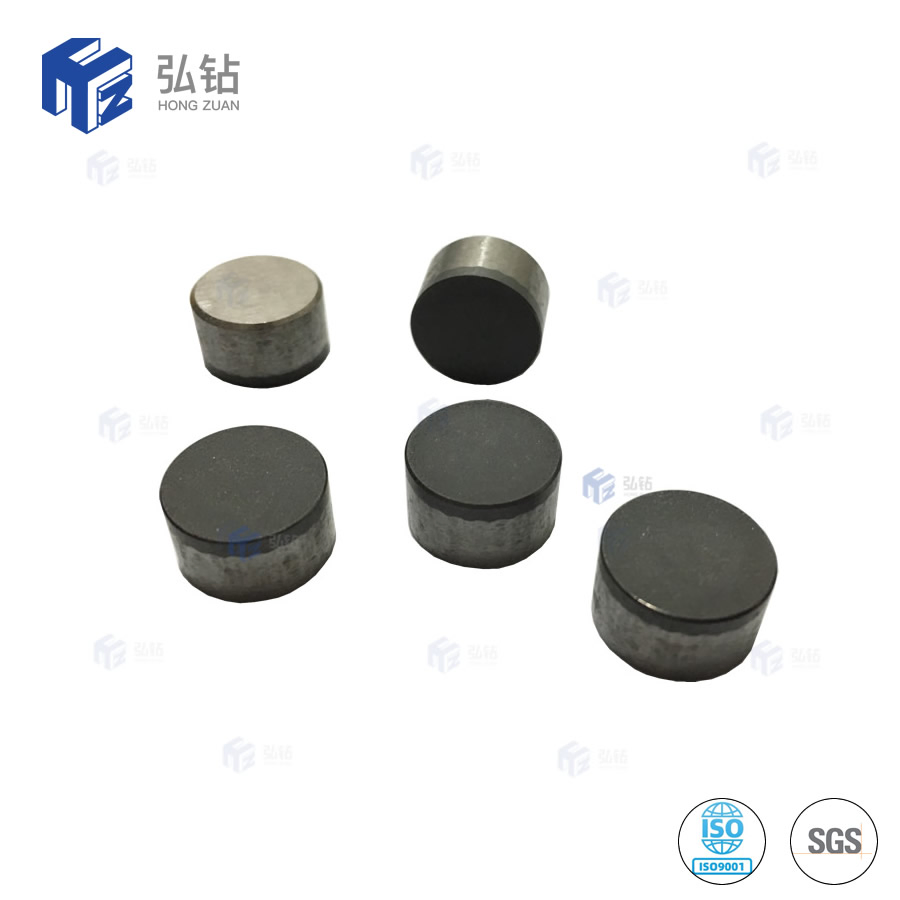

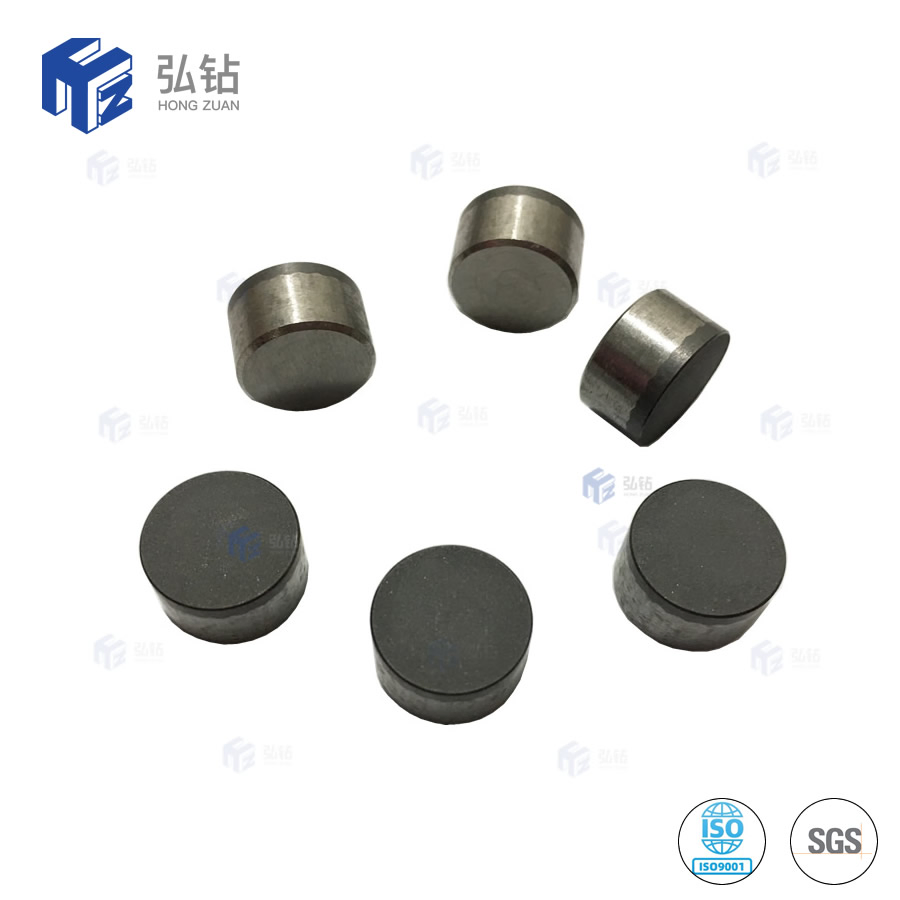

| Flat Nose PDC Mining Buttons | ||||||
|---|---|---|---|---|---|---|
| Type | 1304 | 1308 | 1313 | 1613 | 1908 | 1913 |
| Dia.(mm) | 13.44 | 13.44 | 13.44 | 16 | 19.05 | 19.05 |
| Height(mm) | 4.5 | 8 | 13.2 | 13.2 | 8 | 13.2 |
| Grade | Main Chemical (%) | Hardness (≥HRA) | Density (g/cm³) | T.R.S (≥N/mm²) | ||||
|---|---|---|---|---|---|---|---|---|
| WC | Co | Ni | Tic | Other | ||||
| YWN6 | 94 | - | 6 | - | - | 89 | 14.5-14.9 | 1500 |
| YWN8 | 92 | - | 8 | - | - | 88 | 14.4-14.8 | 1650 |
| YWN10 | 90 | - | 10 | - | - | 87 | 14.5-14.9 | 2100 |
| YG6 | 94 | 6 | - | - | - | 89.5 | 14.7-15.1 | 1550 |
| YG8 | 92 | 8 | - | - | - | 89 | 14.6-14.9 | 1850 |
| YG13 | 87 | 13 | - | - | - | 88 | 13.9-14.2 | 2400 |
| YG15 | 85 | 15 | - | - | - | 87 | 13.9-14.2 | 2500 |
| Code | Diameter (ØD)mm | Total Height (H)mm | Diamond Height (mm) | Diamond Chamfer | Carbide Chamfer |
|---|---|---|---|---|---|
| 1919 | 19.05±0.05 | 19.0±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |
| 1616 | 15.88±0.05 | 16.0±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |
| 1313 | 13.44±0.05 | 13.2±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |
| 1008 | 10.00±0.05 | 8.0±0.10 | 2.0-2.5 | 0.5x45° | 0.5x45° |

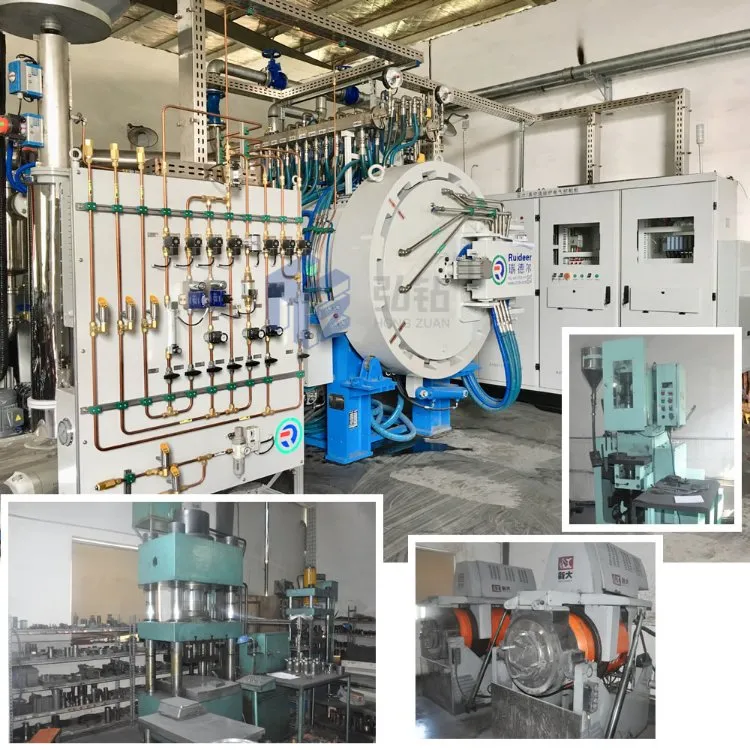

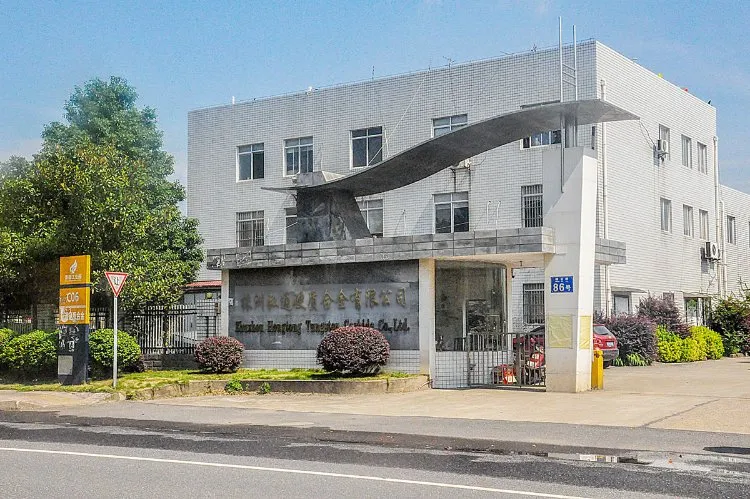

Specialized in tungsten carbide production for over 20 years, our facility produces high-grade carbide products for aerospace, machining, metallurgy, and oil drilling industries. We export to 46 countries including the USA, Russia, India, and various European markets.
Our professional QC team strictly follows the ISO9001:2015 system, managing everything from raw material intake to final packaging to ensure top-tier product output.
