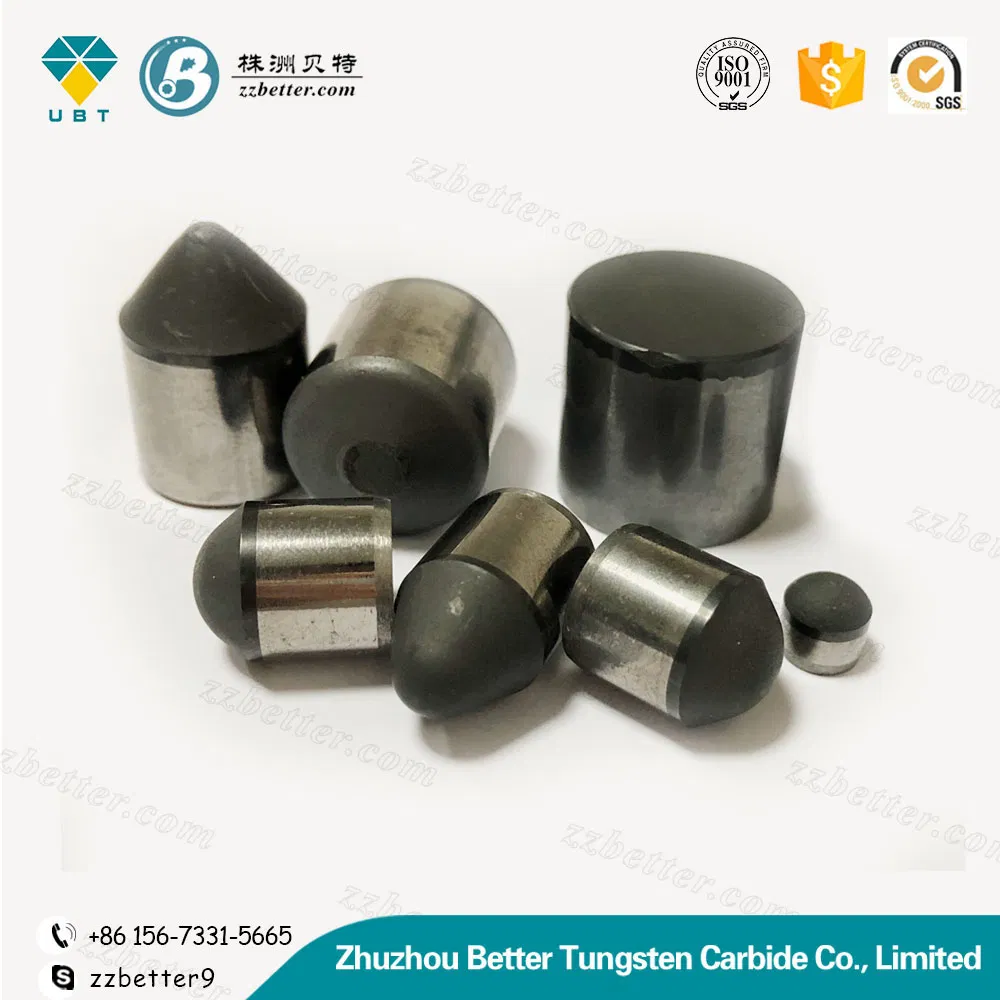

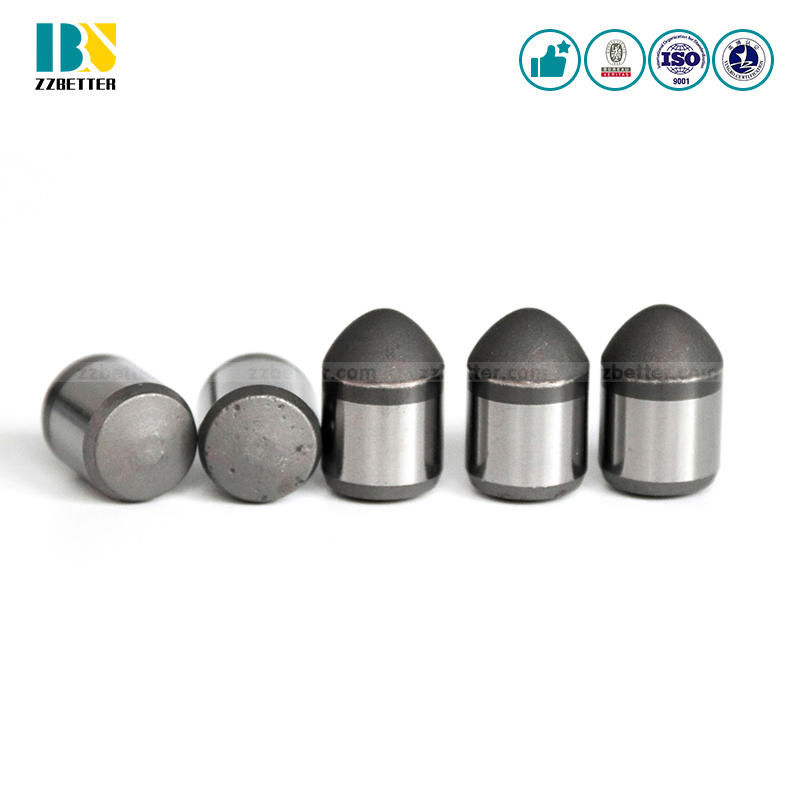

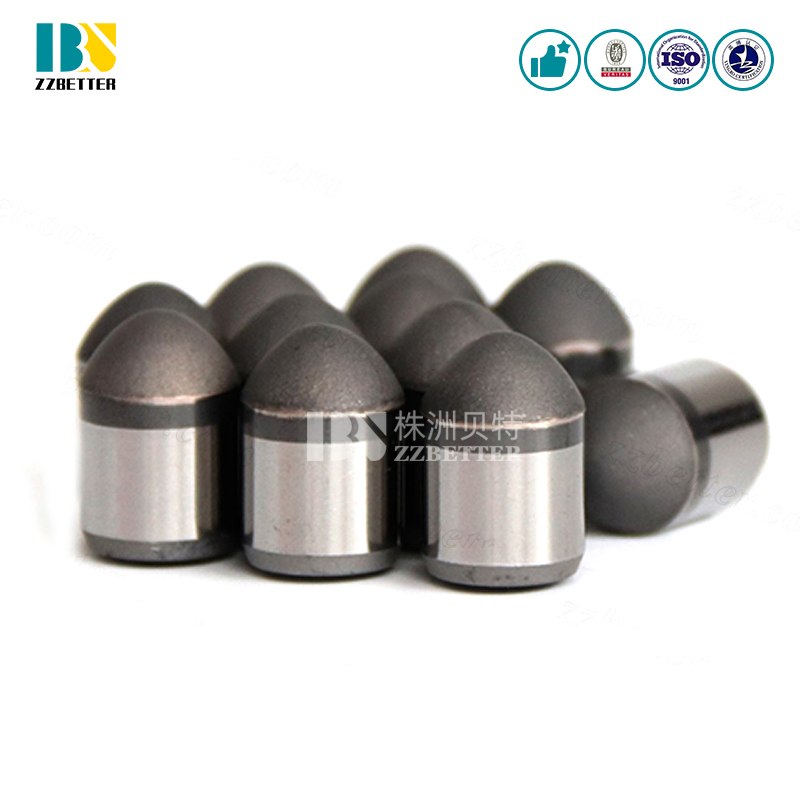

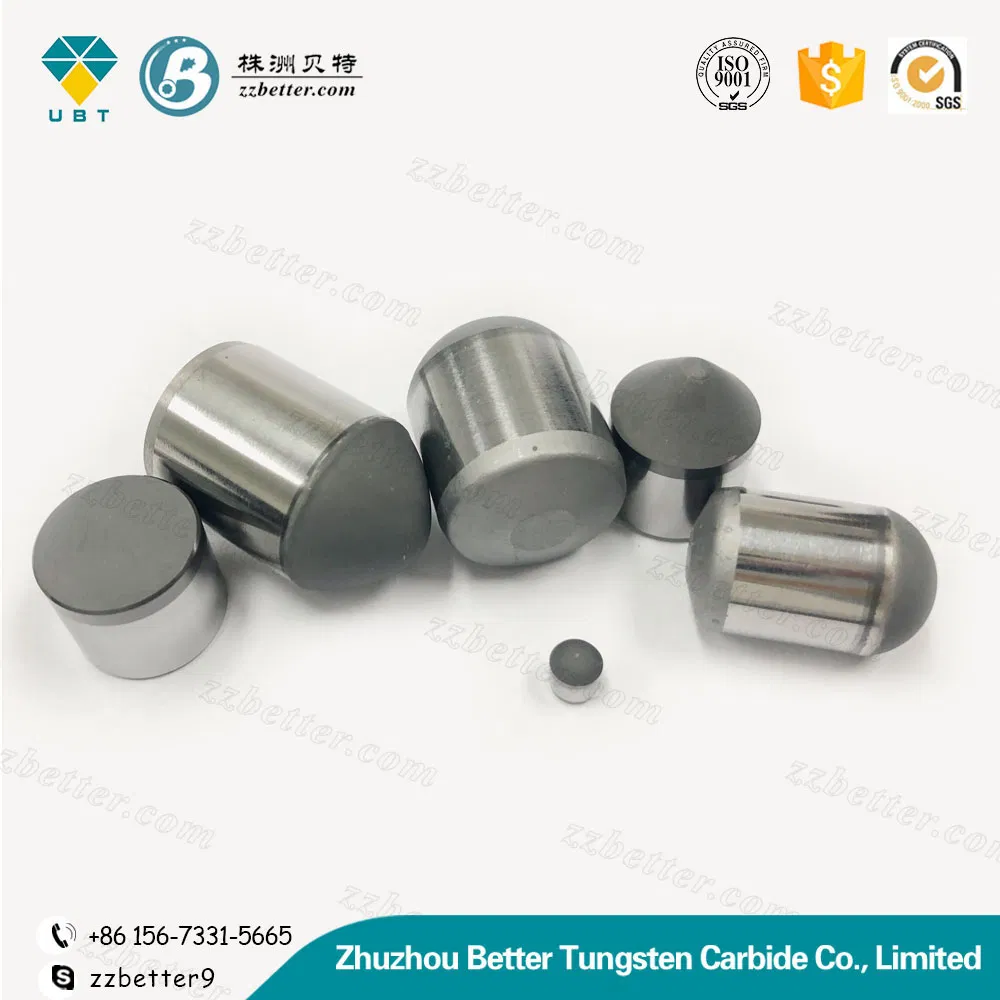

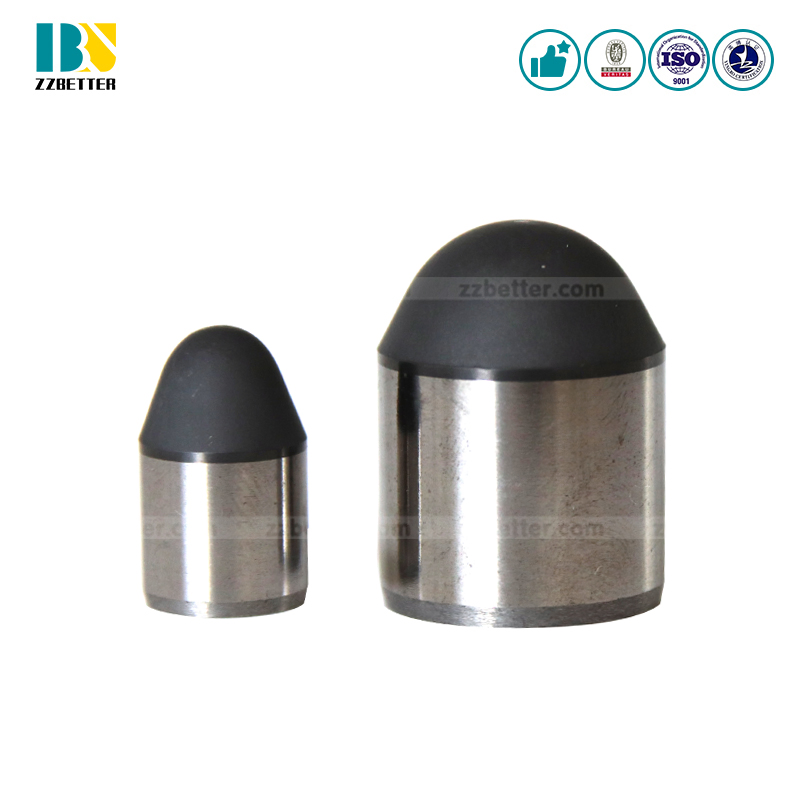

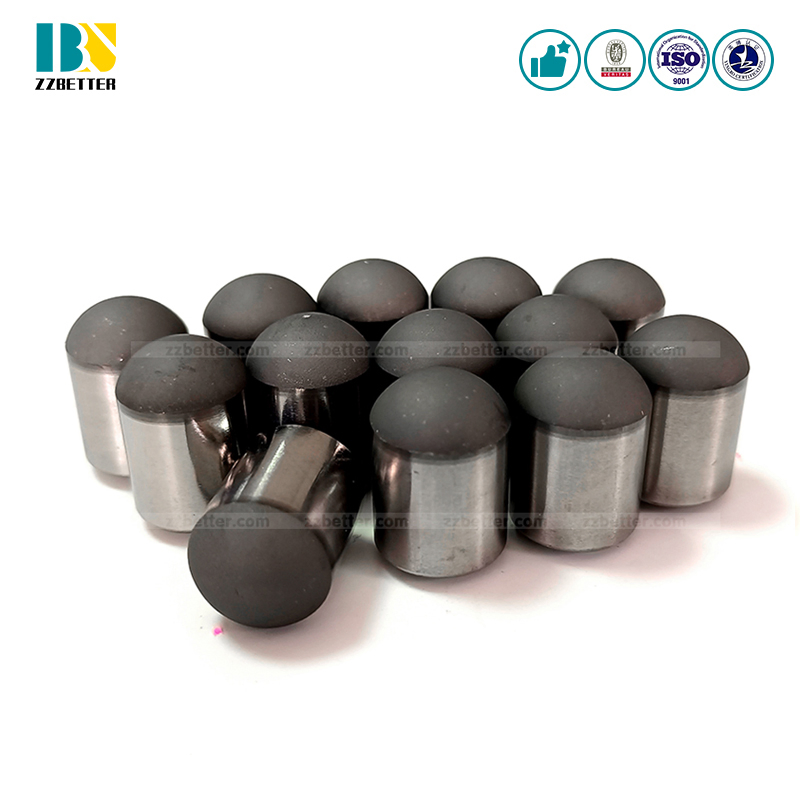

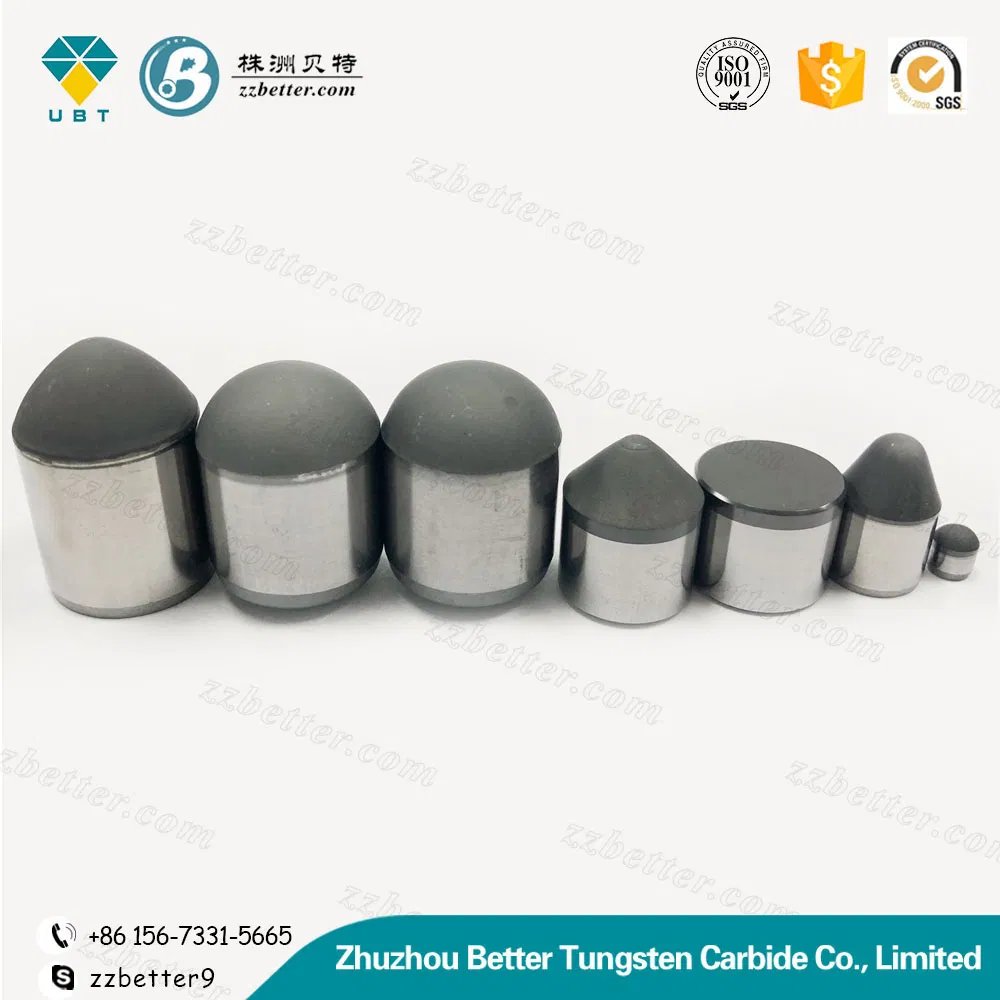

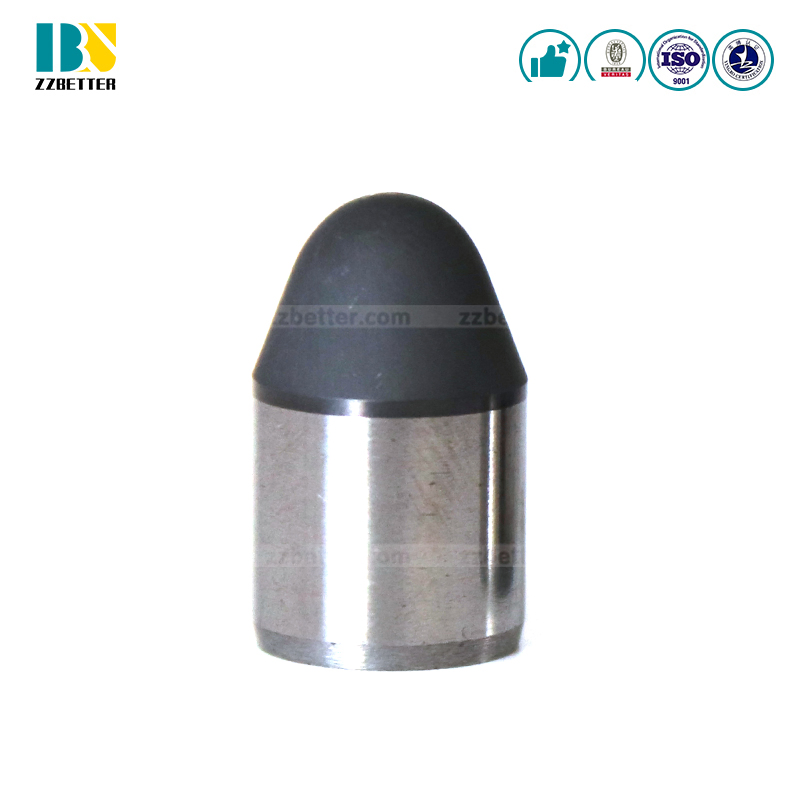

PDC Oil Drilling Bit Cutter

Customization:	Available
Certification:	ISO 9001:2008
Surface Treatment:	Polishing

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

PDC Oil Drilling Bit Cutter

Process

Sintering

Material

Tungsten Carbide and Diamond

Application

Oil Drilling, Mining and Engineering

Type Variety

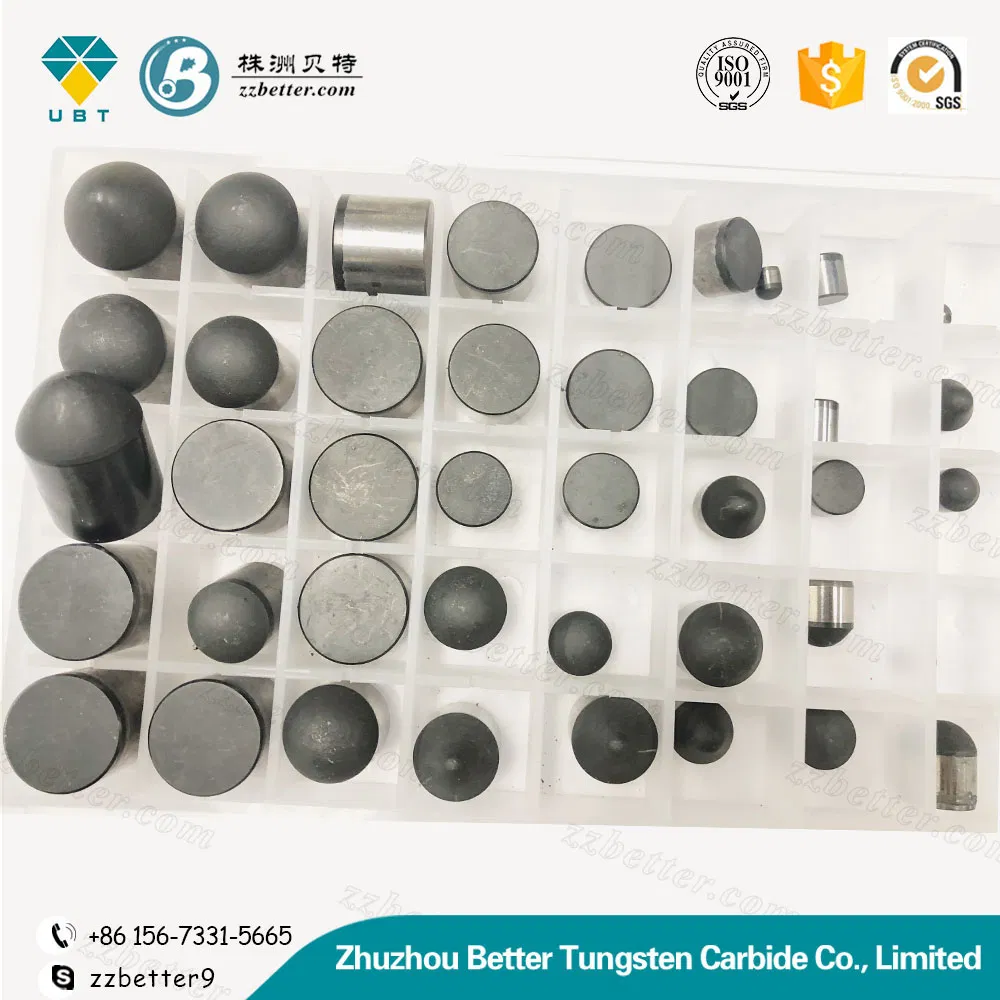

Flat Top, Spherical Top, Spoon Shape

Capacity

50000PCS/Month

💎 Product Description

Polycrystalline diamond cutters (PDC) comprise a polycrystalline diamond (PCD) top layer integrally sintered onto a tungsten carbide substrate using a high-pressure, high-temperature process.

PDC cutters are sintered with selected diamond powder and tungsten carbide compact under high temperature and ultra high pressure. These cutters exhibit high hardness, high abrasion resistance, and high impact resistance. PDC buttons bits are widely utilized for oil and gas well drill bits, geological drills, and mining drill bits. Furthermore, PDC cutters serve effectively as cutting tools for diamond-based cutting, grinding, and polishing applications.

Available sizes include 1304, 1308, 1313, 1608, 1613, 1616, 1908, 1913, 1916, 1919mm. Custom sizes and shapes can be manufactured according to specific requirements.

📊 Technical Specifications

SPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS
Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
1916	19.05 +/- 0.05	16.0 +/- 0.10	2.0-2.5	0.5x45	0.5x45
1913	19.05 +/- 0.05	13.2 +/- 0.10	2.0-2.5	0.5x45	0.5x45
1613	15.88 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1610	15.88 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1313	13.44 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45

SPEC SHEET FOR MINING/SHALLOW OIL AND GAS PDC CUTTERS
Dimension Code	Diameter (D)	Height Total (H)	Height Diamond	Diamond Chamfer	Carbide Chamfer
1313	13.44 +/- 0.03	13.2 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1308	13.44 +/- 0.03	8.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
1010	10.00 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
810	8.00 +/- 0.03	10.0 +/- 0.10	2.0-2.5	0.3x45	0.5x45
804	8.00 +/- 0.03	4.5 +/- 0.10	2.0-2.5	0.3x45	0.5x45

🖼️ Product Display

❓ Frequently Asked Questions

What materials are PDC cutters made of?

PDC cutters consist of a polycrystalline diamond (PCD) top layer integrally sintered onto a tungsten carbide substrate using high-pressure and high-temperature processes.

What are the primary advantages of these cutters?

They offer exceptional hardness, superior abrasion resistance, and high impact resistance, making them ideal for demanding drilling environments.

In which industries are PDC cutters used?

They are widely used in oil and gas well drilling, geological exploration, mining, and as precision tools for diamond cutting and polishing.

Can you provide custom sizes for PDC cutters?

Yes, while we have standard dimensions (like 13xx, 16xx, and 19xx series), other sizes and shapes can be manufactured to meet your specific requirements.

What is the production capacity for these products?

Our current production capacity is approximately 50,000 pieces per month, ensuring a stable supply for large-scale projects.
