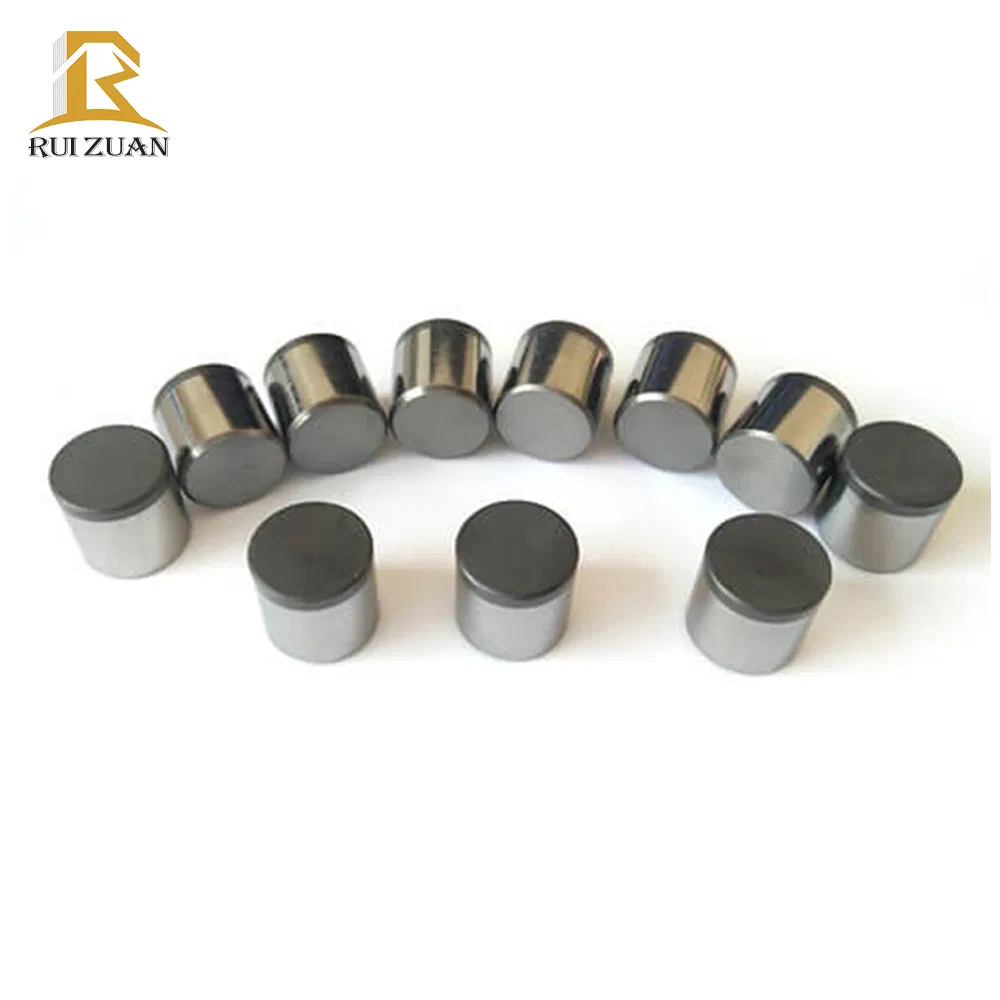

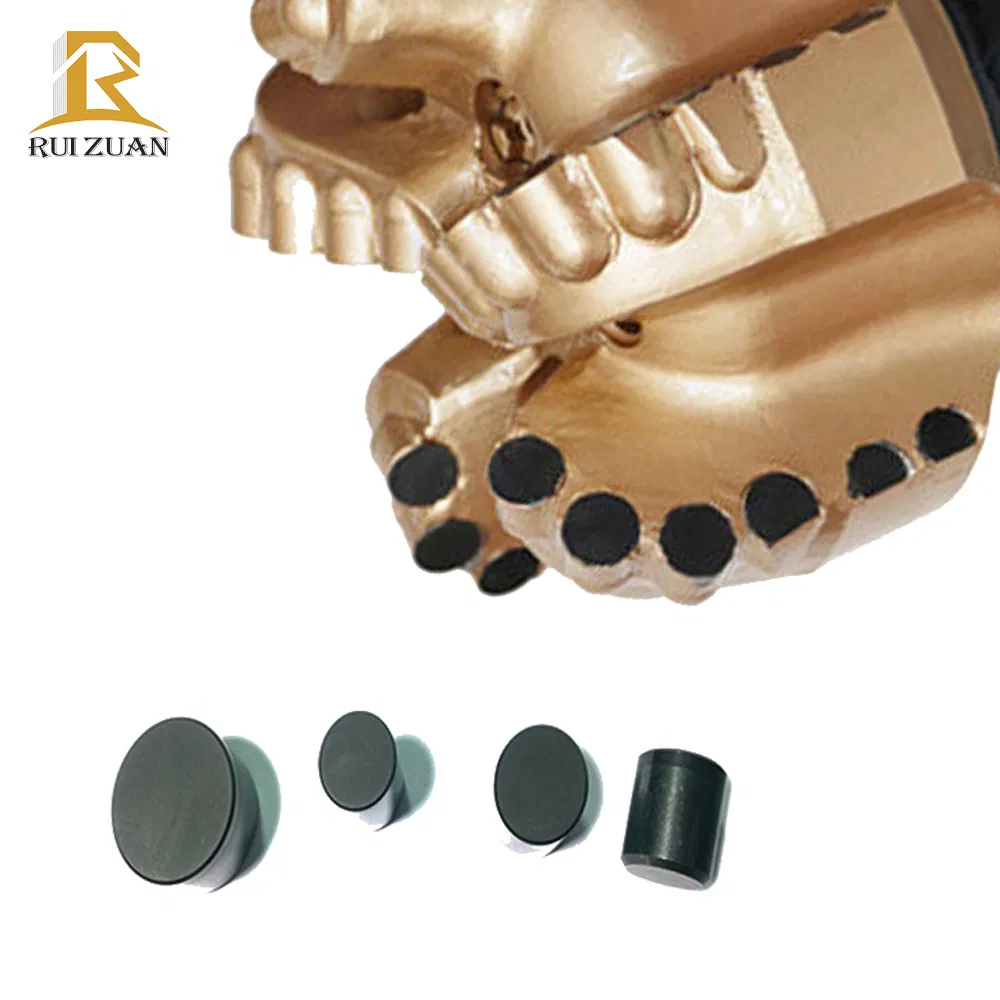

1308 1313 1613 1913 PDC Cutter Suppliers PDC Tool Polycrystalling Diamond Compact Cutter for Drill Bits

1 / 5

1308 1313 1613 1913 PDC Cutter Suppliers PDC Tool Polycrystalling Diamond Compact Cutter for Drill Bits

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚡ Basic Information

Product Name

Oil Drill PDC Cutter

Material

Alloy Steel

Surface Treatment

Sand Blast

Manufacturing Process

Casting

Application

Mining Drilling

Usage

Energy & Mining

Processing Type

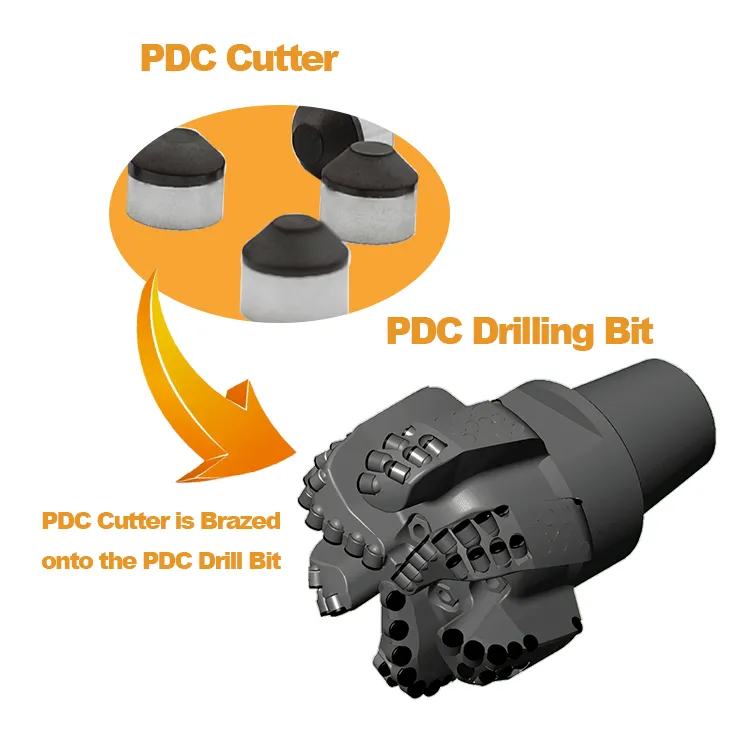

Welded to Drill Bit Body

Shape Cutter

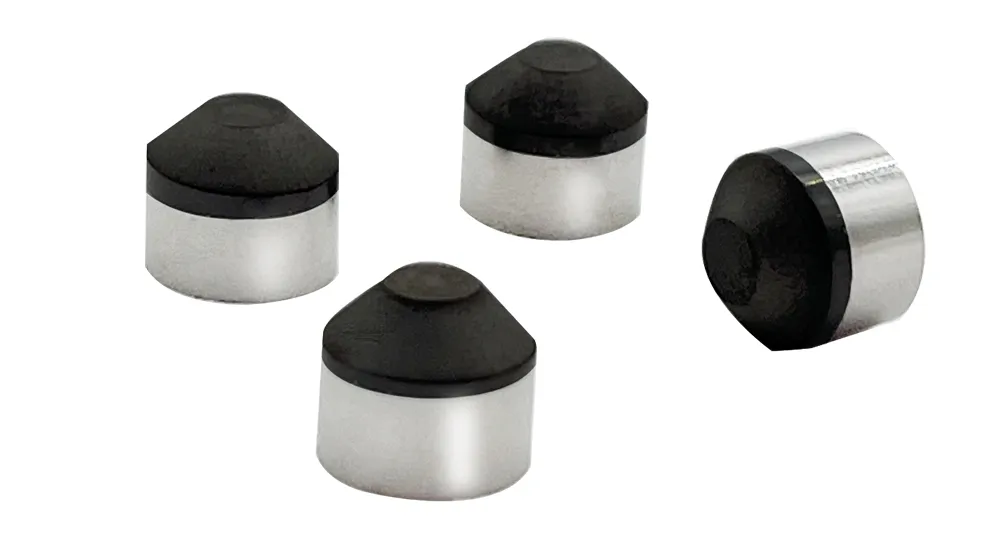

Flat, Dome, Conical and Other Shapes

Diamond Layer

2mm

Diameter

8, 10, 13, 16, 19 mm

Ware Resistance

>45 or > 50

Impact Toughness

>1000

Advantage

High Strengthen

Origin

China

📦 Related Products

📝 Product Description

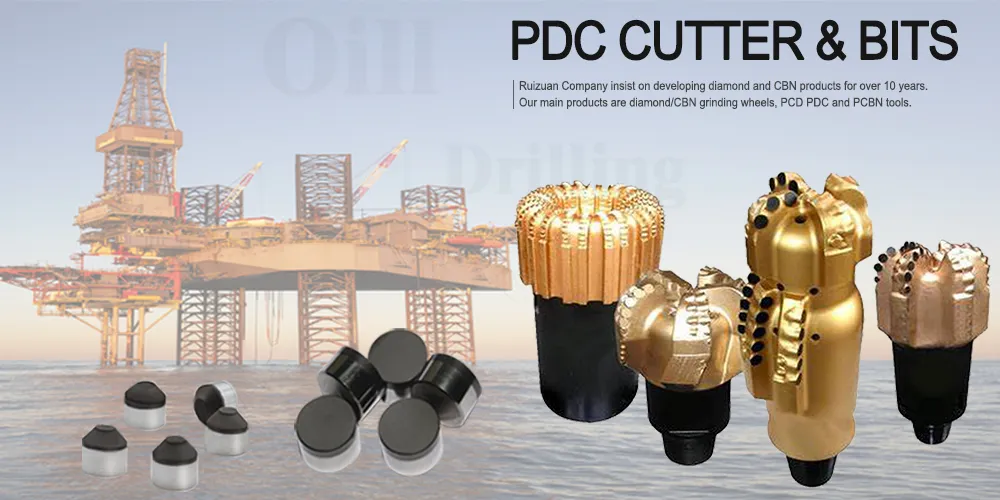

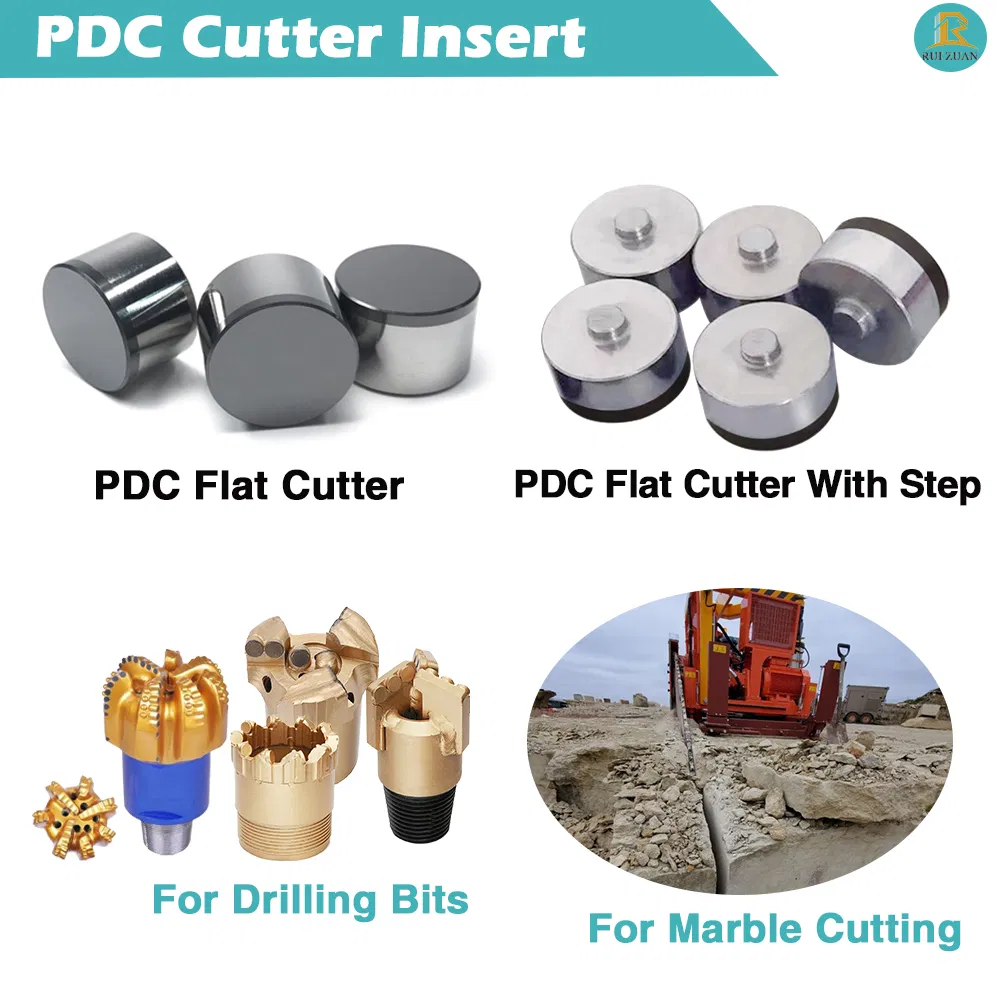

PDC Cutters for Oil & Gas
Combined HPHT Pressing technology of Cubic Press Machines with selected synthetic diamond abrasives, these PDC Cutters are developed for complex down-hole environments, requiring high compacting and wear resistance.

R5-Premium Grade for Hard Formation: Reliable for drilling hard formations. Ultra-High Pressure creates the strongest bond between synthetic diamond abrasives and cobalt, bearing toughest compaction.

R3-Quality Grade for Soft to Medium Formation: Competitive prices with high impact resistance and good wear performance.

S1-ECO Grade for Gauging: Most suitable for gauging, stabilizers, bearings, or other down-hole tools.

M3-Grade for Mining and Stone Cutting: Designed specifically for mining industries with optimized cost-efficiency.

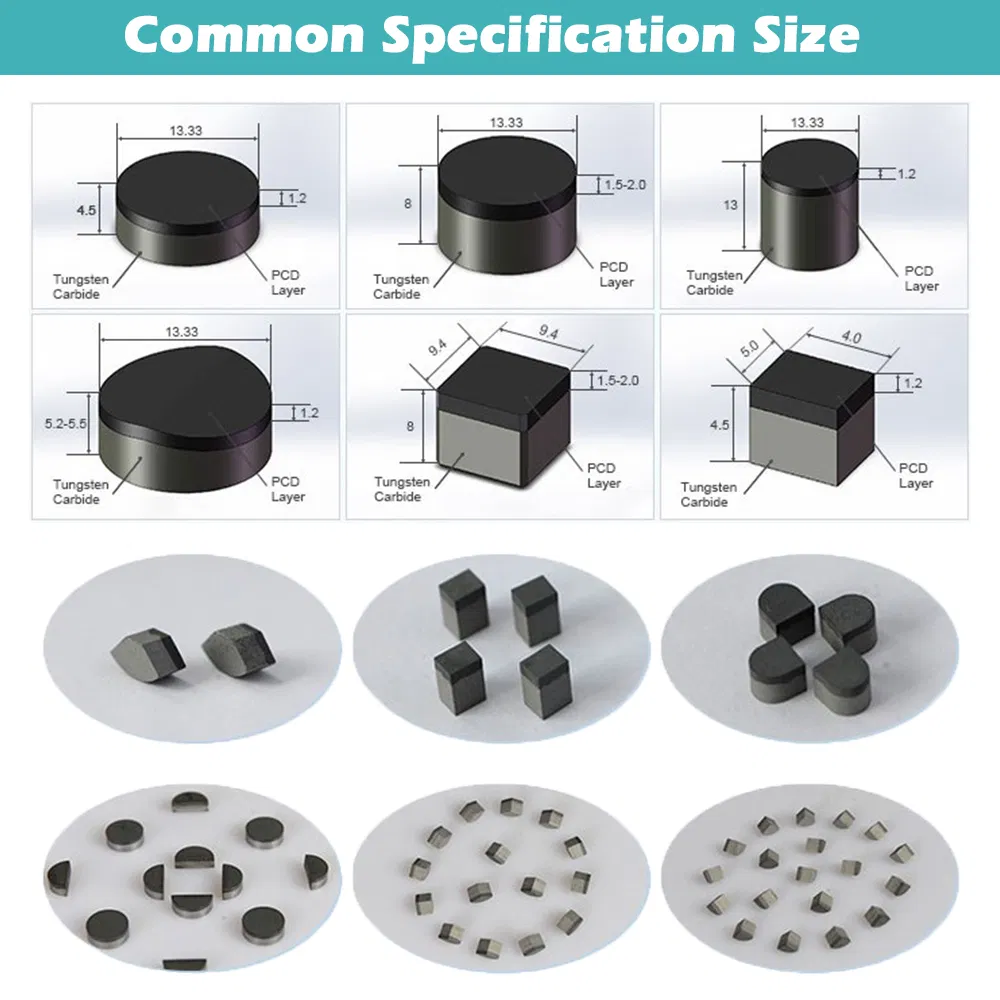

Product Code	Diamond Table Thickness (mm)	Diameter (mm)	Length (mm)	Available Chamfer
1308	2.00+/-0.20	13.44+/-0.03	8.0+/-0.1mm	0.012"/0.016"/0.020"x45°
1313	2.00+/-0.20	13.44+/-0.03	13.20+/-0.1mm	0.012"/0.016"/0.020"x45°
1608	2.00+/-0.20	15.88+/-0.03	8.0+/-0.1mm	0.012"/0.016"/0.020"x45°
1613	2.00+/-0.20	15.88+/-0.03	13.20+/-0.1mm	0.012"/0.016"/0.020"x45°
1908	2.00+/-0.20	19.05+/-0.03	8.0+/-0.1mm	0.012"/0.016"/0.020"x45°
1913	2.00+/-0.20	19.05+/-0.03	13.20+/-0.1mm	0.012"/0.016"/0.020"x45°

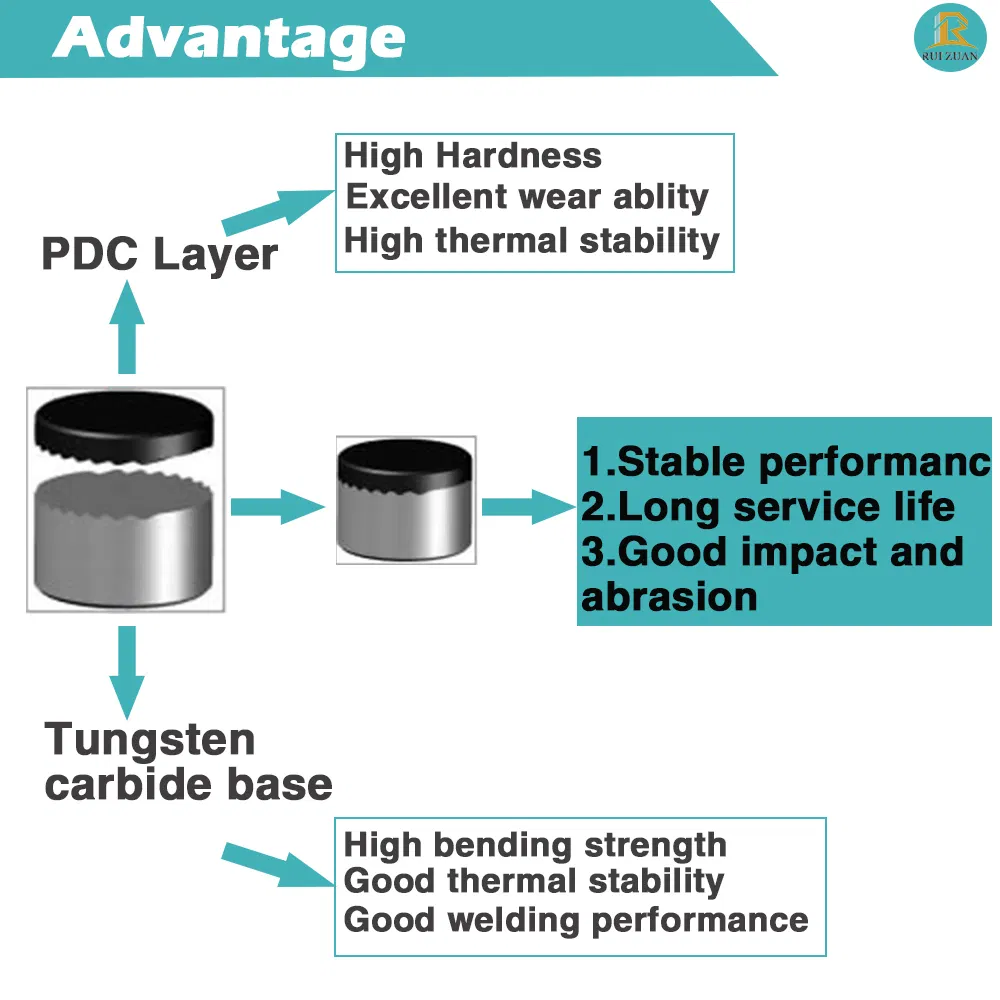

⭐ Our Advantages

✔ New cutting surfaces appear during abrasion, keeping effective rock cutting.

✔ High strength, high hardness, and superior self-sharpening properties.

✔ Effective shearing action outperforms traditional crushing bits.

✔ Serrate structure combination ensures high impact resistance.

🚀 Product Application

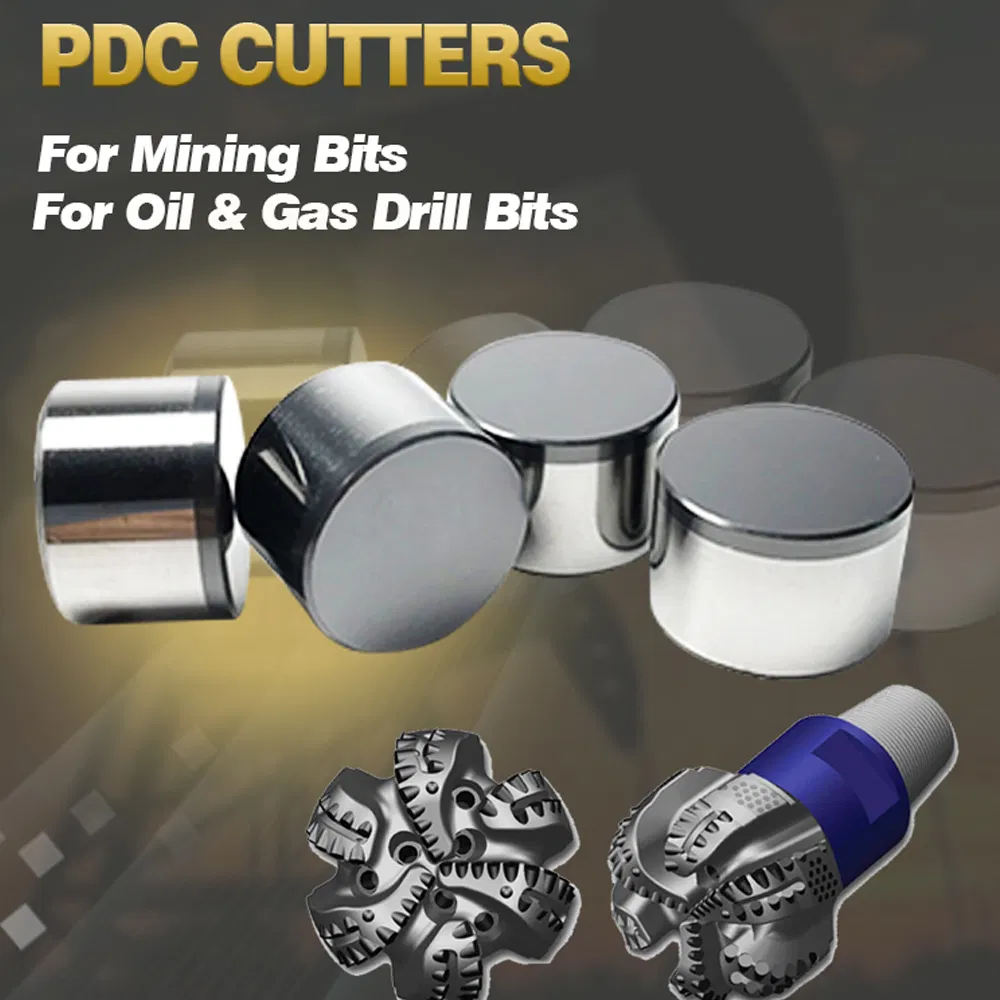

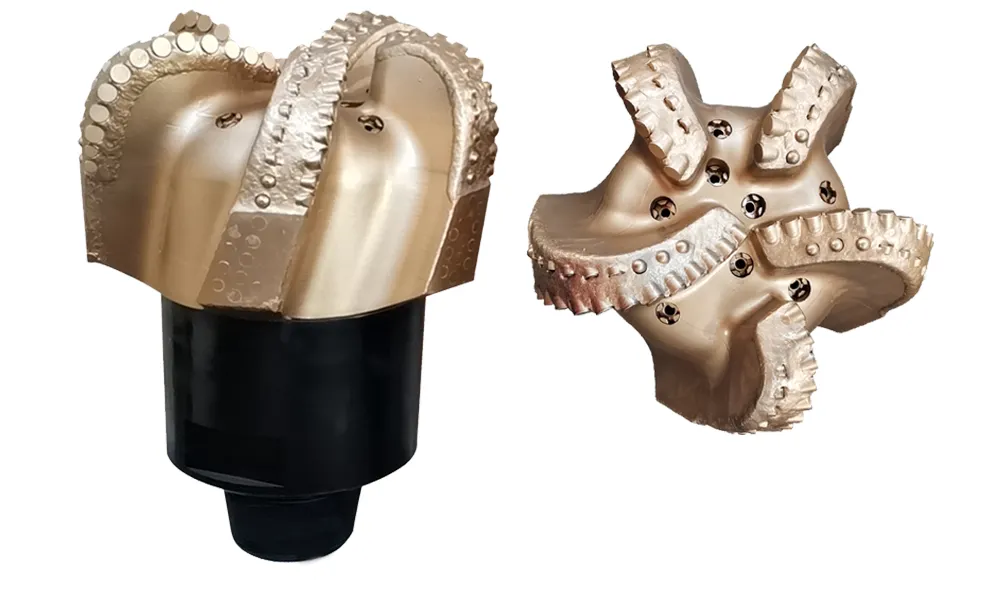

PDC cutters are widely used for petroleum and oil fields, PDC bits, geological exploration, gas exploration, and coal mining. Applicable for drilling soft to intermediate-hardness strata.

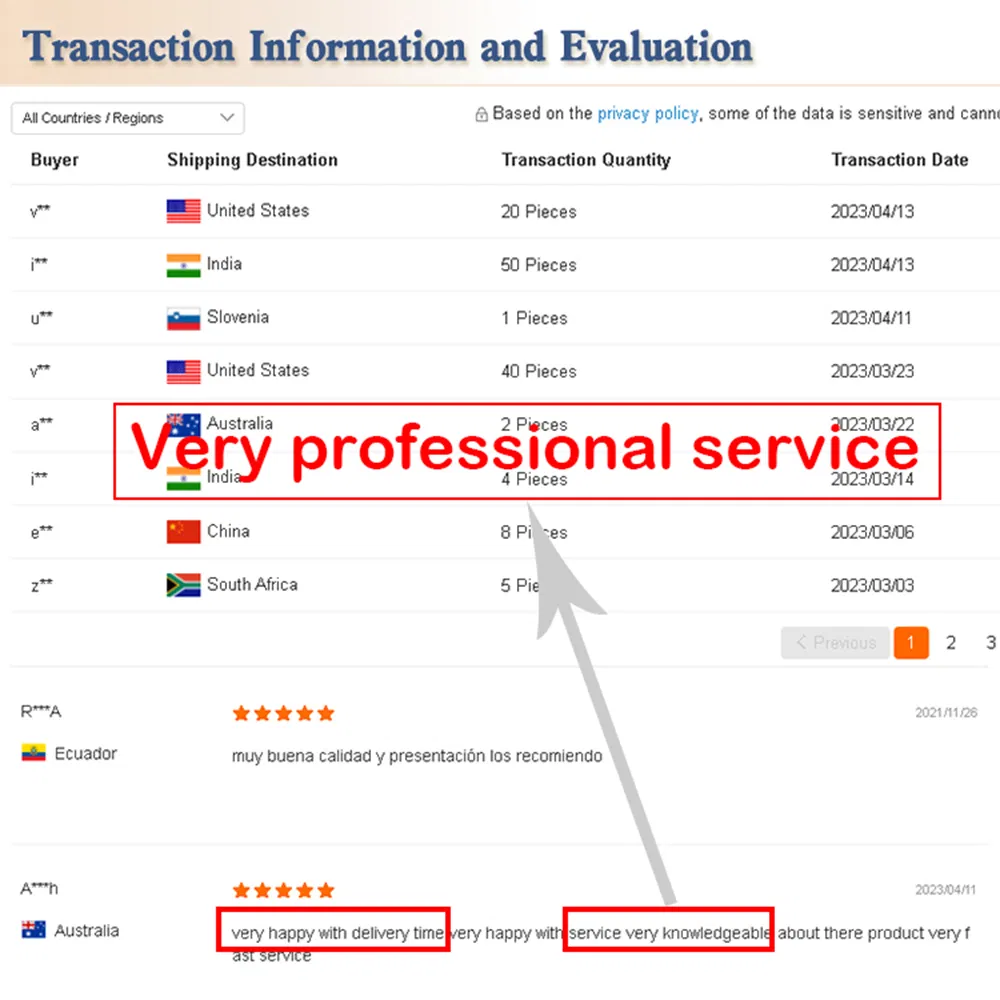

💬 Customer Reviews

🏆 Why Choose Us

🏢 Profile

Specializing in providing tools for grinding, cutting, turning, milling, drilling, and reaming. Product range includes Diamond/CBN Grinding Wheels, PCD/PCBN inserts, tungsten carbide tools, and high-speed steel knives. Serving industries such as woodworking, metalworking, automotive, stone, glass, industrial ceramics, and oil & gas drilling.

🚢 Packaging & Shipping

PACKAGE:
Single box per wheel, 10 to 20 wheels per carton. Standard protective packaging ensures safety during transit.

DELIVERY TIME:
3-30 days after confirming order. Specific delivery dates depend on production season and order quantity.

❓ Frequently Asked Questions

Q1: What are PDC cutters primarily used for?

A: PDC cutters are primarily used for oil and gas drilling bits, mining drills, and geological exploration bits, especially for soft to intermediate-hardness rock formations.

Q2: How do you ensure the wear resistance of the cutters?

A: We use HPHT (High Pressure High Temperature) pressing technology and high-quality synthetic diamond abrasives to ensure a wear resistance value of >45 or >50.

Q3: Are there different grades for different rock types?

A: Yes, we offer R5 Premium for hard formations, R3 for soft to medium formations, and M3 specifically for mining and stone cutting.

Q4: What is the typical diamond layer thickness?

A: Our standard PDC cutters feature a 2.0mm diamond layer, providing a robust cutting surface.

Q5: Can you provide custom sizes or shapes?

A: We offer standard diameters from 8mm to 19mm in various shapes including flat, dome, and conical. Contact us for specific requirement availability.

Q6: What is the lead time for orders?

A: Lead times typically range from 3 to 30 days depending on the quantity and current production schedule.
