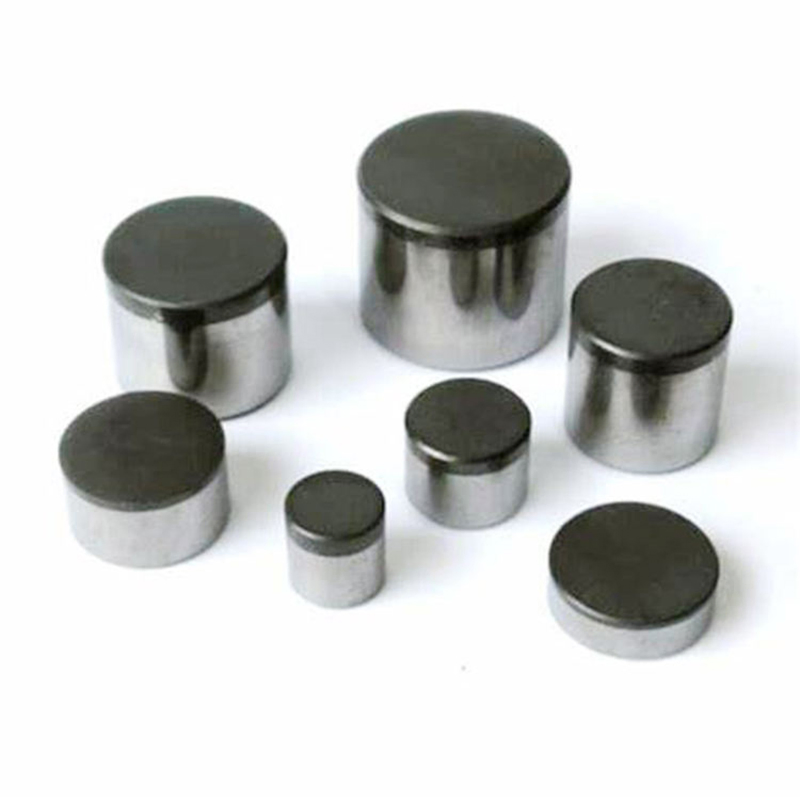

PDC Cutter PCD Pin for Mining Drilling

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Condition:
New
Certification:
CE, ISO9001
Standard:
ASTM
Material:
Carbon Steel
Application:
Well Drilling, PDC Bit
PDC Cutter:
1004, 1308, 1313, 1613, 1908, etc.

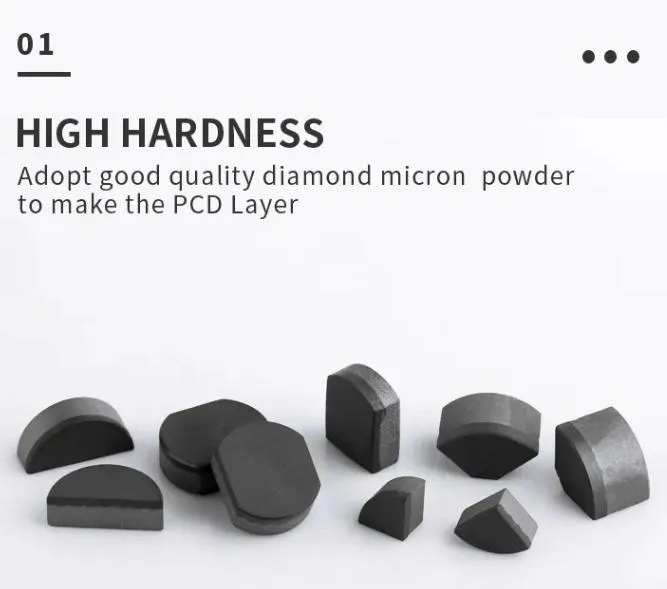

Shape:
Flat, Square, Spherical, Special Shape
Origin:
China
Product Description

PDC (Polycrystalline Diamond Compact) is a new type of superhard functional material. It is sintered with diamond micropowder and cemented carbide substrate under ultra-high pressure and high temperature conditions.

By introducing international advanced technology and adopting new high-efficiency catalysts, our geological and coalfield series diamond composite sheets offer exceptional wear resistance and impact resistance. The optimized stress distribution makes the joint surface firmer, significantly improving the reliability and service life of the product with a high cost-performance ratio.

Product Parameters
Dimension Code Diameter (ΦD) Height Total(H) Height Diamond Diamond Chamfer Carbide Chamfer
191619.05±0.0516.0±0.102.0-2.50.5x45°0.5x45°
161315.88±0.0313.2±0.102.0-2.50.3x45°0.5x45°
131313.44±0.0313.2±0.102.0-2.50.3x45°0.5x45°
130813.44±0.038.0±0.102.0-2.50.3x45°0.5x45°
130413.44±0.034.0±0.102.0-2.50.3x45°0.5x45°

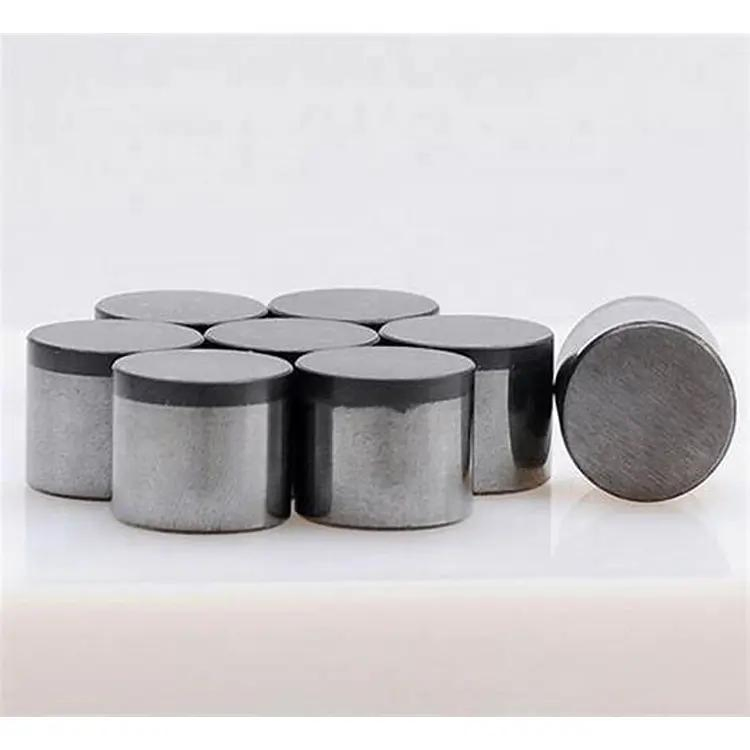

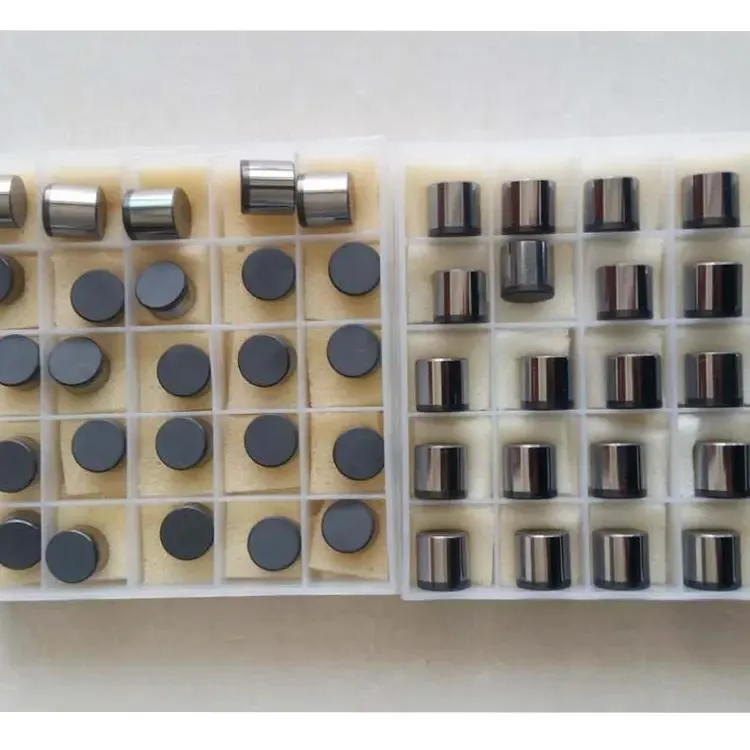

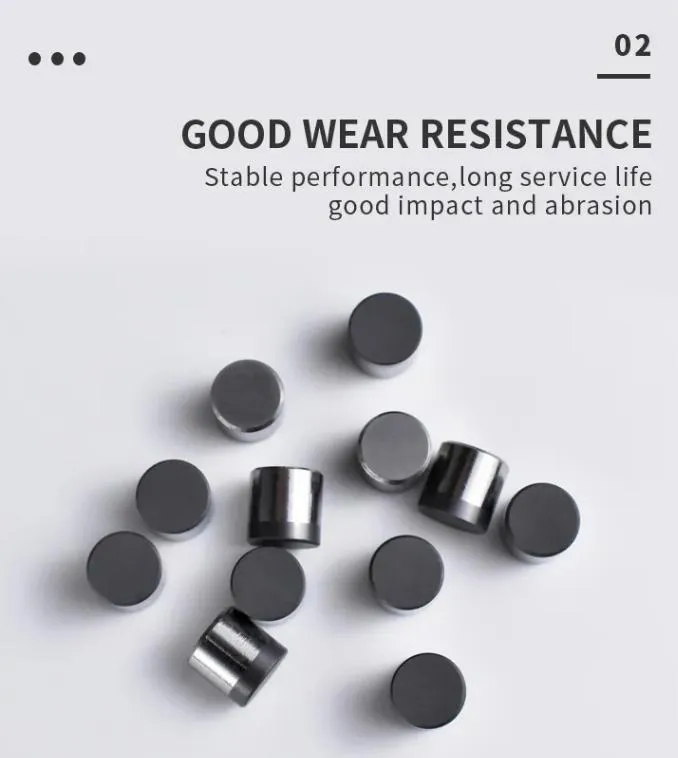

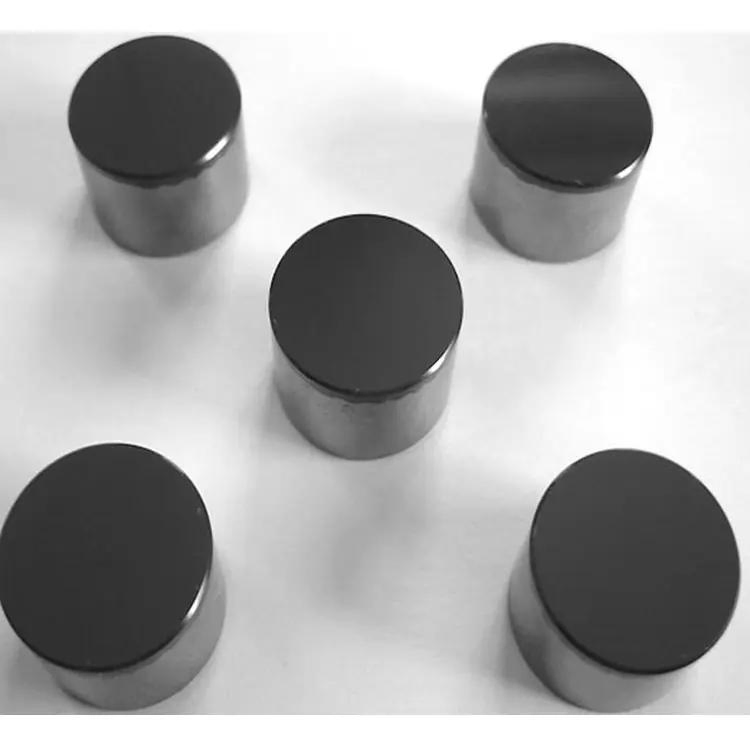

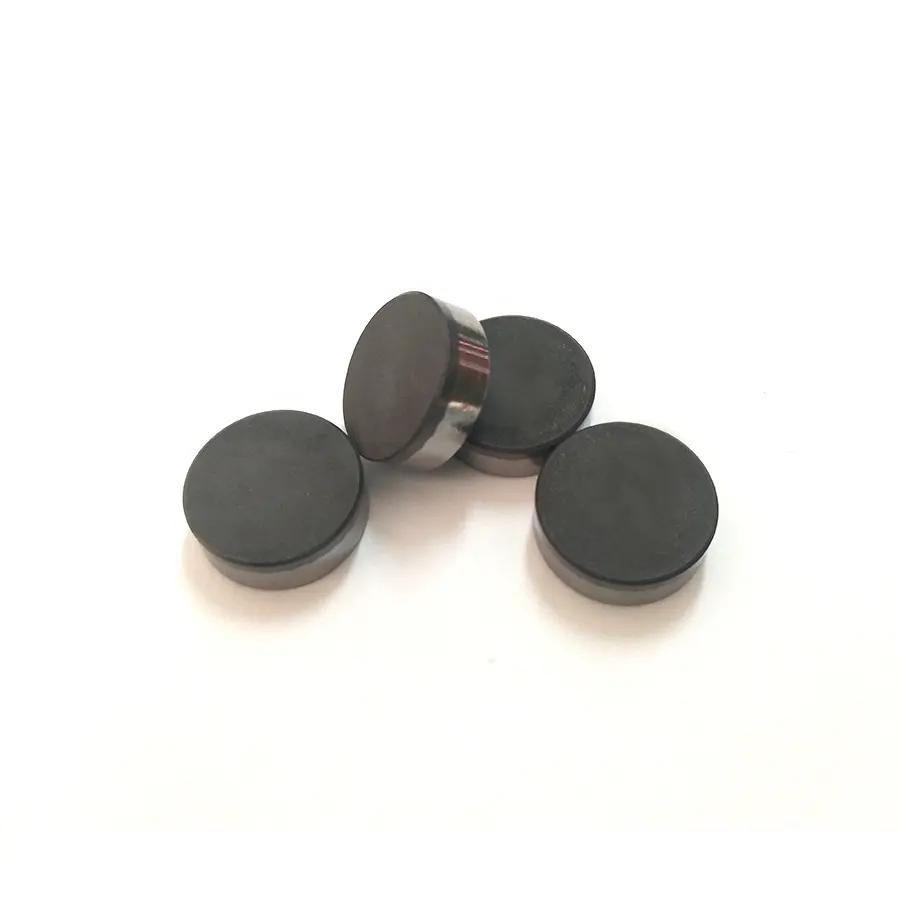

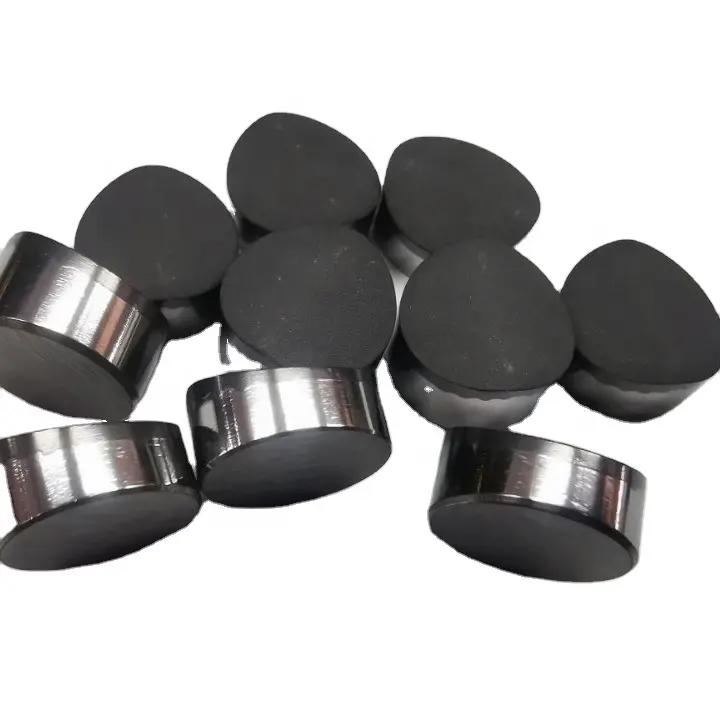

Detailed Photos
Why Choose Us?
1
Professional expertise in oilfield industries, where quality is our core culture. All tools follow API standards and ISO:9001-2000 certification.
2
Comprehensive service including efficient communication, reliable delivery, and dedicated after-sales support.
3
Rich industry experience allowing us to serve as a stable, long-term supplier for your drilling needs.
4

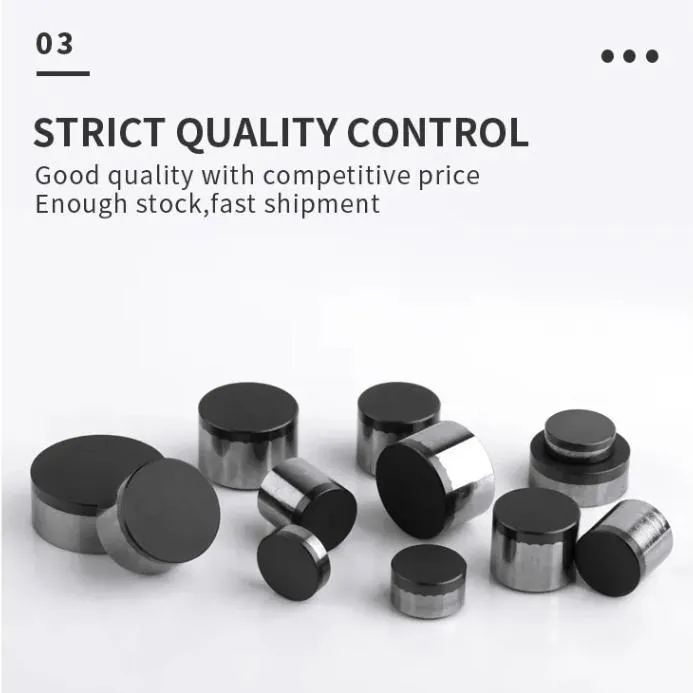

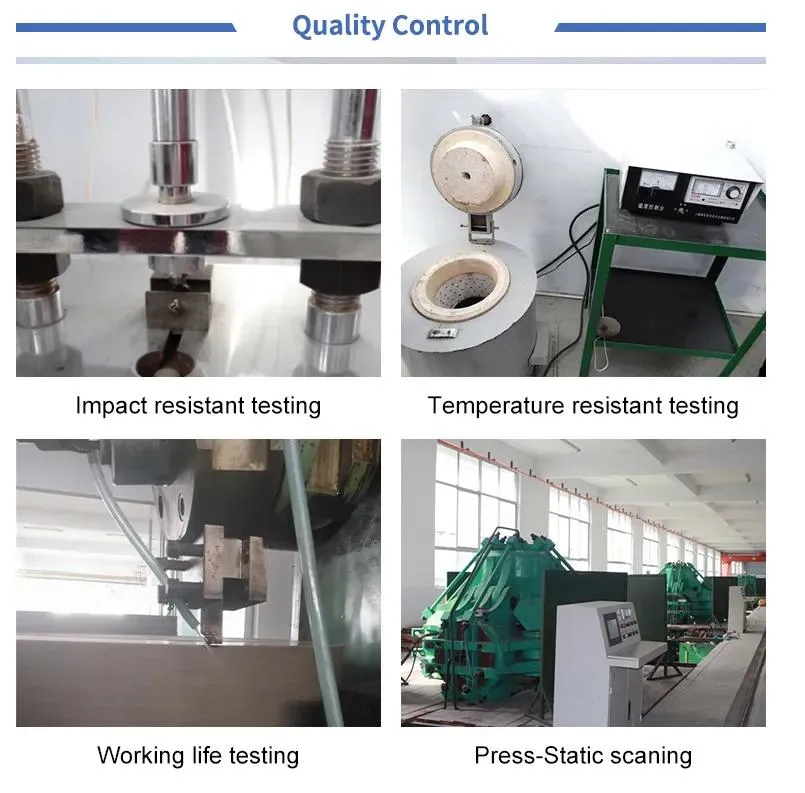

Stringent quality systems to ensure superior high-performance products for every batch.
5
Large product series providing a one-stop service for underground drilling equipment and tools.

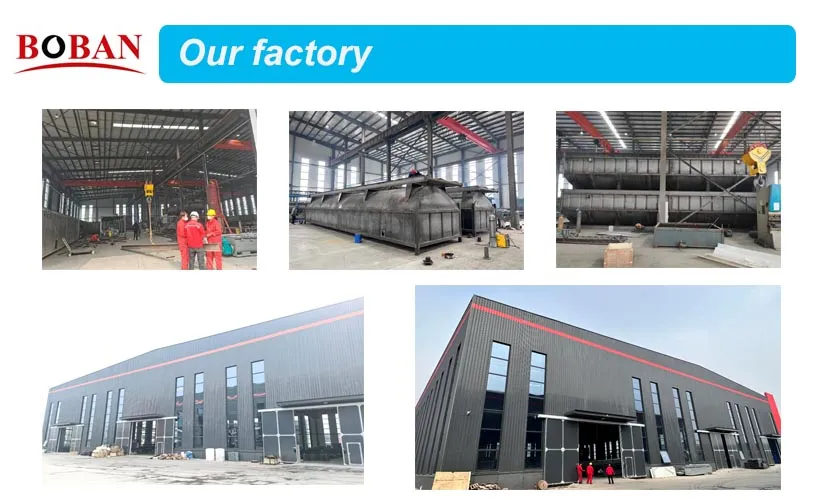

Manufacturing Capabilities

We supply multiple lines of underground drilling equipment for oilfields, horizontal directional drilling (HDD), and water wells. Our range covers downhole tools, drilling strings, tubular handling tools, rig components, well control equipment, and mud pump spare parts.

All products are manufactured based on international standards. With advanced production facilities and rigorous management, our products serve the global market including Europe, America, the Middle East, and Australia, maintaining a strong reputation among offshore and industrial clients.

Frequently Asked Questions
What is the composition of a PDC cutter?
PDC cutters are composed of a polycrystalline diamond layer integrated with a tungsten carbide substrate, sintered under ultra-high pressure and temperature.
What applications are these cutters suitable for?
They are primarily used for oil and gas well drilling, coal mining, and geological exploration, specifically for PDC drill bits.
Do you offer different shapes of PDC cutters?

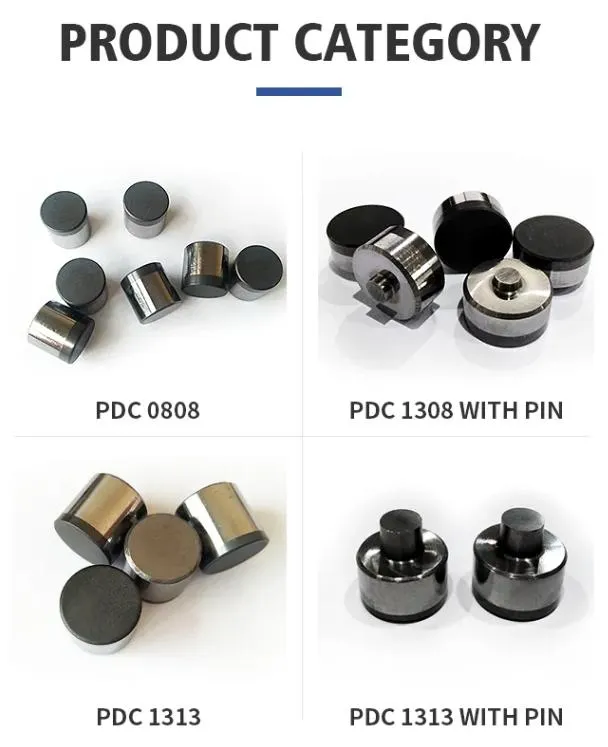

Yes, we provide various shapes including flat, square, spherical, and other special shapes to meet different drilling requirements.
Are your products certified?
Yes, our products and manufacturing processes are certified by ISO:9001-2000 and meet ASTM international standards.
What is the typical production capacity?
Our current production capacity is approximately 500 pieces per month, ensuring a steady supply for our clients.
Can these cutters withstand high impact?
Our cutters use advanced catalyst technology to ensure high wear resistance and superior impact resistance for challenging drilling environments.
