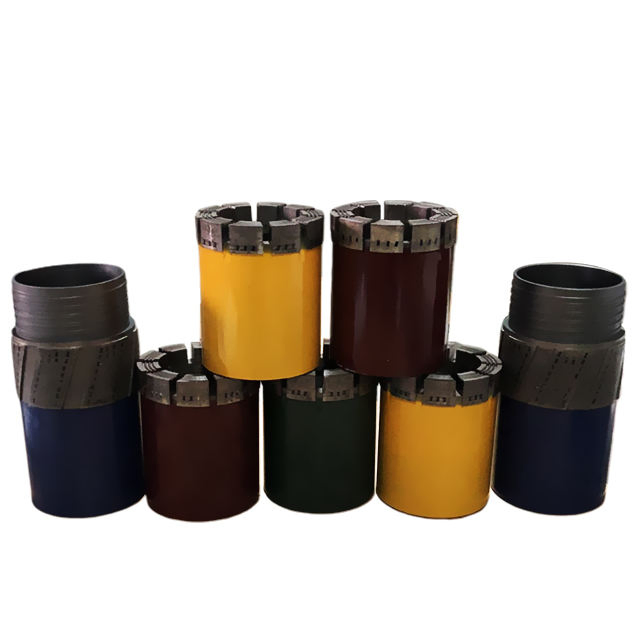

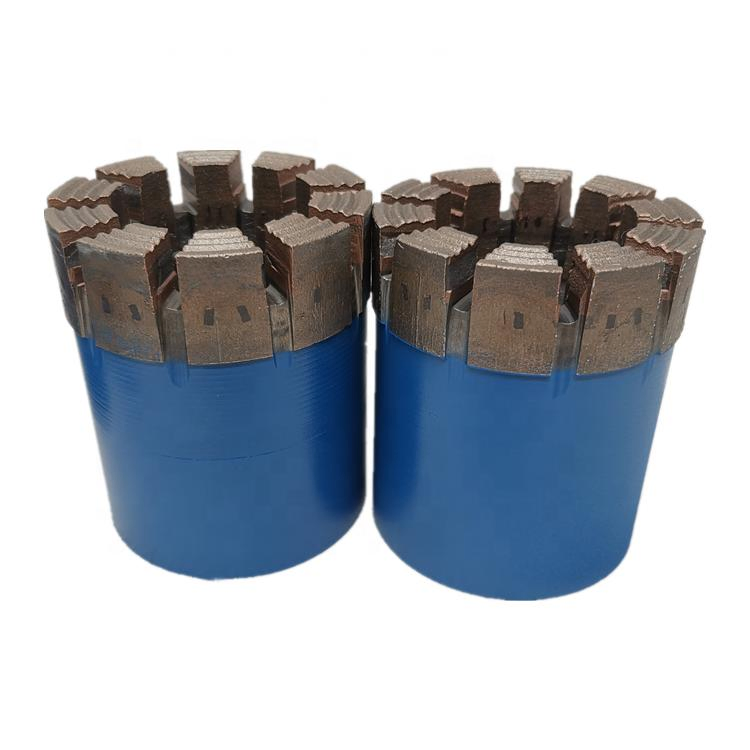

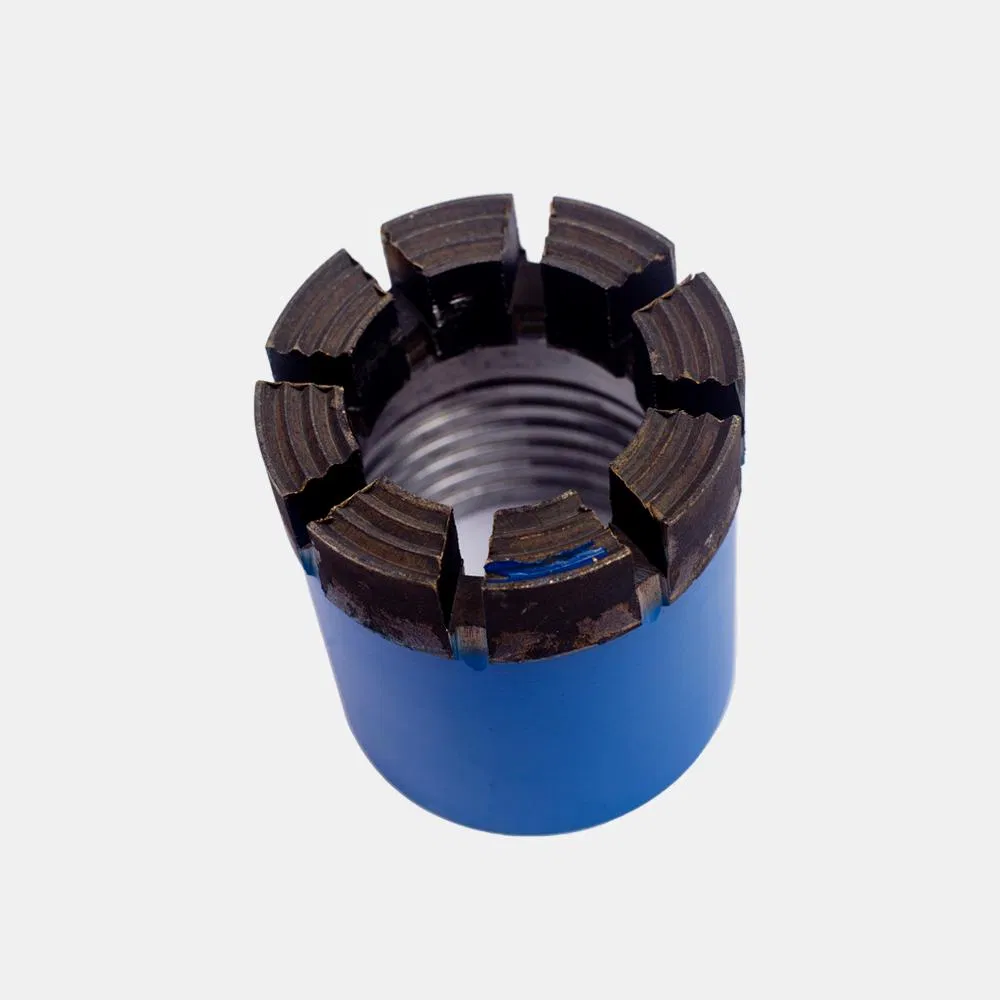

Premium Nq Impregnated Diamond PDC Core Drill Bit for Precision Drilling

1 / 5

Premium Nq Impregnated Diamond PDC Core Drill Bit for Precision Drilling

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Core Drill Bit

Certification

ISO9001

Customized

Available

Length

Taper-Length

Material

Tungsten Carbide

Standard

ISO9001

Transport Package

Standard Export Packing

Specification

AQ BQ NQ HQ PQ TC

Production Capacity

50000 PCS Per Month

💎

Product Description

AVAILABLE SIZE
Q Series	AQ, BQ, NQ, NQ2, NQ3, NQTT, HQ, HQ3, HQTT, PQ, PQ3, PQTT, AQTK, BQTK, Geobors
T2 Series	T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 Series	T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S Series	T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
T Series	T36, T46, T56, T66, T76, T86
Z Series	Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series	B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series	HWF, PWF, SWF, UWF, ZWF
WT Series	RWT, EWT, AWT, BWT, NWT, HWT (Single/Double Tube)
WG Series	EWG, AWG, BWG, NWG, HWG (Single/Double Tube)
WM Series	EWM, AWM, BWM, NWM, HWM
Others	NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, HTW, NXD3, CHD101
Standards	56mm to 275mm and Customised options

⚙️

Product Parameters

Model	Drill Bit (mm)		Reaming Shell (mm)
Model	O.D.	I.D.	O.D.
BTW	59.56	42.1	59.95
NTW	75.31	56.1	75.7
HTW	95.57	71.1	96.09
AQ	47.63	26.97	48.01
BQ	59.56	36.4	59.95
BQ3	59.56	33.53	59.95
NQ	75.31	47.63	75.7
NQ3	75.31	45.08	75.7
HQ	95.57	63.5	96.09
HQ3	95.57	61.11	96.09
PQ	122.05	84.96	122.65
PQ3	122.05	83.06	122.65

🔗

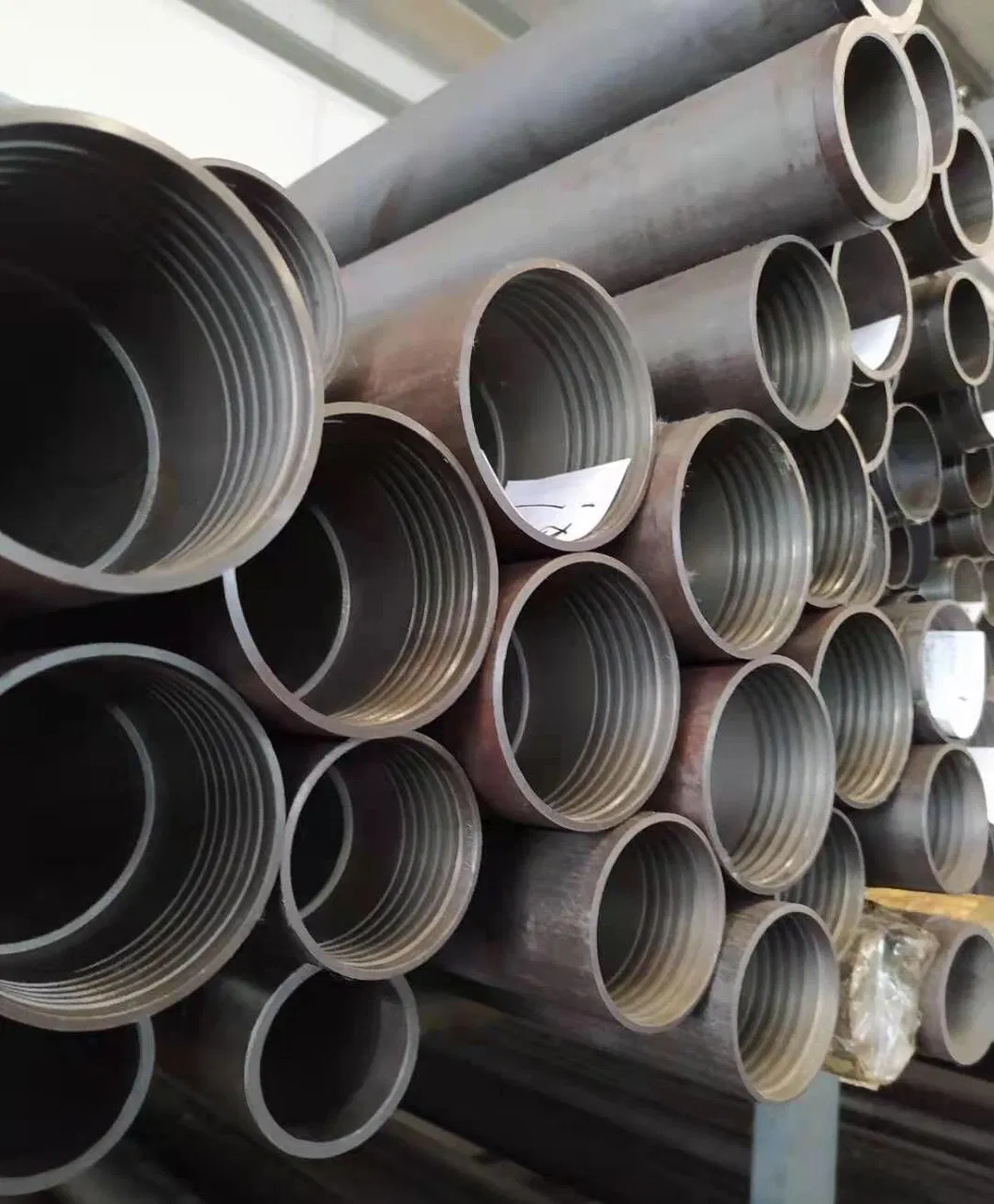

Related Products

❓

Frequently Asked Questions

What materials are these core drill bits suitable for?

Our core drill bits are primarily made from high-grade Tungsten Carbide and industrial diamonds, making them ideal for geological drilling through various rock formations, including hard, medium, and soft strata.

Can I request customized specifications for my drilling project?

Yes, we offer customization services. Beyond the standard AQ, BQ, NQ, HQ, and PQ sizes, we can manufacture bits to meet specific diameter or length requirements according to your technical needs.

What is the quality standard for these products?

All our products are manufactured under strict ISO9001 quality management systems to ensure durability, precision, and high performance in demanding drilling environments.

What is the difference between the Q series and T series bits?

The Q series (Wireline) is designed for efficient deep-hole drilling where the core is retrieved through the drill string, while the T series is often used for conventional core drilling with specific wall thickness requirements.

What is your monthly production capacity for export?

We have a robust production capacity of approximately 50,000 pieces per month, allowing us to handle both small and large-scale global orders with standard export packaging.

Do you provide reaming shells to match these drill bits?

Yes, we provide matching reaming shells for all drill bit models (BTW, NTW, HTW, etc.) to ensure the hole diameter is maintained and the drill string is stabilized.
