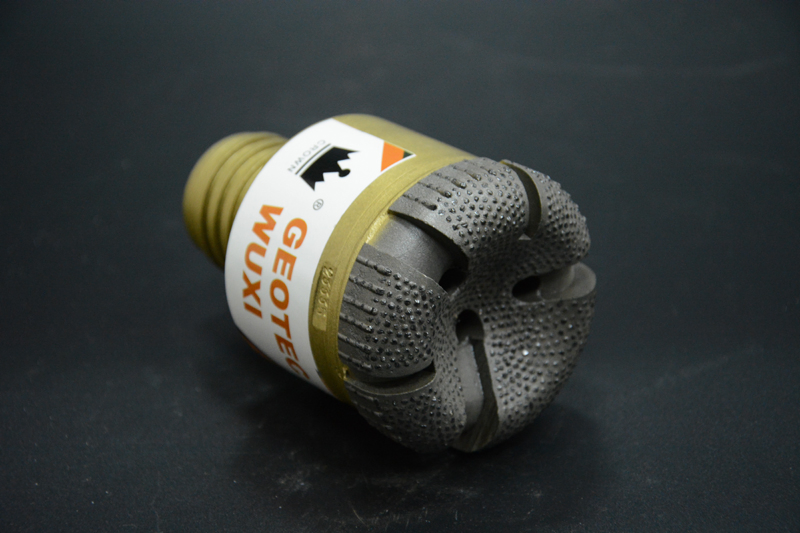

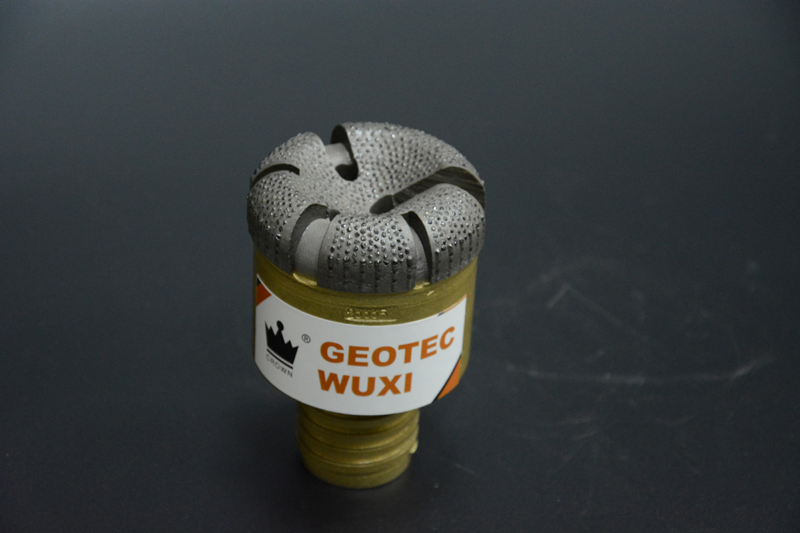

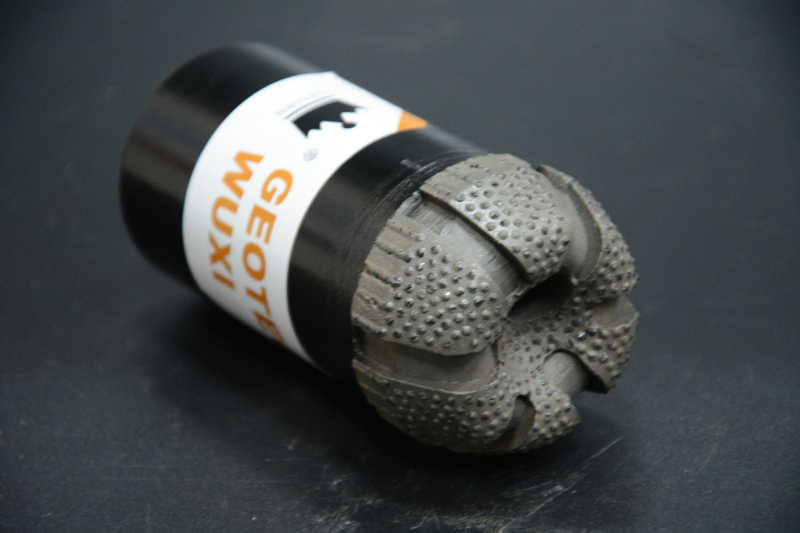

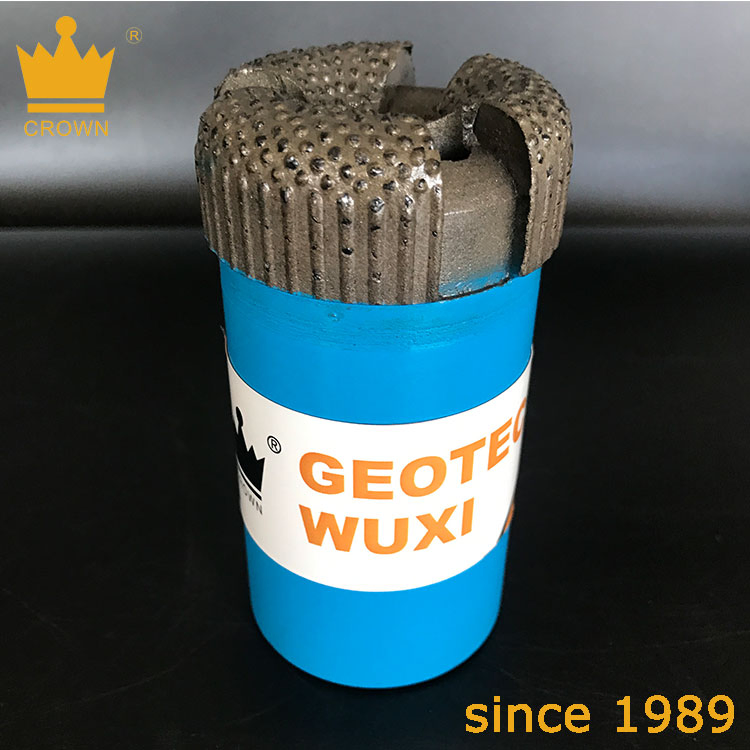

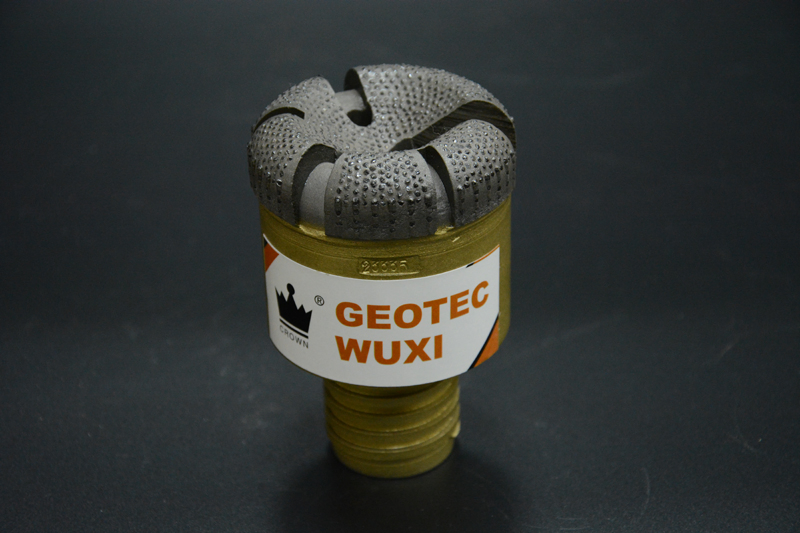

Non-Coring Surface Set Diamond Bit

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

B, N, H, P

Material

Matric PDC

Usage

Well Drilling, Metal Drilling

Transport Package

Carton Box

Specification

Wireline Series, Metric standard, DCDMA, CDDA

Origin

China

Production Capacity

100, 000 PCS/Year

💎 Product Description

Non-Coring Surface Set Diamond Bit

Brief Introductions of Impregnated Diamond Bits

The impregnated diamond bits are professional cutting tools containing diamond segments bonded to a base material. These bits are widely applied in cutting non-ferrous materials. High-quality synthetic diamond grades are distributed throughout the depth of the impregnated bit's matrix series. The crown's matrix layer features a uniform distribution of these crystals embedded in a powdered metal bond, making it a critical tool for the mineral exploration industry.

🚀 Key Features

Fast Penetration Rate: The matrix is specifically designed to expose new diamonds to the cutting face as wear occurs, ensuring continuous sharpness and efficiency.
Cost-Effective Drilling: These bits are manufactured to provide optimum penetration rates and an extended service life, significantly reducing overall drilling costs.
Customizable Performance: The optimum diamond size, concentration, and matrix type are determined based on the hardness and abrasiveness of the formation to be drilled.

📏 Available Sizes

"Q" series: AQ, BQ, NQ, HQ, PQ / AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116

T series: T36, T46, T56, T66, T76, T86

Z series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146

B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

WF series: HWF, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT

WM series: EWM, AWM, BWM, NWM, HWM

WG series: EWG, AWG, BWG, NWG, HWG

Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101

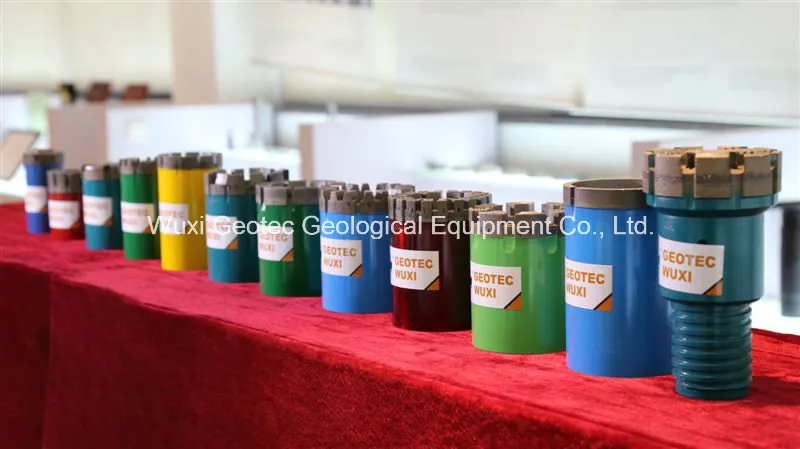

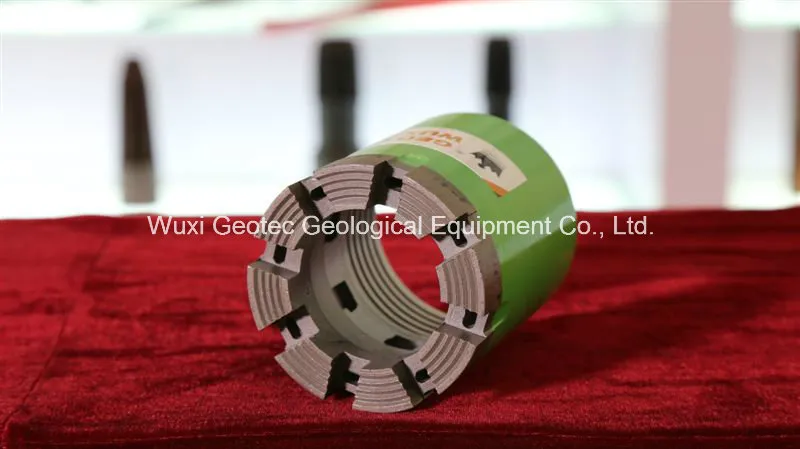

📸 Product Gallery

❓ Frequently Asked Questions

What are impregnated diamond bits used for?

They are primarily used in the mineral exploration industry for cutting non-ferrous materials during well and metal drilling.

How do these bits maintain a fast penetration rate?

The matrix is engineered to self-sharpen by exposing new diamonds as the surface wears down during the drilling process.

What materials are used in the construction of these bits?

They consist of a powdered metal bond matrix infused with high-quality synthetic diamonds.

How do I choose the right diamond bit for my project?

The selection depends on the hardness and abrasiveness of the rock formation, which dictates the necessary diamond size, concentration, and matrix type.

What standard sizes are available?

A wide range of series are available, including Q, T2, T6, T, Z, B, WF, WT, WM, and WG series, covering various metric and DCDMA standards.

Do these bits help in reducing drilling costs?

Yes, they are manufactured for optimum penetration efficiency and long service life, which helps lower the overall cost per meter drilled.
