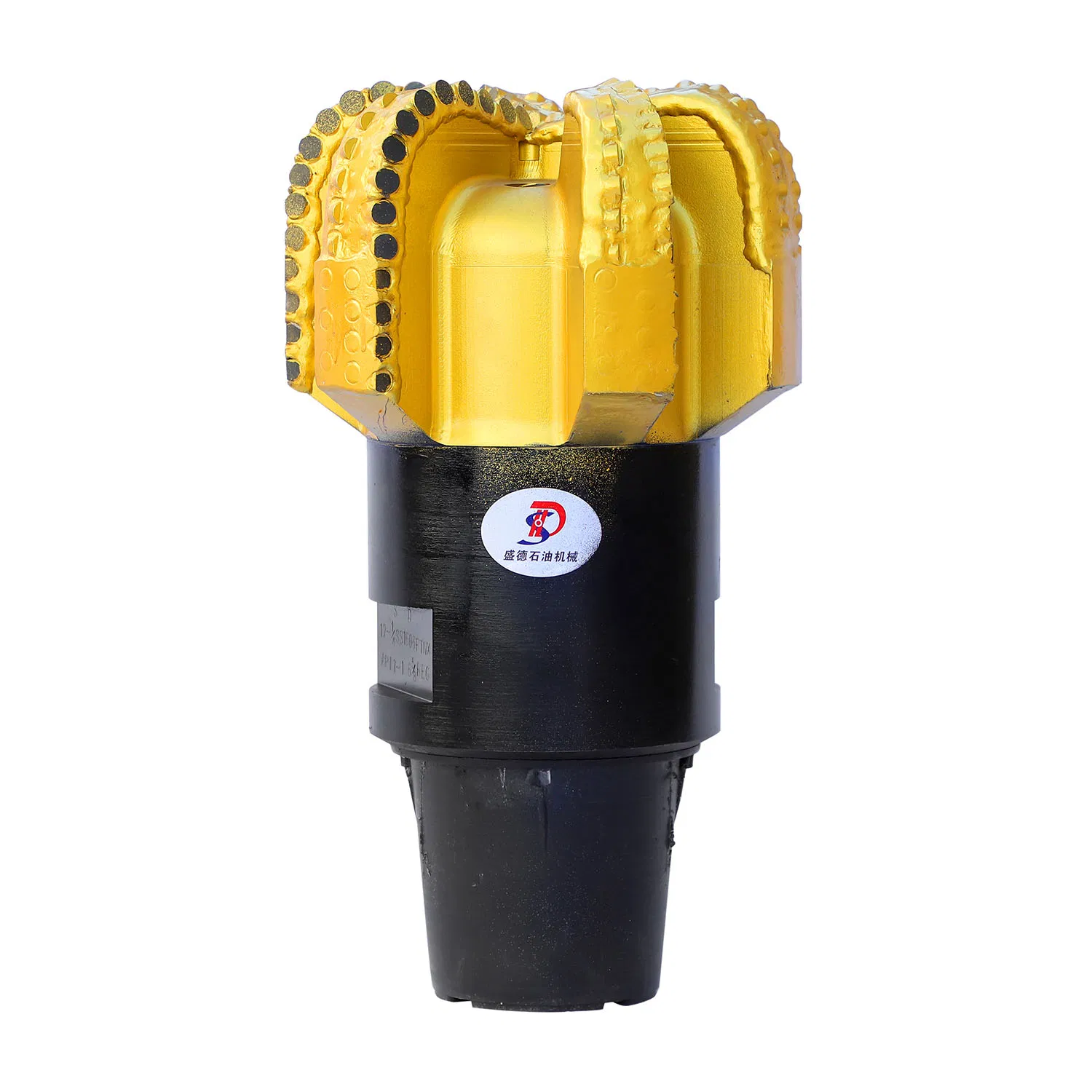

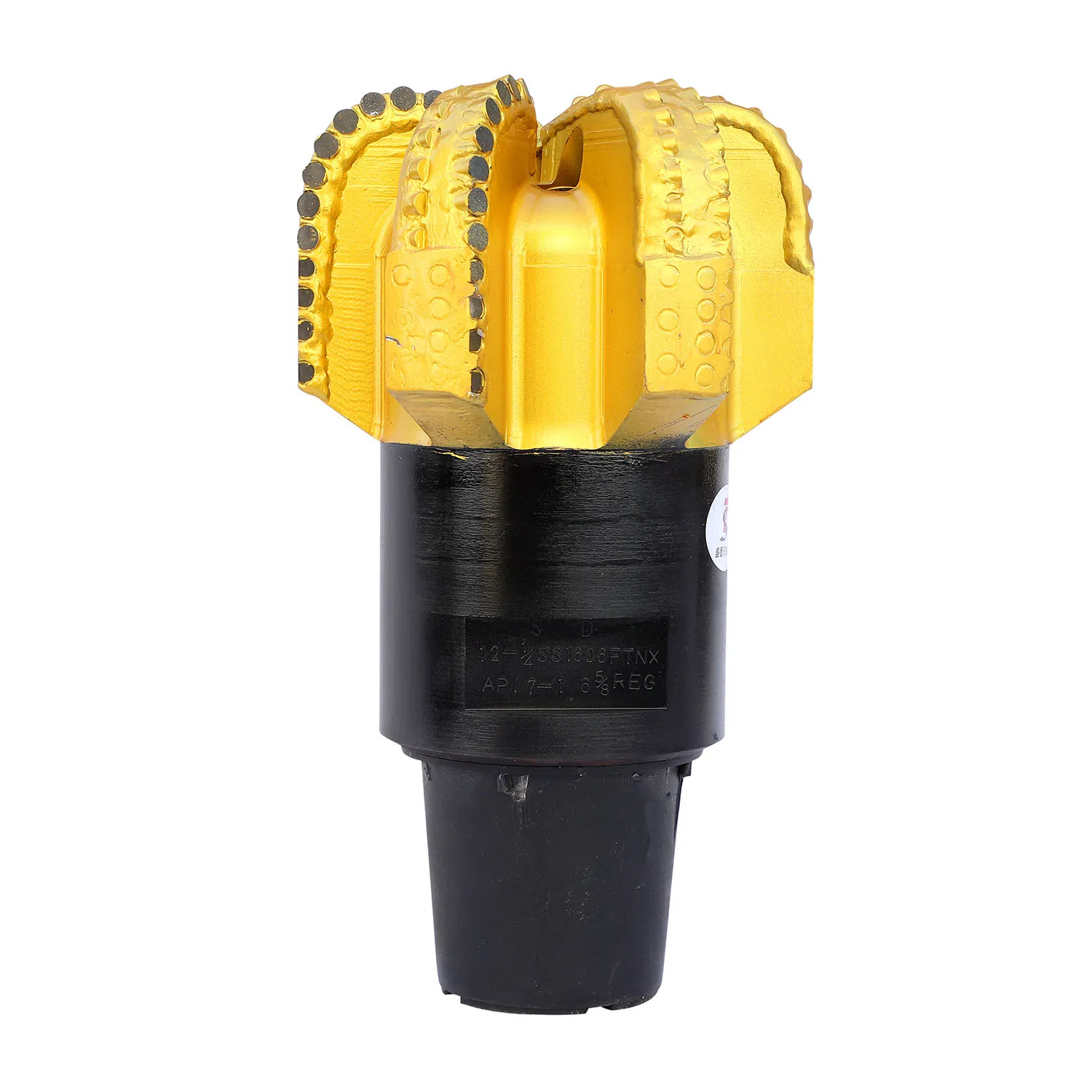

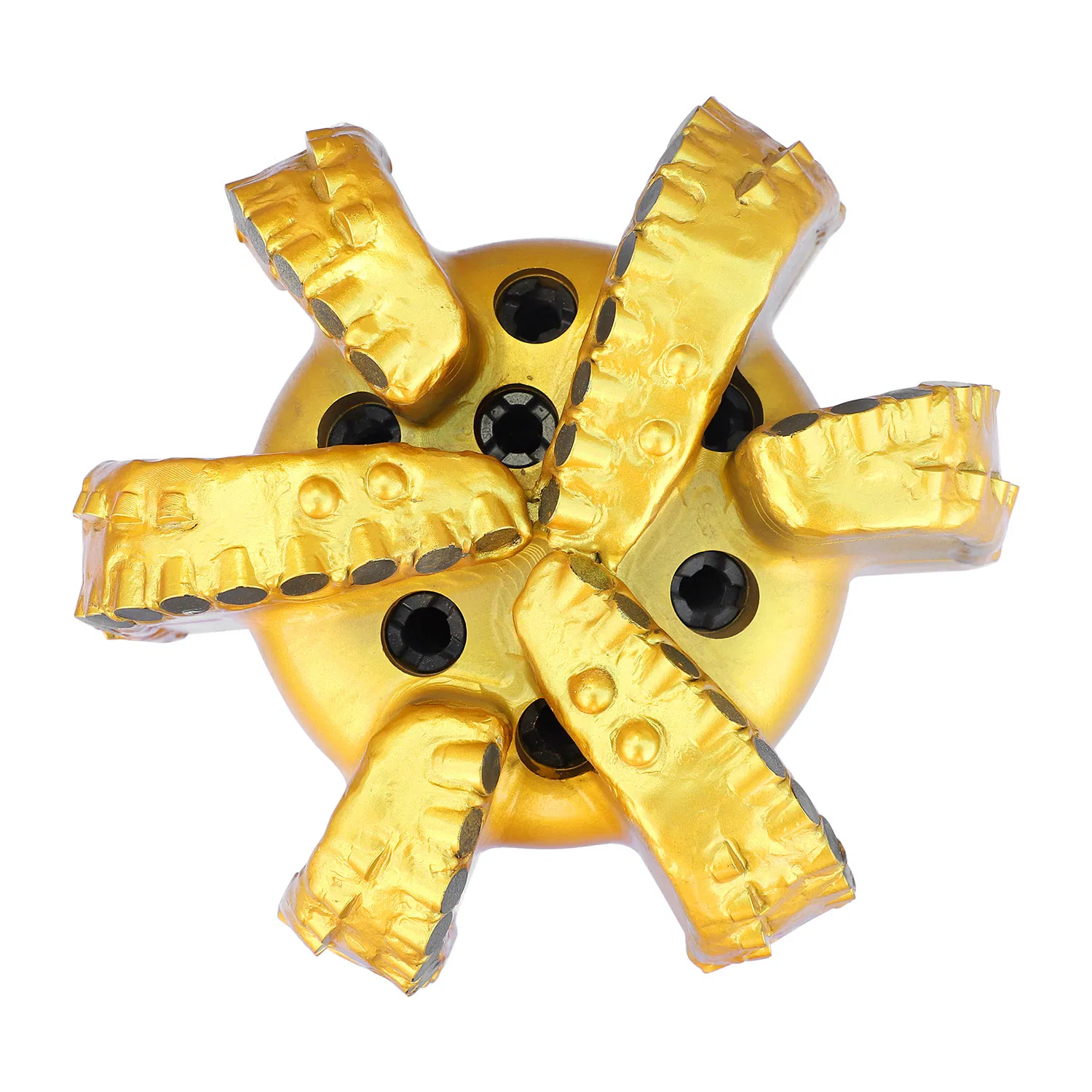

Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
1 / 5
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits
Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits

Downhole Tools for Petroleum-Equipment-Machinery 12-1/4"Strong Rock-Breaking Oil Drill Bits

Customization: Available
After-sales Service: Available
Warranty: 1year
Send Inquiry

Product Description

i

Basic Information

Model NO.
12-1/4
Process
CNC Milling
Surface Treatment
Spray-Paint
Material
Alloy Steel (42CrMo)
Wear-Resistant
Polycrystalline Diamond Compact (PDC)
Certification
ISO 9001:2000, SGS

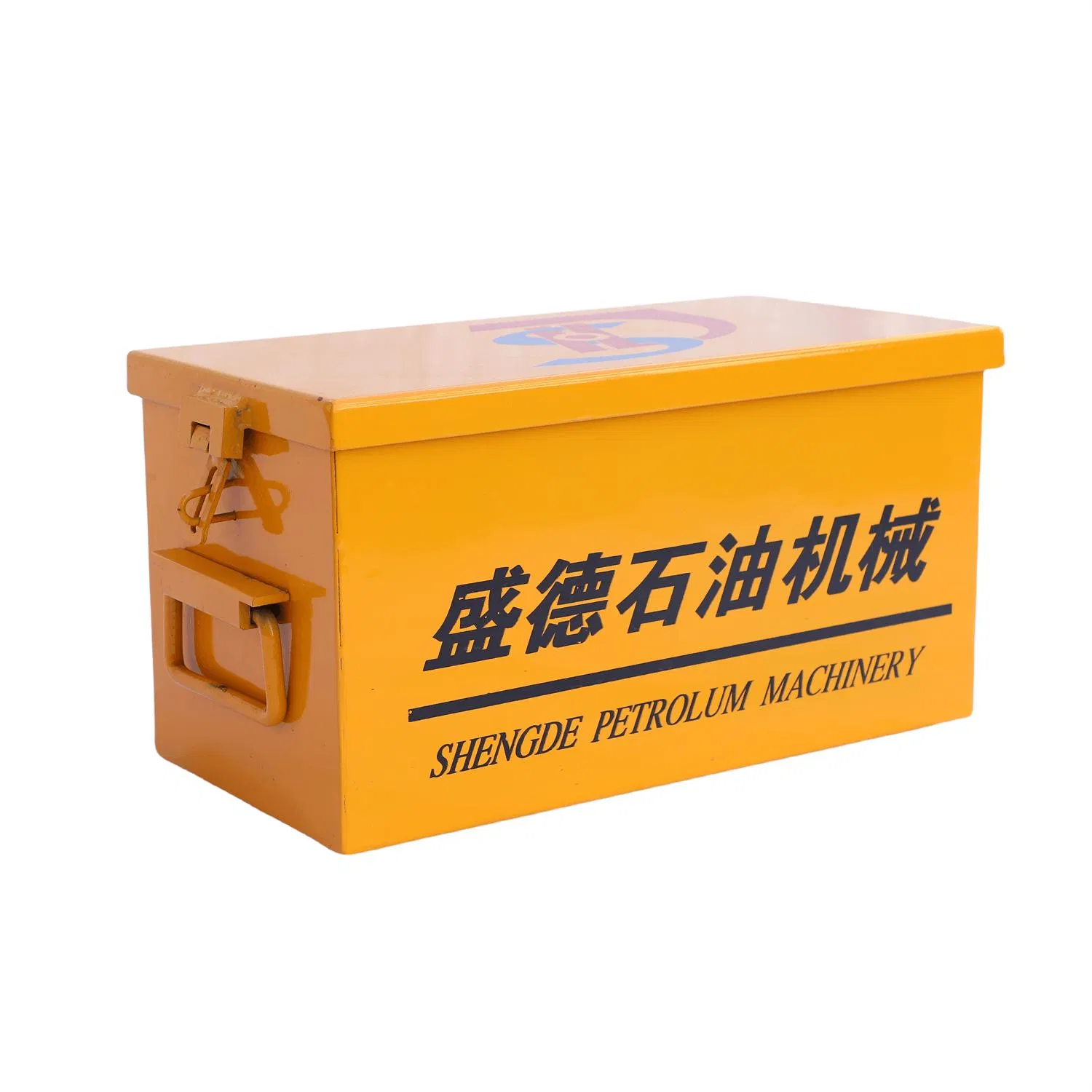

Package
Wooden Boxes
Capacity
2500 pieces/Year
D

Product Description

Downhole tools for petroleum-equipment-machinery 12-1/4" Strong Rock-Breaking Oil Drill Bits

Our oil bit adopts a double-row composite piece, which increases the shear force of the bit while sharing the fatigue wear of the front row of the composite piece. This strengthens the wear-resistant degree at the diameter-retaining place. The crown adopts a parabolic structure, which greatly improves the footage in the drilling process.

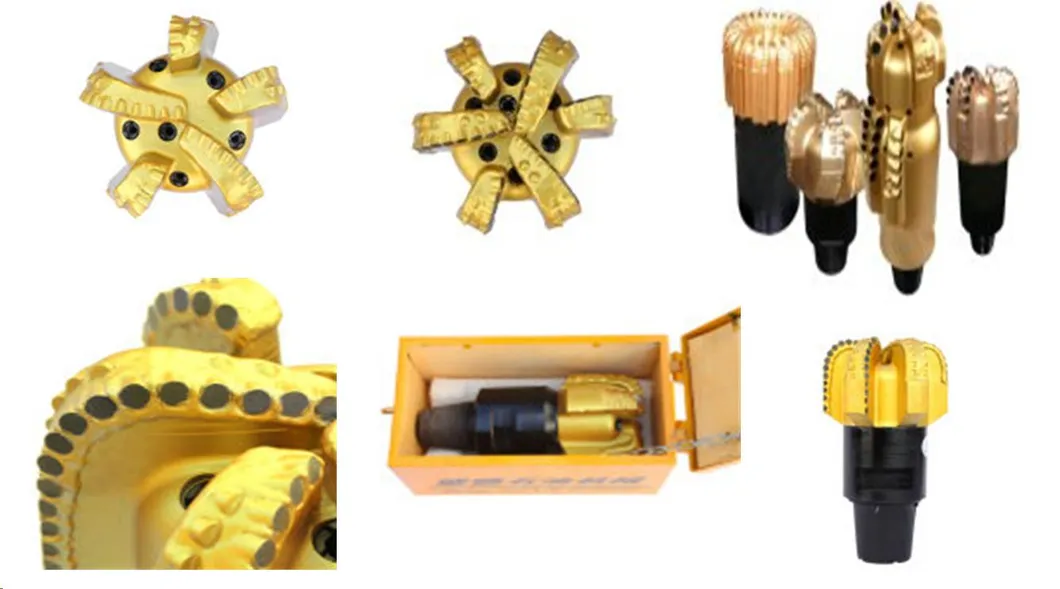

Strong Rock-Breaking Oil Drill Bits
P

Technical Parameters

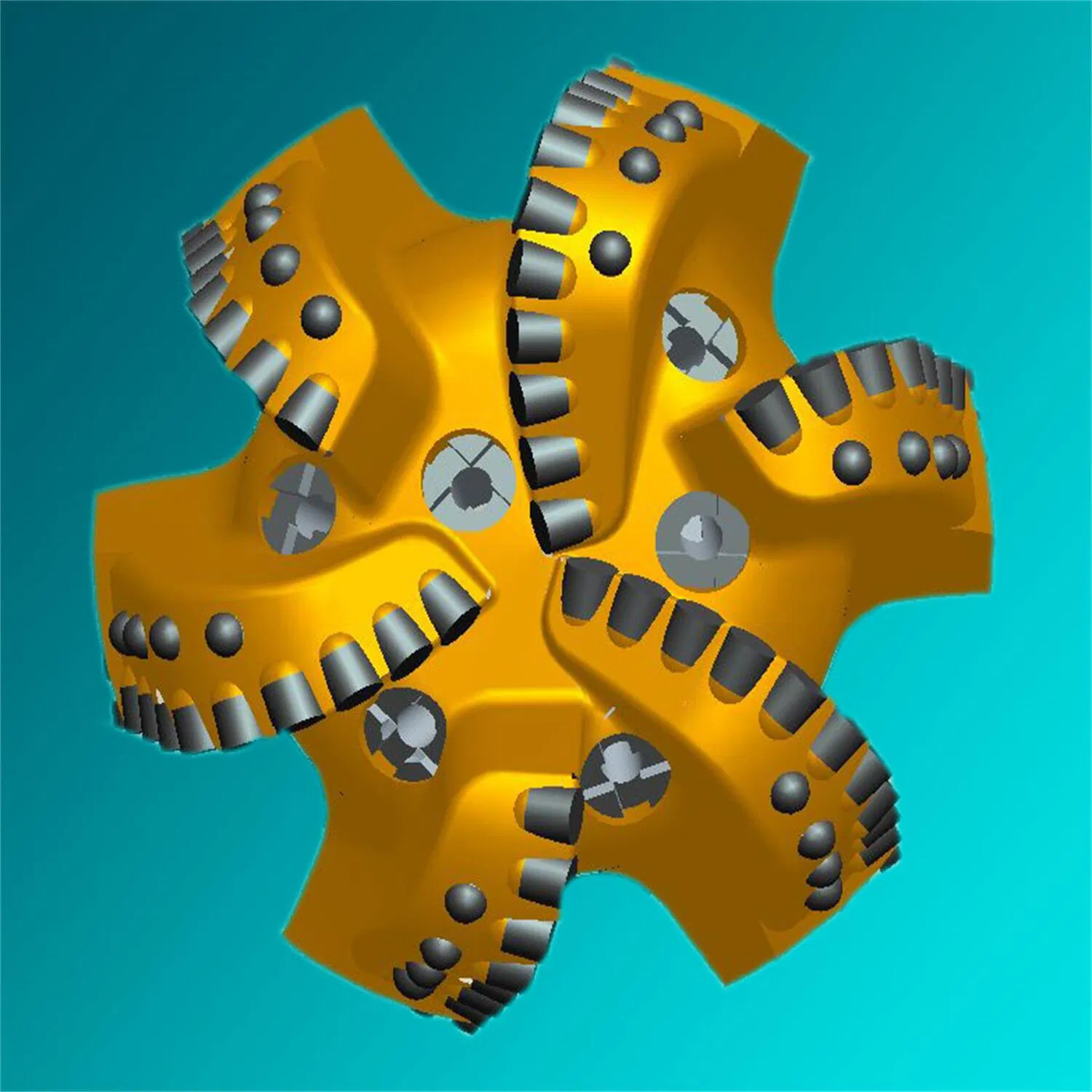

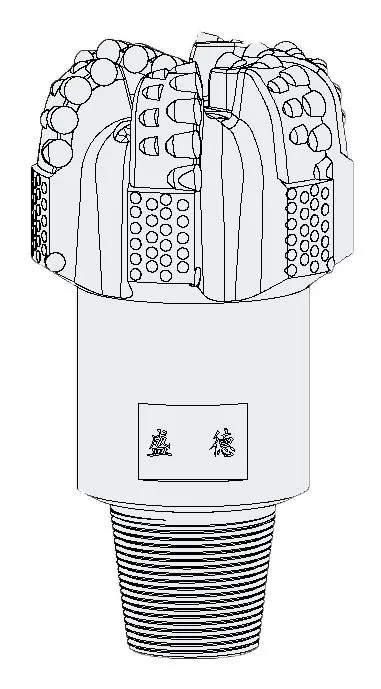

Specification Item Details Product View
Bit type12-1/4" SS1605DFX
IADC CodeS423
Number of Blades6
Cutter SizeΦ15.88MM; Φ13.44MM
Nozzle Qty7NZ TFA:1310.38mm²
Gauge Protector75mm
Connector4-1/2" API REG
C

Certifications

Certifications
S

Installation Instructions

Check the last bit for damage or diameter reduction; ensure the well bottom is clean of debris.
Inspect cutters for abnormalities and install the nozzle with the required O-ring.
Clean bit threads thoroughly and apply professional thread oil.
Install the unloader and lower the drill string for proper make-up.
Tighten the screw thread according to the recommended torque value in the turntable bushing.
A

Our Advantages

Our facility integrates R&D, design, and production as a first-class supplier for major national petroleum corporations. The annual production capacity reaches 4000 sets of Downhole Motors and 2500 sets of oil drilling bits.
Over 20 years of professional oil drilling bit production experience.
Independent physical and chemical laboratory with professional inspection engineers.
Advanced heat treatment experiments and mechanical performance testing.
Complete range of oil drilling bit models for various geological conditions.

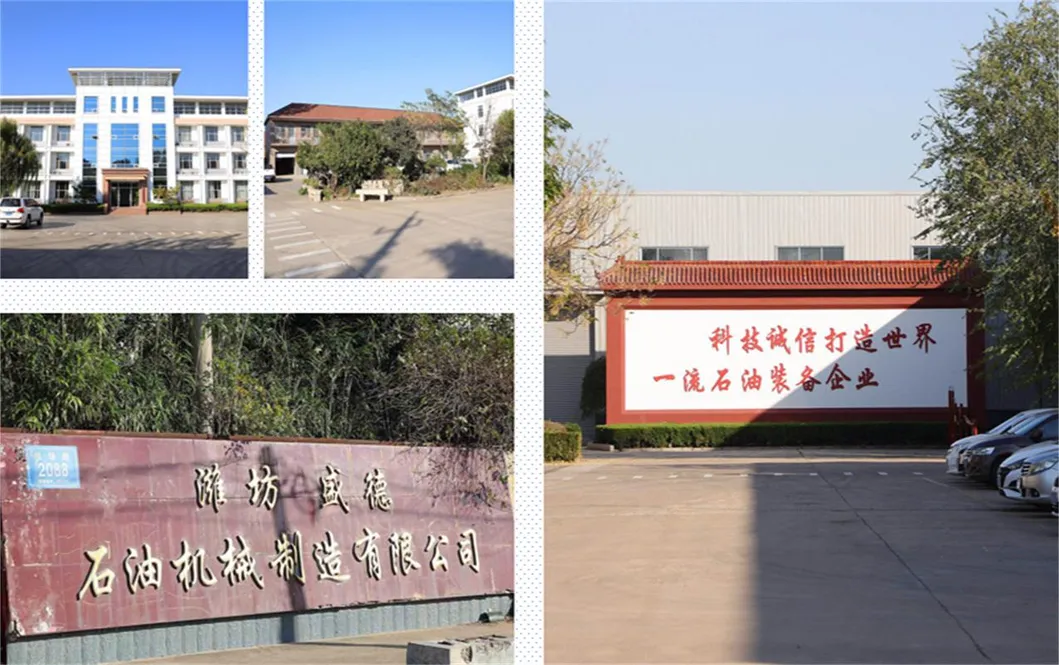

Workshop
Production

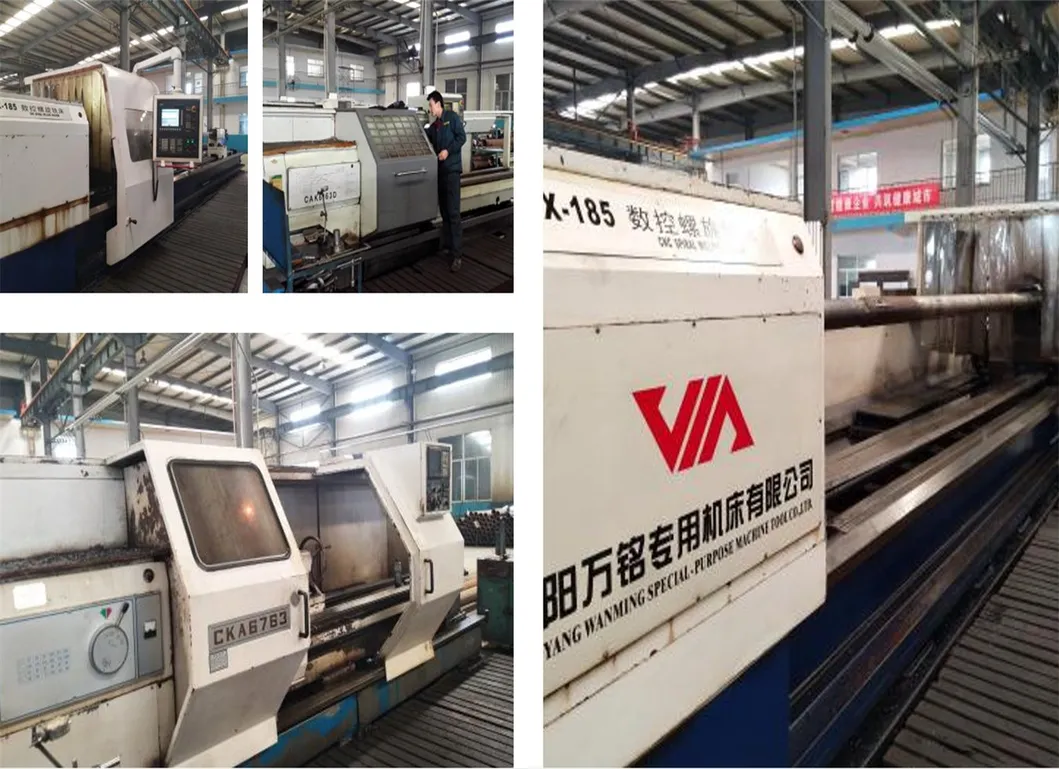

Bit Detail

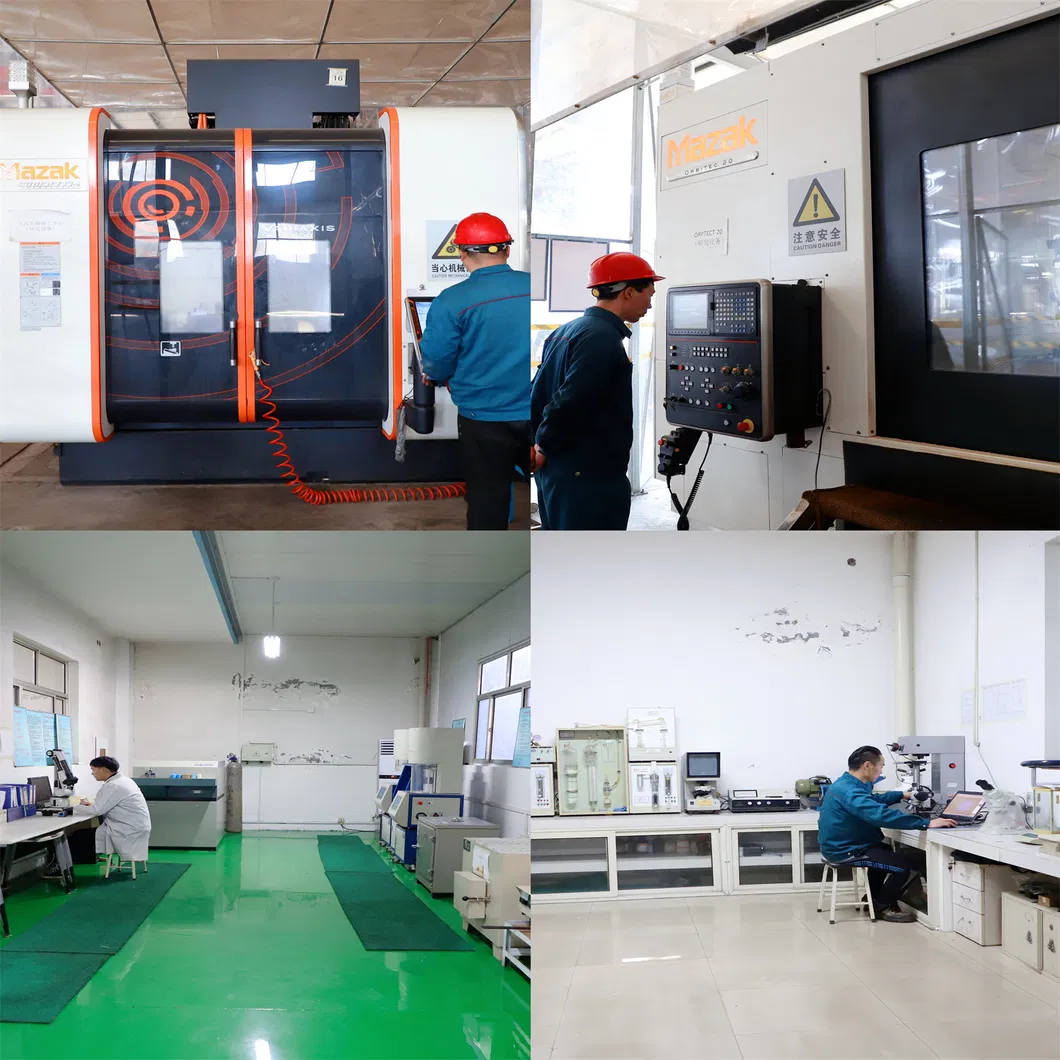

Bit Inspection
?

Frequently Asked Questions

Do you have stock available?
Most products are under regular production. We can make delivery immediately if the specific model is in stock.
How can I order if I am unfamiliar with import procedures?
We can arrange shipping via sea, air, or express and deliver directly to your port or provide door-to-door service.
Can we print our logo or company name on the products?
Yes, your logo can be applied via hot stamping, printing, embossing, UV coating, or silk-screen printing.
What materials are used in the drill body?
The drill body is manufactured using high-strength 42CrMo alloy steel, ensuring maximum durability under pressure.
What is your annual production capacity?
We have a robust manufacturing capability, producing up to 2500 sets of oil drilling bits and 4000 sets of downhole motors annually.
How do you ensure the quality of the drill bits?
We maintain an independent physical and chemical lab where professional engineers conduct rigorous mechanical performance and heat treatment tests.
