Conical PDC Cutter for Diamond Pick DTH Hammer Oil Gas Mining Drilling

Customization:	Available
Customized:	Customized
Standard:	ISO

Basic Information

Model NO.

C1629

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Usage

Metal Drilling, Oilfield, Gas Field, Mining Industry, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Diamond Grade

PCD

Total Height

5~34mm

Tolerance

±0.02mm

Impact Toughness

Excellent

Certification

ISO 9001

MOQ

100PCS

Product Description

Dome Cutter Series

Core Features: Dome PDC inserts consist of multilayer structure of diamond and transition layer, improving impact resistance greatly, making it the best alternative for roller cone applications.

Applicable Bit Position: Priority for rear row teeth, auxiliary for main teeth in soft to medium-hard broken formations.

Flat Cutter Series

Core Features: Flat and smooth tooth surface with large contact area, delivering high cutting efficiency and outstanding wear resistance. Uniform force bearing avoids local wear.

Applicable Bit Position: Priority for main teeth, crushes formation rocks quickly with high cutting efficiency.

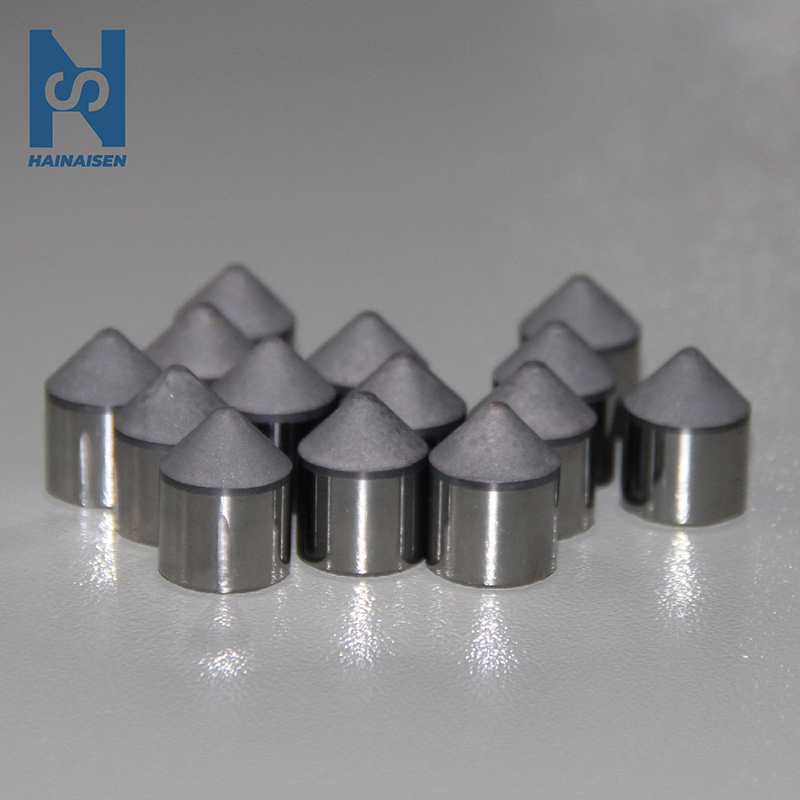

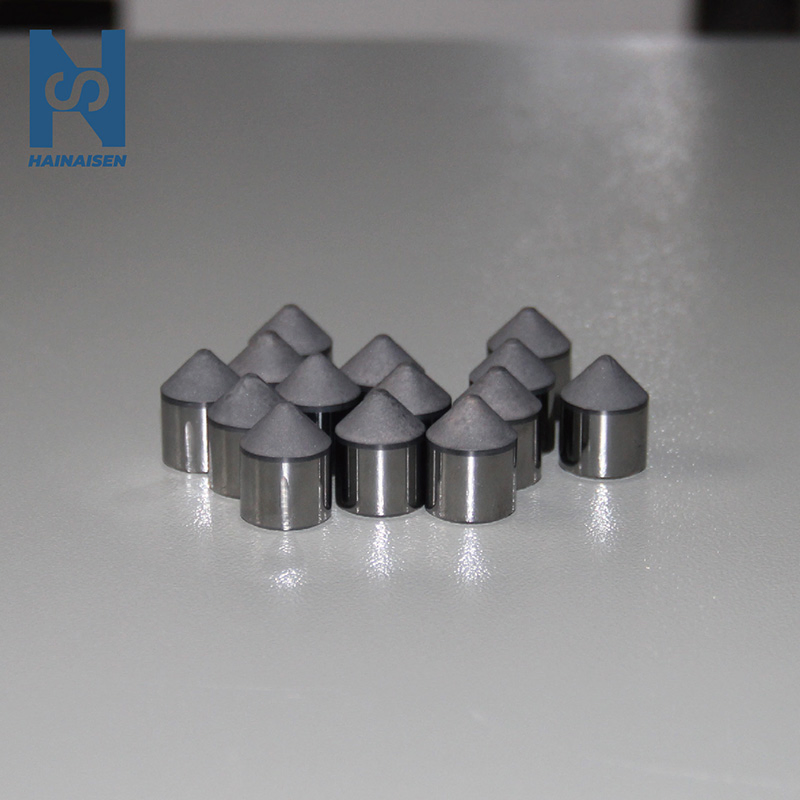

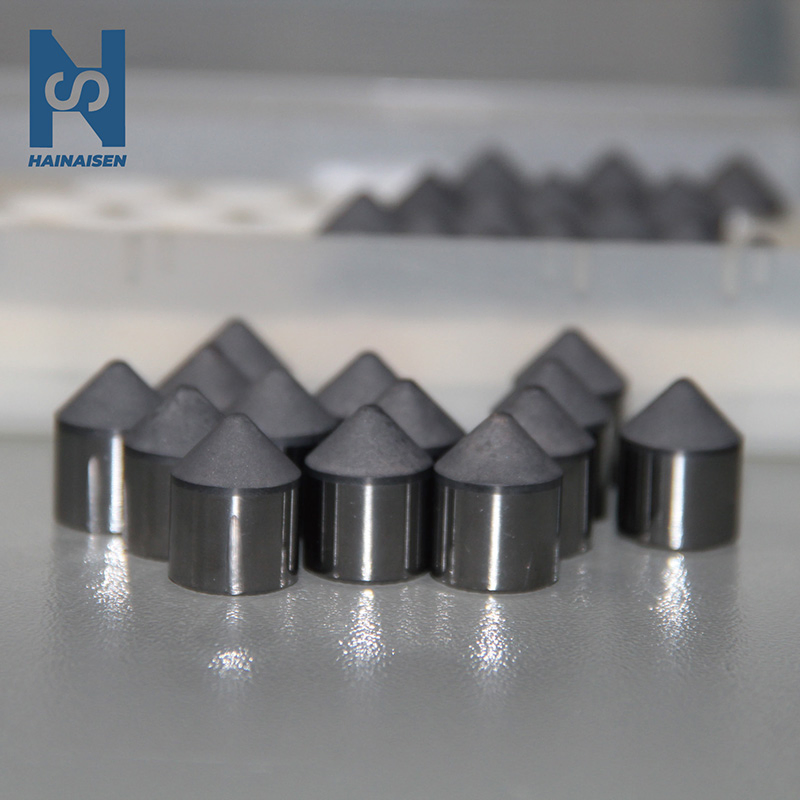

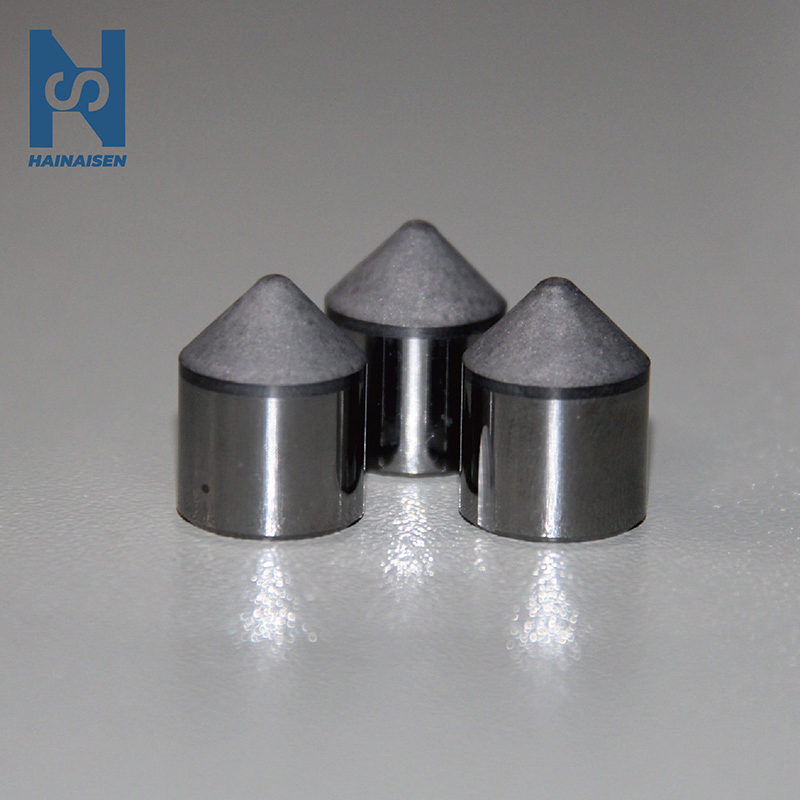

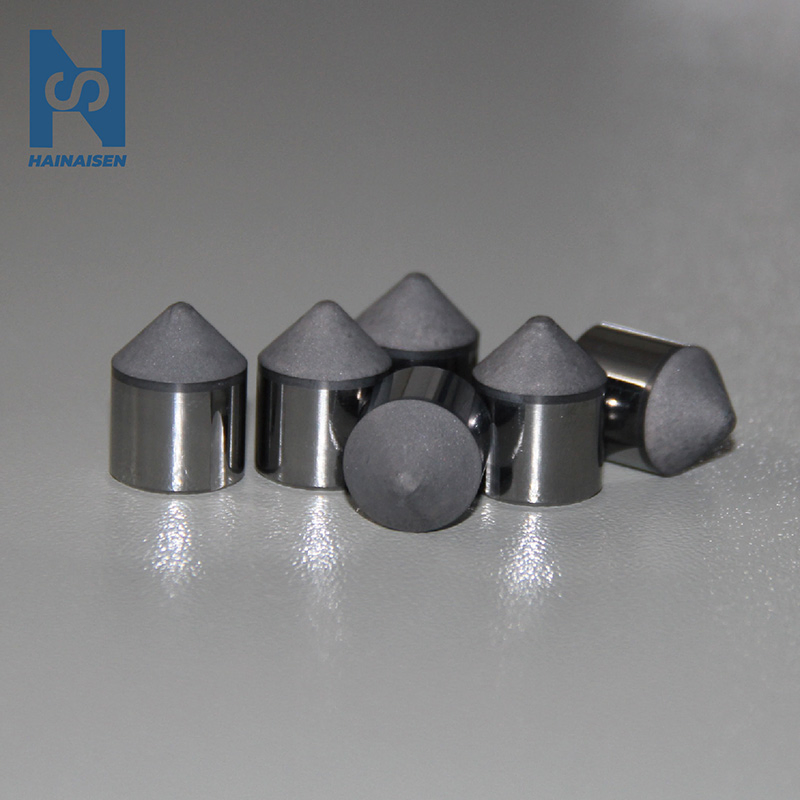

Conical Cutter Series

Core Features: Sharp tapered tooth tip with extremely strong penetration, reducing drilling resistance in medium-hard to hard formations. Disperses stress effectively.

Applicable Bit Position: Only for main teeth. Small contact area is optimized for hard formation crushing.

Specifications

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

Application Cases

Packing & Delivery

Certifications

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

Do you accept OEM/ODM customization?

Yes. OEM (custom logo/packaging) and ODM (custom size/performance) are supported to meet your specific brand and market requirements.

Can PDC Cutters be mixed used on one drill bit?

Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics, optimizing drilling efficiency and stability.

Do you provide technical support after sale?

Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

What shipping methods do you support?

We support express (DHL/FedEx/UPS, 3-7 days), air (5-10 days), and sea (20-35 days) shipping. We choose the most cost-effective method based on your urgency.

Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our quality and service.
