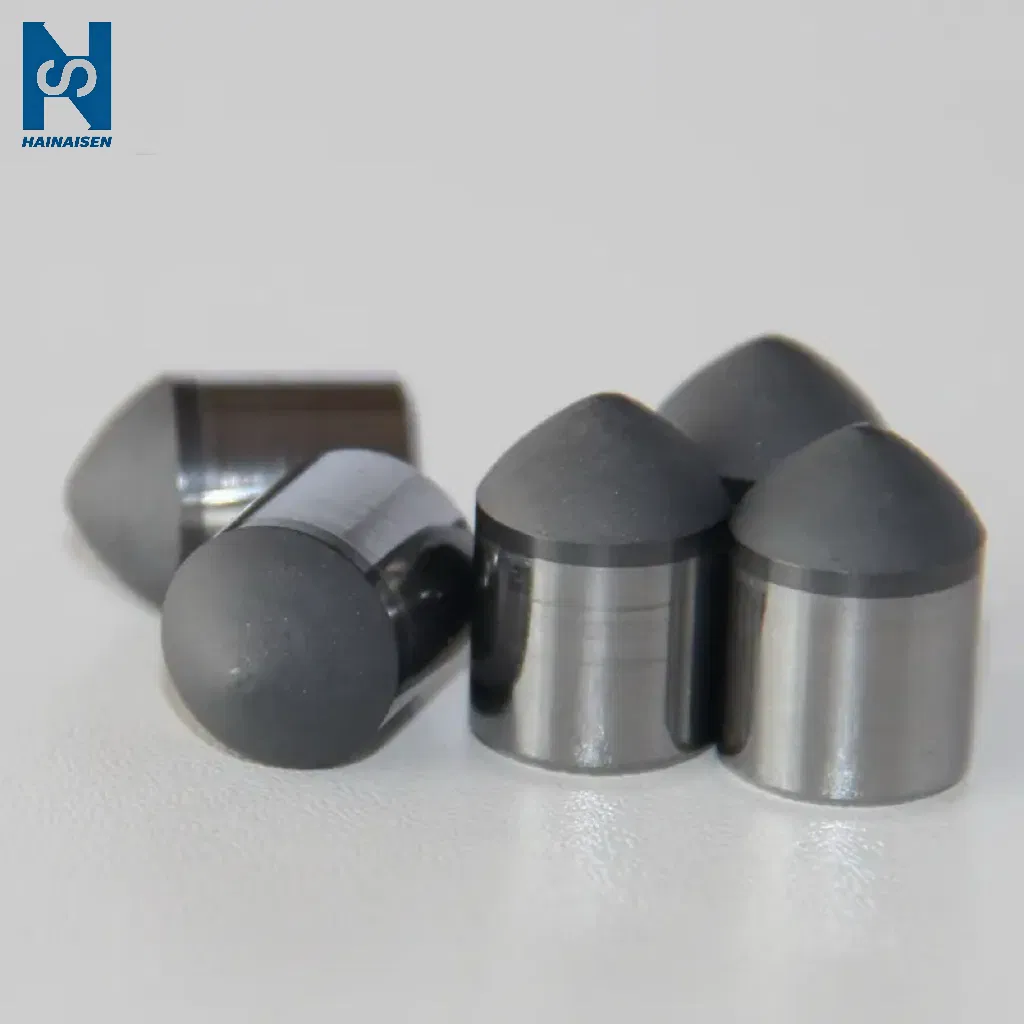

Conical Face PDC Cutter DTH Hammer Diamond Pick Oil Gas Drilling Use

Customization:	Available
Customized:	Customized
Standard:	ISO

Basic Information

Model NO.

CB1319

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Usage

Metal Drilling, Oilfield, Gas Field, Mining, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Production Process

HTHP Sintering

Diamond Grade

PCD

Tolerance

±0.02mm

Impact Toughness

Excellent

Certification

ISO 9001

Shape

Round

Product Description

Dome Cutter Series

✔

Core Features: Multilayer structure of diamond and transition layer, improving impact resistance greatly; the best alternative for roller cone bits.

📍

Applicable Position: Priority for rear row teeth, auxiliary for main teeth. Buffers impact, protects main teeth, and prevents gravel damage.

Flat Cutter Series

✔

Core Features: Large contact area, delivering high cutting efficiency and outstanding wear resistance. High processing precision and wide adaptability.

📍

Applicable Position: Priority for main teeth, also available for rear row. Crushes rocks quickly and assists in gauge protection.

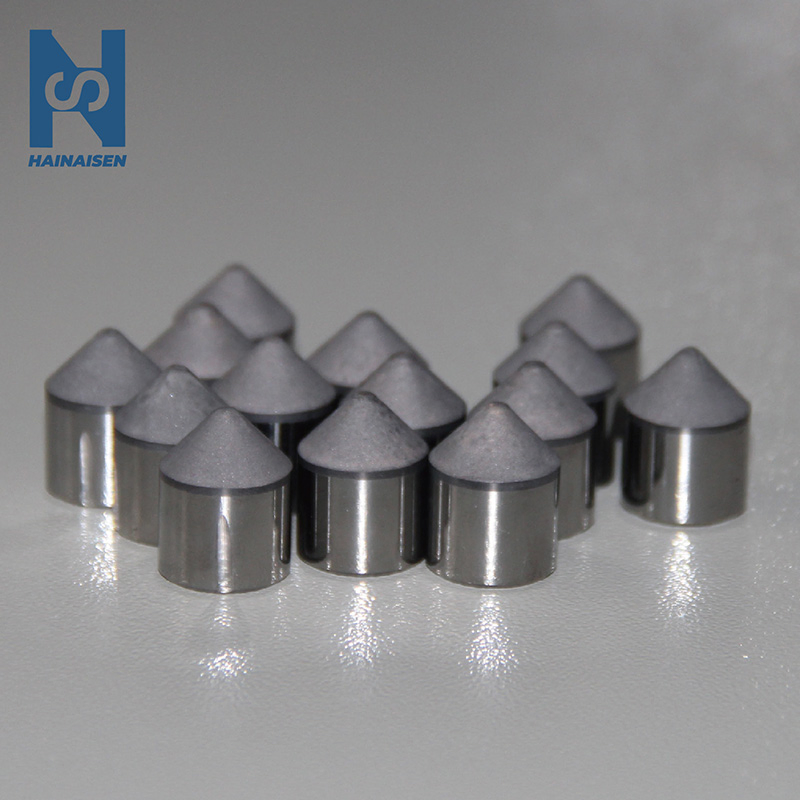

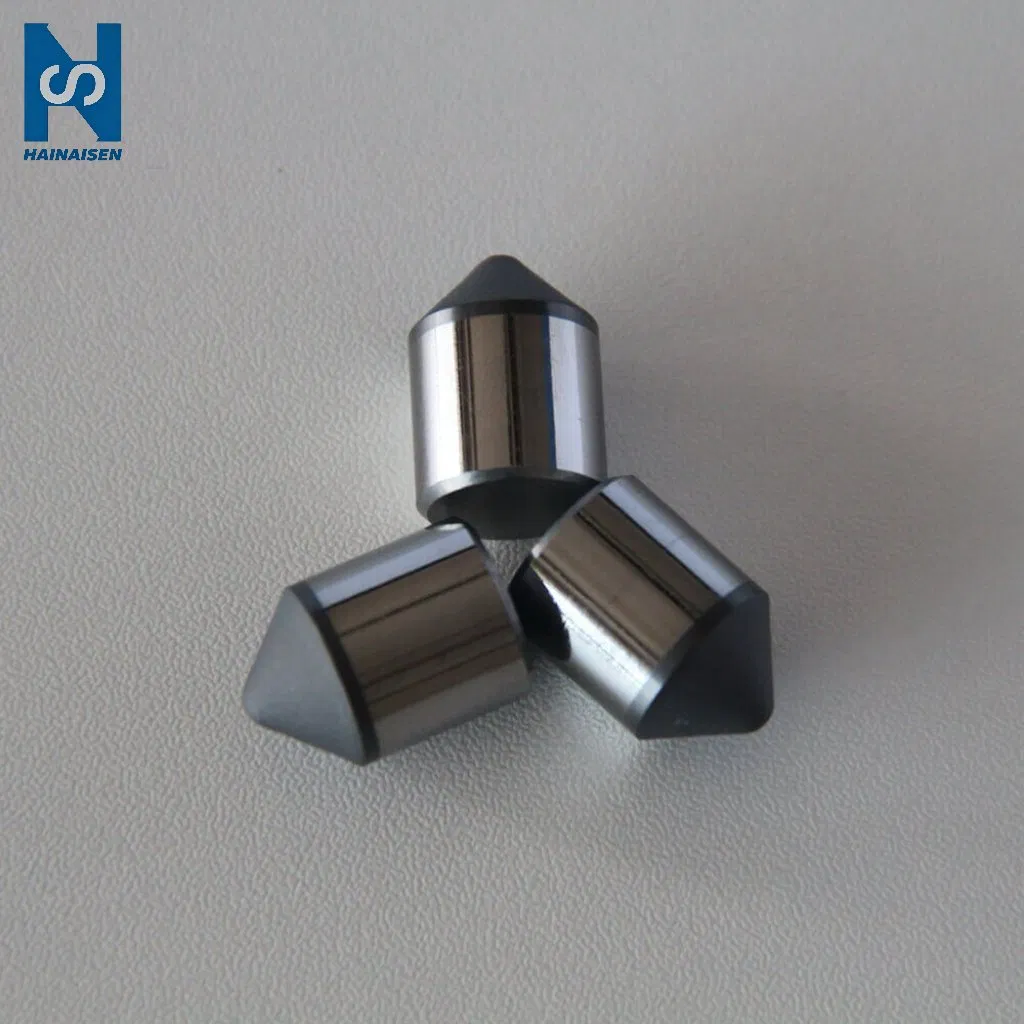

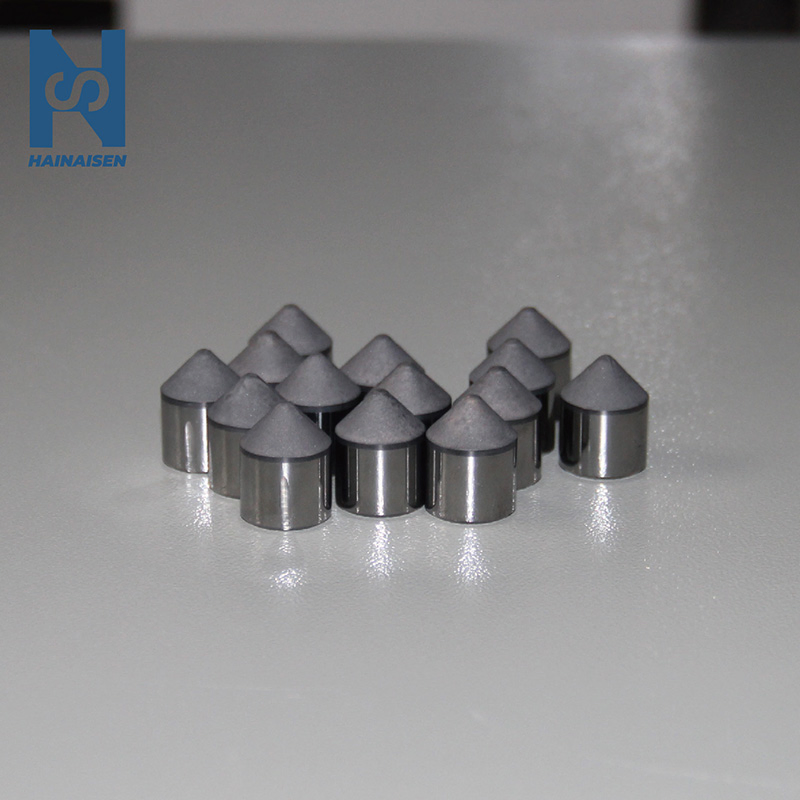

Conical Cutter Series

✔

Core Features: Sharp tapered tip with strong penetration. Reduces drilling resistance in hard formations. Excellent impact toughness to avoid chipping.

📍

Applicable Position: Only for main teeth. Optimized for hard formation crushing where sharp penetration is required.

Technical Specifications

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

Application Cases

Packing & Delivery

Certifications

Frequently Asked Questions

1. Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

2. Do you accept OEM/ODM customization?

Yes. We support OEM (custom logo/packaging) and ODM (custom size/performance) to meet your specific brand and market requirements.

3. Can PDC Cutters be mixed on one drill bit?

Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics to optimize drilling efficiency and stability.

4. Do you provide technical support after sale?

Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

5. What shipping methods do you support?

We support express (DHL/FedEx/UPS, 3-7 days), air (5-10 days), and sea (20-35 days). We choose the most cost-effective method based on your address and urgency.

6. Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our quality and service.
