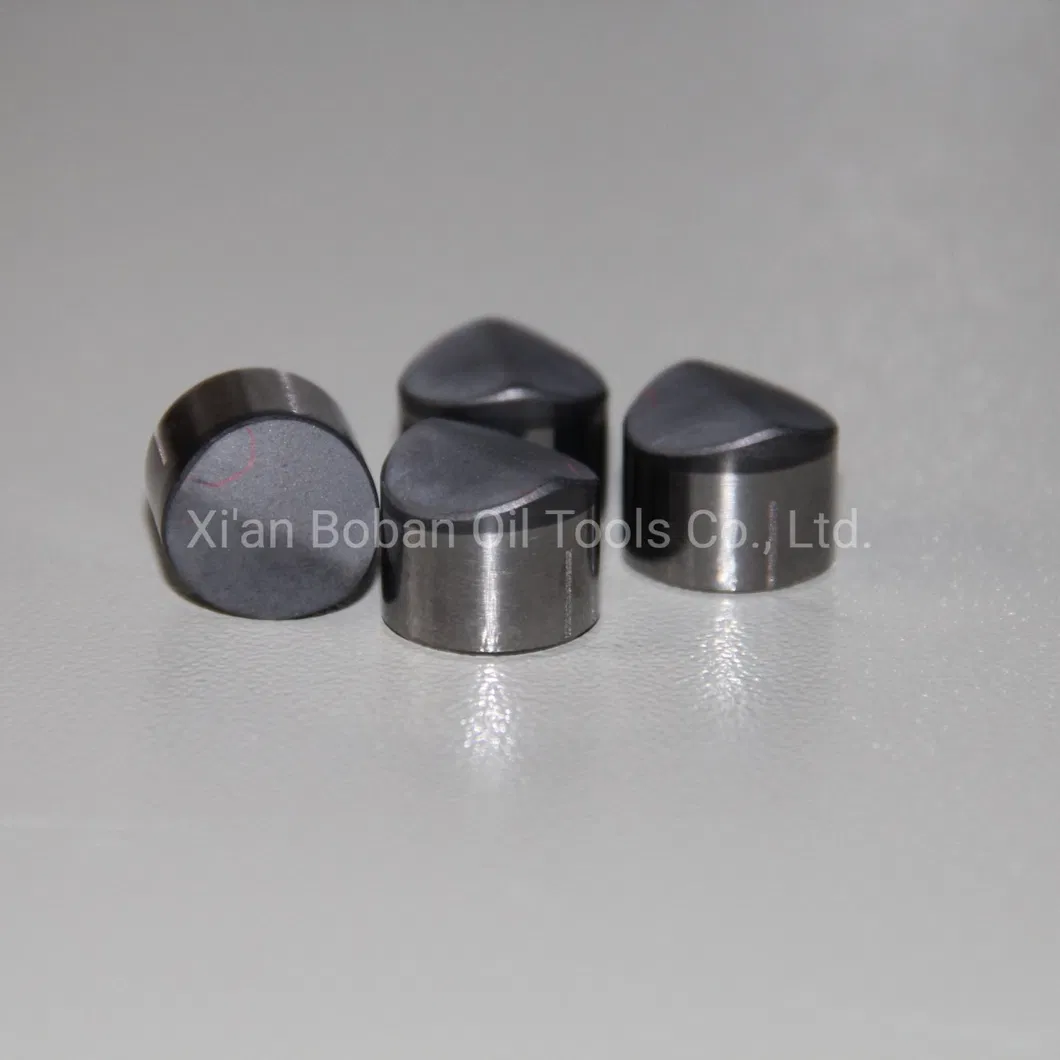

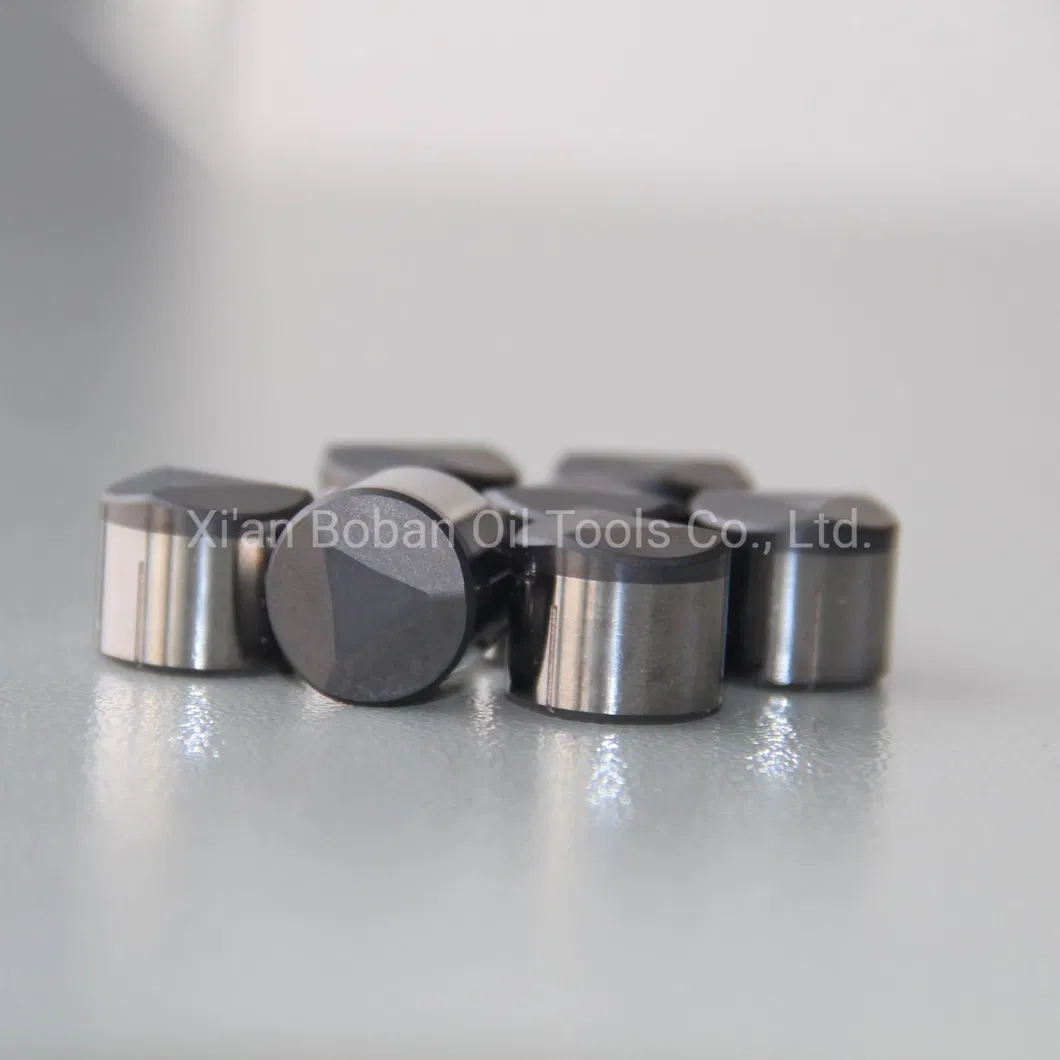

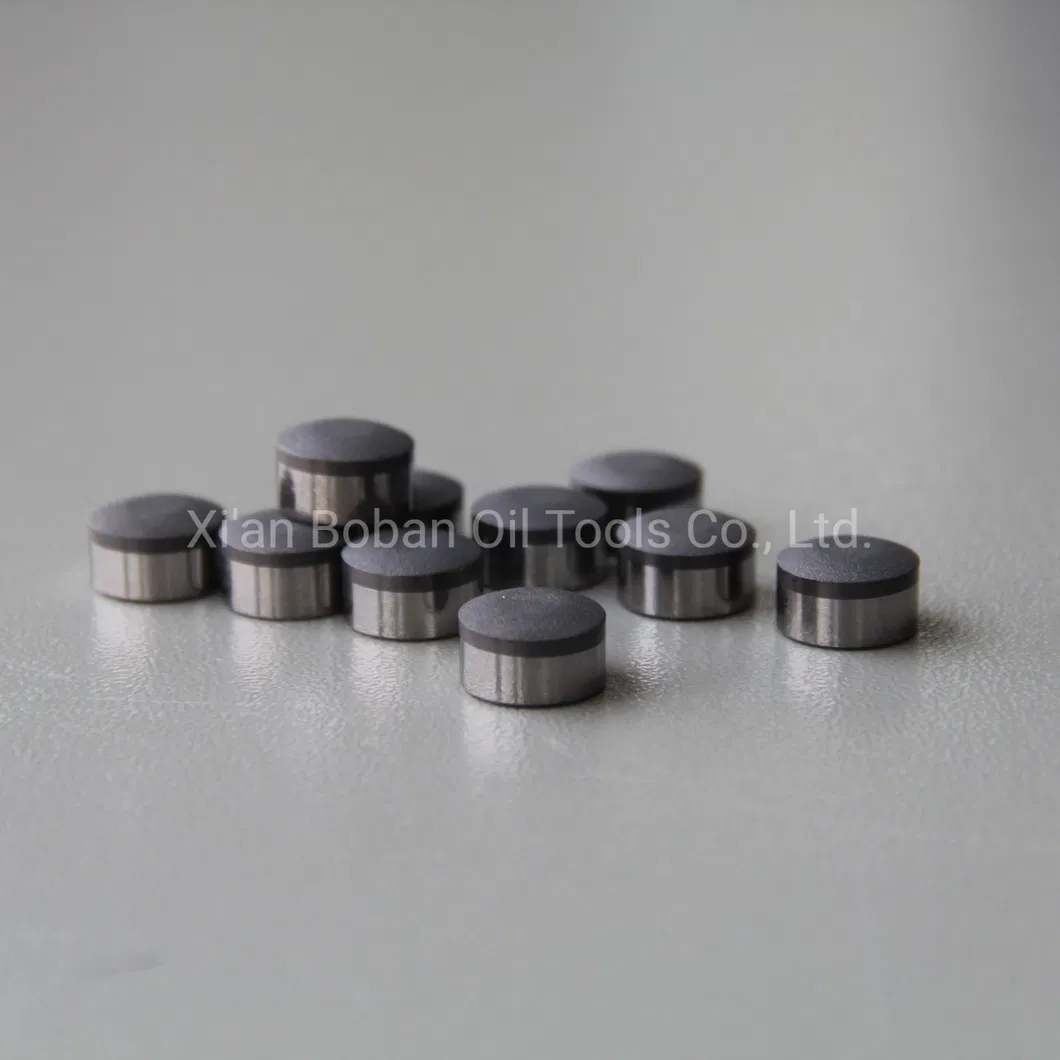

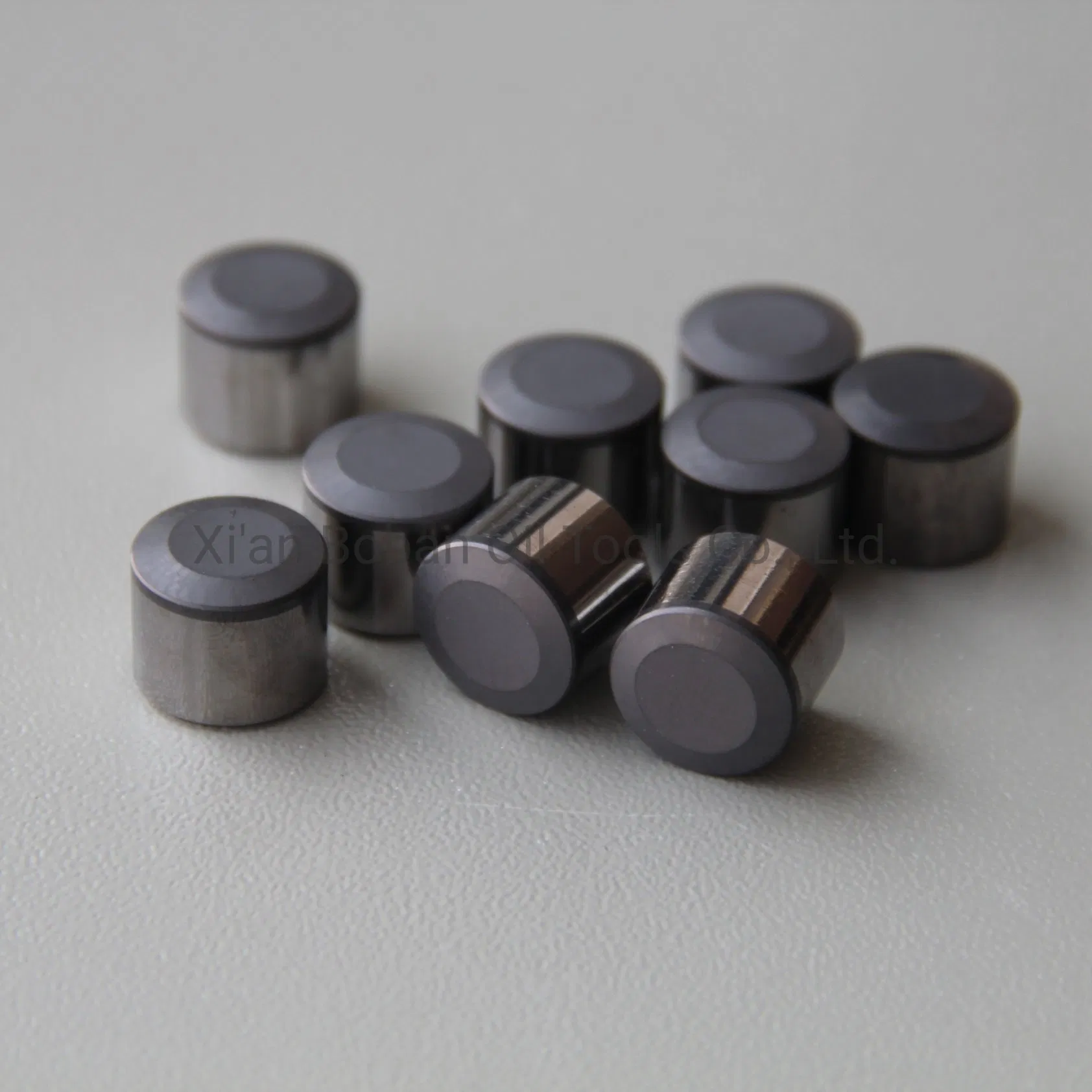

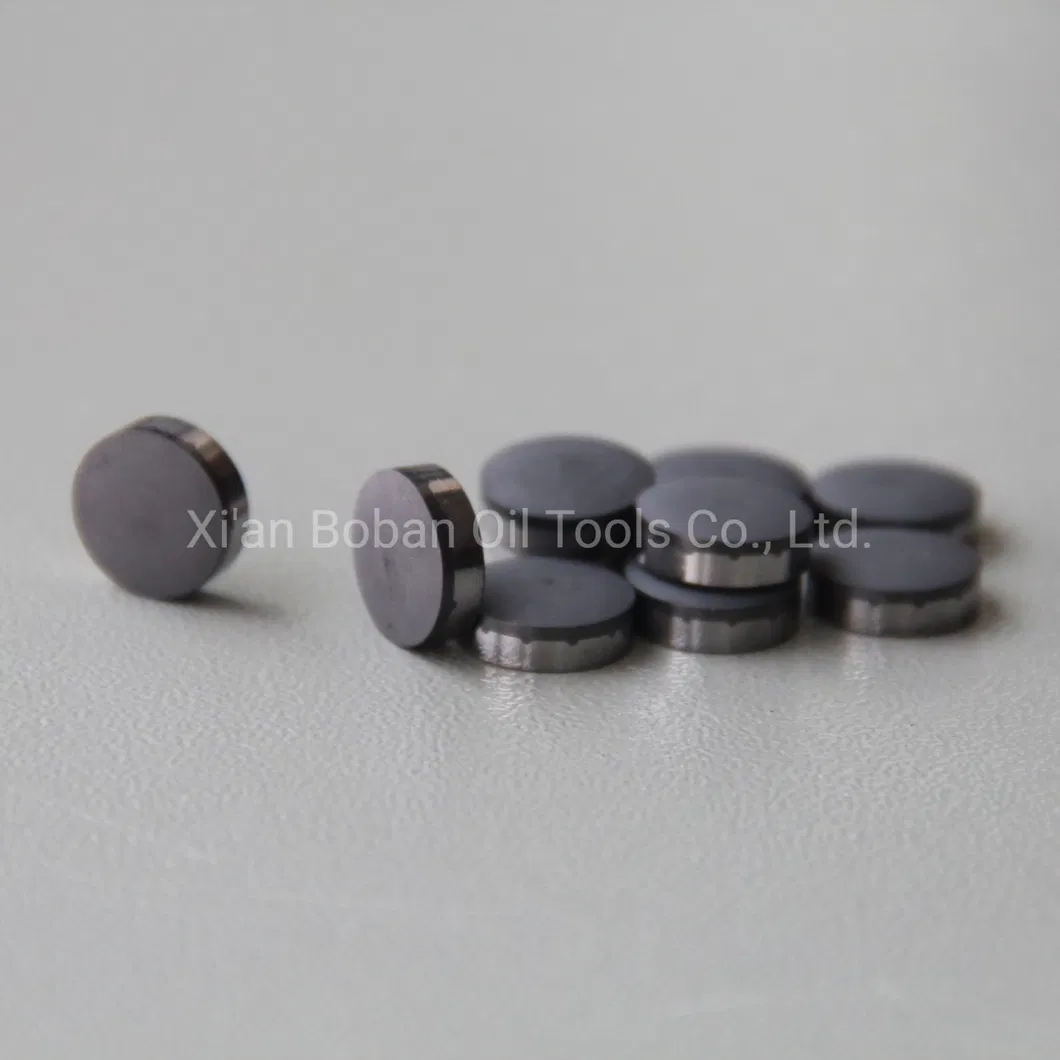

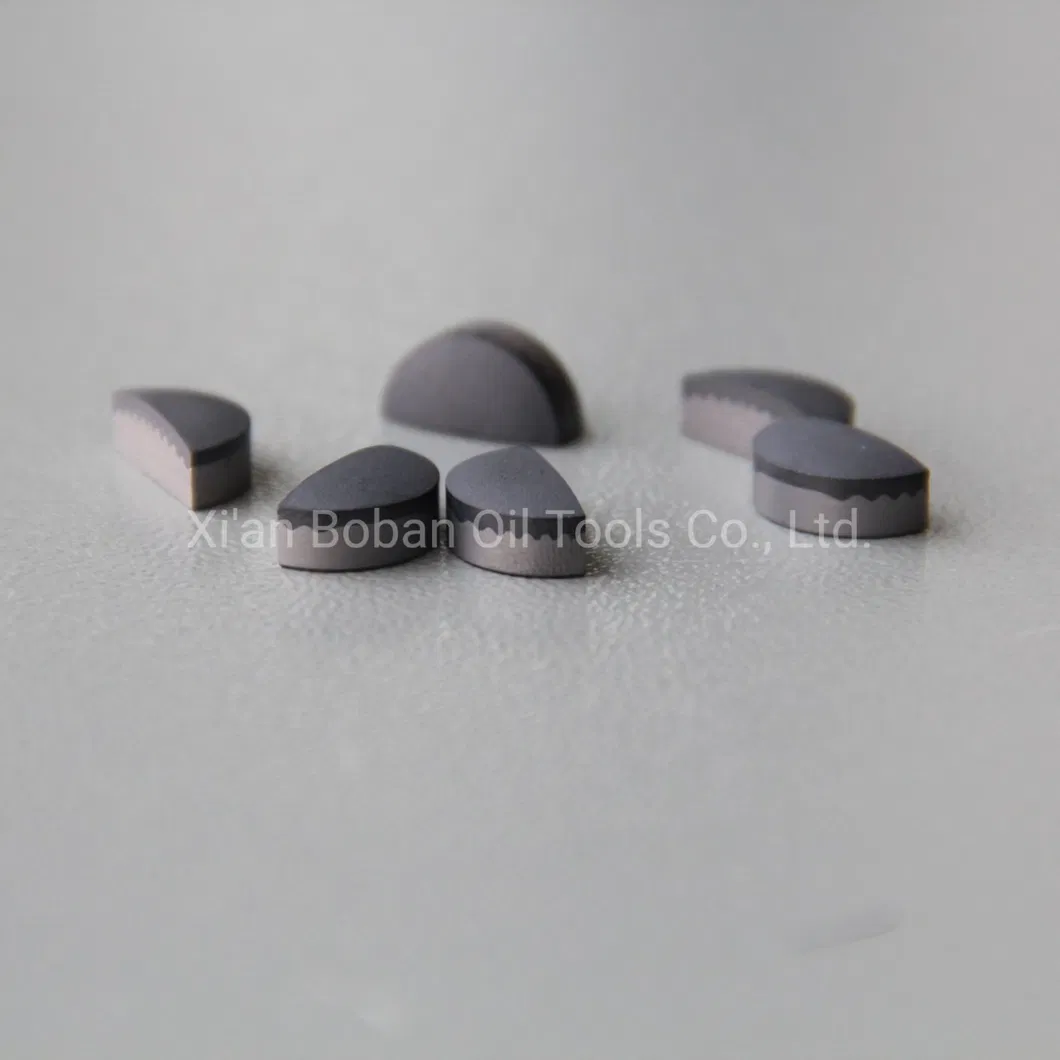

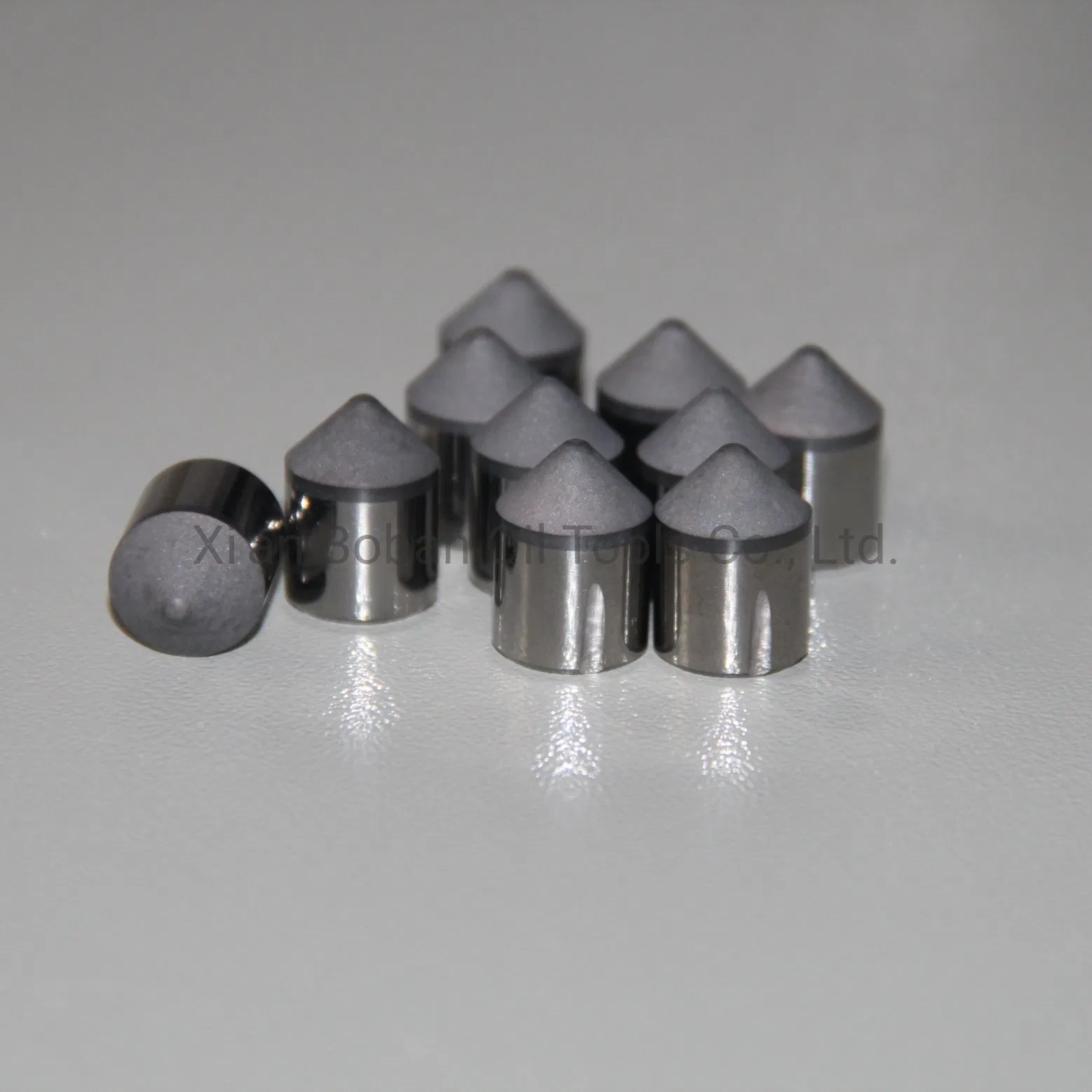

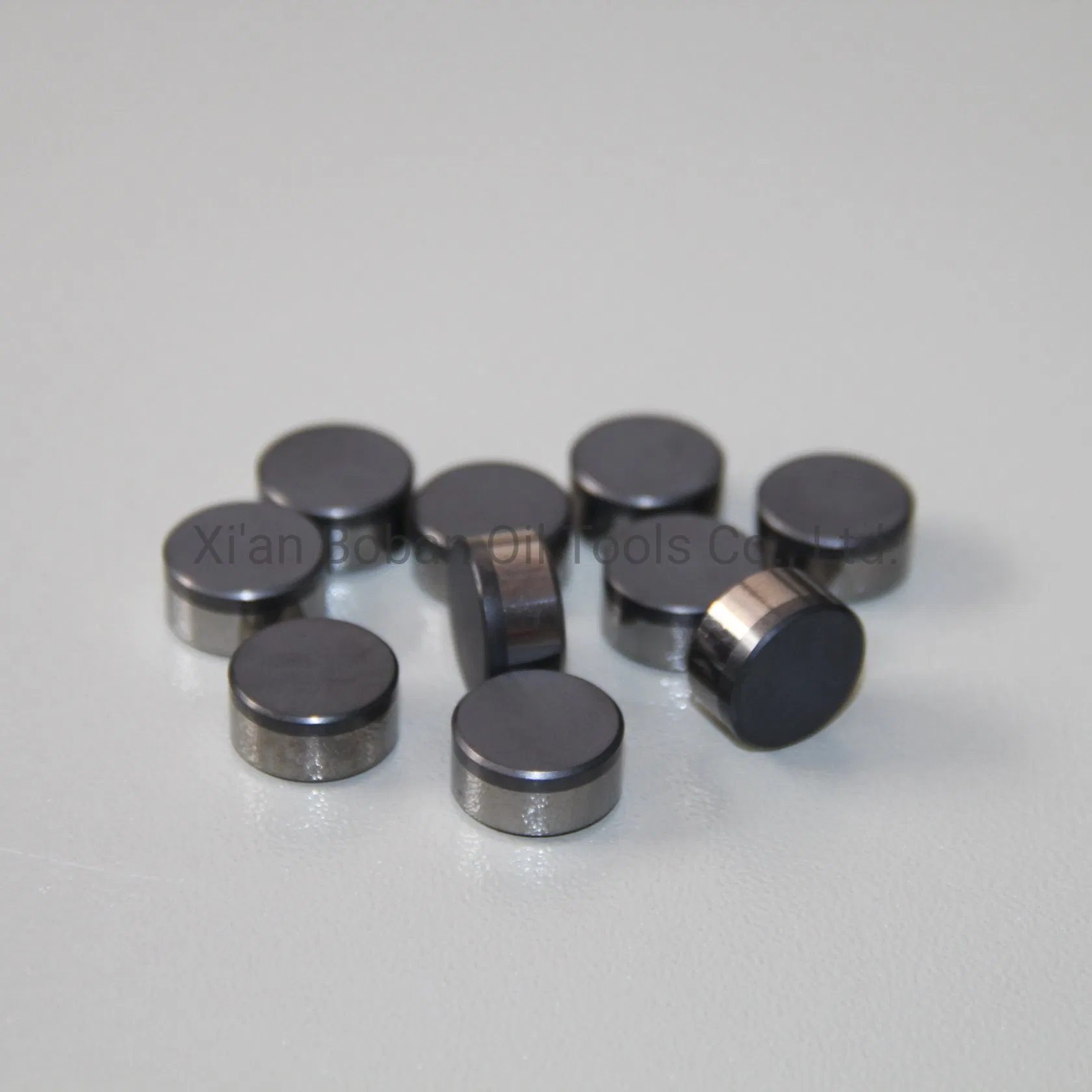

PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. Also known as Polycrystalline Diamond Compact cutters, these represent a type of super hard material. The use of PDC cutters is widely spread globally due to their high performance and durability in harsh environments.

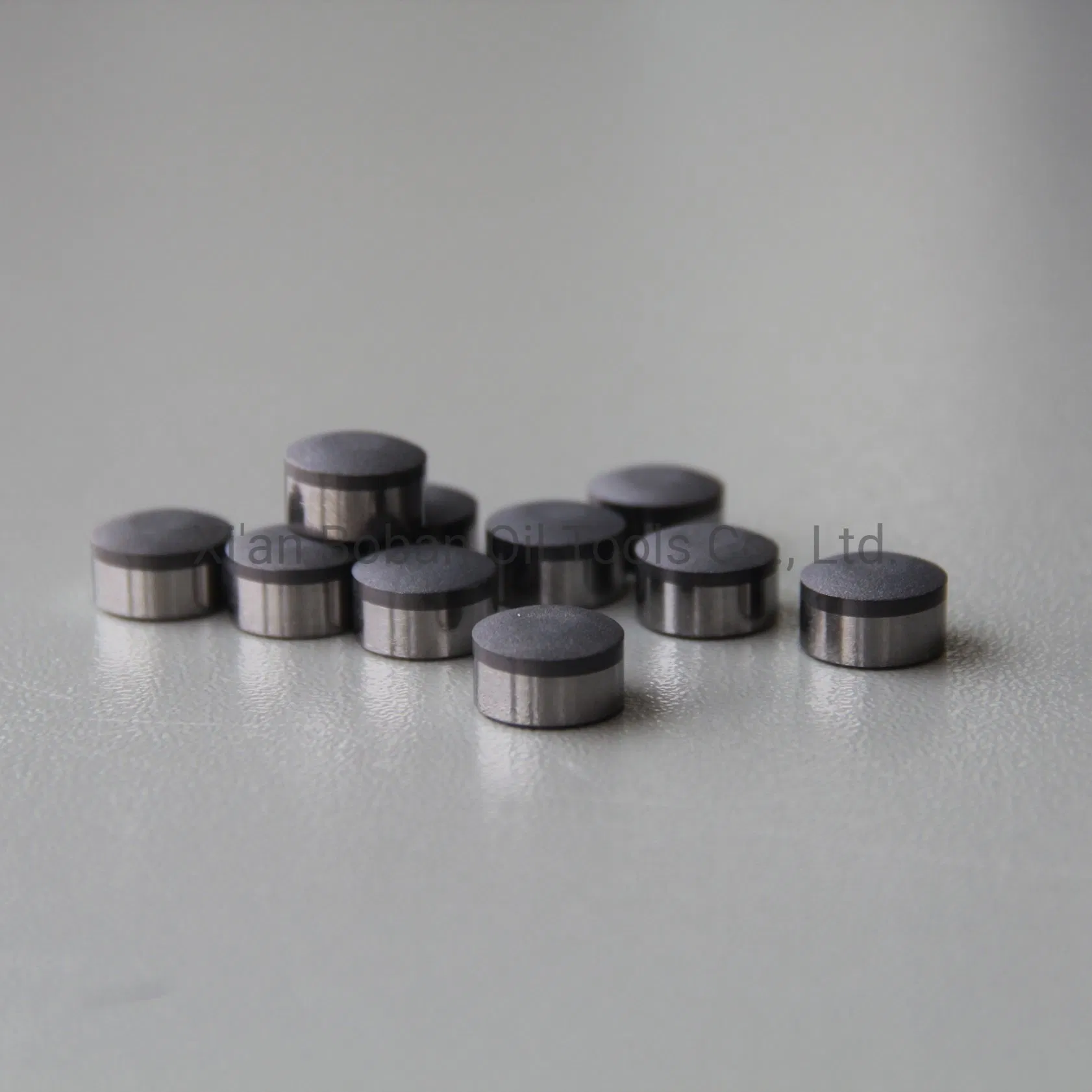

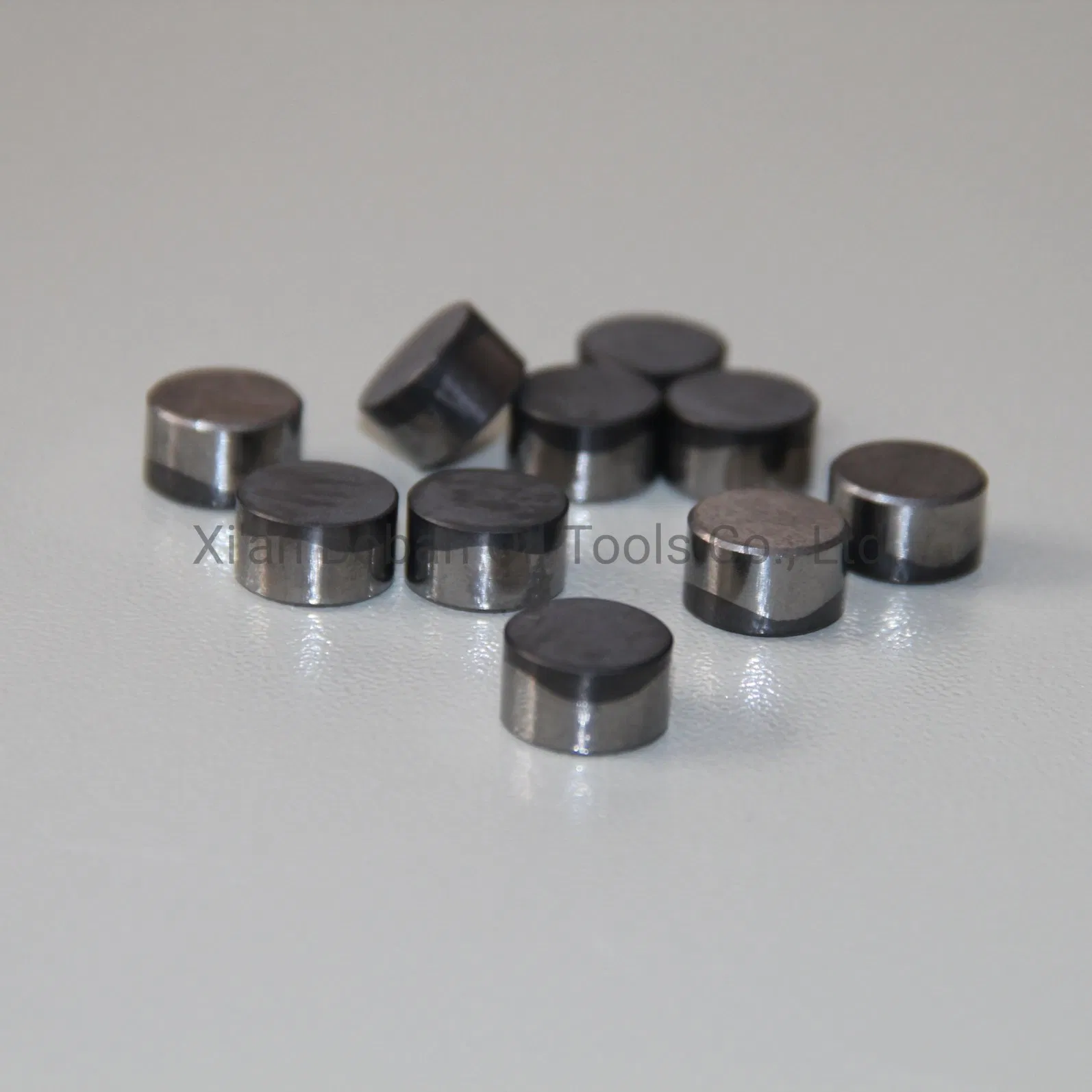

Our PDC cutters for geological mining field drilling bits are designed for markets pursuing high cost-efficiency. This series is mainly used for producing anchor-shank drill bits, offering advantages such as sharp edges, fast footage, high effectiveness, stability, and practical economy.

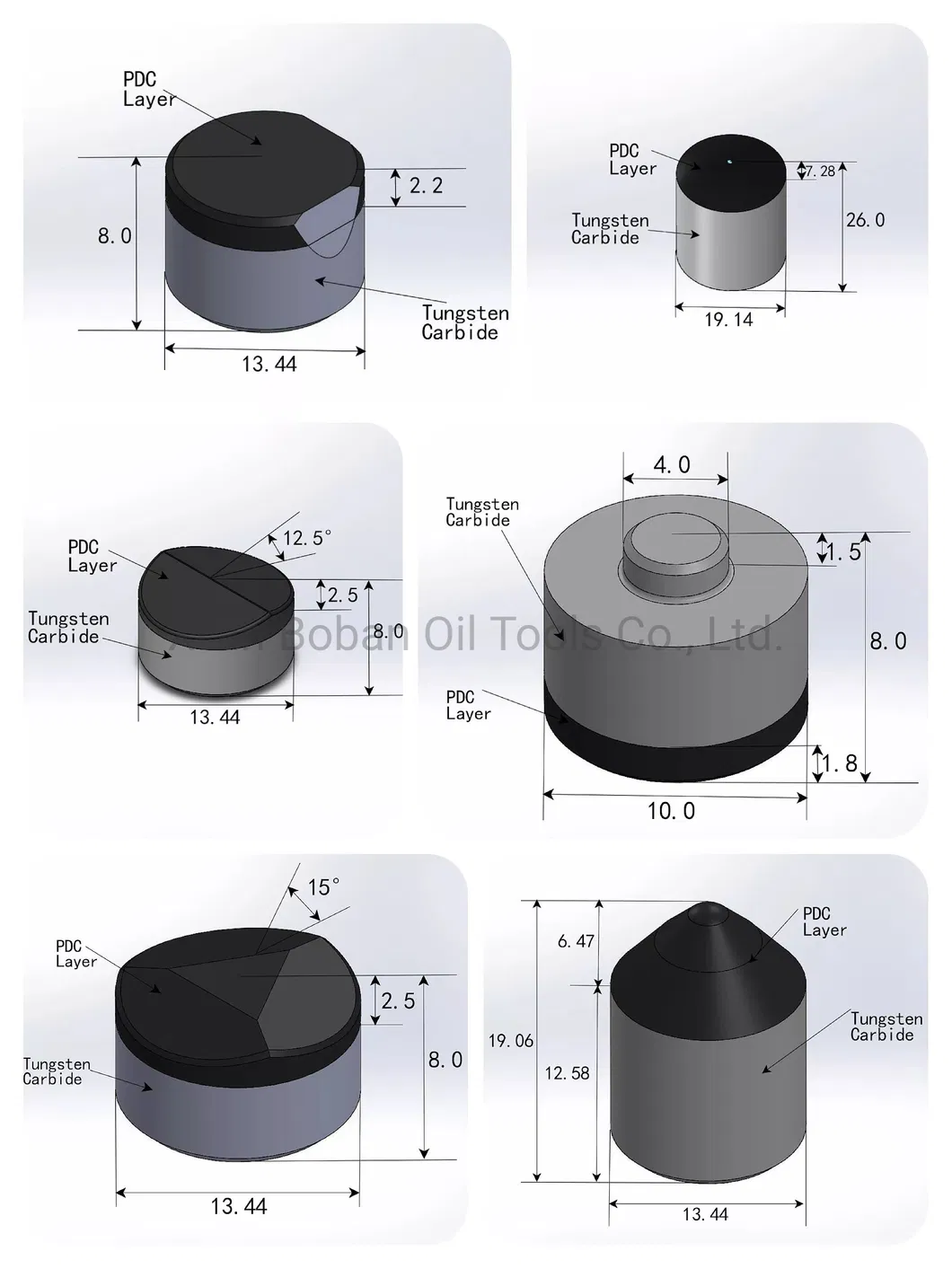

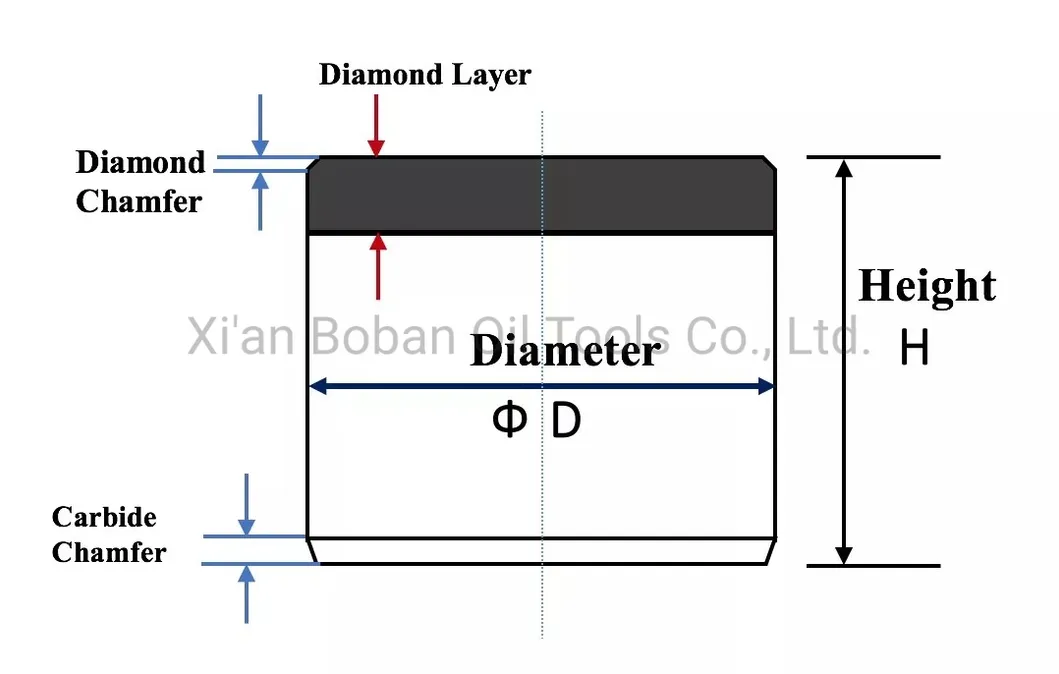

| Description | Diameter(mm) | Height(mm) | PCD Layer Thickness |
|---|---|---|---|
| 0804 | 8.20 | 4.5 | 1.8±0.2 |
| 0808 | 8.20 | 8.00 | 2.0±0.2 |
| 1008 | 10.00 | 8.00 | 2.0±0.2 |
| 1304 | 13.30 | 4.50 | 2.0±0.2 |
| 1308 | 13.30 | 8.00 | 2.0±0.2 |
| 1313 | 13.30 | 13.20 | 2.0±0.2 |
| 1613 | 16.00 | 13.20 | 2.0±0.2 |
| 1616 | 16.00 | 16.00 | 2.0±0.2 |
| 1908 | 19.05 | 8.00 | 2.0±0.2 |
| 1913 | 19.05 | 13.20 | 2.0±0.2 |
| 1916 | 19.05 | 16.00 | 2.0±0.2 |
| 1919 | 19.05 | 19.00 | 2.0±0.2 |
| Model | Application | Advantages |
|---|---|---|
| 0808 - 1919 Series | Geological and coalmine drill bits (medium-hard rocks) | High wear & impact resistance |
| 1306, 1308 | Soft rock exploration | Faster rock breaking speed |
| 1305, 1308 | Hard rock drilling | Longer useful life |
Our facility manufactures and supplies multiple lines of underground drilling equipment and tools for oilfield, horizontal directional drilling (HDD), and water wells. Our product range covers downhole drilling tools, drilling strings, tubular handling tools, rig components, and mud pump spare parts.
All products are manufactured according to international standards with ISO:9001-2000 certification. With advanced production facilities and rigorous quality management, we have been supplying products to the global market including the UK, Germany, USA, Middle East, and Australia.
