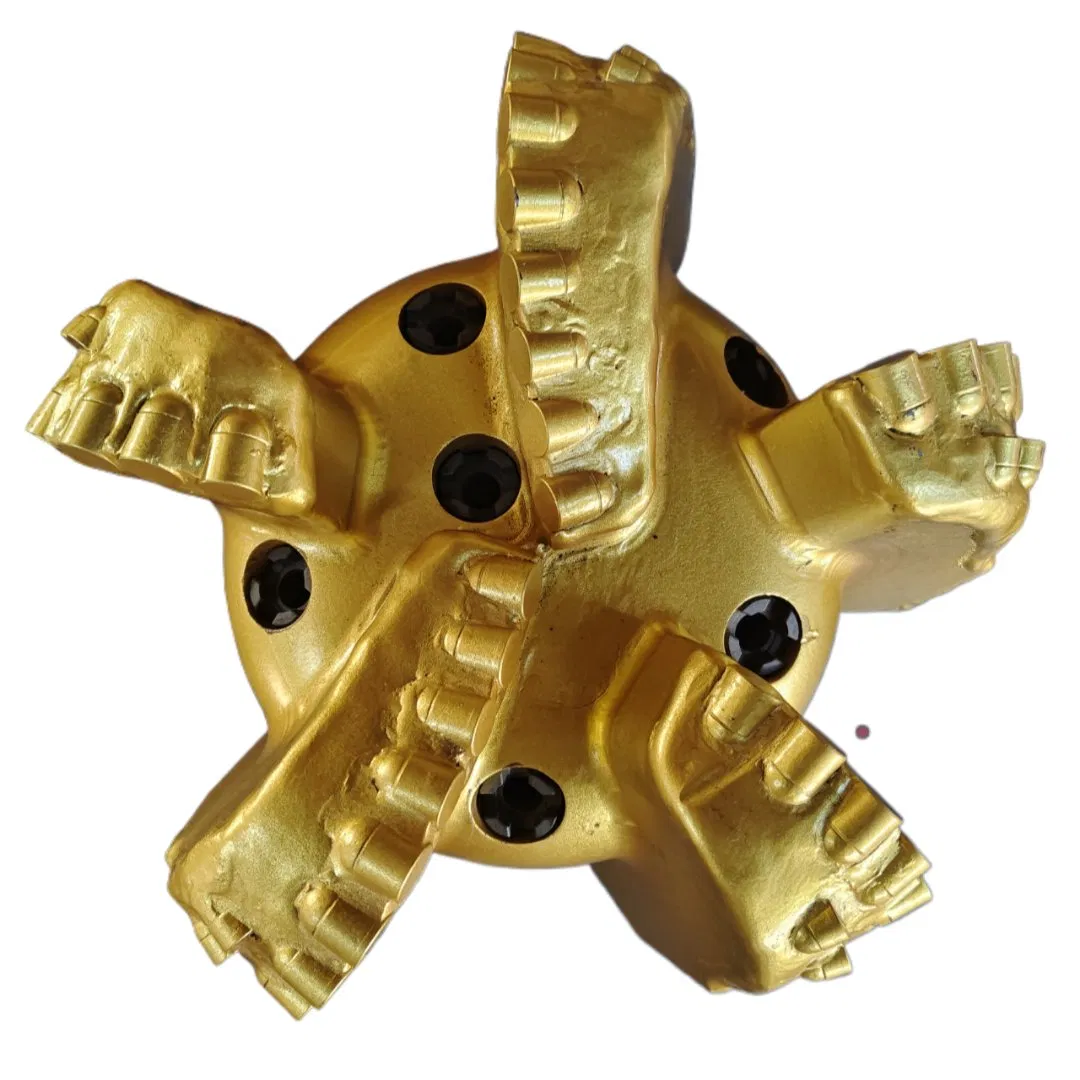

API 8 3/4" Directional Well Drilling Bit

1 / 5

API 8 3/4" Directional Well Drilling Bit

Customization:	Available
After-sales Service:	Available
Warranty:	500h

Send Inquiry

Product Description

Technical Specifications

Model NO.

8 3/4"

Process

CNC Milling

Surface

Spray-Paint

Pressure

Atmospheric

Material

Alloy / 42CrMo

Wear-Resistant

PDC (Polycrystalline Diamond Compact)

Certification

ISO 9001:2000 / SGS

HS Code

8207191000

Capacity

2500 pieces/Year

Package

30cm*30cm*50cm (120kg)

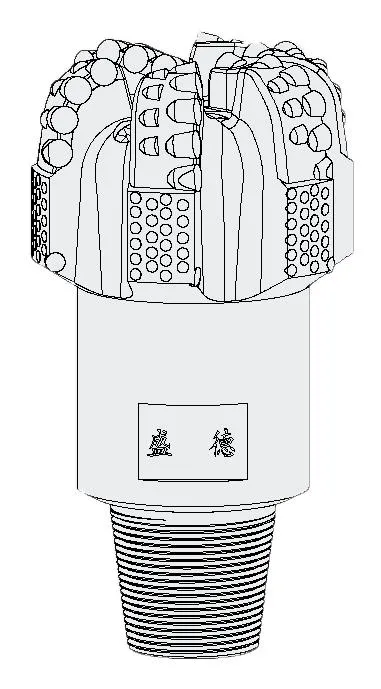

8 3/4" PDC Drilling Bit for Directional Well

Directional well technology can be better developed and utilized for oil, and the use of PDC bits for directional wells can improve drilling efficiency and ensure drilling quality. These directional well drill bits, with unique design concepts for bit orientation and trajectory, have been well received by customers.

Detailed Parameters

Bit type	8-1/2" SS1605DFX
lADC Code	S323
Number of Blades	5
Cutter Size(mm)	Φ15.88MM; Φ13.44MM
Cutter Qty	Φ15.88x32; Φ13.44x45
Nozzle Qty	7
Gauge Protector Length	75mm
Connector	4-1/2" API REG

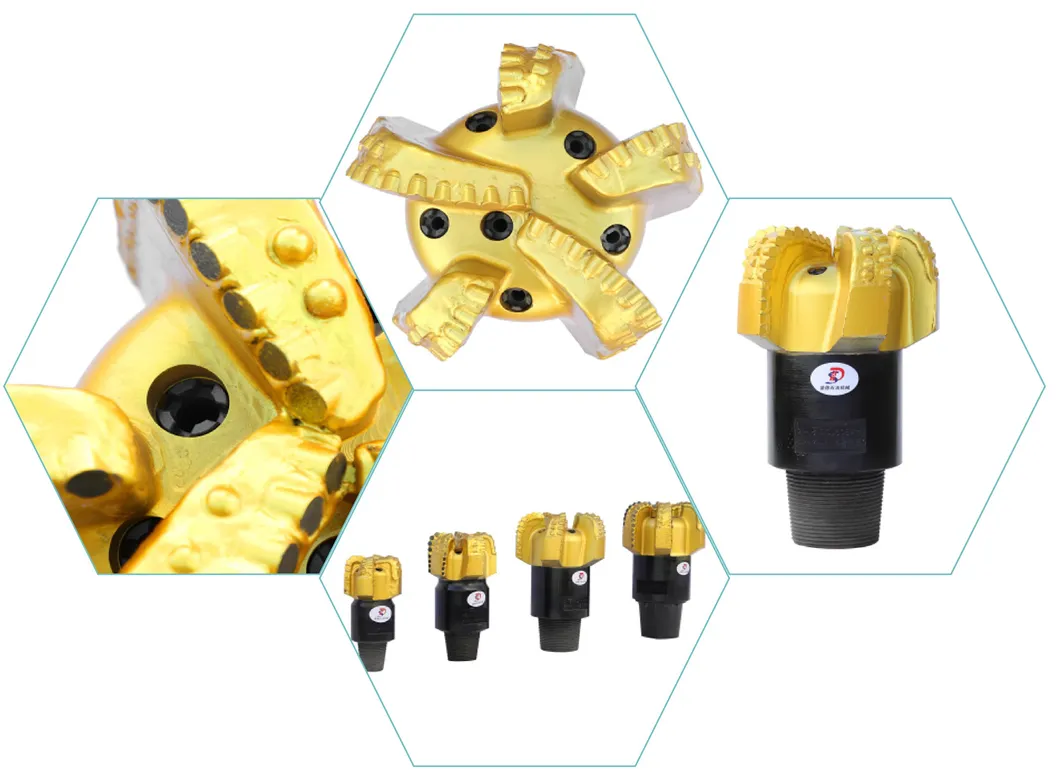

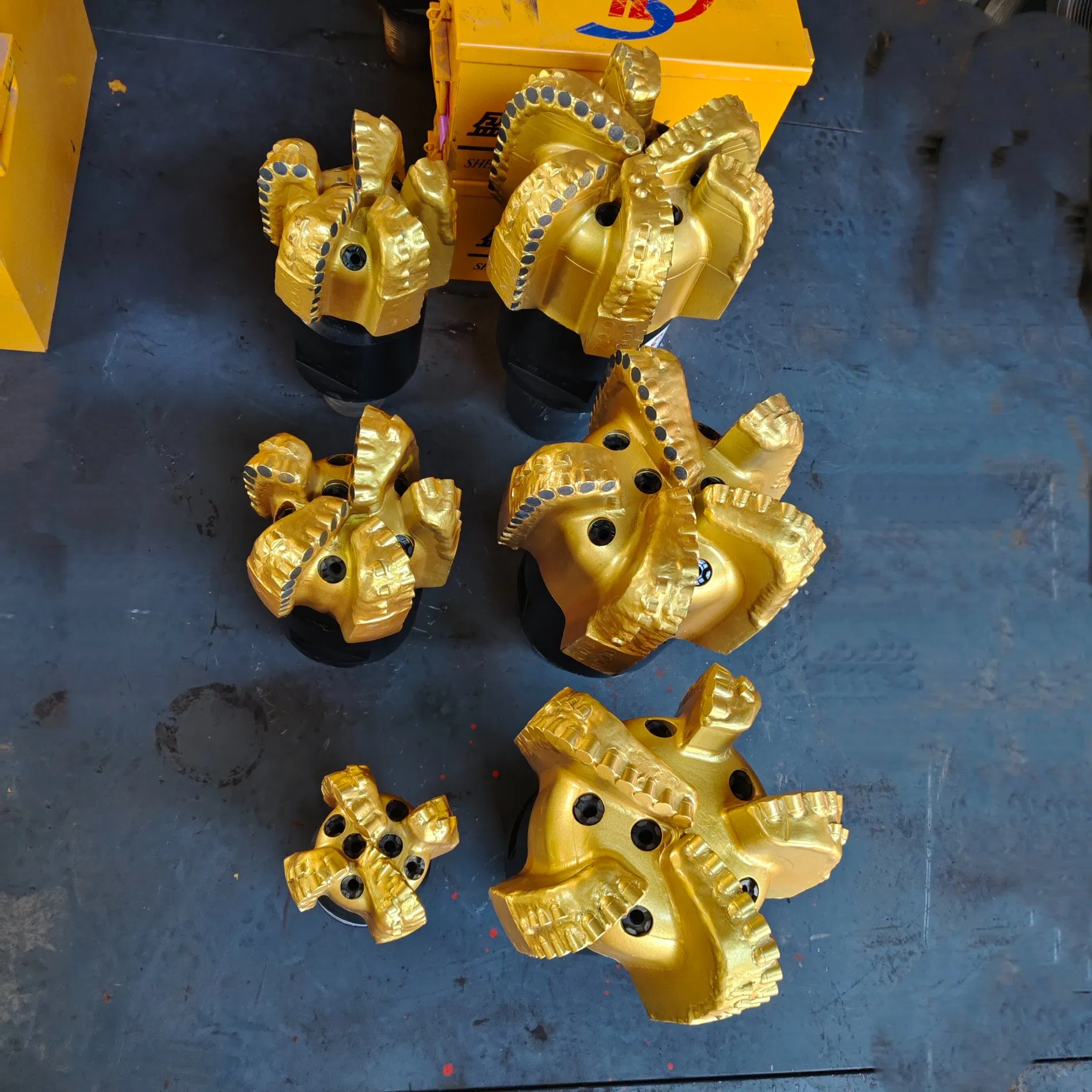

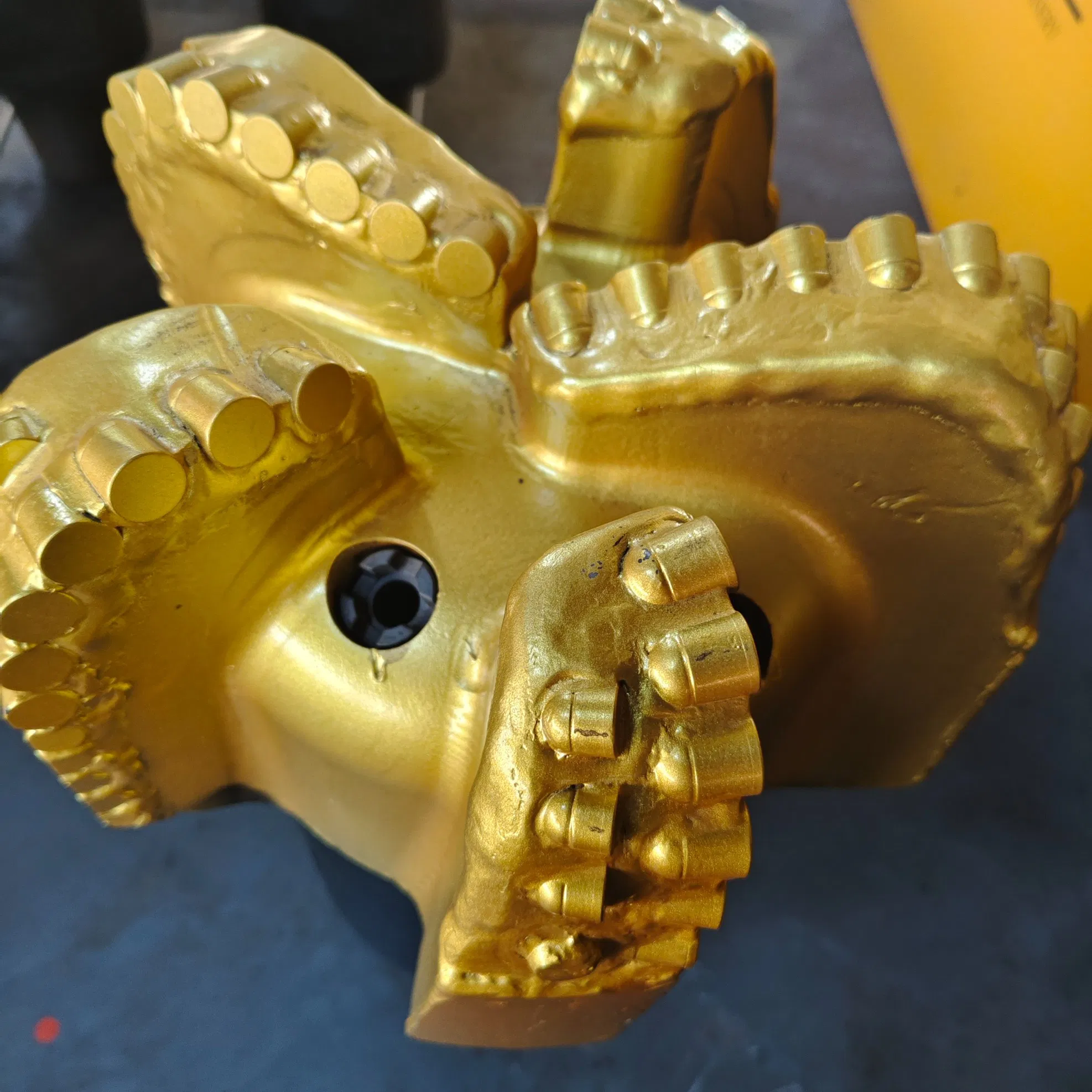

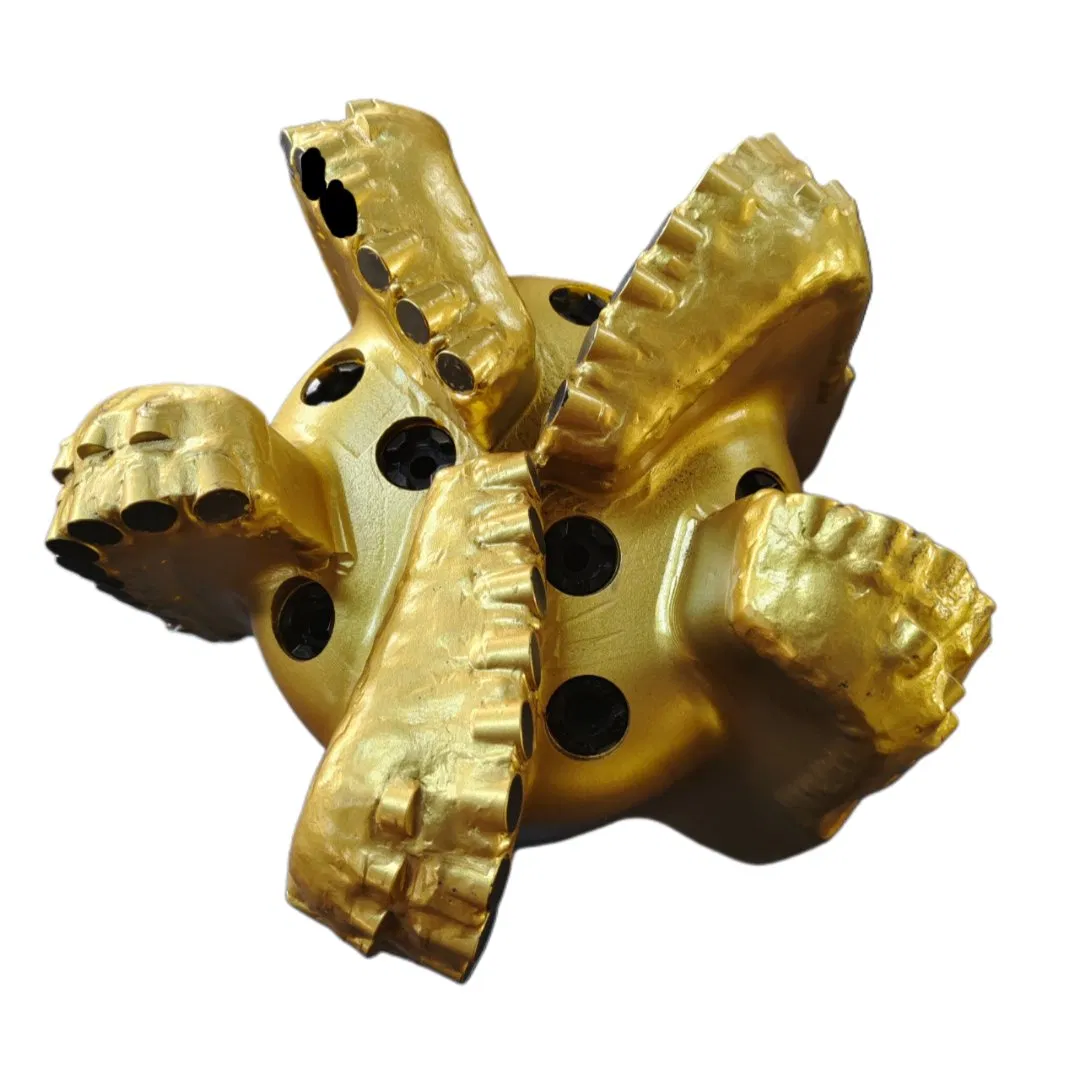

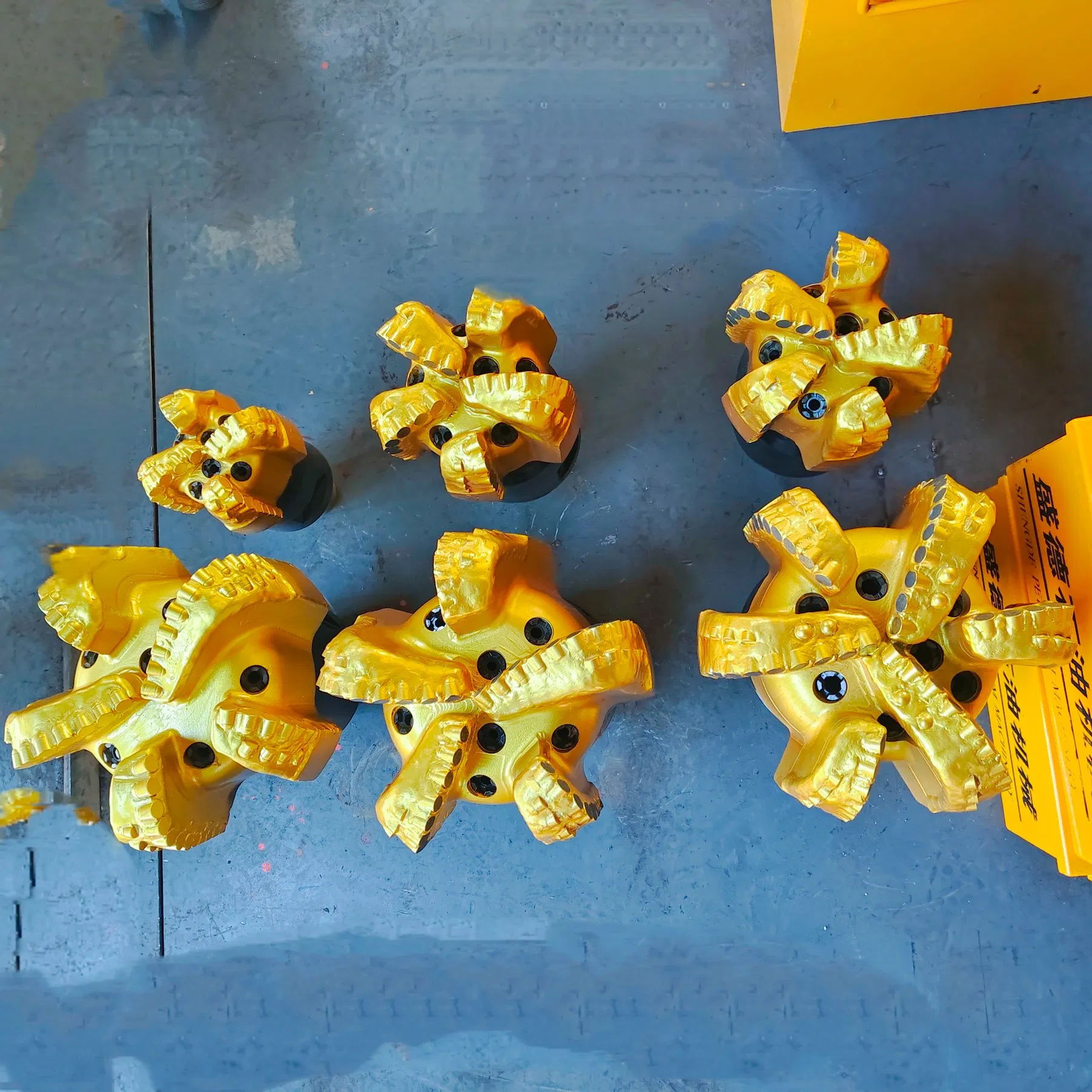

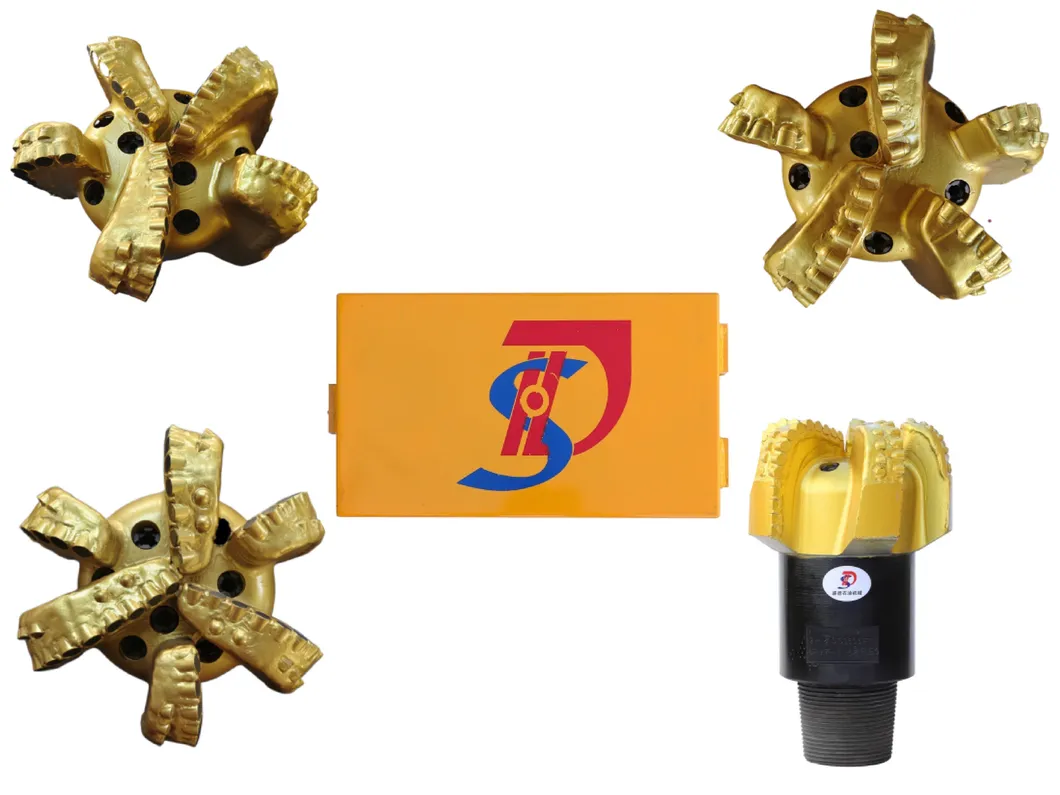

Product Showcase

Frequently Asked Questions

Q: Are you a manufacturer? A: Yes, we are a professional factory specializing in high-performance drilling bits.

Q: What is the estimated delivery time for an order? A: Typical delivery time is 15-25 working days after payment confirmation.

Q: What is the warranty period for your drilling bits? A: Our drilling bits come with a warranty of 400 hours of operation. We provide maintenance support via established service stations.

Q: What are your accepted payment terms? A: We accept payment via T/T, L/C, and Western Union. Other terms can be negotiated upon request.

Q: What materials are used in the drill body construction? A: The drill body is manufactured using high-quality 42CrMo alloy with Polycrystalline Diamond Compact (PDC) wear-resistant layers.

Q: Are these bits suitable for directional drilling? A: Yes, these PDC bits are specifically designed with unique orientation concepts to optimize trajectory and efficiency in directional wells.
