Dome PDC inserts consist of a multilayer structure of diamond and transition layers, significantly improving impact resistance. This makes them the best alternative for roller cone applications.
Applicable Bit Position:Priority for rear row teeth, auxiliary for main teeth (soft to medium-hard broken formations). It buffers impact, protects main teeth, and prevents gravel damage.
Flat and smooth tooth surface with a large contact area, delivering high cutting efficiency and outstanding wear resistance. Uniform force bearing avoids local wear with high cost performance.
Applicable Bit Position:Priority for main teeth. Crushes formation rocks quickly; as rear row teeth, it assists cutting and plays a gauge protection role.

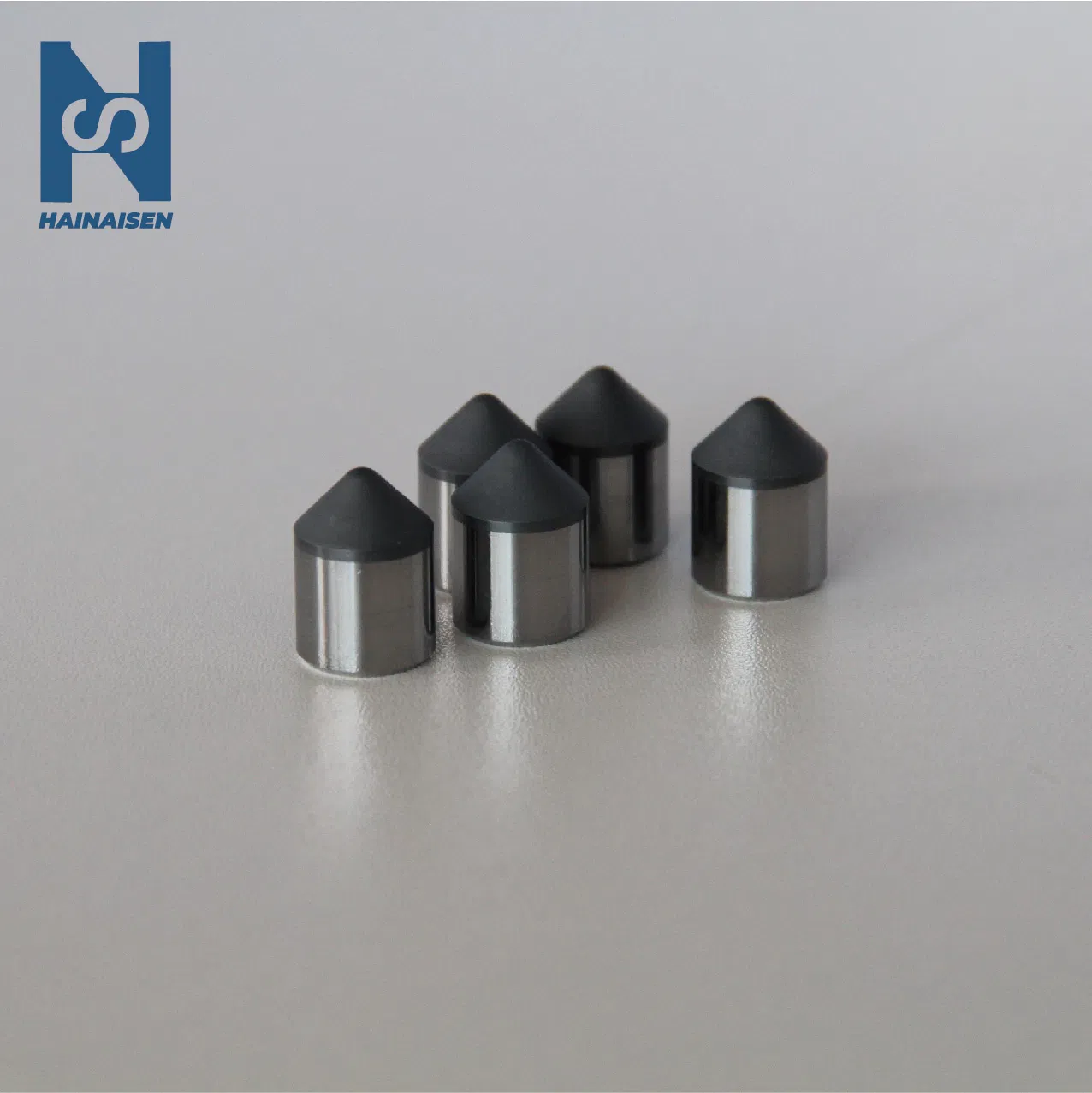

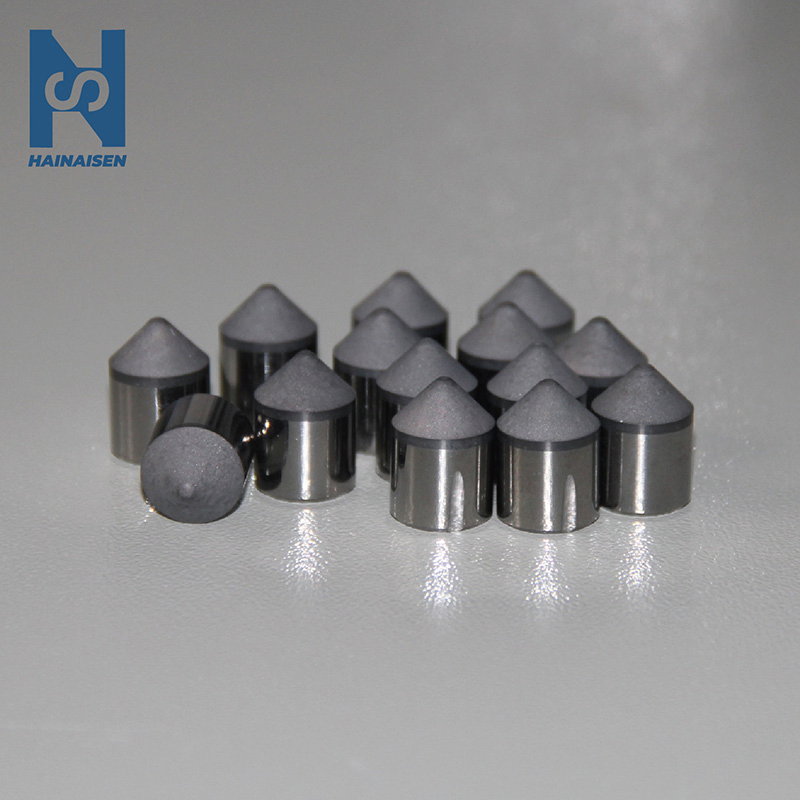

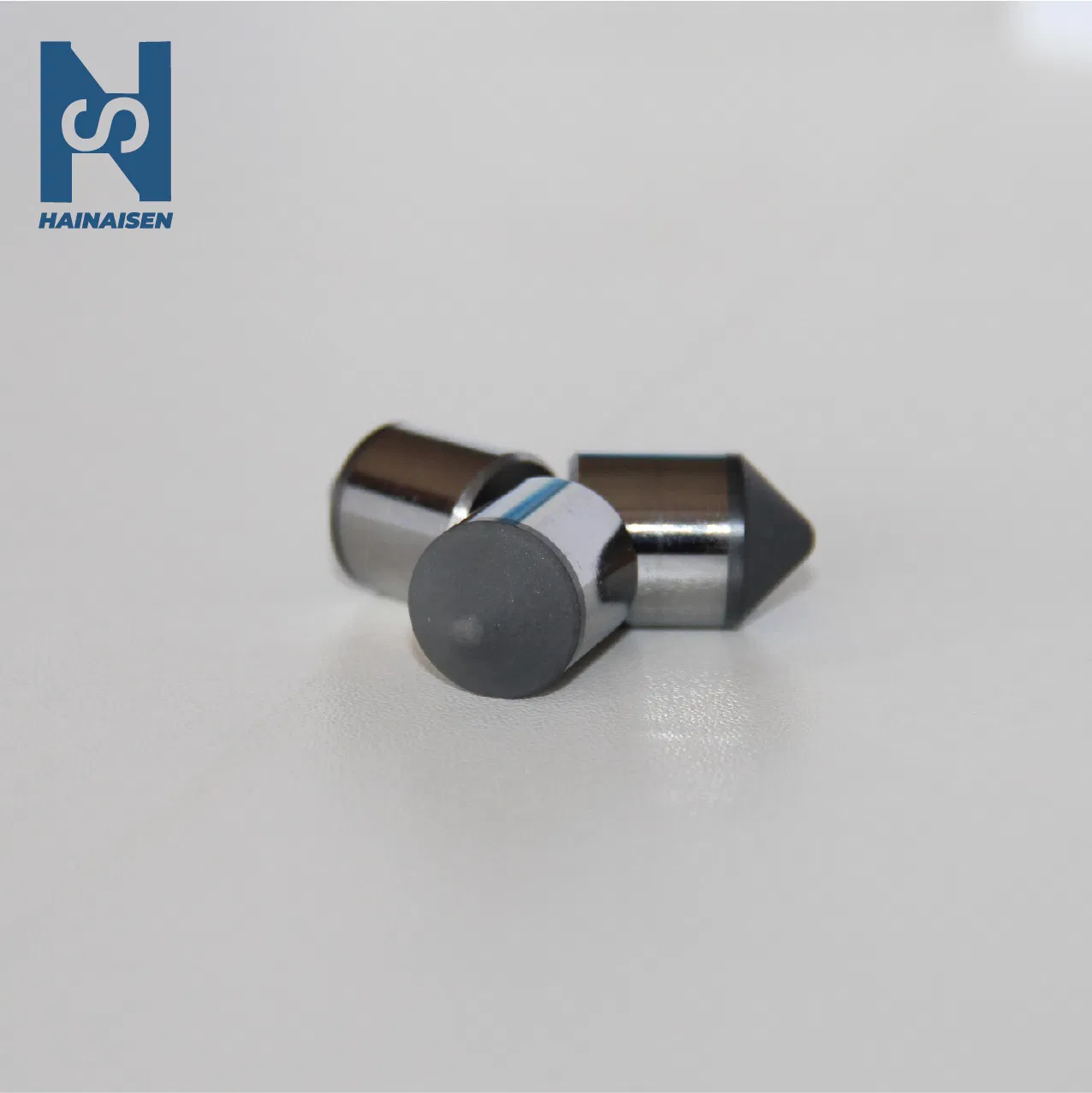

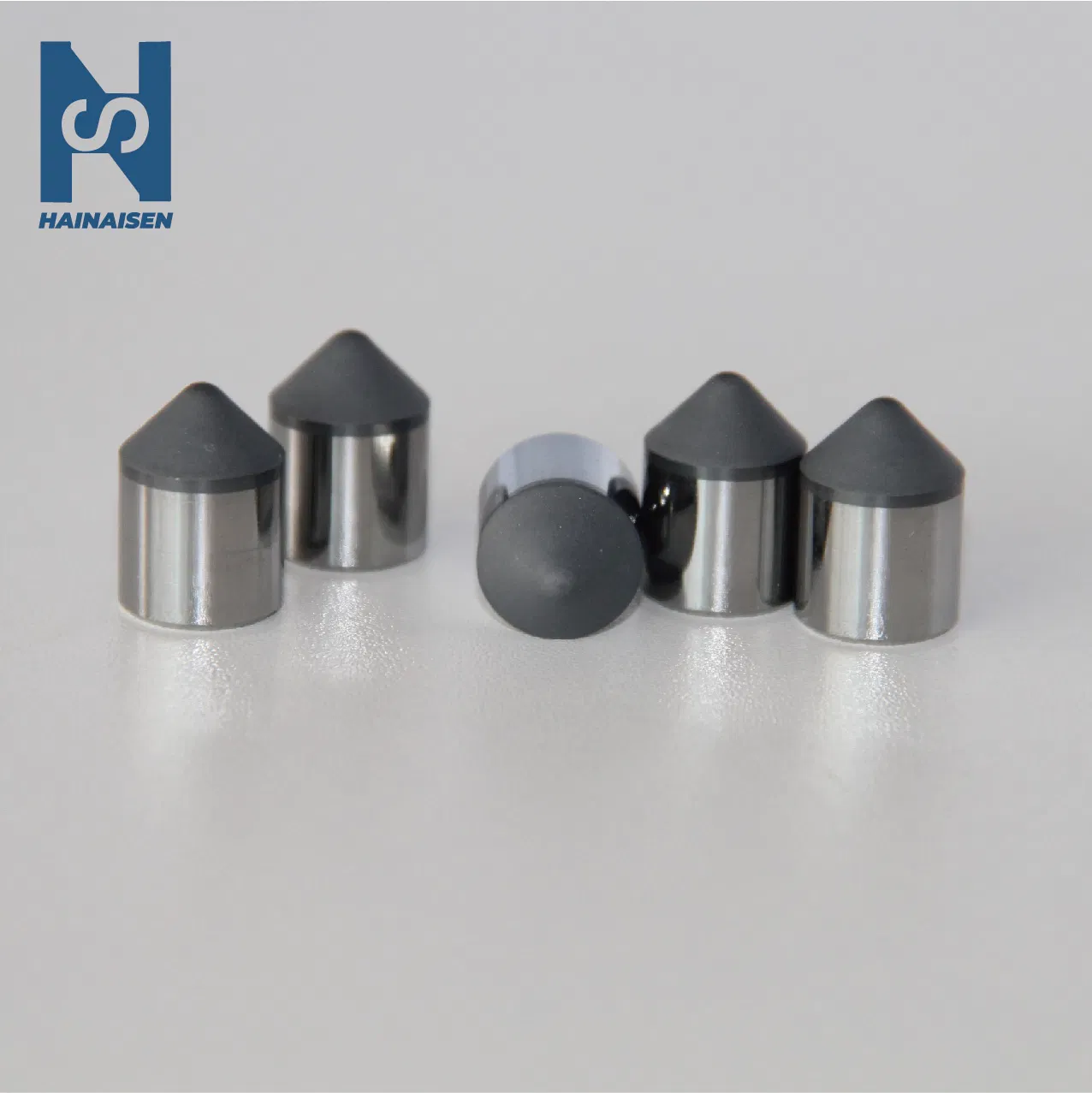

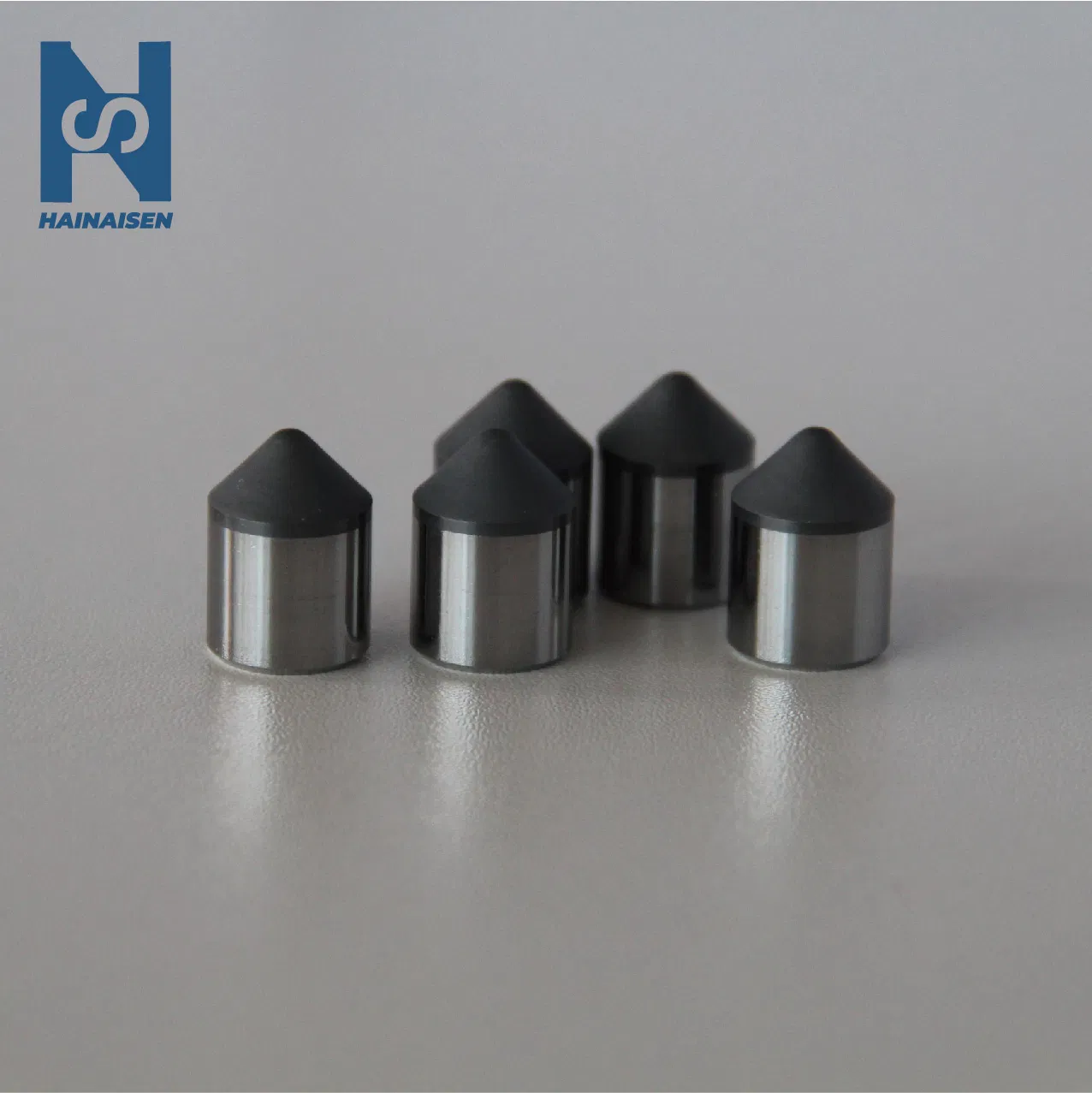

Sharp tapered tooth tip with extremely strong penetration, reducing drilling resistance in medium-hard to hard formations. Disperses stress effectively with excellent impact toughness.
Applicable Bit Position:Exclusively for main teeth. Its core advantage is sharp penetration for hard formation crushing.
| Model No. | Diameter (mm) | Total Height (mm) | Diamond Thickness (mm) | Chamfer (mm) |
|---|---|---|---|---|
| S1308 | 13.44 | 8.00 | 2.00 | 0.40 |
| S1313 | 13.44 | 13.20 | 2.00 | 0.40 |
| S1316 | 13.20 | 15.88 | 2.00 | 0.35 |
| S1613 | 15.88 | 13.20 | 2.40 | 0.40 |
| S1913 | 19.05 | 13.20 | 2.40 | 0.30 |
| S1916 | 19.05 | 16.00 | 2.40 | 0.30 |
| S2219 | 22.20 | 19.05 | 2.00 | 0.30 |
| Model No. | Diameter (mm) | Total Height (mm) | Diamond Thickness (mm) | Chamfer (mm) |
|---|---|---|---|---|
| DE1319 | 12.925 | 19.00 | 4.60 | 5.94 |
| DE2028 | 20.00 | 28.00 | 5.40 | 11.0 |
