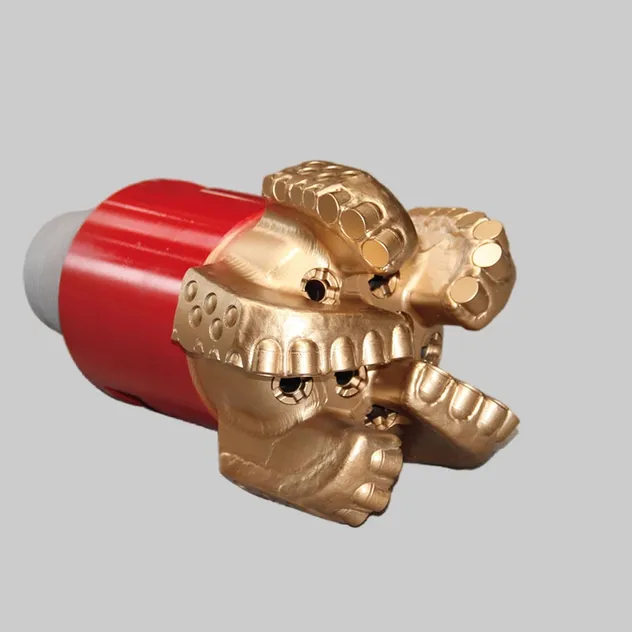

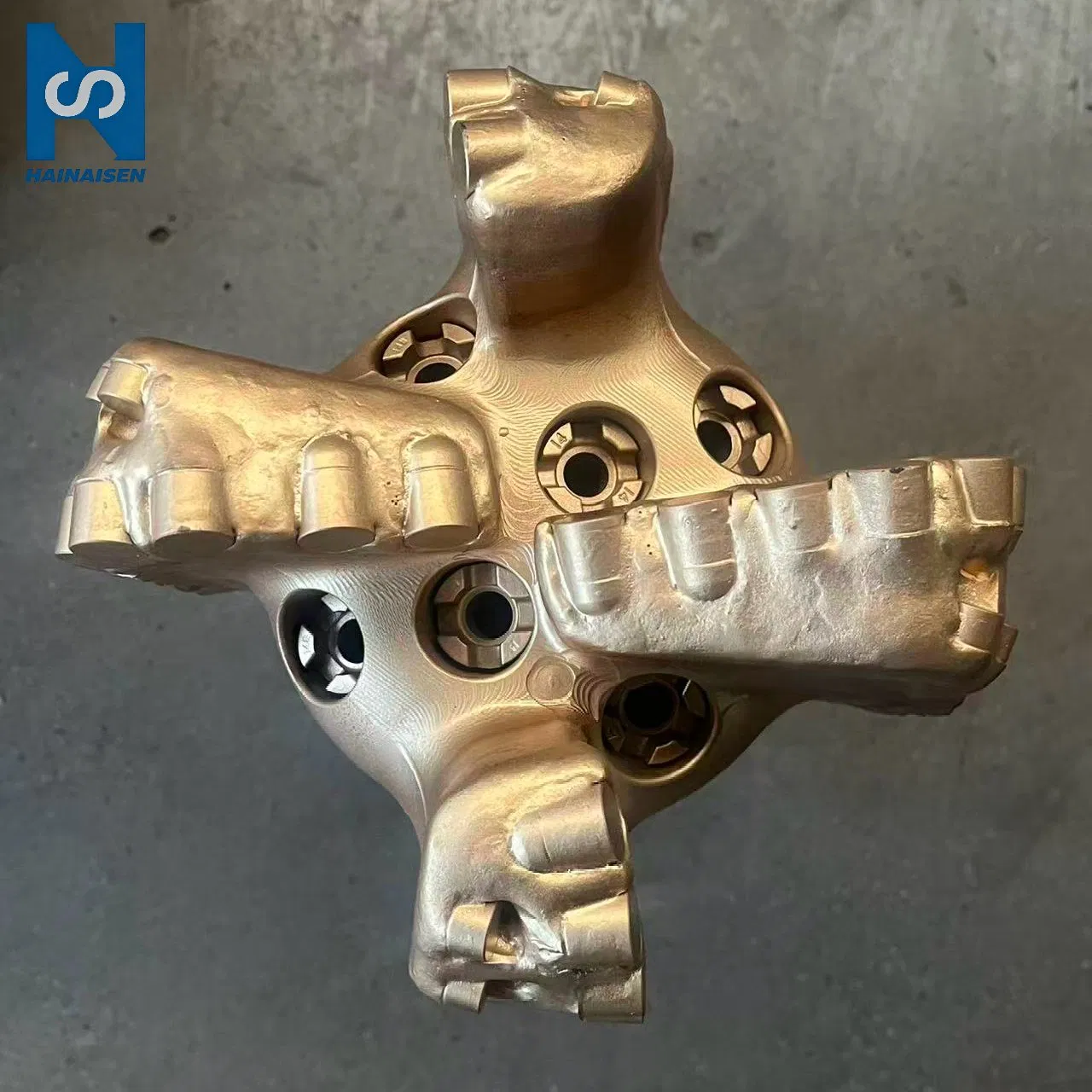

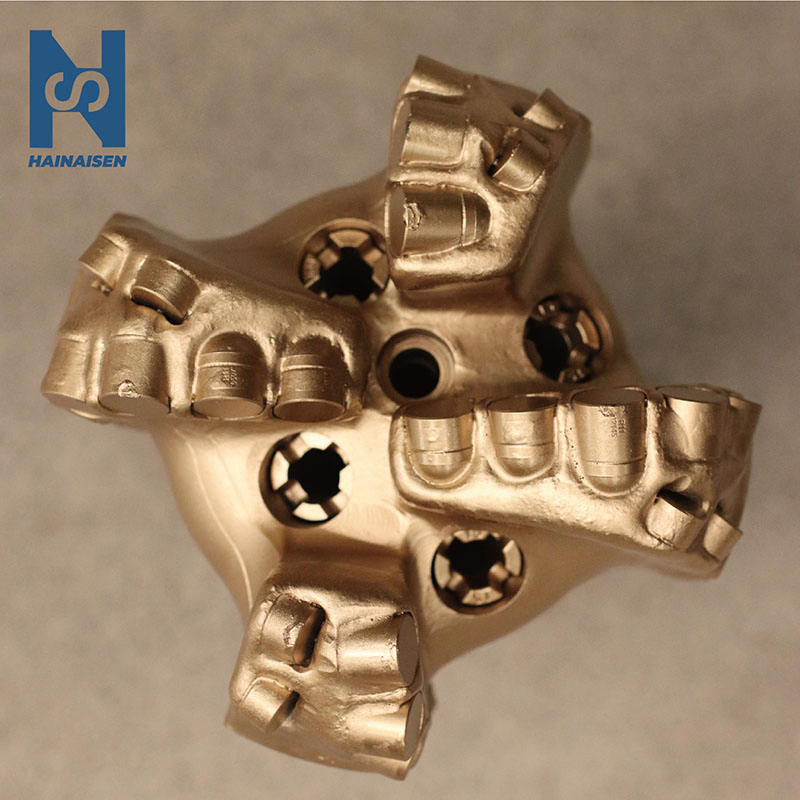

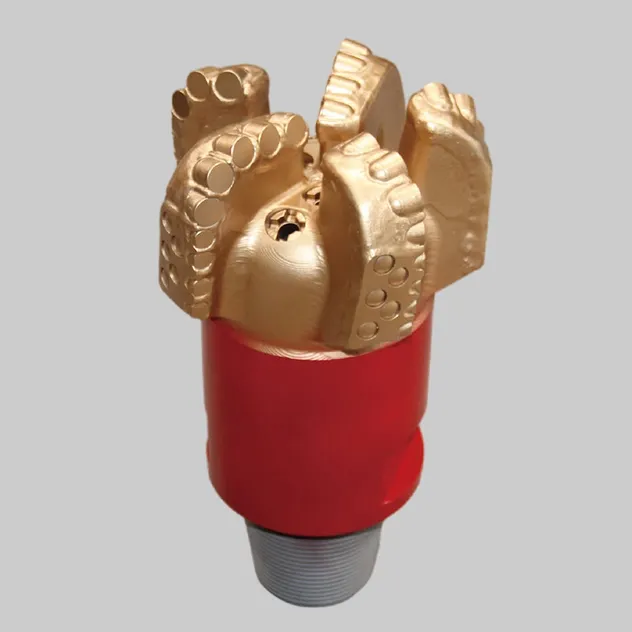

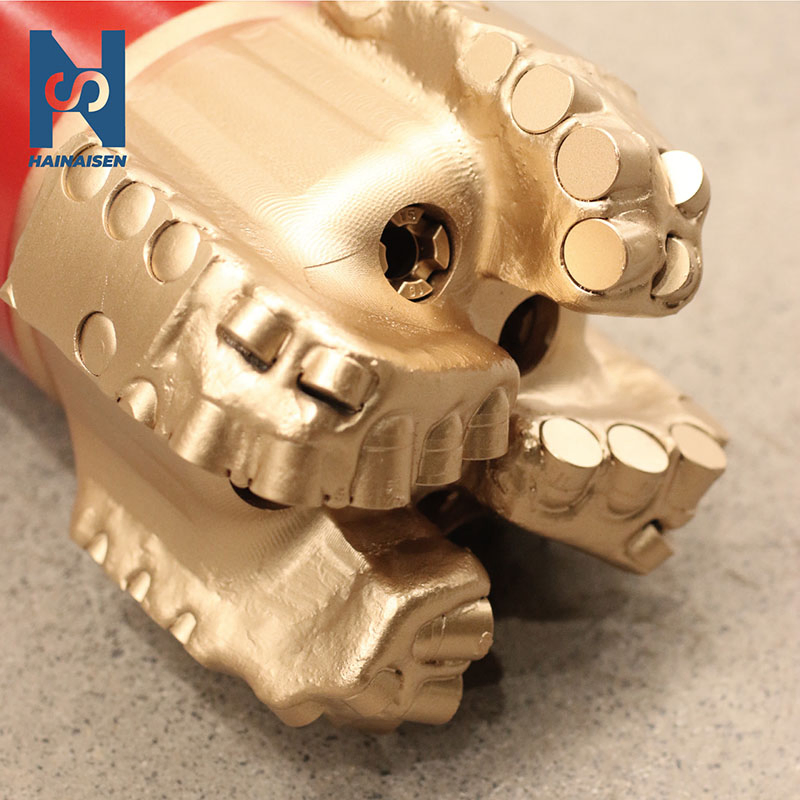

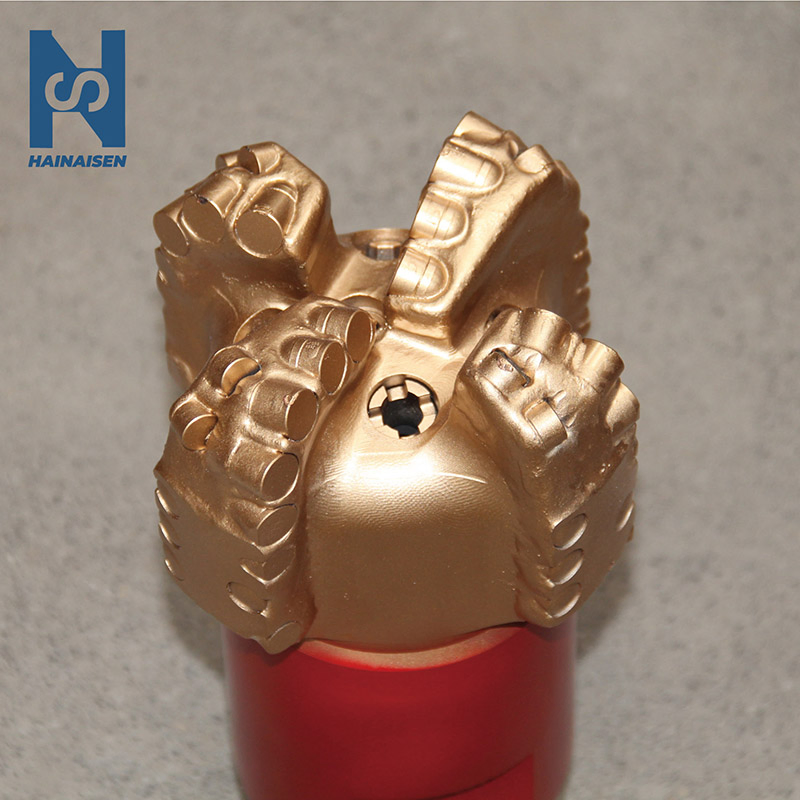

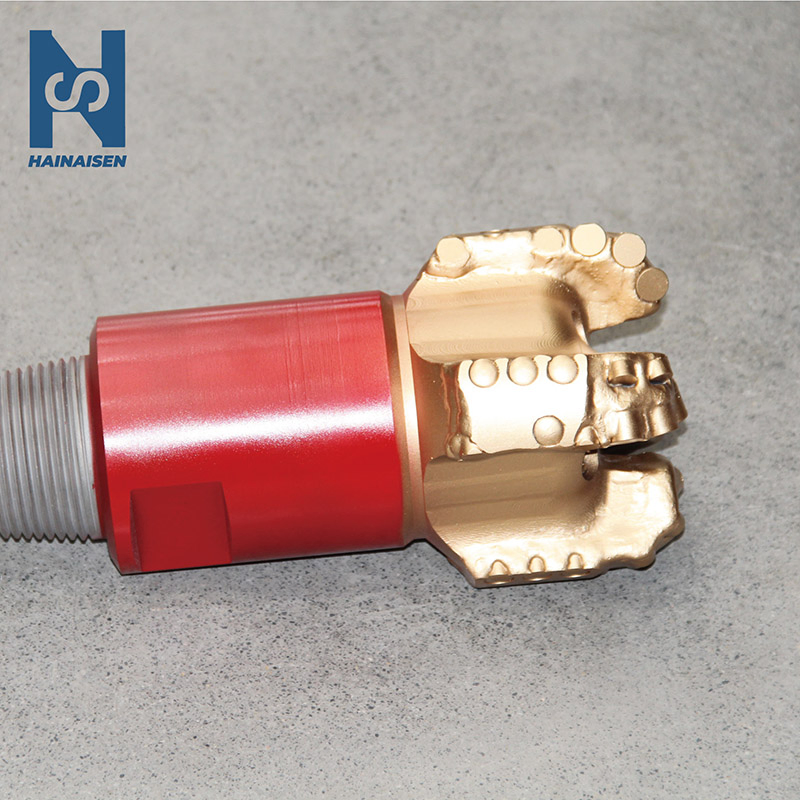

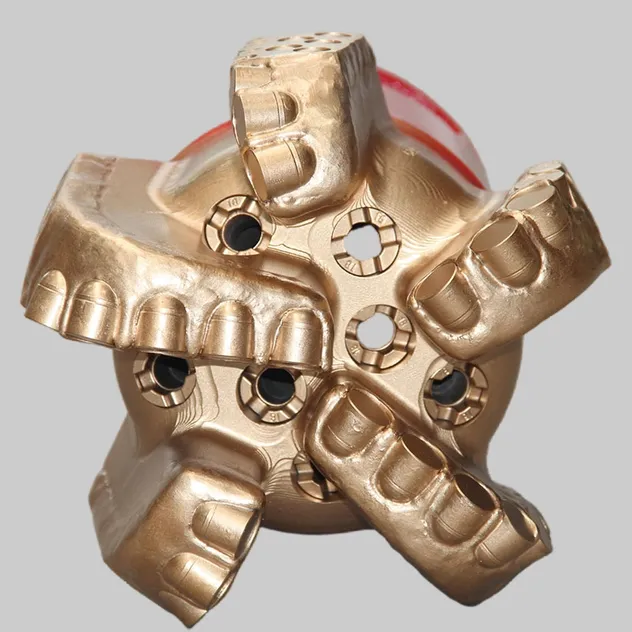

Steel Body PDC Drill Bits: The bit body is constructed from high-quality 4145H round steel, offering a more cost-effective solution compared to matrix body bits while maintaining exceptional performance.

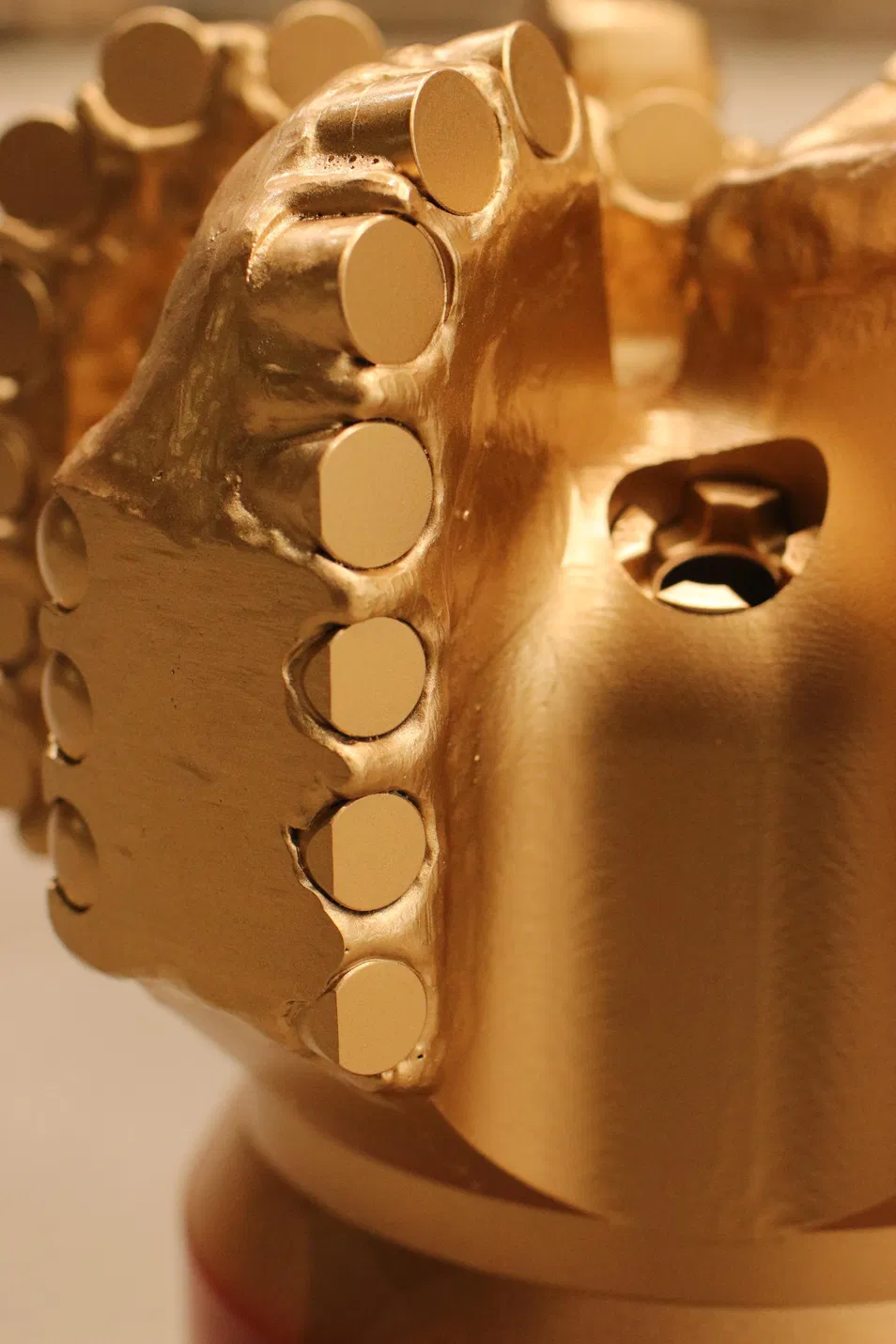

✓Ultra-High Wear-Resistant Cutter Technology: Featuring an independently optimized diamond layer (2.0 to 3.0 mm thick), providing 2.5 times higher wear resistance than industry standards. Achieve drilling footage up to 8,300 meters in abrasive formations.
✓Impact-Resistant Design: High-strength alloy steel with arc transition and surfacing reinforcement increases impact toughness by 30%, eliminating blade cracking in gravel interbeds.
✓Flexible Customization: Support for non-standard diameters (4"–26") and variable blade counts (3–8 blades).
PDC bits are essential for various demanding environments:
| Parameter | Details |
|---|---|
| Size Range | 4" ~ 26" |
| Blade Qty | Customized (3-8 Wings) |
| Weight on Bit (WOB) | 20 ~ 110 |
| Working Temperature | -20℃ to 250℃ (High Thermal Stability) |
| Primary Cutter Size | 13mm / 16mm / 19mm |
| Suitable Formation | Abrasive and Medium-Hard Formations |
| Size (Inch) | Size (mm) | API Reg Pin | Recommended Torque (KN.m) |
|---|---|---|---|
| 4-5/8" | 117.5mm | 2-7/8" REG | 6.1 ~ 7.5 |
| 6" - 6-3/4" | 152.4 - 171.5mm | 3-1/2" REG | 9.5 ~ 12.2 |
| 7-1/2" - 8-3/4" | 190.5 - 222.3mm | 4-1/2" REG | 16.3 ~ 21.7 |
| 9-1/2" - 13-5/8" | 241.3 - 346.1mm | 6-5/8" REG | 38 ~ 43.4 |
| 14-3/4" - 26" | 374.7 - 660.4mm | 7-5/8" REG | 46.1 ~ 54.2 |
Packaging: Secure Wood Box (with Fumigation Tray if required) or Iron Sheet Case for maximum protection during transit.
Delivery Time: Standard models are usually ready for dispatch within 10-15 days.
