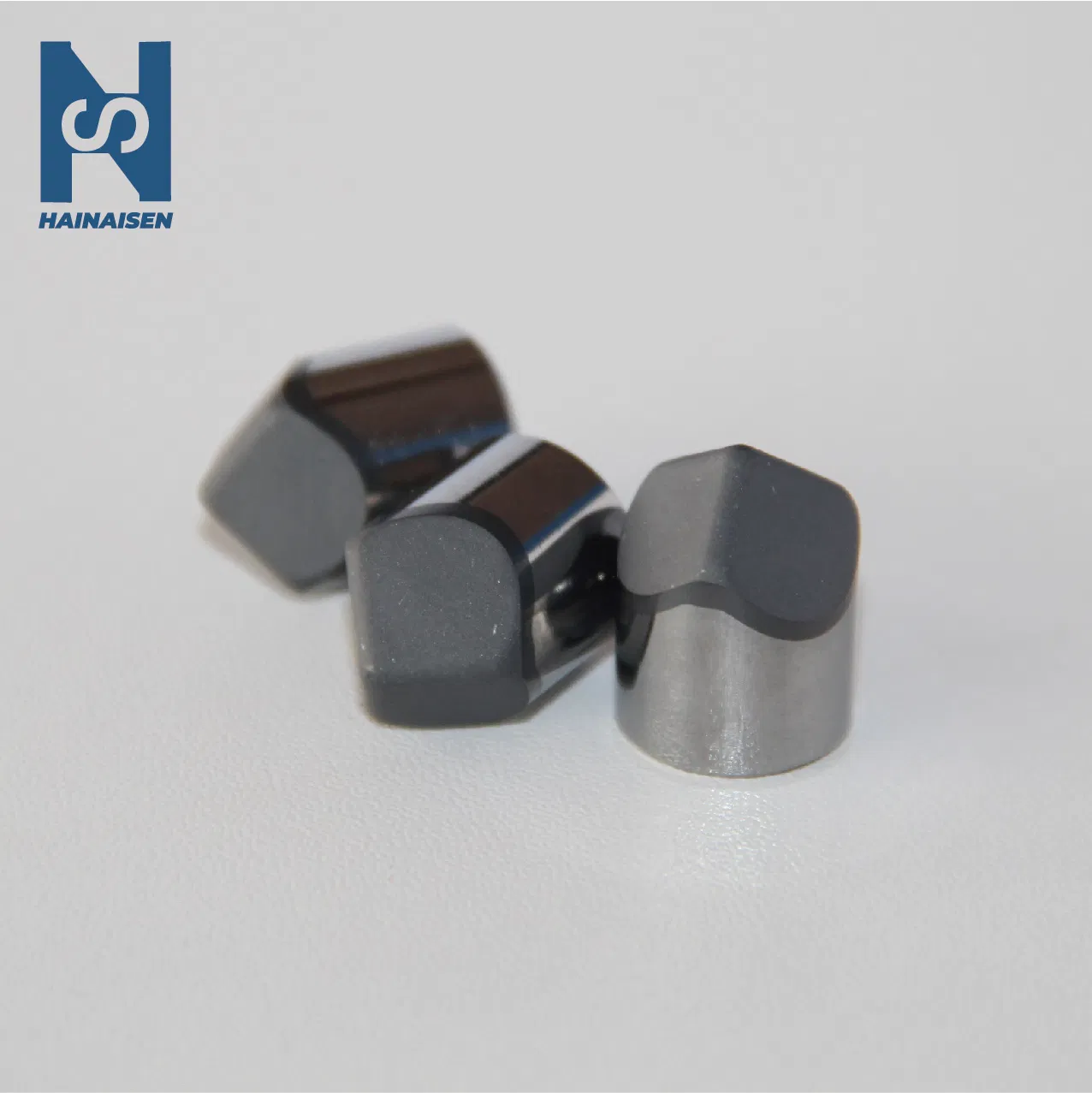

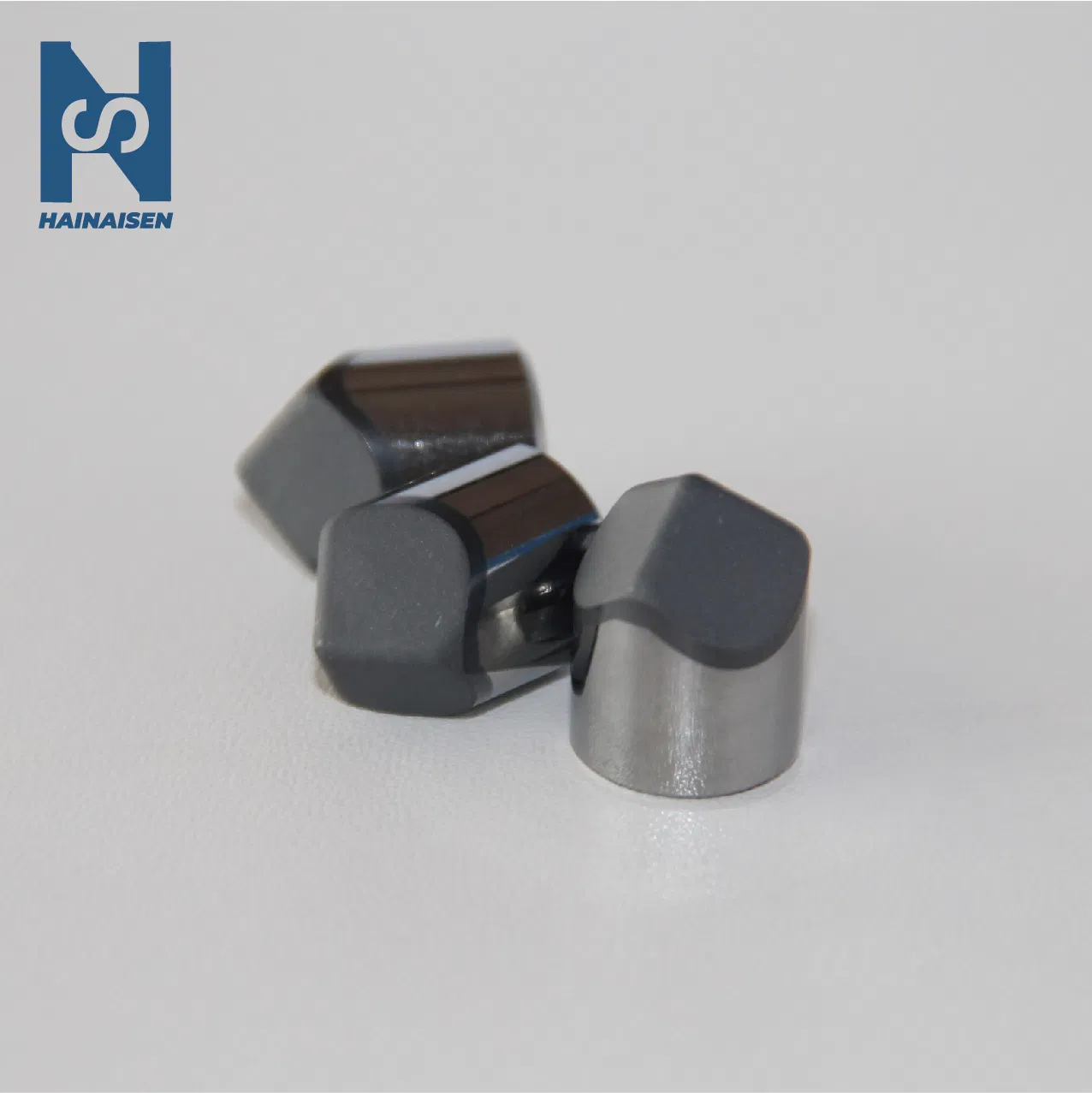

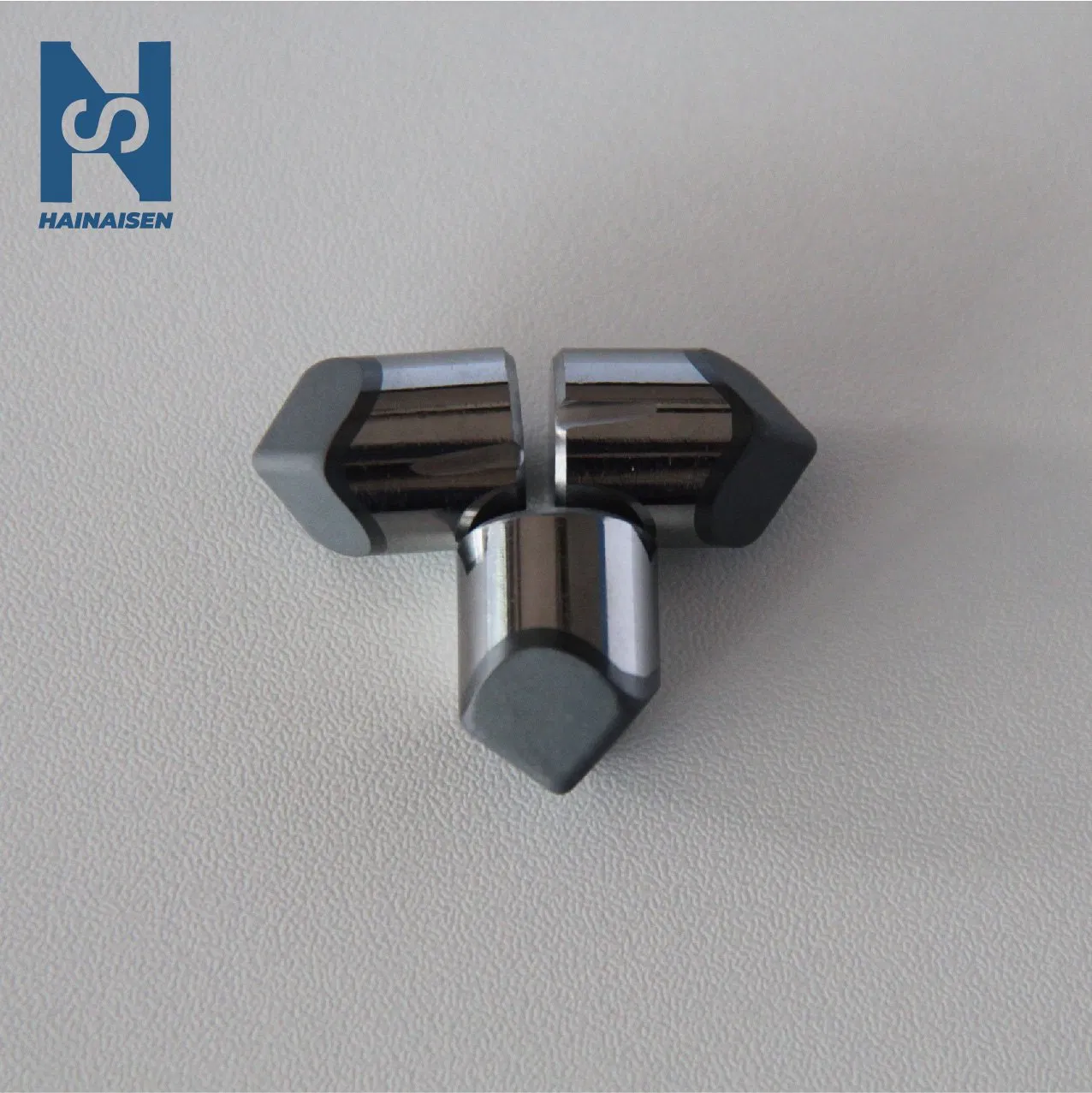

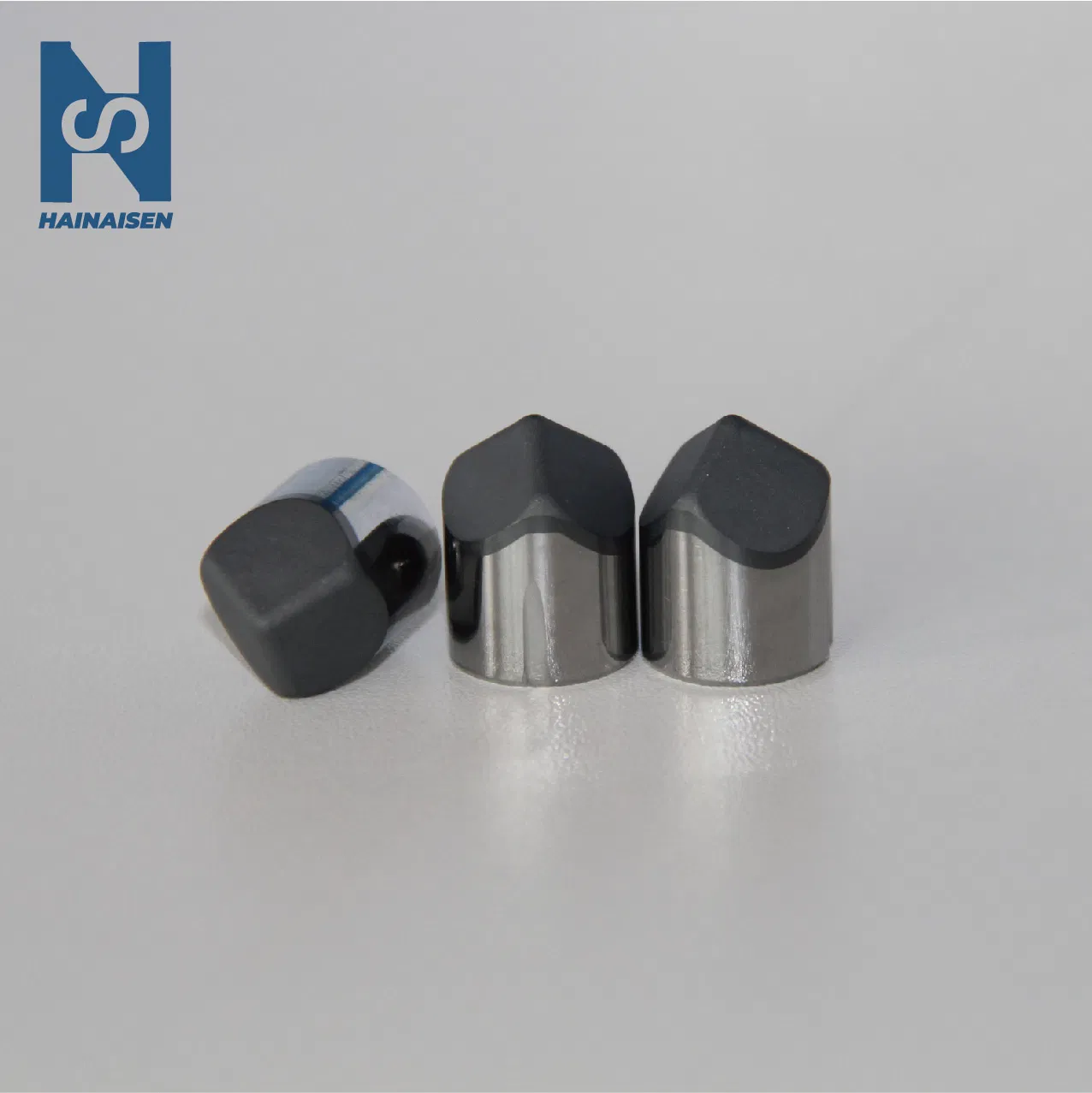

Triangular PDC Cutter 1308 1613 1616 1919 for DTH Hammer Diamond Pick

Customization:	Available
Customized:	Customized
Standard:	ISO

Basic Information

Model NO.

CP1419

Length

Standard

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Usage

Metal Drilling, Oilfield, Gas Field, Mining, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Diamond Grade

PCD

Tolerance

±0.02mm

Impact Toughness

Excellent

Shape

Round

MOQ

100PCS

Product Description

Dome Cutter Series

Core Features:
Multilayer structure of diamond and transition layer, greatly improving impact resistance. The best alternative for roller cone applications.

Applicable Bit Position: Priority for rear row teeth, auxiliary for main teeth in soft to medium-hard broken formations. Buffers impact and protects main cutting parts.

Flat Cutter Series

Core Features:
Flat and smooth surface with large contact area. High cutting efficiency and outstanding wear resistance. Uniform force distribution prevents local wear.

Applicable Bit Position: Priority for main teeth. Crushes formation rocks quickly with high efficiency; also assists in gauge protection as rear row teeth.

Conical Cutter Series

Core Features:
Sharp tapered tip with strong penetration. Reduces drilling resistance in hard formations. Excellent impact toughness to avoid chipping.

Applicable Bit Position: Only for main teeth. Core advantage is sharp penetration for hard formation crushing.

Specifications

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

Application Case

Packing & Delivery

Certifications

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

Do you accept OEM/ODM customization?

Yes. We support OEM (custom logo/packaging) and ODM (custom size/performance) to meet your specific brand and market requirements.

Can PDC Cutters be mixed on one drill bit?

Yes. Different types like half moon and full round PDC Cutters can be combined based on stratum characteristics to optimize drilling efficiency.

Do you provide technical support after sale?

Yes. Our technical team provides online support, including drill bit matching, usage guidance, and failure analysis.

What shipping methods do you support?

We support Express (DHL/FedEx/UPS, 3-7 days), Air (5-10 days), and Sea (20-35 days) shipping, choosing the most cost-effective method for your needs.

Can I place a trial order with a small quantity?

Yes, trial orders are welcome for new customers to test our quality and performance.
