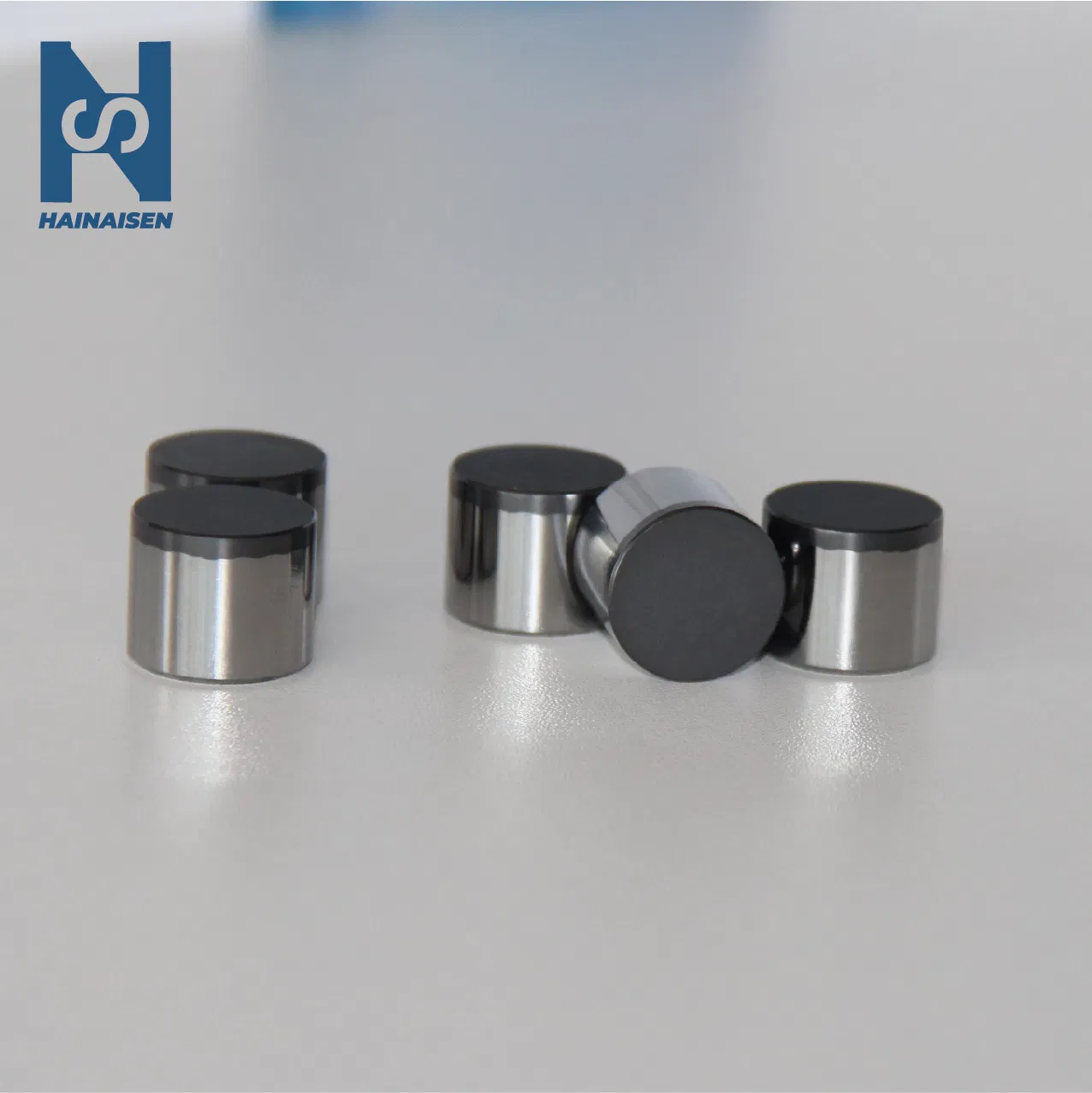

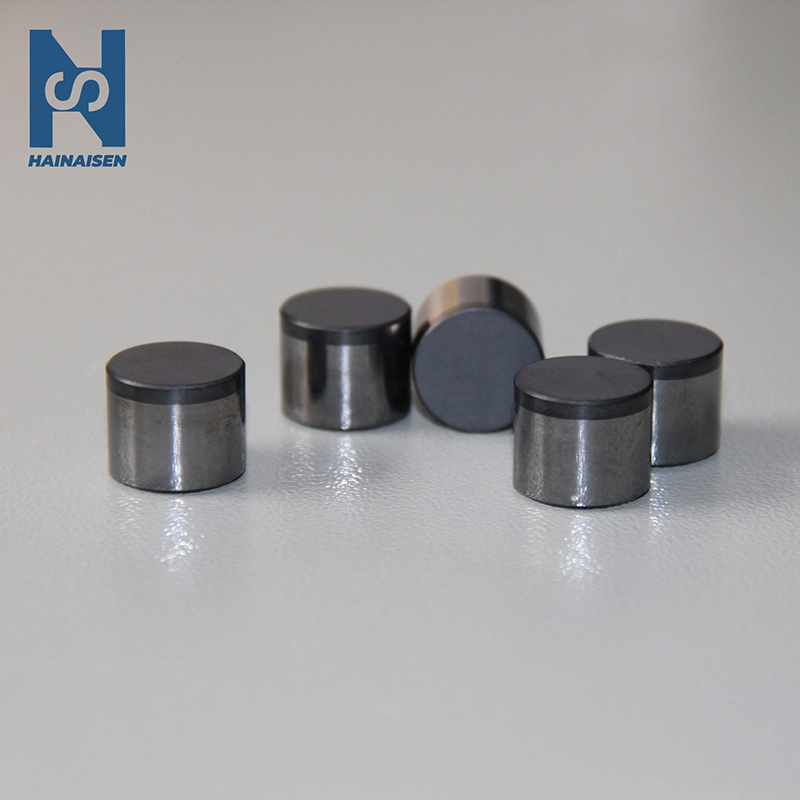

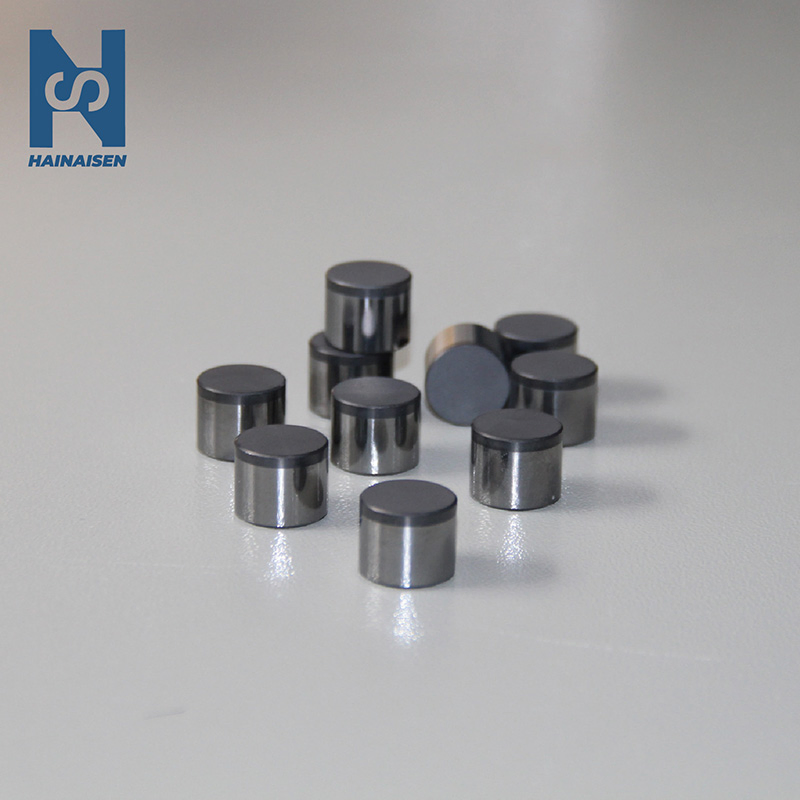

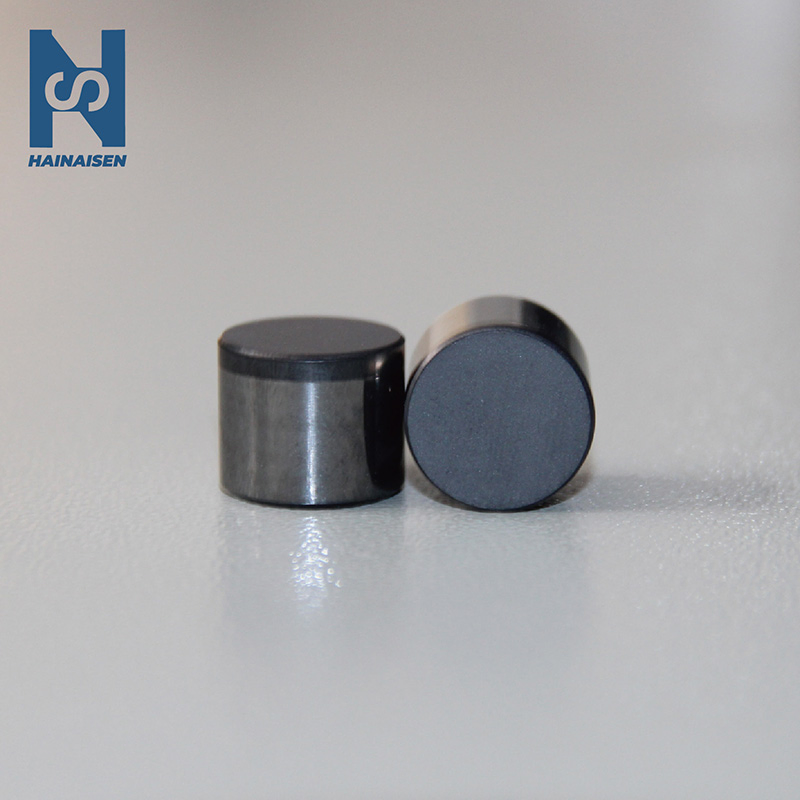

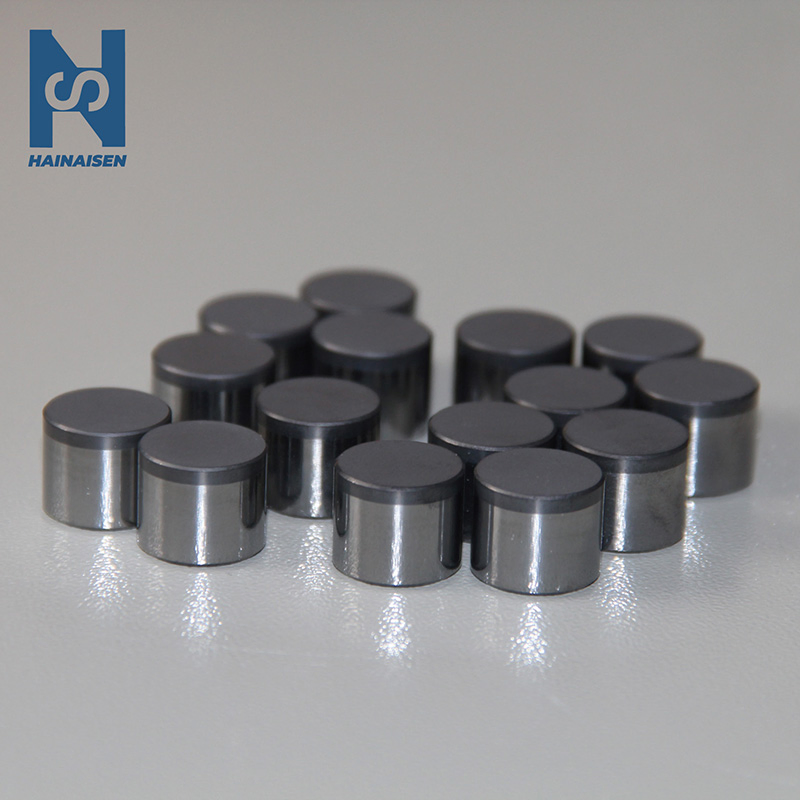

1308/1613/1616/1919 PDC Cutter Round Diamond Compact for Oil Geothermal Mining Drilling

1 / 5

1308/1613/1616/1919 PDC Cutter Round Diamond Compact for Oil Geothermal Mining Drilling

Customization:	Available
Customized:	Customized
Standard:	ISO

Send Inquiry

Product Description

Basic Info.

Model NO.

S1308/1613/1616/1919

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Production Process

Hthp Sintering

Diamond Grade

PCD

Tolerance

±0.02mm

Impact Toughness

Excellent

Certification

ISO 9001

Origin

China

Capacity

10000 pieces/Year

Product Description

Dome Cutter Series

Core Features: Multilayer structure of diamond and transition layer, improving impact resistance greatly. Best alternative for roller cone applications.

Applicable Bit Position: Priority for rear row teeth. Buffers impact, protects main teeth and prevents gravel damage.

Flat Cutter Series

Core Features: Flat and smooth tooth surface with large contact area, delivering high cutting efficiency and outstanding wear resistance.

Applicable Bit Position: Priority for main teeth, crushes formation rocks quickly. Also available for gauge protection.

Conical Cutter Series

Core Features: Sharp tapered tip with extremely strong penetration. Disperses stress effectively with excellent impact toughness.

Applicable Bit Position: Specifically for main teeth in hard formation crushing. Not recommended for rear row teeth.

Specification

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

Application Case

Packing & Delivery

Certifications

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

Do you accept OEM/ODM customization?

Yes. We support OEM (custom logo/packaging) and ODM (custom size/performance) to meet your specific brand and market requirements.

Can PDC Cutters be mixed and used on one drill bit?

Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics, optimizing drilling efficiency and stability.

Do you provide technical support after sale?

Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

What shipping methods do you support?

We support express (DHL/FedEx/UPS, 3-7 days), air freight (5-10 days), and sea freight (20-35 days) based on your urgency and address.

Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our quality and service.
