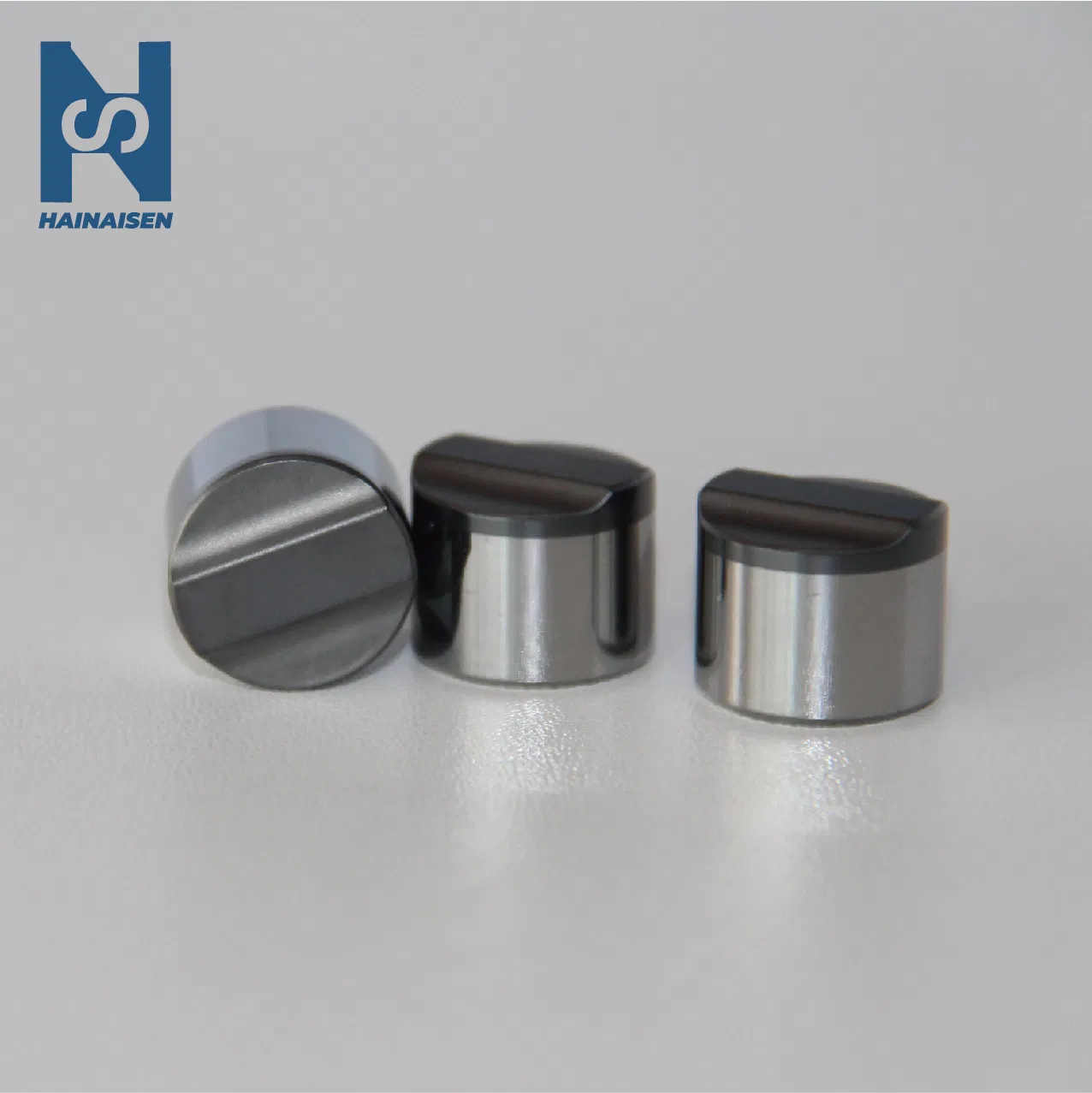

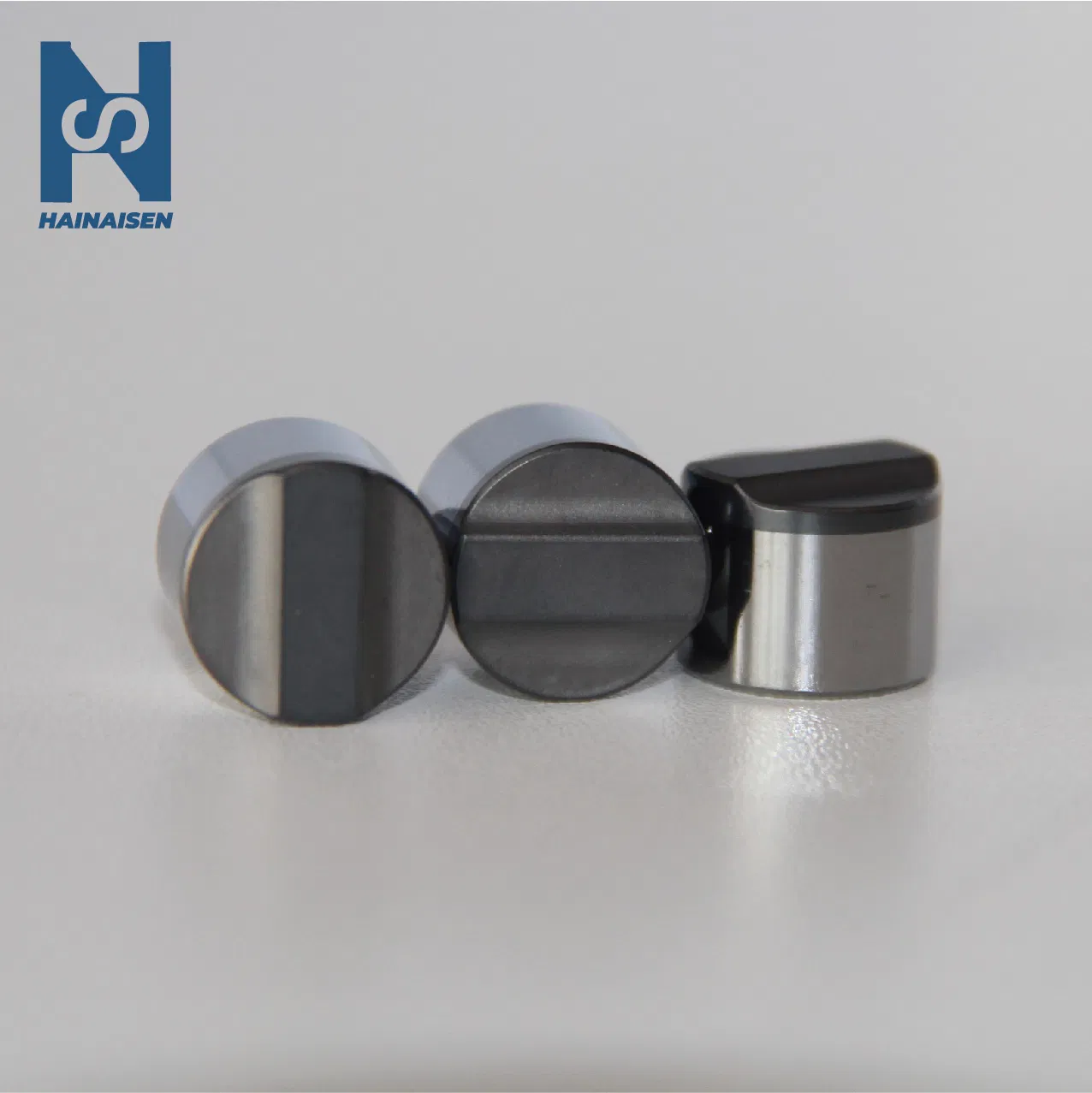

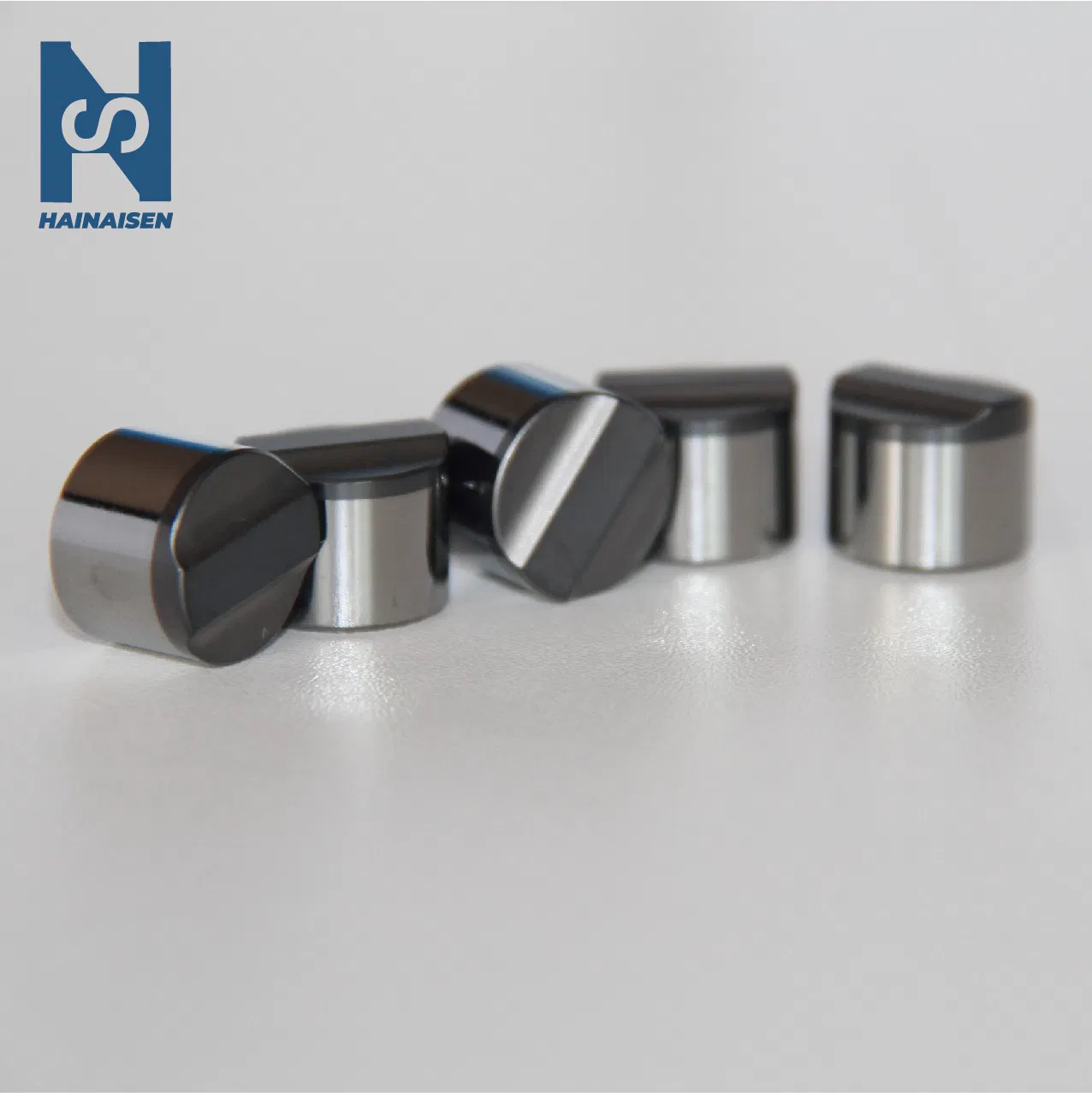

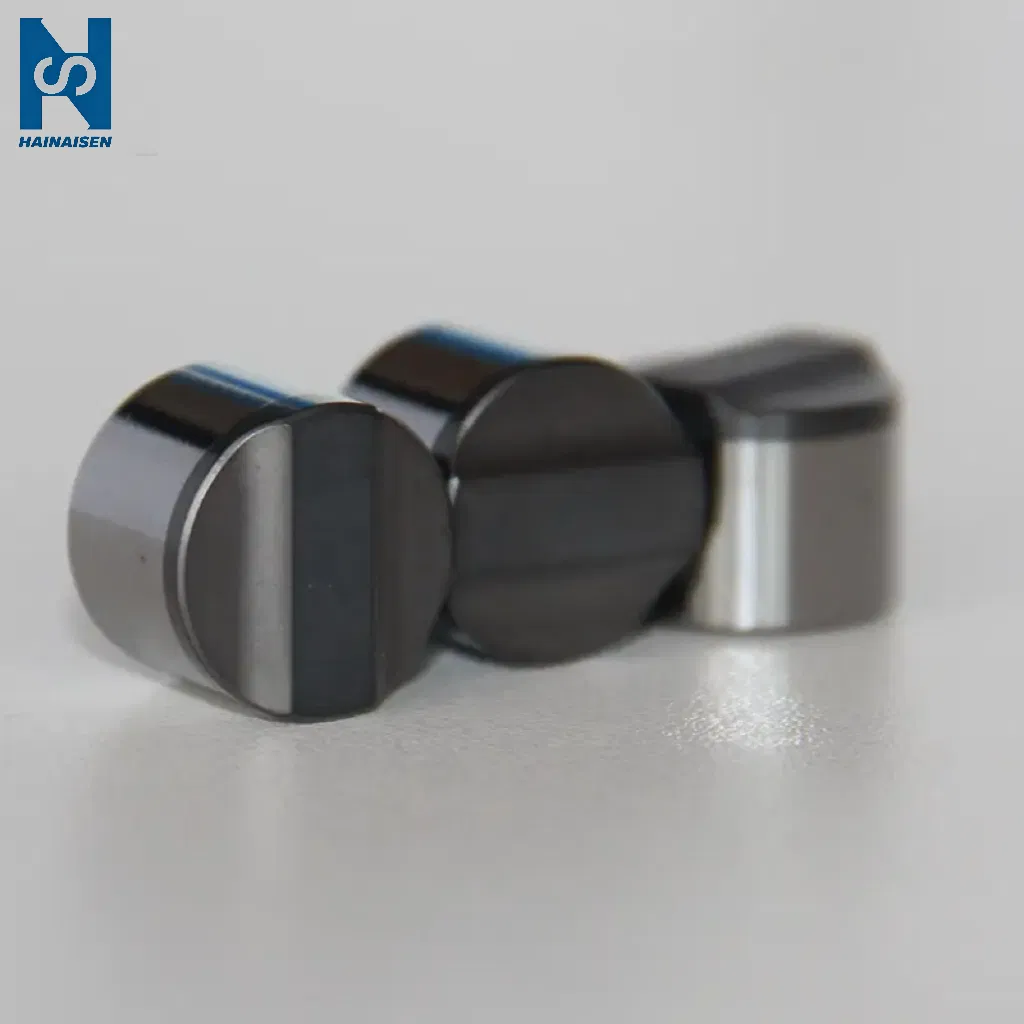

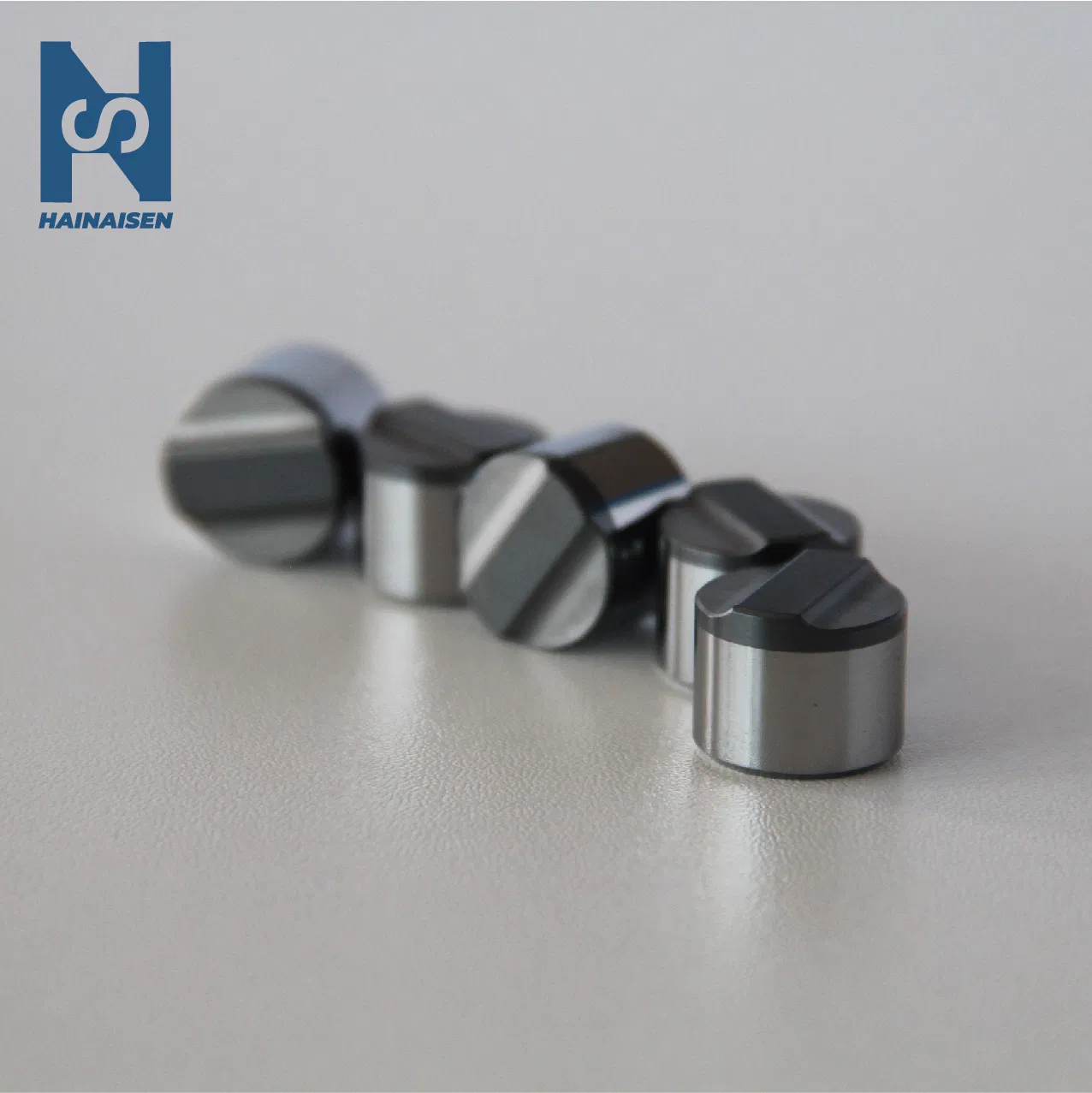

Durable Ridge Face PDC Cutter for Efficient Mining Drill Bits

Customization:	Available
Customized:	Customized
Standard:	ISO

📦 Basic Information

Model NO.

MR1613

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Usage

Metal Drilling, Oilfield, Gas Field, Mining, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Process

HTHP Sintering

Diamond Grade

PCD

Diameter

15.88

Tolerance

±0.02mm

Impact Toughness

Excellent

Origin

China

🛠️ Product Description

Dome Cutter Series

Core Features: Dome PDC inserts consist of multilayer structure of diamond and transition layer, improving impact resistance greatly, which makes dome PDC inserts the best alternative to be applied in roller cone.

Applicable Position: Priority for rear row teeth, auxiliary for main teeth. As rear row teeth, it buffers impact and protects main cutting parts.

Flat Cutter Series

Core Features: Flat and smooth tooth surface with large contact area, delivering high cutting efficiency and outstanding wear resistance. Uniform force bearing avoids local wear.

Applicable Position: Priority for main teeth, also available for rear row teeth. It crushes formation rocks quickly with high cutting efficiency.

Conical Cutter Series

Core Features: Sharp tapered tooth tip with extremely strong penetration, reducing drilling resistance and breaking medium-hard to hard formations quickly. Effectively disperses stress to avoid chipping.

Applicable Position: Only for main teeth. Core advantage is sharp penetration for hard formation crushing.

📋 Specification

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

🎯 Application Case

📦 Packing & Delivery

📜 Certifications

❓ Frequently Asked Questions

1. Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive prices and stable quality.

2. Do you accept OEM/ODM customization?

Yes. We support OEM (custom logo/packaging) and ODM (custom size/performance) to meet your specific brand and market requirements.

3. Can PDC Cutters be mixed used on one drill bit?

Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics, optimizing drilling efficiency and stability.

4. Do you provide technical support after sale?

Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

5. What shipping methods do you support?

We support Express (DHL/FedEx/UPS, 3-7 days), Air (5-10 days), and Sea (20-35 days). We choose the most cost-effective way based on urgency.

6. Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our quality and performance.
